YBBOTT DC DC Converter 9V-32V to 12V 10A 120W Step Down Converter Voltage Regulator Transformer with Fuse Waterproof Power Adapter Supply for Golf Cart Car
Limited time offer, ends 07/28 By Ceelys Store
- POWER CONVERTER: DC 9V-32V to 10A 12V step down converter with stable performance and conversion efficiency above 85% Durable and better heat protection; The internal gluing and aluminum alloy outer box, with excellent fluidity
- VOLTAGE RANGE: Input voltage: 9V to 32V; Output voltage: DC 12V; Output current: 10A; Maximum output power: 120W; Small Size and easy to place in any applications; The converter is shockproof, dustproof, stable and reliable quality

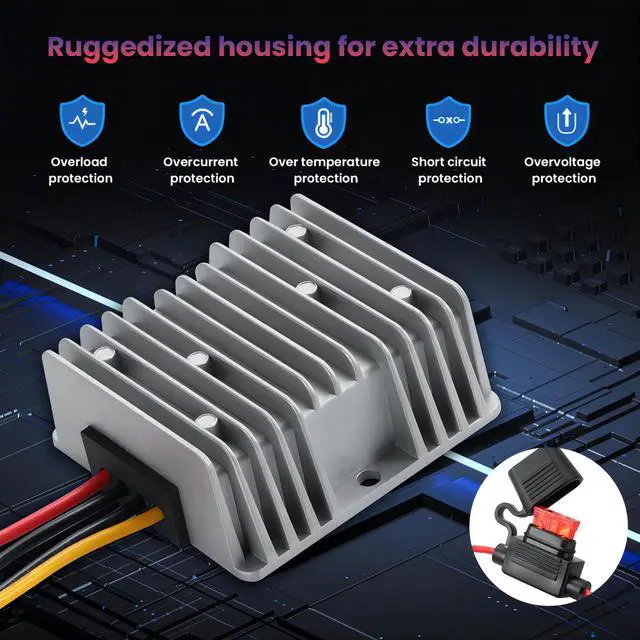

- INTELLIGENT PROTECTION: Supports output short-circuit protection, overcurrent protection, and overtemperature protection; Operating temperature -40 to +65, when the working environment temperature 40, in order to extend the service life of the power supply, please use the rated output current 40%

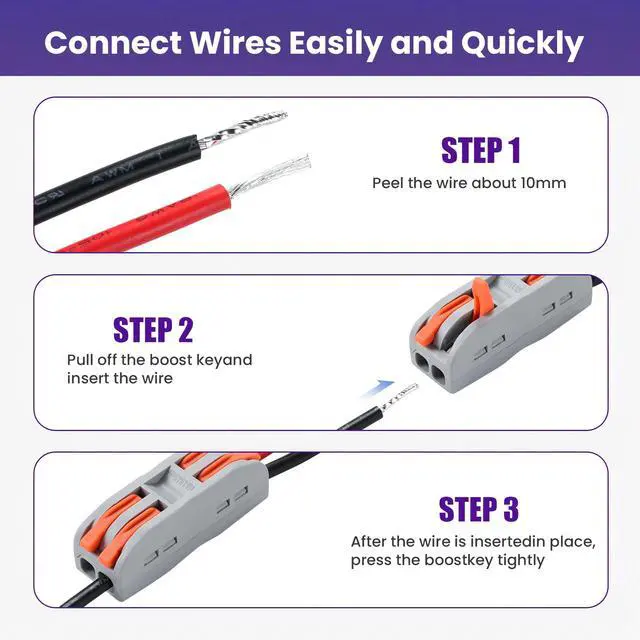

- INSTALLATION: Easy to install, pull of the key 90MAX, insert the wire, press the key tightly; The converter has a red, yellow and black wire, the red and yellow are connected to the positive electrode, and the black is connected to t
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specification ParametersTypical input voltage: 12V
or 24VInput range: 9V
to 32VOutput voltage setting: 12VOutput
current: 10AOutput
power: 120WWorking
ambient temperature: -25 to 65 ambient temperature over 40 reduce power useStorage ambient temperature: -40 to 85

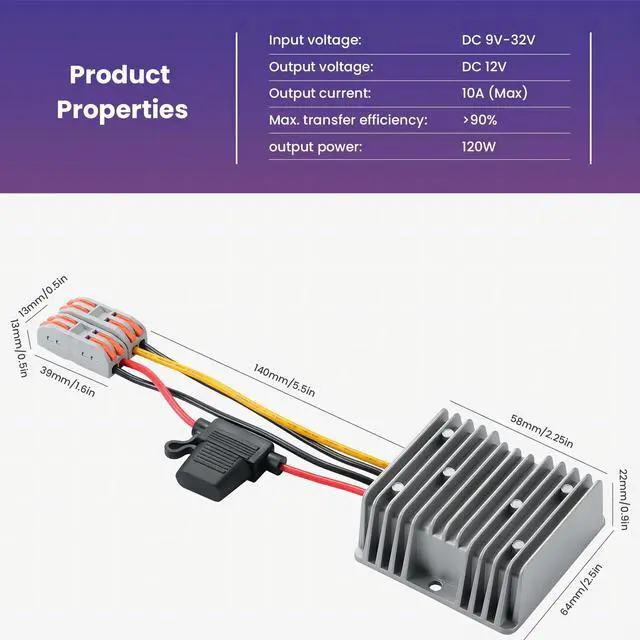

CDimensions: Length 74 mm or 2.91 inches x Width 74 mm or 2.91 inches x Height 32 mm or 1.25 inchesWeight: 260 gramsWiring

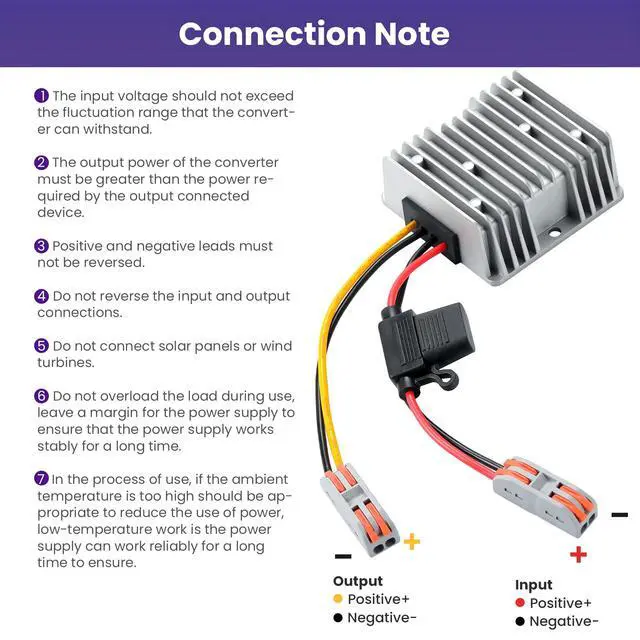

InstructionsRed: Enter
the positive terminalBlack: Ordinary
negative electrodeYellow: Output positive terminalProtection FunctionShort circuit protection YesOvertemperature protection YesOvercurrent protection YesMatters of Use1. Can not reverse connection, the power supply has no reverse connection protection, reverse connection will damage the power supply2. During use, the load can not be overloaded, leaving a margin for the power supply to ensure long term stable operation of the power supply3. In the process of use, if the ambient temperature is too high, the power should be appropriately reduced, and low temperature work is the guarantee that the power supply can work reliably for a long time4. Do not use near heat sources, such as fire or heater5. Do not connect the input cable to the household power supply 220V6. Do not put the product in the fire or heat it7. Do not use wires or other metal objects to short circuit the positive and negative poles of the product8. Non professional personnel are prohibited from disassembling and repairing themselvesNote: This product is stored in a dry and cool place, the temperature range is -40to 80, avoid contact with corrosive substances, away from fire and heat sources
or 24VInput range: 9V
to 32VOutput voltage setting: 12VOutput
current: 10AOutput
power: 120WWorking
ambient temperature: -25 to 65 ambient temperature over 40 reduce power useStorage ambient temperature: -40 to 85
CDimensions: Length 74 mm or 2.91 inches x Width 74 mm or 2.91 inches x Height 32 mm or 1.25 inchesWeight: 260 gramsWiring
InstructionsRed: Enter
the positive terminalBlack: Ordinary
negative electrodeYellow: Output positive terminalProtection FunctionShort circuit protection YesOvertemperature protection YesOvercurrent protection YesMatters of Use1. Can not reverse connection, the power supply has no reverse connection protection, reverse connection will damage the power supply2. During use, the load can not be overloaded, leaving a margin for the power supply to ensure long term stable operation of the power supply3. In the process of use, if the ambient temperature is too high, the power should be appropriately reduced, and low temperature work is the guarantee that the power supply can work reliably for a long time4. Do not use near heat sources, such as fire or heater5. Do not connect the input cable to the household power supply 220V6. Do not put the product in the fire or heat it7. Do not use wires or other metal objects to short circuit the positive and negative poles of the product8. Non professional personnel are prohibited from disassembling and repairing themselvesNote: This product is stored in a dry and cool place, the temperature range is -40to 80, avoid contact with corrosive substances, away from fire and heat sources
