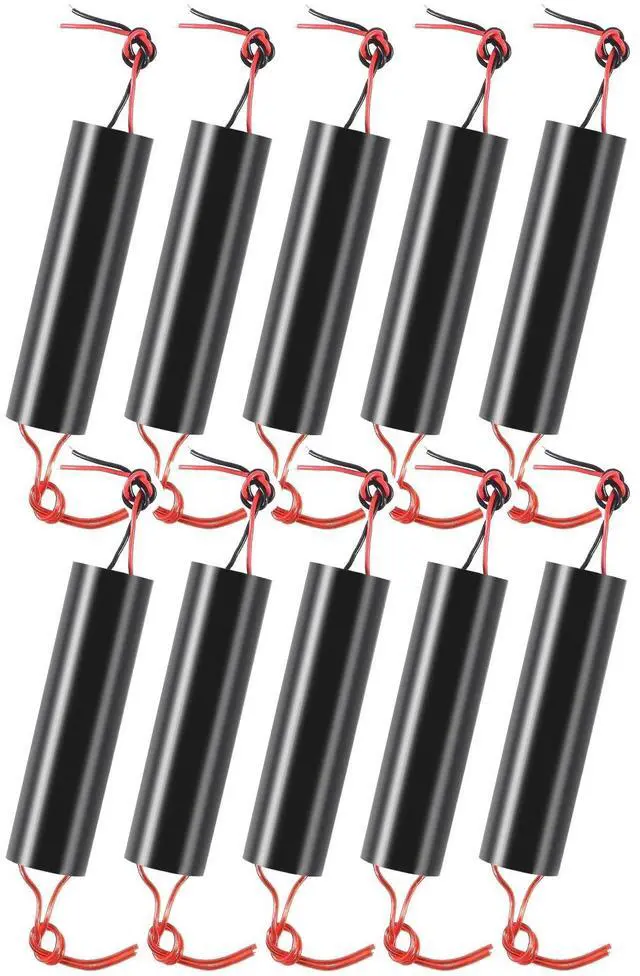

XIITIA 10pcs High Voltage Generator DC 6-12V to 1000KV 1000000V Boost Step-up Power Module High Voltage Transformer
- This module is mainly used to the finished module of transformer for small scientific production. Output Cable Length: About 100mm, Arc Discharge Distance: 10mm~20mm.
- The input voltage is DC 6V to 12V and will output 1000kV high voltage. Recommended battery capacity is above 2000mA, or above 4000mA if possible.
- DC boost step up power module high voltage generator input voltage: DC 6V to 12V. input current: 2A-5A, output voltage: 500KV~1000KV (please pay attention to safety).

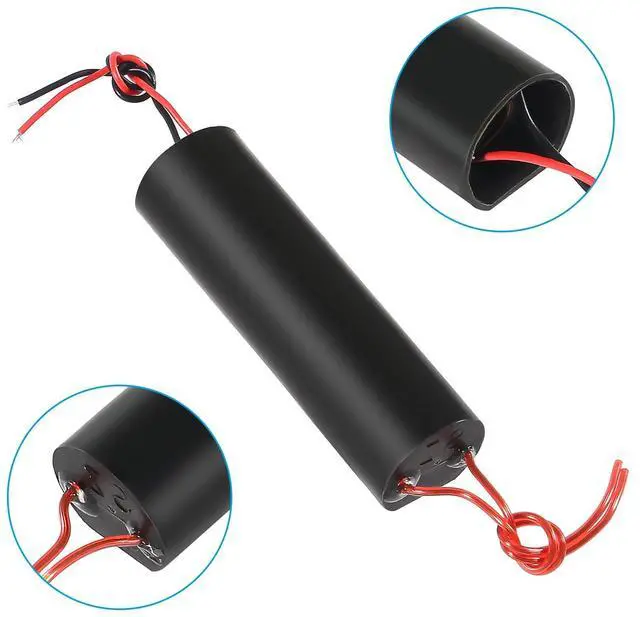

- The input voltage of the arc generator is DC 6-12V and output dc 1000KV high voltage, input wiring: red - positive; green - negative; output wiring: the other side same color cable.
- The way to judge if a battery capacity is enough to output maximum power is to measure the battery voltage when producing arc. It the measured voltage is about 6V, then it can output maximum power. Recommended battery capacity is above 2000mA, or above 4000mA if possible.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specifications
: InputVoltage: 6V~12V
DCInput Current: 2A~5A (related to voltage)
Output Voltage: About 500KV~1000KVInput
Cable Length: About 100mm/ 3.9" (red is positive)
Output Cable Length: About 100mm/ 3.9"A rc
Discharge Distance: 10mm~20mm/ 0.39" ~ 0.78"P ower
Supply: 3.7V lithium battery input (such as 18650 battery) battery pack, 4V or 6V lead-acid battery, etc. can be used. The input voltage and current affect the output high voltage and arc distance. Batteries NOT INCLUDED
Note: Output ends of cable should be adjusted properly before power on, and the arc distance depends on battery voltage and capacity. The arc distance should be from short to long, do not produce a longest arc at first or the module might be damaged easily. The way to judge if a battery capacity is enough to output maximum power is to measure the battery voltage when producing arc. It the measured voltage is about 6V, then it can output maximum power. Recommended battery capacity is above 2000mA, or above 4000mA if possible.
