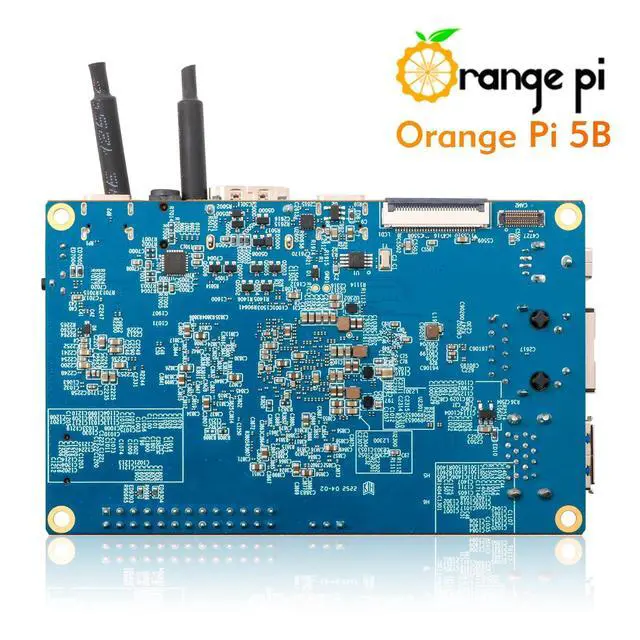

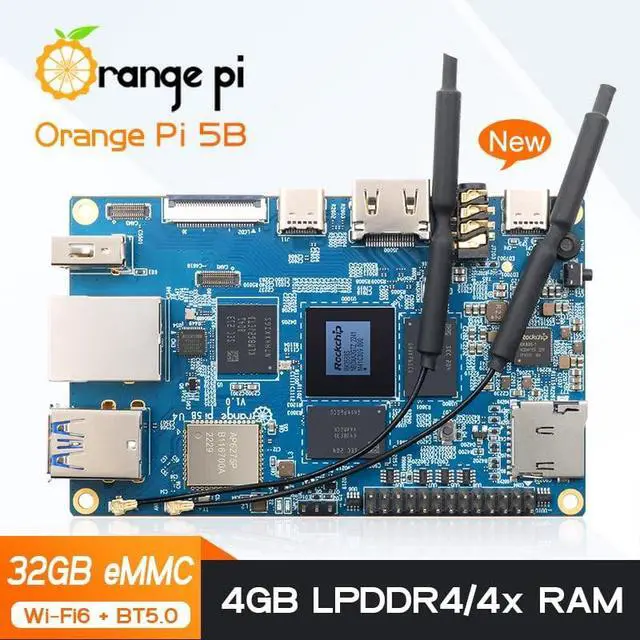

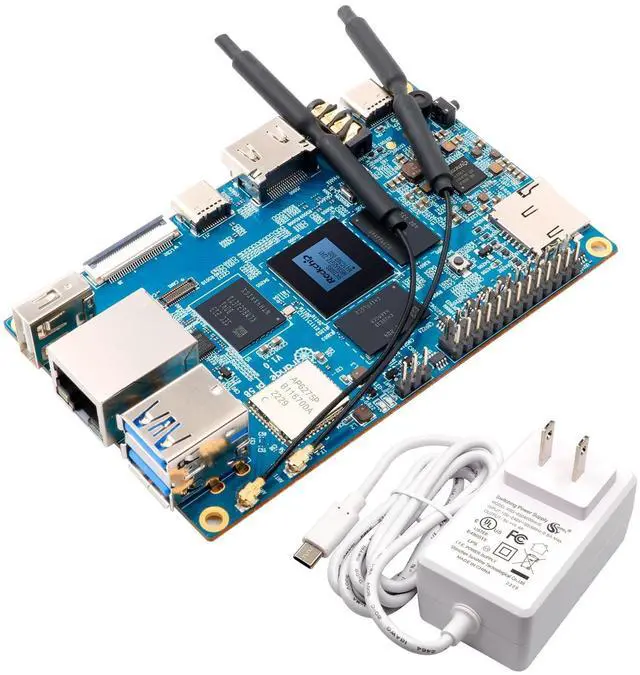

Orange Pi 5B 4GB with 32GB eMMC Rockchip RK3588S 8 Core 64 Bit Wi-Fi6, BT5.0 Single Board Computer, 2.4GHz Frequency Open Source Development Board Run Orange Pi OS,Android,Debian,Ubuntu
- Orange Pi 5B 4G uses a new generation of 8-core 64-bit processors from Ruixin Micro-RK3588S, specifically quad-core A76+quad-core A55. It adopts an 8nm process design, with a main frequency up to 2.4GHz. It integrates an ARM Mali-G610 MP4 GPU, built-in high-performance 3D and 2D image acceleration modules, and built-in AI accelerator NPU with up to 6 Tops of computing power. It has 4GB (LPDDR4/4x) and 32GB eMMC, dual band Wi-Fi6, BT5.0, and up to 8K display processing capabilities.

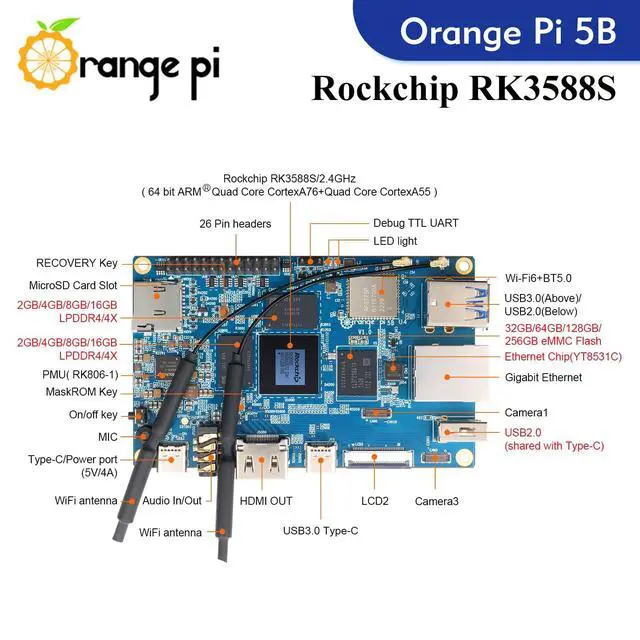

- Orange Pi 5B 4G32G Single Board Computer has a variety of interfaces, including HDMI output, Type-C, USB3.0, USB2.0, RJ45 gigabit network interface, TF card socket, 3.5mm headphone jack, MIPI LCD interface, MIPI Camera interface, multi-functional 26 Pin expansion interface, etc
- Orange Pi 5B 4gb Mini PC can be widely used in high-end tablet, edge computing, artificial intelligence, cloud computing, AR/VR, intelligent security, smart home and other fields, covering all AIoT industries.
- Orange Pi 5B mi
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product Introduction: Main
control chip: Rockchip RK3588S (8nm LP process)
CPU: 8-core 64 bit processor; Typical large and small core architectures for 4-core Cortex-A76 and 4-core Cortex-A55, with a dominant frequency of 2.4GH z for large cores and 1.8GH z for small coresGPU: Integrated ARM Mali-G610; Built-in 3D image engine and 2D image engine; Compatible with OpenGL ES 1.1 / 2.0 / 3.2, OpenCL 2.2, and
Vulkan 1.2NPU: built-in AI accelerator NPU with up to 6 Tops computing power, supporting
INT4/INT8/INT16 hybrid computingPMU:
RK806-1RAM: 4GB
(LPDDR4/4x)Storage: 32GB eMMC; MicroSD (TF)
Card SlotUSB: USB 3.0 * 1; USB 2.0 * 2; Type-C (USB 3.0 ) * 1Video output: HDMI 2.1, up to 8K @ 60Hz; DP 1.4 (DisplayPort), with a maximum output resolution of 8K @ 30Hz; 2 * MIPI D-PHY TX 4 Lane, configurable up to 4K @ 60HzCamera: MIPI CSI 4 Lane; 2 * MIPI D-PHY RX 4
LaneAudio CODEC: ES8388; 3.5 mm headphone jack audio input/output;
Input: onboard MIC; HDMI 2.1 eARC
Ethernet: 10/100/1000Mbps EthernetWIFI, BT
module: Onboard WI-FI6+BT 5.0 module, WI-FI6
interface: PCIe, BT
interface: PCM+UART

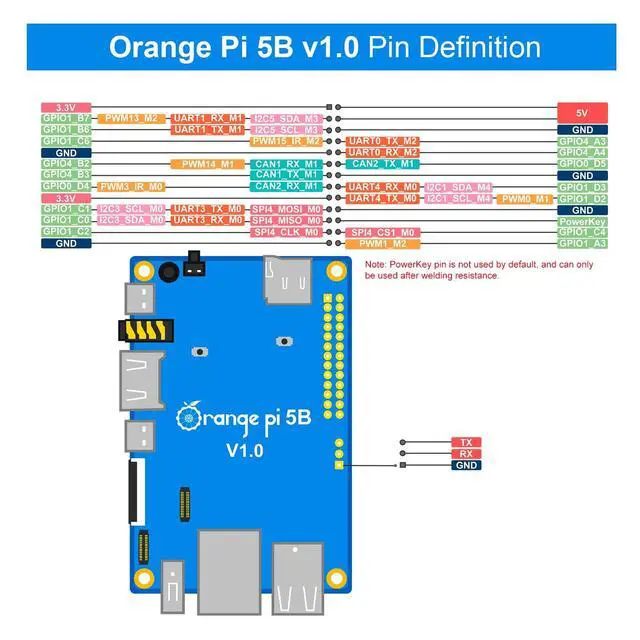

Expansion port: 26Pin double row pin; Supports DC 5V and 3.3V power output; Functional interfaces such as UART, PWM, I2C, SPI, CAN, and GPIO can be configured.
Key: 1 * MaskROM key, 1 * RECOVERY key, 1 *
On/Off keyPower supply: Support Type-C power supply, 5V
@ 4ALED power indicator: red;
Status indicator:
greenDebug: 3Pin Debug Serial Port (UART)
Supported operating systems: Orange OS (Droid), Orange OS (Arch), Orange OS (OH), Debian 11, Ubuntu 22.04, Ubuntu 20.04, Android
12Product size: 62mm
* 100mmWeight: 52g
control chip: Rockchip RK3588S (8nm LP process)
CPU: 8-core 64 bit processor; Typical large and small core architectures for 4-core Cortex-A76 and 4-core Cortex-A55, with a dominant frequency of 2.4GH z for large cores and 1.8GH z for small coresGPU: Integrated ARM Mali-G610; Built-in 3D image engine and 2D image engine; Compatible with OpenGL ES 1.1 / 2.0 / 3.2, OpenCL 2.2, and
Vulkan 1.2NPU: built-in AI accelerator NPU with up to 6 Tops computing power, supporting
INT4/INT8/INT16 hybrid computingPMU:
RK806-1RAM: 4GB
(LPDDR4/4x)Storage: 32GB eMMC; MicroSD (TF)
Card SlotUSB: USB 3.0 * 1; USB 2.0 * 2; Type-C (USB 3.0 ) * 1Video output: HDMI 2.1, up to 8K @ 60Hz; DP 1.4 (DisplayPort), with a maximum output resolution of 8K @ 30Hz; 2 * MIPI D-PHY TX 4 Lane, configurable up to 4K @ 60HzCamera: MIPI CSI 4 Lane; 2 * MIPI D-PHY RX 4
LaneAudio CODEC: ES8388; 3.5 mm headphone jack audio input/output;
Input: onboard MIC; HDMI 2.1 eARC
Ethernet: 10/100/1000Mbps EthernetWIFI, BT
module: Onboard WI-FI6+BT 5.0 module, WI-FI6
interface: PCIe, BT
interface: PCM+UART
Expansion port: 26Pin double row pin; Supports DC 5V and 3.3V power output; Functional interfaces such as UART, PWM, I2C, SPI, CAN, and GPIO can be configured.
Key: 1 * MaskROM key, 1 * RECOVERY key, 1 *
On/Off keyPower supply: Support Type-C power supply, 5V
@ 4ALED power indicator: red;
Status indicator:
greenDebug: 3Pin Debug Serial Port (UART)
Supported operating systems: Orange OS (Droid), Orange OS (Arch), Orange OS (OH), Debian 11, Ubuntu 22.04, Ubuntu 20.04, Android
12Product size: 62mm
* 100mmWeight: 52g
