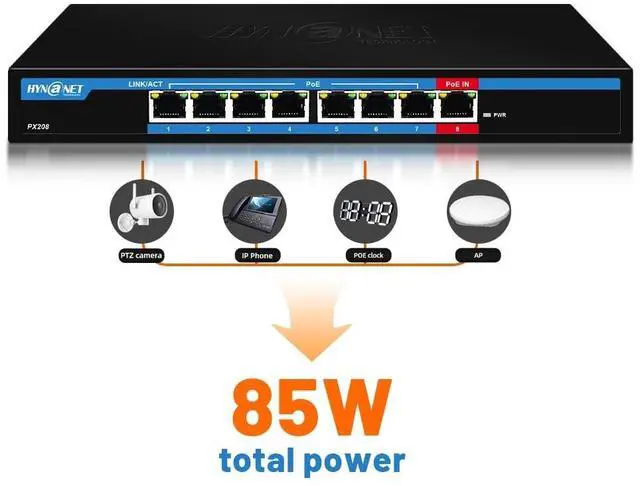

PX208 8 Port Gigabit PoE Powered Switch Extender, 1 Port PoE++ IEEE802.3BT 90W Input, 7 Port PoE+ IEEE802.3at/af Output PoE Passthrough Switch ,Plug&Play, Support Wallmount
- 1 port support IEEE802.3bt/at/af PoE input, Max 90W.
- 7 ports support IEEE802.3at/af PoE output, Max 30W per port.

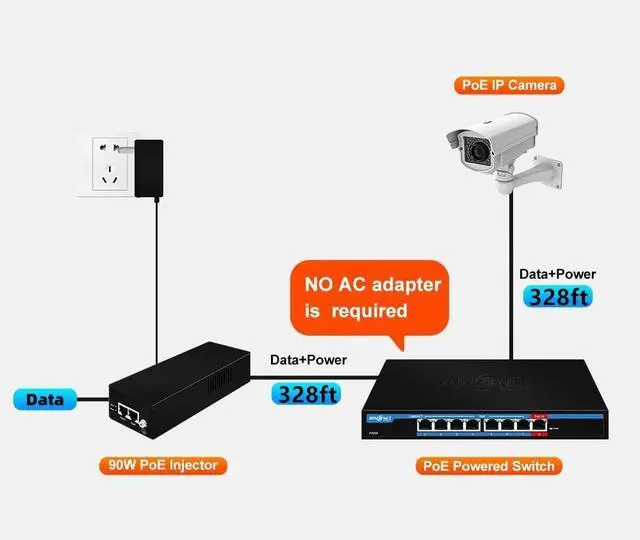

- Extends the range of Power and Data an additional 328ft.
- 8 x RJ45 Port support 10/100/1000Mbps.
- No additional power supply is required,Plug and Play,Support wallmount.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Item PoE Input Port 1 x 10/100/1000Base-T RJ45 port. PoE Output Port 7 x 10/100/1000Base-T RJ45 ports. PoE Input Power 50~57VDC, Up to 90W. PoE Output Power 44~57VDC, Up to 30W per port. PoE Power Budget 85W IEEE 802.3 bt Ultra. PoE Input Pin Assignment 1/2 (-), 3/6 (+), 7/8 (-), 4/5 (+). PoE Output Pin Assignment 1/2 (-), 3/6 (+). Indicators LED indicators are located on the RJ45 connector.
Power indicator: PoE enabled.
Network indicator: Link/Act. Network cables Shielded category 5 (or higher). Forwarding Rate 10/100/1000Mbps. Traffic control IEEE 802.3 x full-duplex flow control.
Operating Temperature: 0 to 40.
Storage Temperature: -20 to 70.
Relative Humidity: Maximum 95%. Regulatory Compliance IEEE 802.3 af, IEEE 802.3 at, IEEE 802.3 bt (Ultra PoE).
Power indicator: PoE enabled.
Network indicator: Link/Act. Network cables Shielded category 5 (or higher). Forwarding Rate 10/100/1000Mbps. Traffic control IEEE 802.3 x full-duplex flow control.
Operating Temperature: 0 to 40.
Storage Temperature: -20 to 70.
Relative Humidity: Maximum 95%. Regulatory Compliance IEEE 802.3 af, IEEE 802.3 at, IEEE 802.3 bt (Ultra PoE).
