Adafruit Metro 328 with Headers - ATmega328

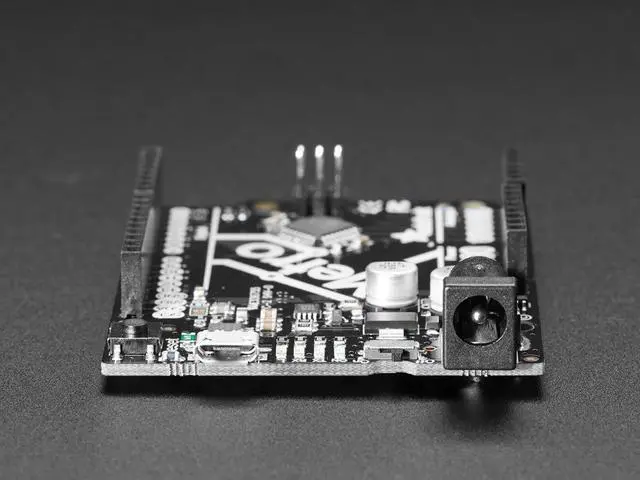

- Power the METRO with 7-9V polarity protected DC or the micro USB connector to any 5V USB source. The 2.1mm DC jack has an on/off switch next to it so you can turn off your setup easily. The METRO will automagically switch between USB and DC.
- METRO has 19 GPIO pins, 6 of which are Analog in as well, and 2 of which are reserved for the USB-serial converter. There's also 6 PWMs available on 3 timers (1 x 16-bit, 2 x 8-bit). There's a hardware SPI port, hardware I2C port and hardware UART to USB. Logic level is 5V but by cutting and soldering closed a jumper, you can easily convert it to 3.3V logic
- USB to Serial converter, there's a hardware USB to Serial converter that can be used by any computer to listen/send data to the METRO, and can also be used to launch and update code via the bootloader
- Four indicator LEDs, on the front edge of the PCB, for easy debugging. One green power LED, two RX/TX LEDs for the UART, and a red LED connected to pin PB5
- Arduino IDE compatible,
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

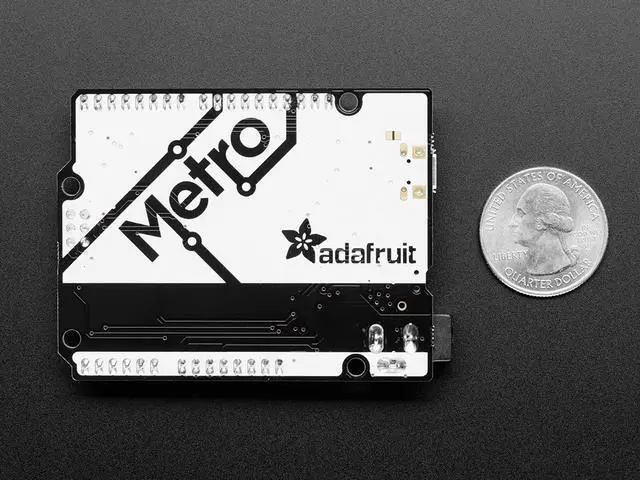

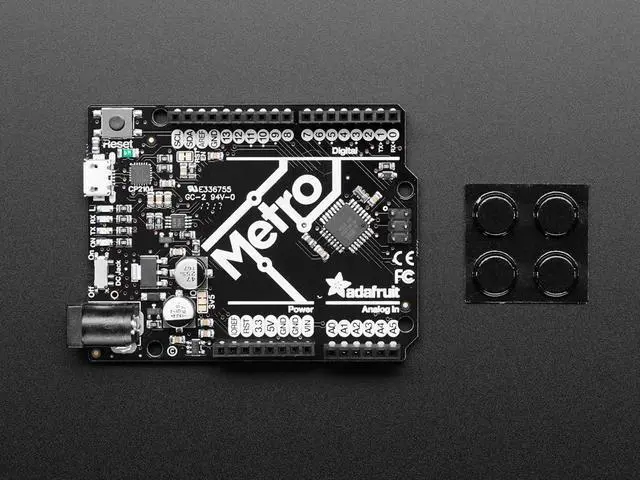

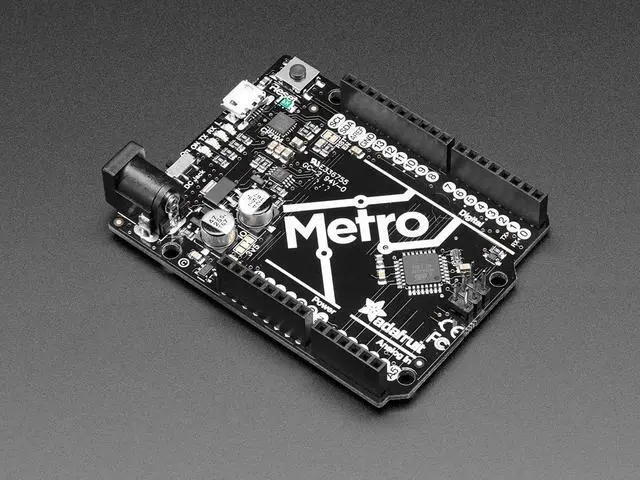

We sure love the ATmega328 here at Adafruit, and we use them a lot for our own projects. The processor has plenty of GPIO, Analog inputs, hardware UART SPI and I2C, timers and PWM galore - just enough for most simple projects. When we need to go small, we use a Metro Mini or a Trinket M0, but when size isn't as much of a concern, we reach for an Adafruit METRO. This is the Adafruit METRO with headers. It comes with headers soldered on. It's a fully assembled and tested board with through-hole headers attached.
If you don't want a Metro with the headers attached for super-slimness, check out our Metro without Headers. METRO is the culmination of years of playing with
AVRs: we wanted to make a development board that is easy to use and is hacker friendly. At the heart is an ATmega328P, with 32KB of flash and 2KB of RAM, running at 16 MHz. It comes with the Optiboot bootloader already installed, and is Arduino IDE compatible.
If you don't want a Metro with the headers attached for super-slimness, check out our Metro without Headers. METRO is the culmination of years of playing with
AVRs: we wanted to make a development board that is easy to use and is hacker friendly. At the heart is an ATmega328P, with 32KB of flash and 2KB of RAM, running at 16 MHz. It comes with the Optiboot bootloader already installed, and is Arduino IDE compatible.
