    10Gbps USB-C Type-C to NGFF Key B+M SATA 6Gbps SSD 5 Ports Adapter Converter PM Port Multiplier Selector JMB575 JMS580

    Be the first to review this product...

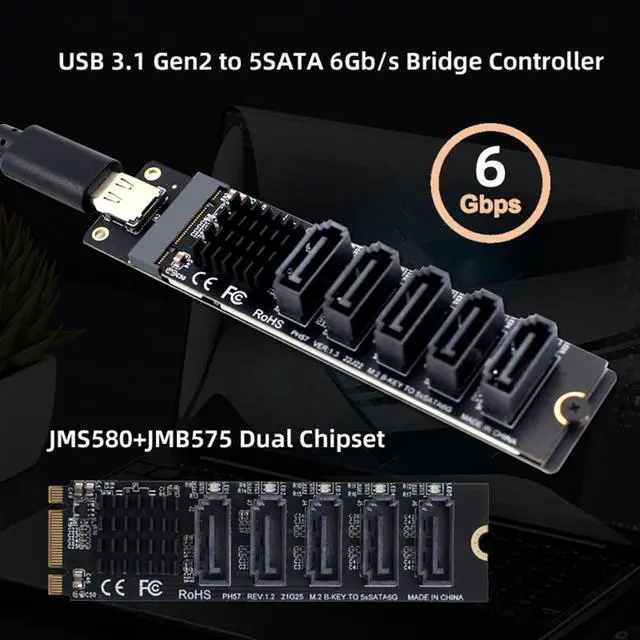

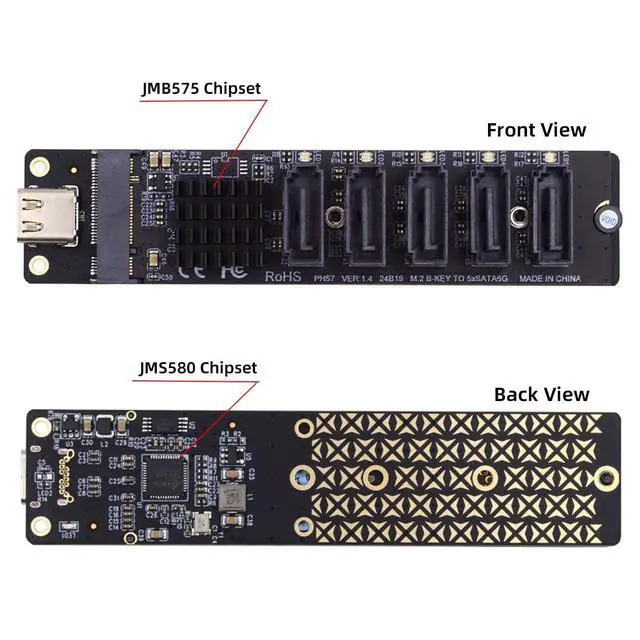

    • 1) Dual chipset at the adapter, JMB575+JMS580; JMB575 is a single chip solution. It integrated 5 independent SATA channels and a micro-processor. Supports cascaded mode which enables maximum 5 drives connected to one host.

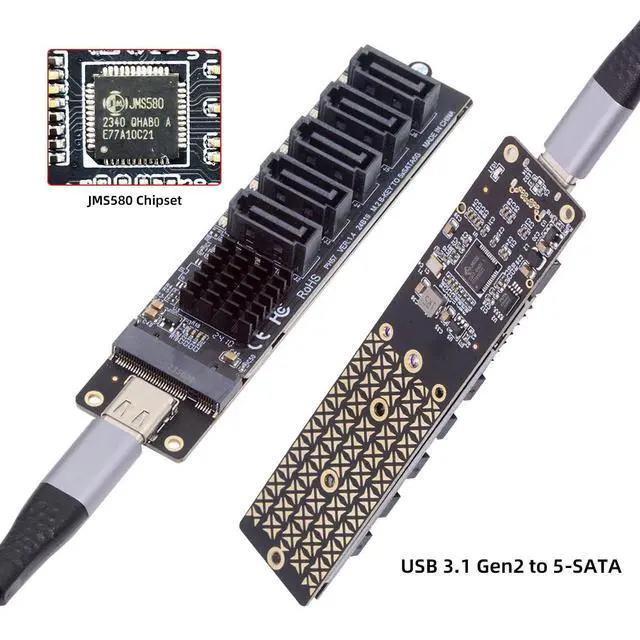

    • 2) JMS580 is a USB 3.1 Gen 2 to SATA 6Gb/s bridge controller between USB host and SATA storage device. TheUSB 3.1 Gen 2 interface offers data transfer speed up to 10Gbps, doubling the USB 3.1 Gen 1 data rate; With proper setting, the chip can be configured as Type-C to 5 ports SATA 6Gbps Port.
    • 3) Supports native command queue (NEQ). Under high load, NCQ technology can guarantee the performance and stability of the hard disk.
    • 4) The adapter supports from Mini PCI-E PCI Express or NGFF A+E Key host to 4SATA target disk; Applicable slot1: MINI PCI-E (mSATA is not supported); Applicable slot2: NGFF A+E key (B/M-Key is not supported)
    • 5) With hot swap and hot plug capabilities, and power management functions;Support error reporting, recovery and correction;Supp
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

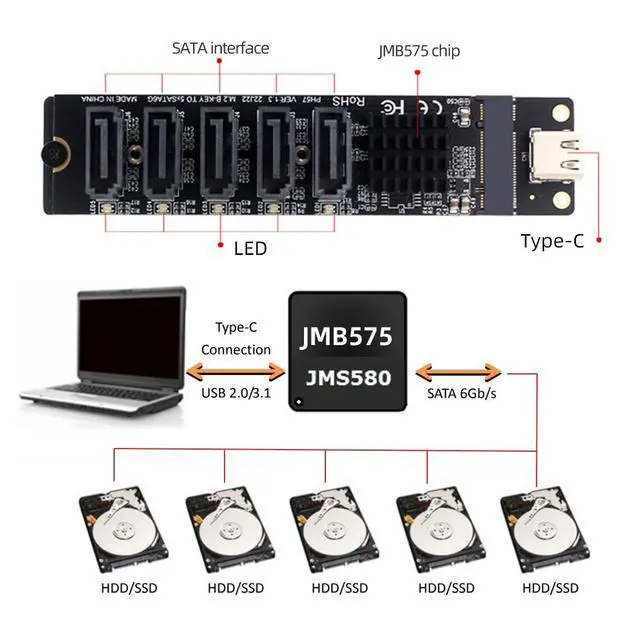

    10Gbps USB-C Type-C to NGFF Key B+M SATA 6Gbps 5 Ports Adapter Converter PM Port Multiplier SelectorDual chipset at the adapter, JMB575+JMS580. JMB575 is a single chip solution. It integrated 5 independent SATA channels and a micro-processor. Supports cascaded mode which enables maximum 5 drives connected to one host. JMS580 is a USB 3.1 Gen 2 to SATA 6Gb/s bridge controller between USB host and SATA storage device. TheUSB 3.1 Gen 2 interface offers data transfer speed up to 10Gbps, doubling the USB 3.1 Gen 1 data rate. With proper setting, the chip can be configured as Type-C to 5 ports SATA 6Gbps Port.

    Key Features: Complies with Serial ATA 6Gb/s Electrical Specification 3.2; Complies with USB 3.1 Specification Revision 1.0, USB BOT Specification; Support 5 port SATA 6Gbps interface; Supports BIST and loopback mode; Support command-based and FIS-based switching; Support PM aware and non-PM aware host;
    Main control chip:
    JMB575+JMS580Interface: 5 x SATA 3.0 interface
