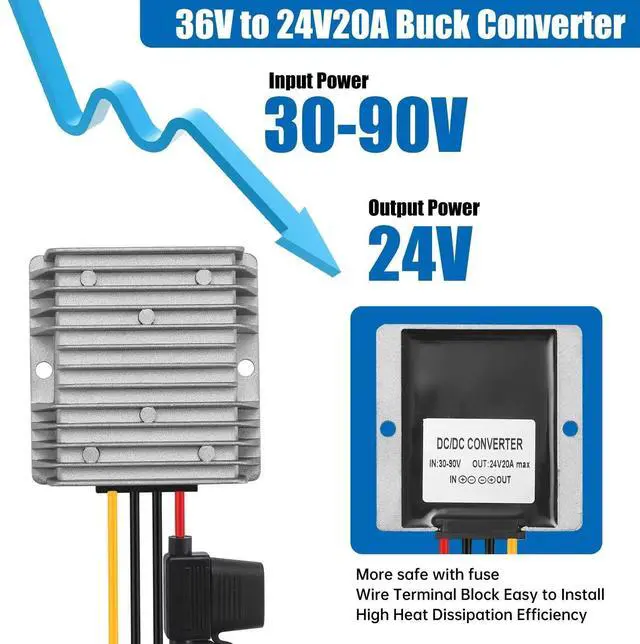

YBBOTT DC 30V-90V to 24V 20A 480W Waterproof Buck Power Converter DC to DC Step Down Transformer Power Supply Buck Converter for CNC Equipment Switches Photovoltaic Panels etc
- DC 30V-90V to 24V 20A: This step down power converter with stable performance and conversion efficiency above 95%; Durable and better heat protection; The internal gluing and aluminum alloy outer box, with excellent fluidity
- Parameter Introduction: Input voltage range: 30V to 90V; output voltage: DC 24V; total output current: 20A max; output power: 480 W; Small Size and easy to place in any applications; The converter is shockproof, waterproof, dustproof, stable and reliable quality

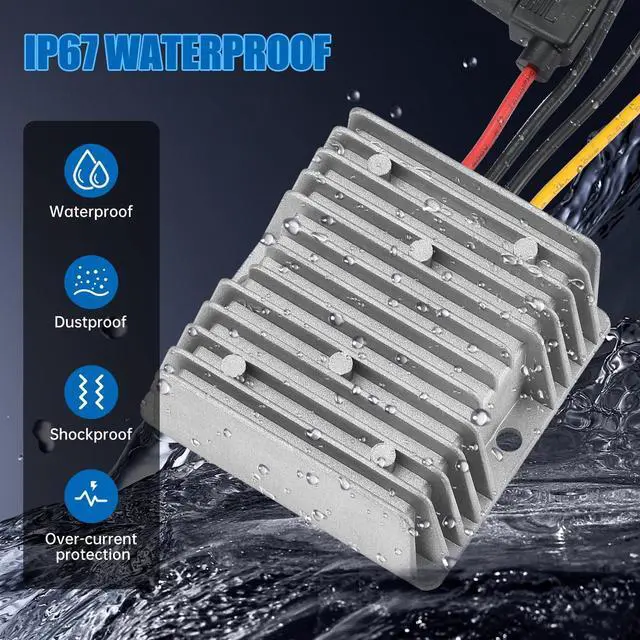

- Multiple Protection: Supports output short circuit protection, overcurrent protection, and overtemperature protection, IP67 Waterproof protection; With input reverse connection, overvoltage and undervoltage protection, output overcurrent, overvoltage, undervoltage

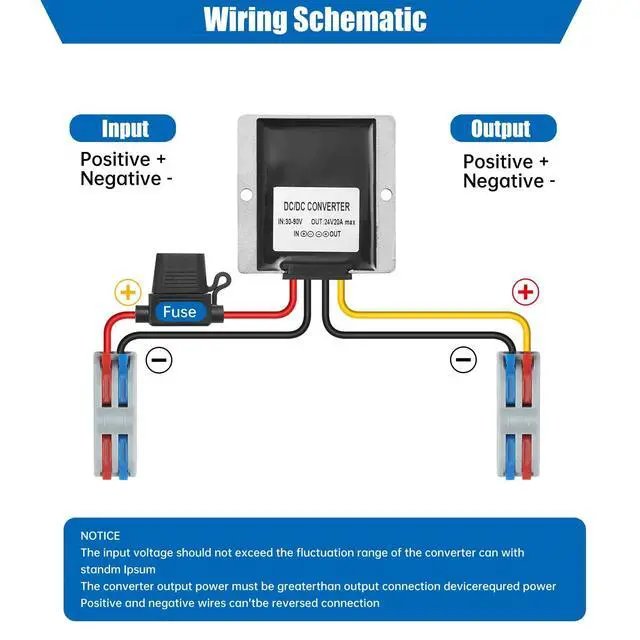

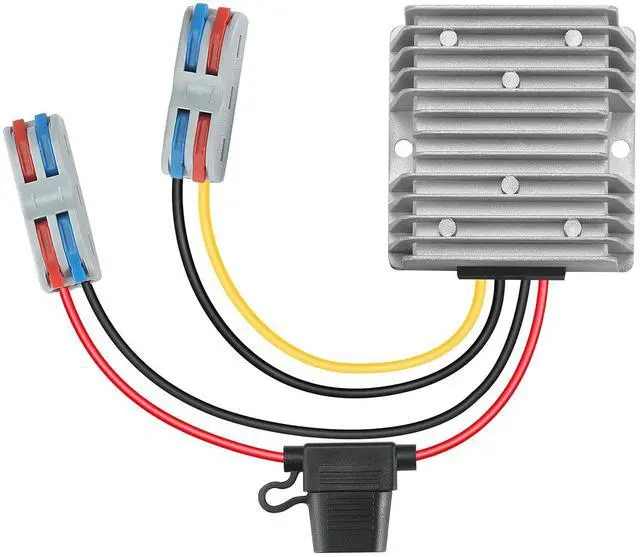

- Easy to Install: Pull of the boost key 90MAX, insert the wire, press the boost key tightly; The converter has a red and black wire, the red is connected to the positive electrode, and the black is connected to the negative electrode
- Wi
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

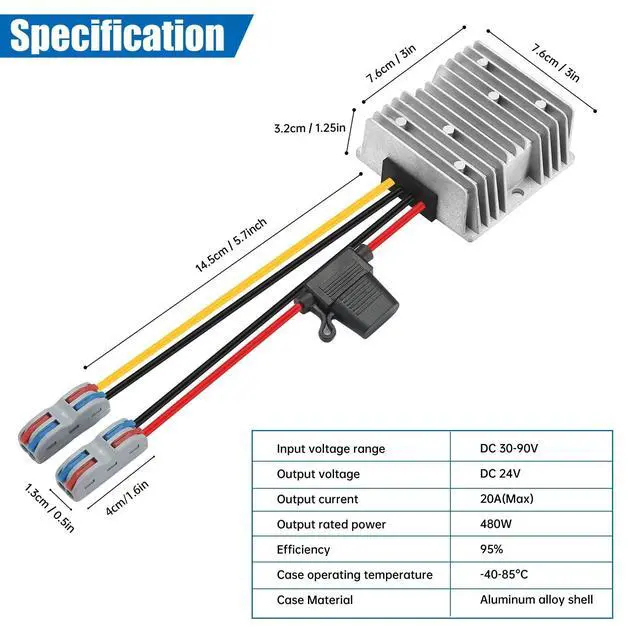

30V-90V to 24V 20A 480W
Power ConverterInput range: 30V-90VTransfer
efficiency: 95%Output
voltage:
24VOutput: 20A MAX
Maximum output: 480W MAX
Working temperature: -20
to 65Storage temperature: -40
to 85Working humidity: 10% to 90%
RHWaterproof classification: IP67Short
circuit protection: YES
Overtemperature protection: YES
Overcurrent protection: YES
Anti connection protection: YES
Heat dissipation method: Natural heat dissipationAttention1. The products are stored in a dry and cool place with a temperature between 40 and 80, avoiding contact with corrosive substances and staying away from flames and heat sources2. Do not use the device near a heat source, such as a fire or heater3. Do not connect the input line to 220V electricity4. Do not put the product in a fire or heat it5. Do not short the positive or negative poles of the product with wires or other metal objects6. It is forbidden for non professional personnel to disassemble and repair the product by themselves
Power ConverterInput range: 30V-90VTransfer
efficiency: 95%Output
voltage:
24VOutput: 20A MAX
Maximum output: 480W MAX
Working temperature: -20
to 65Storage temperature: -40
to 85Working humidity: 10% to 90%
RHWaterproof classification: IP67Short
circuit protection: YES
Overtemperature protection: YES
Overcurrent protection: YES
Anti connection protection: YES
Heat dissipation method: Natural heat dissipationAttention1. The products are stored in a dry and cool place with a temperature between 40 and 80, avoiding contact with corrosive substances and staying away from flames and heat sources2. Do not use the device near a heat source, such as a fire or heater3. Do not connect the input line to 220V electricity4. Do not put the product in a fire or heat it5. Do not short the positive or negative poles of the product with wires or other metal objects6. It is forbidden for non professional personnel to disassemble and repair the product by themselves
