$182.99
Meet Your Seller

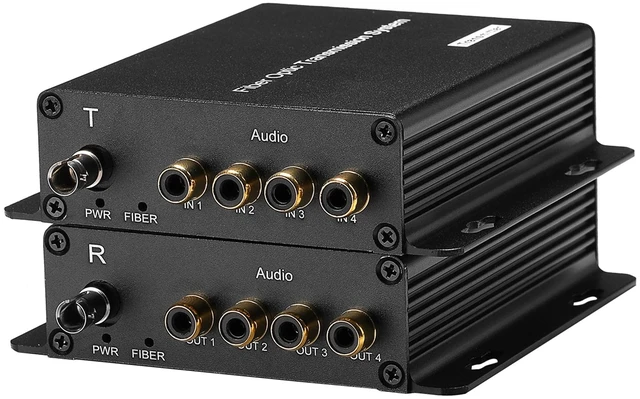

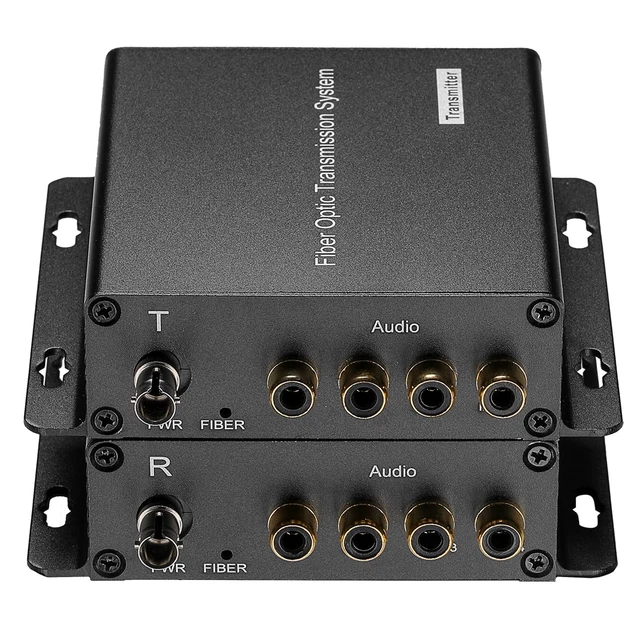

Hebbeko 4 Port Analog Audio Over Fiber Converter Adapter ST RCA to Fiber Extenders Singlemode Single Fiber up to 20Km Multimode 500m A Pair
- 4 Port RCA Audio over Fiber Optic Converters,Unbalanced Analog Audio ST Optical Transceiver,Singlemode Single Fiber up to 20Km,Multimode 500m A Pair
- With ST optical interface ,Compatible with Singlemode and Multimode optical fiber cable.Single mode single fiber up to 12.4 miles (20Km), Mutlimode single fiber up to 0.31 miles(500meters)
- Premium Quality,Adopt FPGA, digital coding/decoding and clock recovery technology, high integration and high stability ,it is much better than ordinary one on marketing

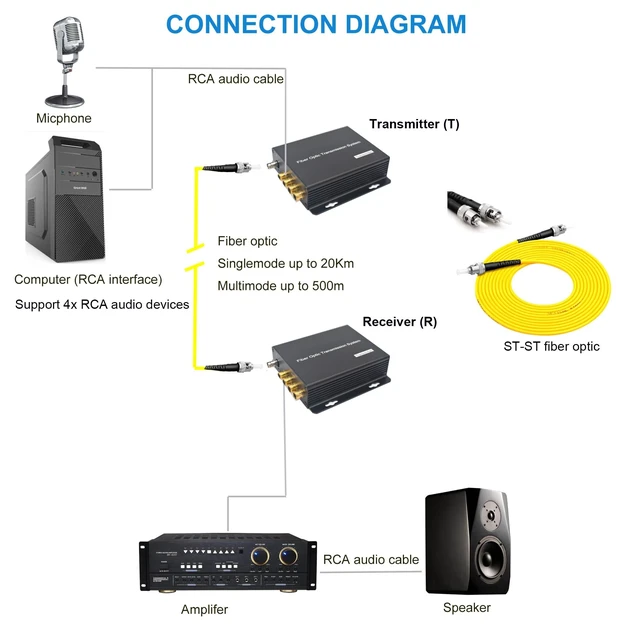

- Typically used in applications for Campus, public places, Staging, Theaters, Stadiums, Parks, Broadcast, studio audio and more. and are available for stand-alone and desktop type, or wall mounted, installations

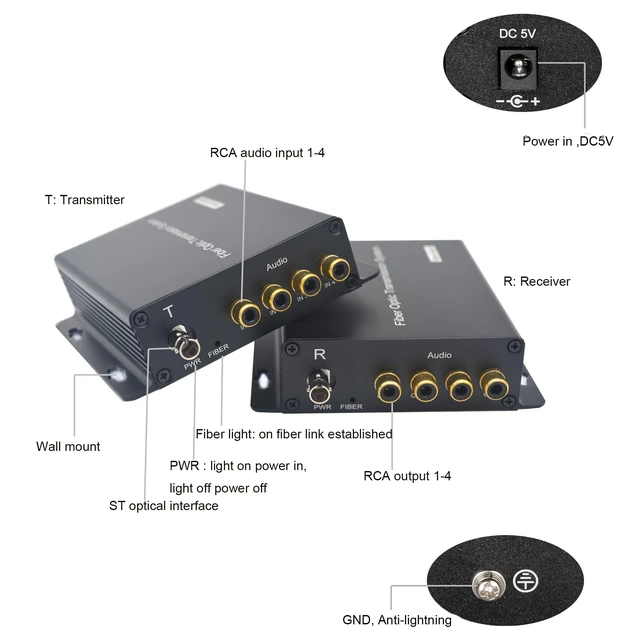

- LEDs for power supply and optical fiber link status indication which can monitor the operating status of the system
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Audio Specification1. Full-size output sine wave, 997 Hz; MCLK = 12.288 MHz. Fs basic probability mode = 48 kHz, SCLK = 3.072 MHz, 2. Measurement bandwidth 10hz to 20khz; Fs is high rate mode = 96 kHz, FeaturesMulti-format Output Interface1. Compatible with I2S bus and MSB format2. Serial output up to 24 bitsOptical
Port: Optical
connector: ST.
Wavelength: 1310nm&1470nm~1610nm.
Tx power-7dbRx sensitivity-24dbTransmission range: 0-20km for SM, 0-500m for MM.
Optical fiber type: universal 9/125u single mode, 50/125u or 62.5 /125u multimode.
Audio index: Dynamic
bandwidth: 96dBTotal
harmonic distortion (THD): -68dBSignal-to-noise
ratio: -68dBSignal-to-noise
ratioS/N: 60dBSampling
frequency: 32kHz 44.1 kHz 48kHzAudio
A/D sampling: 24
BitFrequency response: 1020kHzGain
mismatch between channels: 0.1
dBGain error: 5%Gain
drift: 100
ppm/CAmplitude-frequency characteristic: 0.5
dBAudio input/output impedance: 600
balanceAudio maximum input/output voltage: 0~2VLED
indicators:
PWR: ON upon power in.
Off upon powered offFIBER: Off when fiber optical signal is blocked or excessive attenuation. On when fiber signal is received properlyGeneral
Spec: Operating
temperature: -20
to 70CStorage temperature: -40
to 80CRelative humidity: 5
to 95%non-condensingWorking life (MTBF): 100, 000hoursInstallation: stand-alone. Support wide range working
Voltage: AC100-240V 50/60Hz, DC5VPower plugUS/EU/UK/AU standard is optional.
Dimension: 104mm (L) 104mm (W) 28mm (H).
Package include: 1x Unbalanced RCA Audio Fiber Transmitter1x Unbalanced RCA Audio Fiber Receiver2x Power supply adapter (US standard) 1x FREE 3M ST-ST Fiber patch cord1x Manual.
Port: Optical
connector: ST.
Wavelength: 1310nm&1470nm~1610nm.
Tx power-7dbRx sensitivity-24dbTransmission range: 0-20km for SM, 0-500m for MM.
Optical fiber type: universal 9/125u single mode, 50/125u or 62.5 /125u multimode.
Audio index: Dynamic
bandwidth: 96dBTotal
harmonic distortion (THD): -68dBSignal-to-noise
ratio: -68dBSignal-to-noise
ratioS/N: 60dBSampling
frequency: 32kHz 44.1 kHz 48kHzAudio
A/D sampling: 24
BitFrequency response: 1020kHzGain
mismatch between channels: 0.1
dBGain error: 5%Gain
drift: 100
ppm/CAmplitude-frequency characteristic: 0.5
dBAudio input/output impedance: 600
balanceAudio maximum input/output voltage: 0~2VLED
indicators:
PWR: ON upon power in.
Off upon powered offFIBER: Off when fiber optical signal is blocked or excessive attenuation. On when fiber signal is received properlyGeneral
Spec: Operating
temperature: -20
to 70CStorage temperature: -40
to 80CRelative humidity: 5
to 95%non-condensingWorking life (MTBF): 100, 000hoursInstallation: stand-alone. Support wide range working
Voltage: AC100-240V 50/60Hz, DC5VPower plugUS/EU/UK/AU standard is optional.
Dimension: 104mm (L) 104mm (W) 28mm (H).
Package include: 1x Unbalanced RCA Audio Fiber Transmitter1x Unbalanced RCA Audio Fiber Receiver2x Power supply adapter (US standard) 1x FREE 3M ST-ST Fiber patch cord1x Manual.
