4G 3G 2G GSM GPRS GNSS HAT Based on SIM7600G-H LTE CAT4 150Mbps Wireless Communication Telephone Call SMS Positioning for Raspberry Pi 4 3 2 Model B B+ Zero W WH Jetson Nano (Global Version)@XY

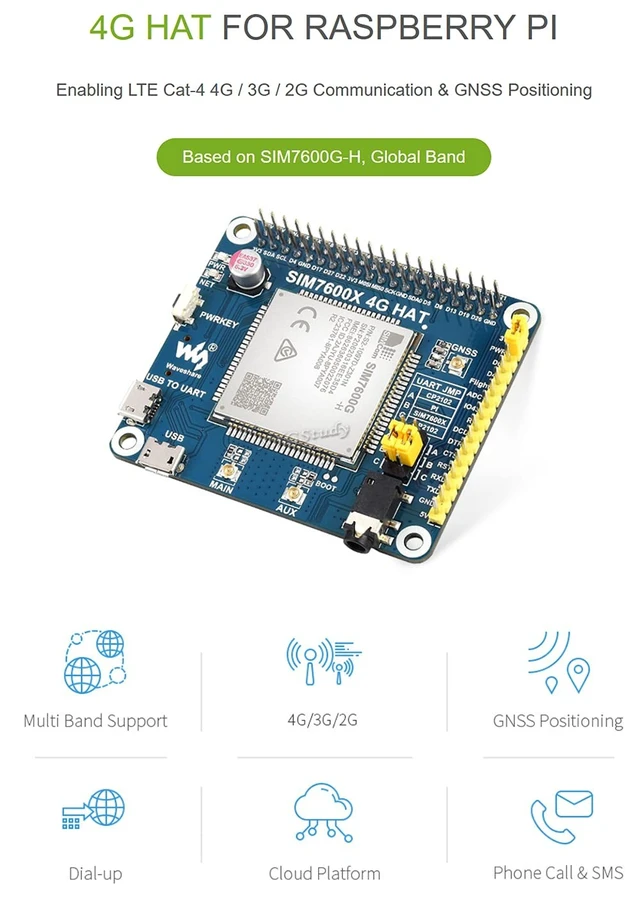

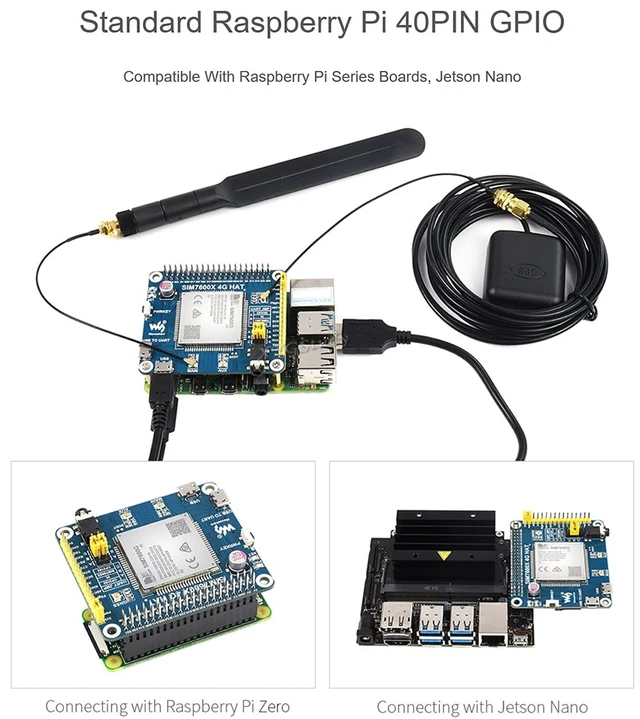

OverviewThe SIM7600G-H 4G HAT is a 4G/3G/2G communication and GNSS positioning module, which supports LTE CAT4 up to 150Mbps for downlink data transfer. it is pretty low power consumption. You can connect this 4G module with computer to surf the Internet, or attach it onto Raspberry Pi to enable functions like 4G high speed connection, wireless communication, making telephone call, sending SMS, global positioning, etc. FeaturesStandard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson NanoSupports dial-up, telephone call, SMS, MMS, mail, TCP, UDP, DTMF, HTTP, FTP, etc.

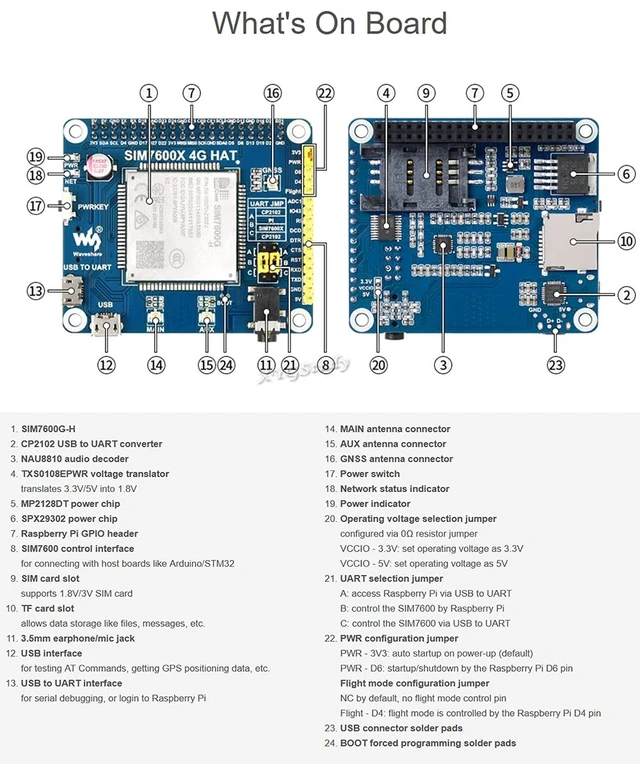

Supports GPS, BeiDou, Glonass, LBS base station positioningOnboard USB interface, to test AT Commands, get GPS positioning data, and so onOnboard CP2102 USB to UART converter, for serial debuggingBreakout UART control pins, to connect with host boards like Arduino/STM32SIM card slot, supports 1.8V /3V SIM cardTF card slot for storing data like files, messages, etc. Onboard audio jack and audio decoder for making telephone call2x LED indicators, easy to monitor the working statusOnboard voltage translator, operating voltage can be configured to 3.3V or 5V via jumperBaudrate: 300bps
~ 4Mbps (default: 115200bps)Autobauding
baudrate: 9600bps ~ 115200bpsControl via AT commands (3GPP TS 27.007, 27.005, and V. 25TER command set)Supports
SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USATComes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)Package ContainsSIM7600G-H 4G HAT x1LTE Antenna x1GPS External Antenna (B) x1USB type A plug to micro plug cable x2RPi screws pack (2pcs) x1(Note: the Raspberry Pi in the photo is NOT included. )For more resources you may need, pls contact me via message, i will send you then via attachment.
