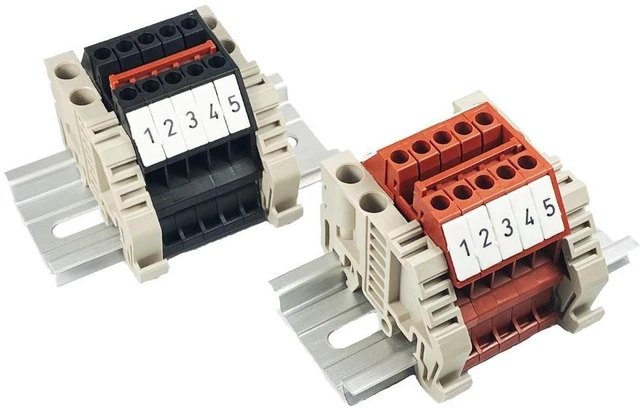

ICI Dinkle Bus Bar Power Distribution Quick Connections Red Black Labeled Finger Safe 600V 20A 12-22AWG Marine Busbar Bussbar Buss 20 Positions
- Made in USA
- Finger Safe Bus Bar
- No Ring Terminals Necessary For Quick Install
- Elevator Cage
- Aluminum Mounting Base DIN Rail
- Each Bus Bar Handles Up To 20 Amps Total
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Technical Data (UL)
Rated Voltage: 600V
Rate Current: 20A Conductor Cross-section, Solid
(AWG): 22-12 Conductor Cross-section, Flexible
(AWG): 22-12
Rated Impulse Withstand Voltage: 6KV
Torque (N-m): 0.4
Screw: M 2.5
Wire Strip Length: 9-11mm
Insulating Material: PA
TxHxW (mm): 5.1 x 39.6 x 40.5 (Individual
Blocks) DIN Rail (mm): 35, 32

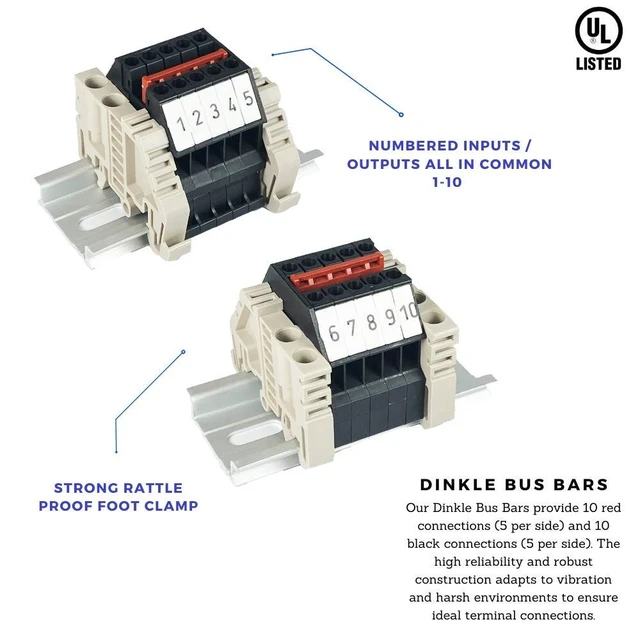

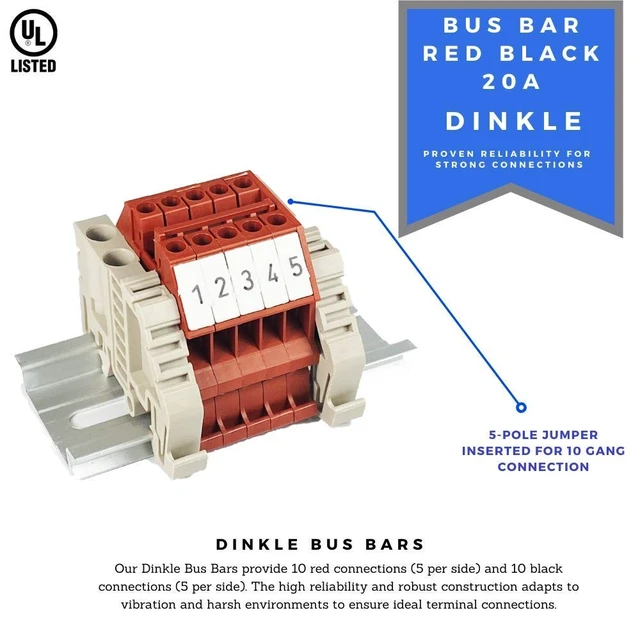

Jumper/Bridge: Press-fit/Insertion. These two assemblies include 5 DK 2.5N -BK and 5 DK 2.5N -RD Dinkle terminal blocks, 2 DSS 2.5N -05P jumpers, 4 SS2 end brackets, 1 DK4NC-RD and 1 DK4NC-BK end cover, each mounted on a 3" piece of aluminum RoHS rail. The 5 black blocks are in common and the 5 red blocks are in common. Each assembly is labeled 1-10 with TM26W marking tags.
Rated Voltage: 600V
Rate Current: 20A Conductor Cross-section, Solid
(AWG): 22-12 Conductor Cross-section, Flexible
(AWG): 22-12
Rated Impulse Withstand Voltage: 6KV
Torque (N-m): 0.4
Screw: M 2.5
Wire Strip Length: 9-11mm
Insulating Material: PA
TxHxW (mm): 5.1 x 39.6 x 40.5 (Individual
Blocks) DIN Rail (mm): 35, 32
Jumper/Bridge: Press-fit/Insertion. These two assemblies include 5 DK 2.5N -BK and 5 DK 2.5N -RD Dinkle terminal blocks, 2 DSS 2.5N -05P jumpers, 4 SS2 end brackets, 1 DK4NC-RD and 1 DK4NC-BK end cover, each mounted on a 3" piece of aluminum RoHS rail. The 5 black blocks are in common and the 5 red blocks are in common. Each assembly is labeled 1-10 with TM26W marking tags.
