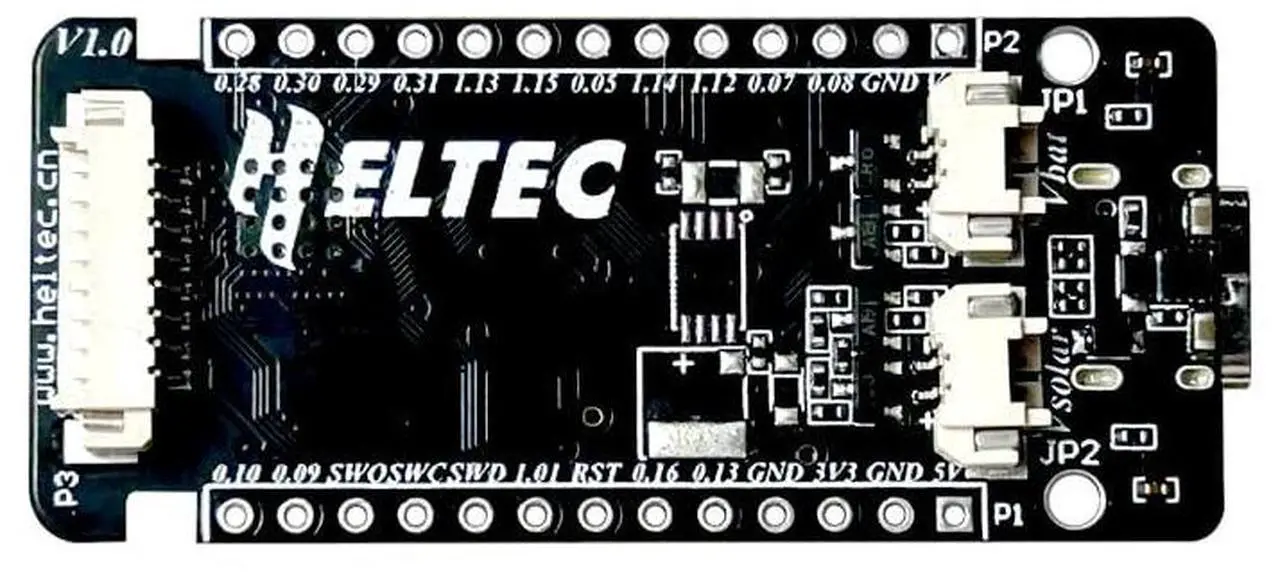

Heltec T114 V2 Tracker Nordic nRF52480 SX1262 LoRaWAN LoRa Positioning BLE WiFi Development Board 902-928MHz Without Display Solar Panel Power Supply for Meshtastic Devices (T114 Board)
- MCU nRF52840 (Bluetooth), LoRa chipset SX1262.
- Powerful display function (optional), onboard 1.14 inch TFT-LCD display contains 135(H)RGB x240(V) dots and can display up to 262k colors.
- Low power consumption, 11 uA in deep sleep.
- Powerful display function, onboard 1.9-inch TFT-LCD display contains 170 (RGB)X320 dots and can display up to 262k colors.
- Operation condition: -20 ~ 70, 90%RH(No condensing).
- Type-C USB interface with a complete voltage regulator, ESD protection, short circuit protection, RF shielding, and other protection measures.
- Compatible with Arduino, we provide development frameworks and libraries.
- Various Interfaces: 1.25*2P LiPo connector, 1.25*2P Solar panel connector, 1.25*8P GNSS module connector, which greatly increase the extensibility of the board.
+
+
