Nooelec RTL-SDR v5 SDR - NESDR Smart HF/VHF/UHF (100kHz-1.75GHz) Software Defined Radio. Premium RTLSDR w/ 0.5PPM TCXO, SMA Input & Aluminum Enclosure. RTL2832U & R820T2 (R860)-Based Radio
- Turn your computer, phone or tablet into a radio scanner/ham radio receiver that can receive nearly all RF signals! Compatible with Windows, Mac OS, Linux, and Android
- NESDR SMArt RTL-SDR v5 can be used for the reception of broadcast AM radio, broadcast FM radio, shortwave radio, CB radio, public security radio, trunked radio, air traffic control, ACARS (plane-ground communications), ADS-B (plane tracking), AIS (ship tracking), POCSAG (pagers), NOAA and GOES weather satellites (weather images), weather balloons, radiosondes, DAB radio, DVB-T video, Inmarsat, Iridium, and so much more!
- The best-performing low-cost RTL-SDR available anywhere! Compared with RTL-SDR v3, HF SNR is improved by up to 15dB, VHF & UHF SNR is improved by up to 6dB, tuning accuracy is improved by an average of 4x, and the frequency range is expanded all the way down to 100kHz
- v5 has a frequency capability of 100kHz to 1.75GHz and up to 3.2MHz of instantaneous bandwidth. HF reception below 25MHz
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
This premium RTL-SDR was designed, developed and fabricated by Nooelec in the USA and Canada. It allows you to turn your computer, phone or tablet into a radio scanner/ham radio receiver that can receive nearly all RF signals! Compatible with Windows, Mac OS, Linux, and Android.

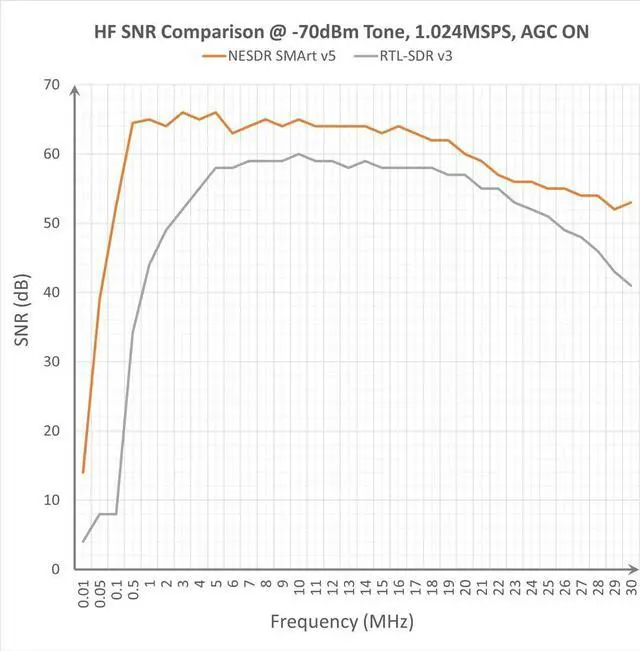

The best-performing low-cost RTL-SDR available anywhere! Compared with RTL-SDR v3, HF SNR is improved by up to 15dB, VHF & UHF SNR is improved by up to 6dB, tuning accuracy is improved by an average of 4x, and the frequency range is expanded all the way down to 100kHz
v5 has a frequency capability of 100kHz to 1.75GH z and up to 3.2MH z of instantaneous bandwidth. HF reception below 25MHz is accomplished with direct sampling and requires a suitable antenna. We recommend using a Balun One Nine to make a DIY long wire or dipole antenna (sold separately, product ID B08HGSYB7R or B00R09WHT6)

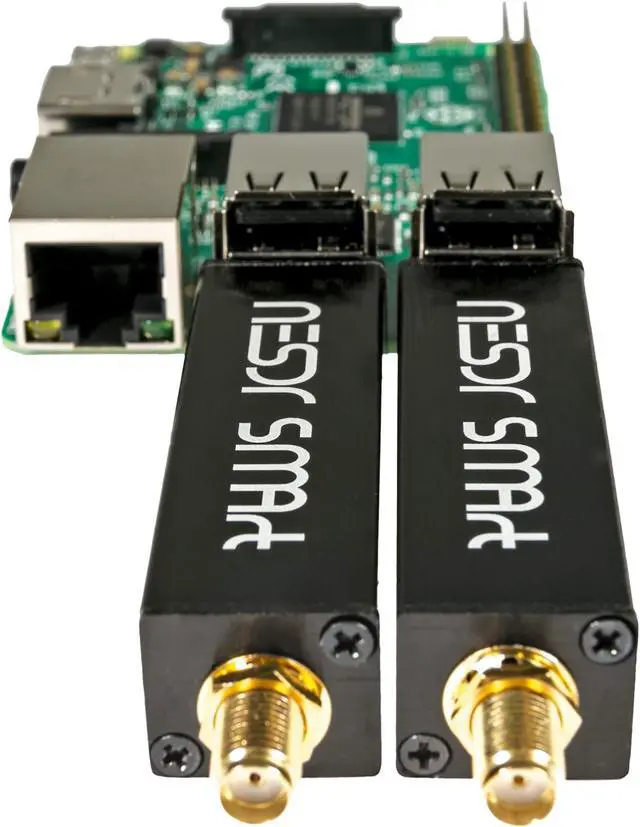

With a much narrower form factor than RTL-SDR v3, you can run multiple NESDR SMArt v5 side-by-side with any USB-compliant device, including tightly-spaced embedded devices like the Raspberry Pi
For full product specifications, please visit our website at nooelec. com, or
download the datasheet:
https: //www. nooelec. com/datasheets/100701
Included:

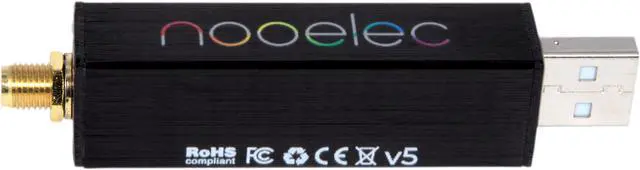

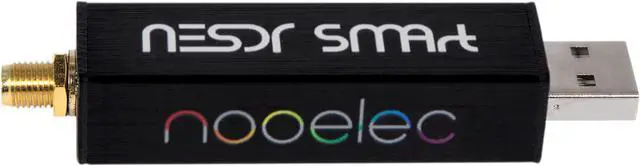

NESDR SMArt SDR in black brushed aluminum enclosure
SDR
RTL2832U Demodulator/USB interface IC
R820T2/R860 tuner IC
0.5PPM, ultra-low phase noise TCXO
RF-suitable voltage regulator
Shielded primary inductor
Integrated custom heatsink
Female SMA antenna input
High-quality black brushed aluminum enclosure
TCXO
Frequency stability: 0.5PPM (max)
Phase noise @1kHz offset: -138dBc/Hz (or better)
Phase noise @10kHz: -150dBc/Hz (or better)
Phase noise @100kHz: -152dBc/Hz (or better)
The best-performing low-cost RTL-SDR available anywhere! Compared with RTL-SDR v3, HF SNR is improved by up to 15dB, VHF & UHF SNR is improved by up to 6dB, tuning accuracy is improved by an average of 4x, and the frequency range is expanded all the way down to 100kHz
v5 has a frequency capability of 100kHz to 1.75GH z and up to 3.2MH z of instantaneous bandwidth. HF reception below 25MHz is accomplished with direct sampling and requires a suitable antenna. We recommend using a Balun One Nine to make a DIY long wire or dipole antenna (sold separately, product ID B08HGSYB7R or B00R09WHT6)
With a much narrower form factor than RTL-SDR v3, you can run multiple NESDR SMArt v5 side-by-side with any USB-compliant device, including tightly-spaced embedded devices like the Raspberry Pi
For full product specifications, please visit our website at nooelec. com, or
download the datasheet:
https: //www. nooelec. com/datasheets/100701
Included:
NESDR SMArt SDR in black brushed aluminum enclosure
SDR
Specifications
:RTL2832U Demodulator/USB interface IC
R820T2/R860 tuner IC
0.5PPM, ultra-low phase noise TCXO
RF-suitable voltage regulator
Shielded primary inductor
Integrated custom heatsink
Female SMA antenna input
High-quality black brushed aluminum enclosure
TCXO
Specifications
:Frequency stability: 0.5PPM (max)
Phase noise @1kHz offset: -138dBc/Hz (or better)
Phase noise @10kHz: -150dBc/Hz (or better)
Phase noise @100kHz: -152dBc/Hz (or better)
