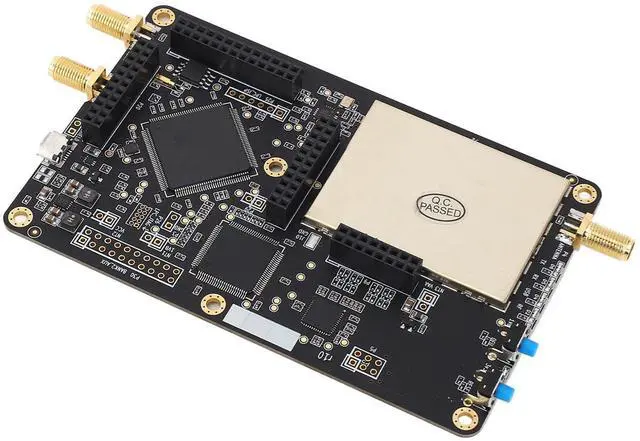

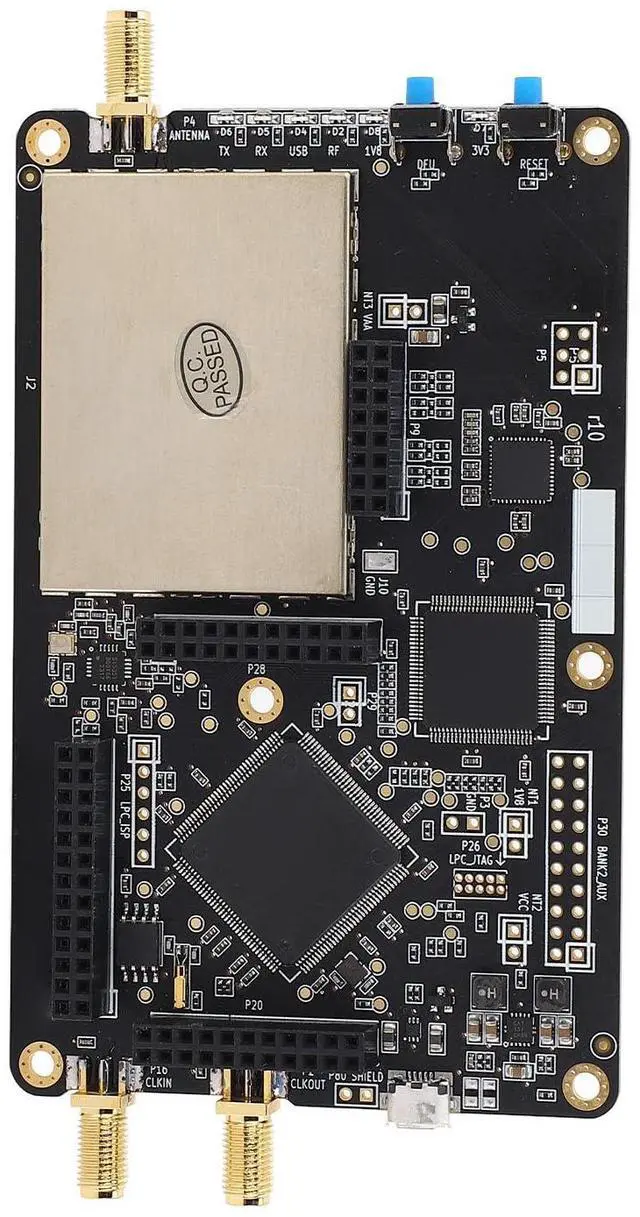

SDR Development Board for Windows, OS X Open Source Software Defined Radio 1MHz6GHz, Single Board Computers (Mainboard)
- [EASY INSTALLATION] - The SDR development board is exquisitely crafted with standard interfaces and mounting holes for easy installation and programming. for DIY development needs.[EASY INSTALLATION] - Exquisitely crafted with standard interfaces and mounting holes for easy installation and programming. for DIY development needs.
- [DESIGNED FOR TESTING AND DIY DEVELOPMENT] - Supports modern and -generation radio technology testing and development. Can be used as a USB peripheral or programmed for independent .
- [HIGHLY EFFICIENT] - Fully open source software radio development with a wide frequency range of 1MHz?6GHz, supporting multiple systems.
- [MULTIPLE FUNCTIONS] - Includes working frequency band, filtering, mixing amplification, modulation and demodulation type, data format, encryption mode, and comm protocol.
- [HIGH PERFORMANCE] - Half duplex transceiver with up to 20 million samples per second. Compatible with most software and provides high efficiency.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specification:
Item Type: SDR Development Board
Material: PCB
Basic Parameters:
Design Frequency: 1MHz-6000MHz
Data Bandwidth: 20MHz
Sampling Accuracy ADC DAC: 8bit
Sampling Rate ADC DAC: 20Mbps
Data And Power Supply Interface: USB 2.0
Open Source: Fully Open Source (software, hardware)
RF Indicator:
Maximum Power: 10dBm (less than the minimum stray power according to radio regulation)
Maximum Receiving Power: -5dBm
(Note: Exceeding this value will burn the board)
64QAM Emission EVM: 1.5 %
Multiple Sampling Bandwidth: 20MHz

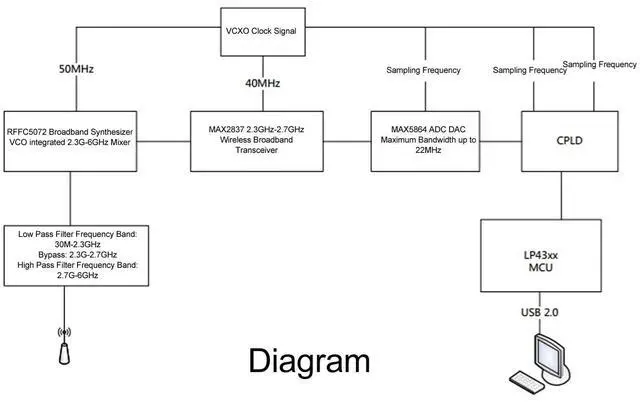

Main Hardware:
MAX 2837: 2. 3GHz to 2.7GH z broadband RF transceiver
MAX5864: ADC DAC, 22MHz sampling accuracy 8bit
LPC4320/4330: For ARM Cortex M4 processor, 204MHz
Si5351B: I2C programmable arbitrary CMOS clock generator with 40MHz and sampling clock provided by 800MHz division
MGA 81563: 0. 1-6GHz 3v 14dBm amplifier
SKY 13317: 20 MHz- 6.0GH z RF Single Pole 3 Throw (SP3T) Switch
SKY 13350: 0. 01- 6.0GH z RF Single Pole Double Throw (SPDT) Switch
Features:
Operating frequency from 1MHz to 6GHz
Half duplex transceiver
Up to 20 million samples per second
8 bit orthogonal sample (8 bit i and 8 bit q)
Software configurable RX and TX gain as well as baseband filters
Software controlled antenna port power (50 mA at 3.3V )

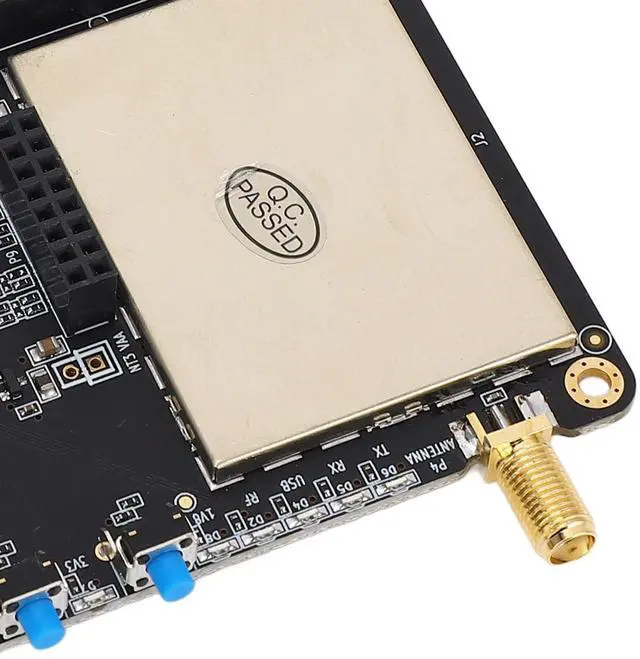

SMA female antenna connector
SMA clock female input and output for synchronization
Convenient programming button
Internal row of pins for expansion
High Speed USB 2.0
USB Power Supply
Open Source Hardware
How to Use:
Use according to the selling point diagram instructions.
Package Contain:
1 x Mainboard
or1 x Mainboard
1 x Antenna
1 x Data Cable
Item Type: SDR Development Board
Material: PCB
Basic Parameters:
Design Frequency: 1MHz-6000MHz
Data Bandwidth: 20MHz
Sampling Accuracy ADC DAC: 8bit
Sampling Rate ADC DAC: 20Mbps
Data And Power Supply Interface: USB 2.0
Open Source: Fully Open Source (software, hardware)
RF Indicator:
Maximum Power: 10dBm (less than the minimum stray power according to radio regulation)
Maximum Receiving Power: -5dBm
(Note: Exceeding this value will burn the board)
64QAM Emission EVM: 1.5 %
Multiple Sampling Bandwidth: 20MHz
Main Hardware:
MAX 2837: 2. 3GHz to 2.7GH z broadband RF transceiver
MAX5864: ADC DAC, 22MHz sampling accuracy 8bit
LPC4320/4330: For ARM Cortex M4 processor, 204MHz
Si5351B: I2C programmable arbitrary CMOS clock generator with 40MHz and sampling clock provided by 800MHz division
MGA 81563: 0. 1-6GHz 3v 14dBm amplifier
SKY 13317: 20 MHz- 6.0GH z RF Single Pole 3 Throw (SP3T) Switch
SKY 13350: 0. 01- 6.0GH z RF Single Pole Double Throw (SPDT) Switch
Features:
Operating frequency from 1MHz to 6GHz
Half duplex transceiver
Up to 20 million samples per second
8 bit orthogonal sample (8 bit i and 8 bit q)
Software configurable RX and TX gain as well as baseband filters
Software controlled antenna port power (50 mA at 3.3V )
SMA female antenna connector
SMA clock female input and output for synchronization
Convenient programming button
Internal row of pins for expansion
High Speed USB 2.0
USB Power Supply
Open Source Hardware
How to Use:
Use according to the selling point diagram instructions.
Package Contain:
1 x Mainboard
or1 x Mainboard
1 x Antenna
1 x Data Cable
