SmartFly info TF-Luna Lidar Sensor 0.1-8m Short-Range Distance Single-Point Ranging Finder Module UART / I2C Compatible with Pixhawk and Raspberry Pi for Drone/Robot Obstacle Avoidance
- [Single-point Ranging LiDAR] TF-Luna is a single-point ranging LiDAR, based on TOF principle. With unique optical and electrical design, it can achieve stable, accurate and highly sensitive range measurement
- [Low Power Consumption] Power Consumption of TF-Luna is lower than 0.35Wsuitable for battery-powered or low power consumption scenarios
- [Slim Figure Yet Big Skill] easy to install and integrate with 35mm * 21.25mm * 13.5mm in size,it's 5g at weight which is suitable for scenarios with strict load requirements
- [Wide Application] Pedestrian detection, vehicle detection, intelligent barrier gate and altimeter,robot fall detection/Anti-Fall,Drones Obstacle Avoidance and Altitude Hold Mode, Obstacle Avoidance,Traffic Statistics, Vehicle Crash Warning
- [Wiki] You can find more docs by using the document code LD0023 by the link youyeetoo.com/blog/tflunald0023-55. Any technical issues after purchase please contact with our tech-support team: click "WayPonDEV" and ask
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

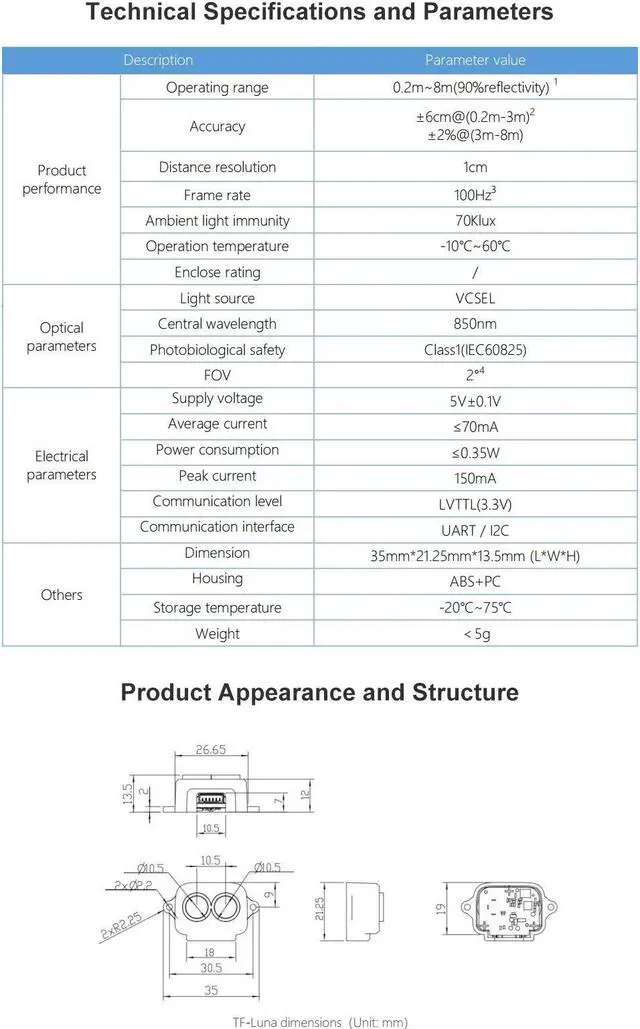

-Specification-
Operating range: 0.2 m~8m(90%reflectivity)
Accuracy: ±6cm@( 0.2 -3m), ±2%@(3m-8m)
Measurement unit: cm
Range resolution: 1cm
FOV: 2°
Frame rate: 1~250Hz (Default setting is 100Hz )
Supply voltage: 5V± 0.1V
Average current: 70mA
Peak current: 150mA
Average power: 350mW
Communication level: LVTTL( 3.3V )

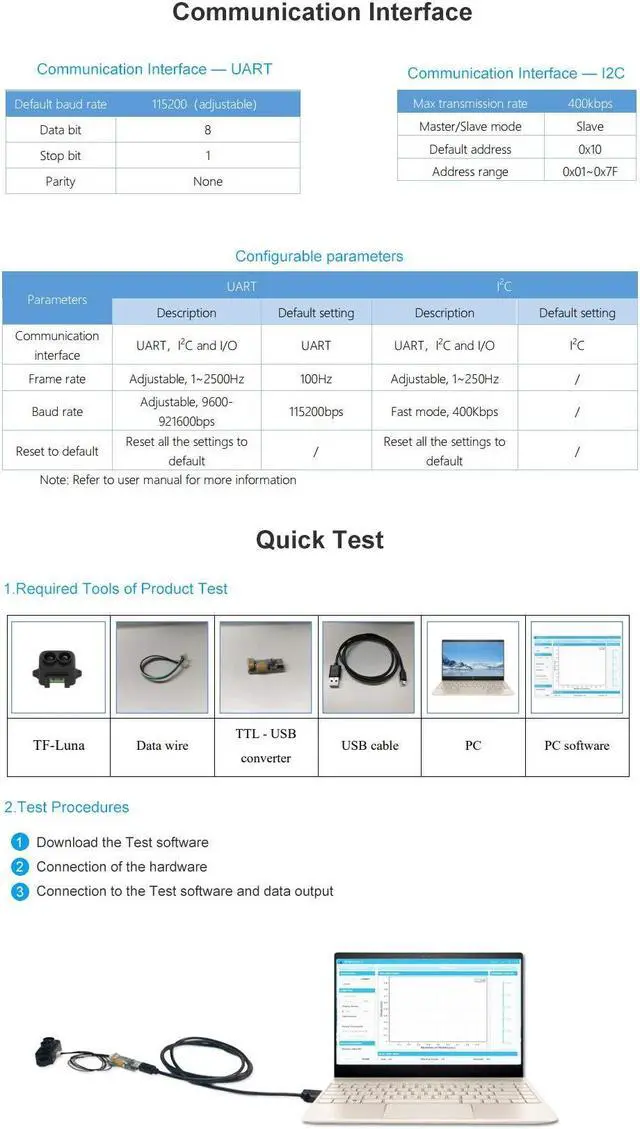

Communication interface: UART/IIC
Default baud rate: 115200
Parity check: None
Light source: VCSEL
Wavelength: 850nm
Operating temperature: -20°C~75°C
Certification: CE, FCC, ROHS
Size: 35mm* 21.25 mm* 13.5 mm (L*W*H)
Housing material: ABS+PC
Storage temperature: -20C~75C
Weight: 5g
-Major Applications-
Traffic Monitoring
Obstacle detection
Smart device
Security and obstacle avoidance
Drone altitude holding and terrain following
Distance measuring instrument

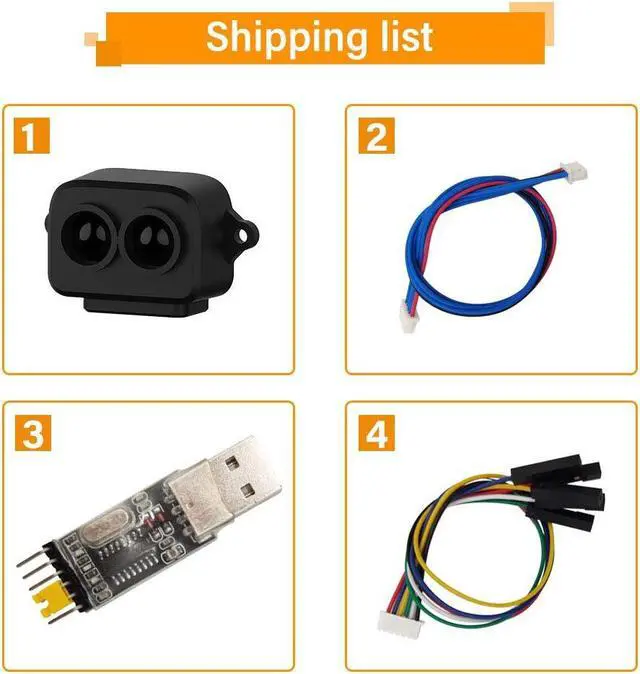

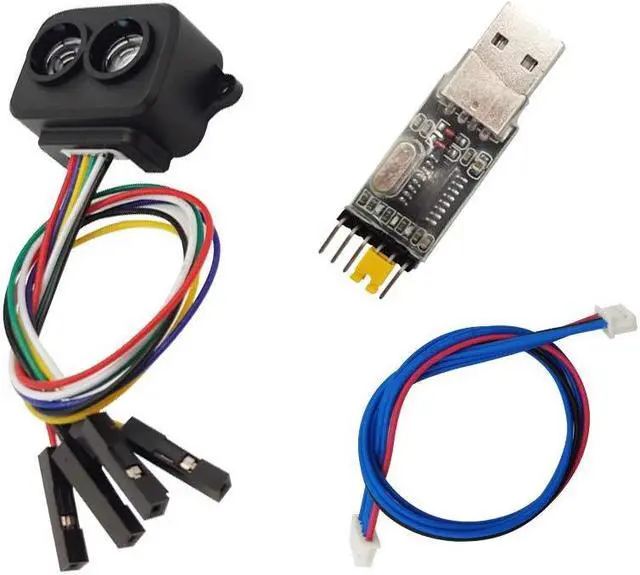

-Package Content-
1x TF-Luna LiDAR Module
1x Data wire

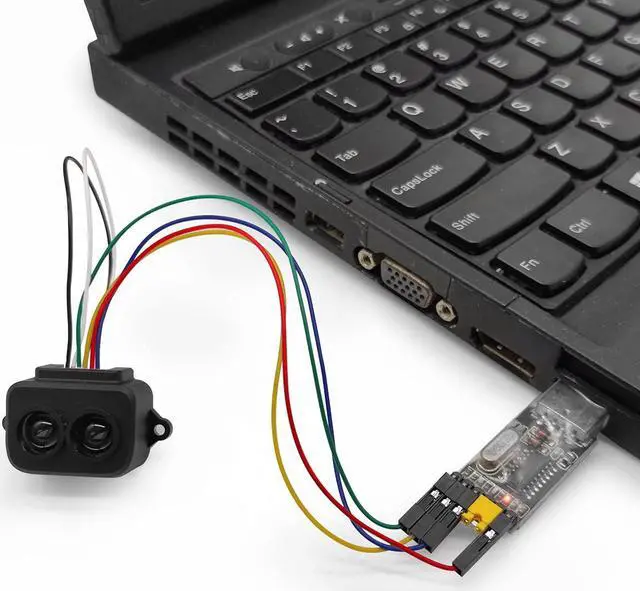

1x USB To RS232 TTL Converter Module
1x Serial Cable 15cm
-FAQ-
Q1: Is TF-Luna available with 3.3V or other power supply voltage?
A1: Sorry, it is not available for the time being. The Standard power supply of TF-Luna is 5V± 0.1V. If you have any further requirement, please contact us
Q2: TF-Luna will heat up after operating for a while. Is it broken?
A2: This is the normal operating condition of the product. The temperature of the chip and circuit board will slightly up after a continuous operation, which is a normal case.
Operating range: 0.2 m~8m(90%reflectivity)
Accuracy: ±6cm@( 0.2 -3m), ±2%@(3m-8m)
Measurement unit: cm
Range resolution: 1cm
FOV: 2°
Frame rate: 1~250Hz (Default setting is 100Hz )
Supply voltage: 5V± 0.1V
Average current: 70mA
Peak current: 150mA
Average power: 350mW
Communication level: LVTTL( 3.3V )
Communication interface: UART/IIC
Default baud rate: 115200
Parity check: None
Light source: VCSEL
Wavelength: 850nm
Operating temperature: -20°C~75°C
Certification: CE, FCC, ROHS
Size: 35mm* 21.25 mm* 13.5 mm (L*W*H)
Housing material: ABS+PC
Storage temperature: -20C~75C
Weight: 5g
-Major Applications-
Traffic Monitoring
Obstacle detection
Smart device
Security and obstacle avoidance
Drone altitude holding and terrain following
Distance measuring instrument
-Package Content-
1x TF-Luna LiDAR Module
1x Data wire
1x USB To RS232 TTL Converter Module
1x Serial Cable 15cm
-FAQ-
Q1: Is TF-Luna available with 3.3V or other power supply voltage?
A1: Sorry, it is not available for the time being. The Standard power supply of TF-Luna is 5V± 0.1V. If you have any further requirement, please contact us
Q2: TF-Luna will heat up after operating for a while. Is it broken?
A2: This is the normal operating condition of the product. The temperature of the chip and circuit board will slightly up after a continuous operation, which is a normal case.
