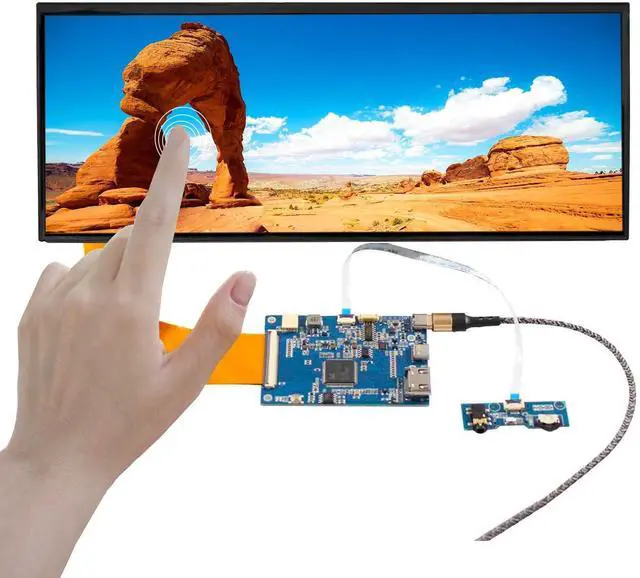

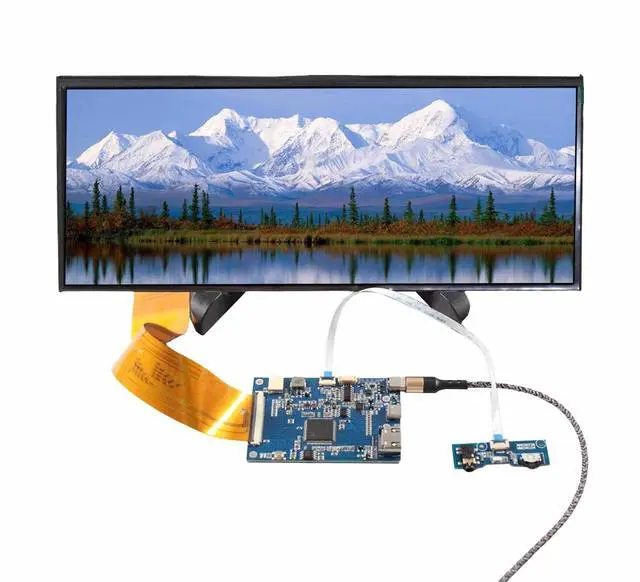

FanyiTek 12.3 inch 1920x720 400nit IPS Wide LCD Touchscreen and USB C LVDs Controller Board 70pins
- Screen Advantage12.3 inch built in touch screen ,stretched bar display ,special full resolution 1920x720 ,full viewing angles ,Outline Size 301.2(W)123.35(H) 7.7(D) mm,Display Area 293.1(W)110.2(H) mm,Brightness 400 cd/m (Typ.)Contrast Ratio 1200:1.
- LCD Driver BoardInput: Type-C Mini ,Audio Output: Speaker ,Pls use it in insulated environment.
- Input PowerType-C connector.Pls prepare the power adapter by yourself.
- Capacitive Touch PanelThe design of touch panel makes the operation more convenient, No button damage issue for after long time use,it support 10 points multi-touch, can also protect the screen from being scratched directly.

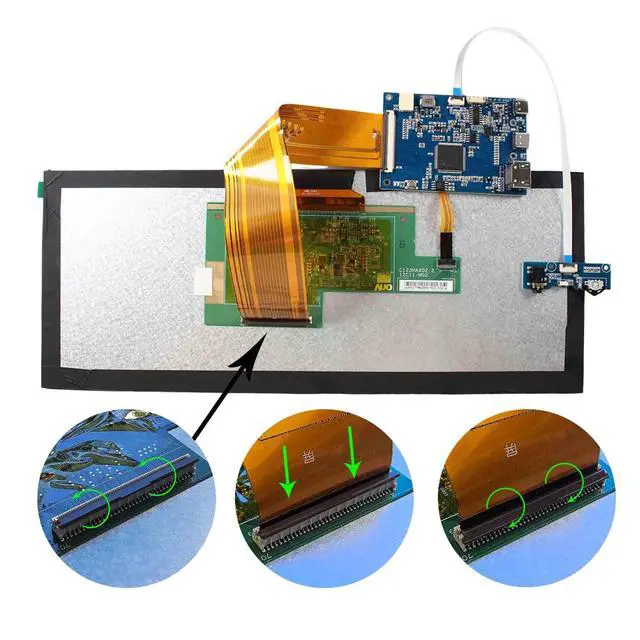

- Plug and playConnecting cables and ports according to link picture details ,Power on and enter signal cable ,the screen can work well after powering.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

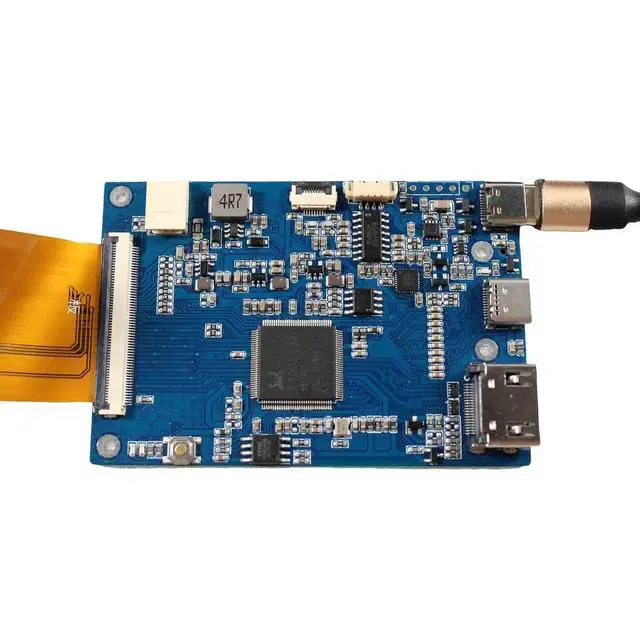

LCD Controller Board: Input
Power Adapter: USB C connectorCome In Standby Model When Not Input SignalStandby Model < 0.3WI nput: USB
COutput: DP USB (max 1500mA)
Audio Output:
SpeakerOSD: Brightness Contrast VOL+ VOL- Language And So OnLanguage: EnglishNetherlands
Korean JapaneseBoard Size: 81mm x55mm x 8.1 mm 12.3" VS123T-001T LCD screen with touch function: Display Mode AAS, Normally Black, TransmissiveResolution 1920 (RGB) 720Outline Size 301.2 (W) 123.35 (H) 7.7 (D) mmDisplay Area 293.1 (W) 110.2 (H) mmBrightness 400 cd/m (Typ. )Contrast Ratio 1200:1 (Typ. ) (TM) Viewing Angle 85/85/85/85 (Typ. ) (CR10) [Left / Right / Up / Down]Interface LVDS (2 ch, 8-bit), 70 pins ConnectorBacklight WLED
Input Voltage 3.3V (Typ.

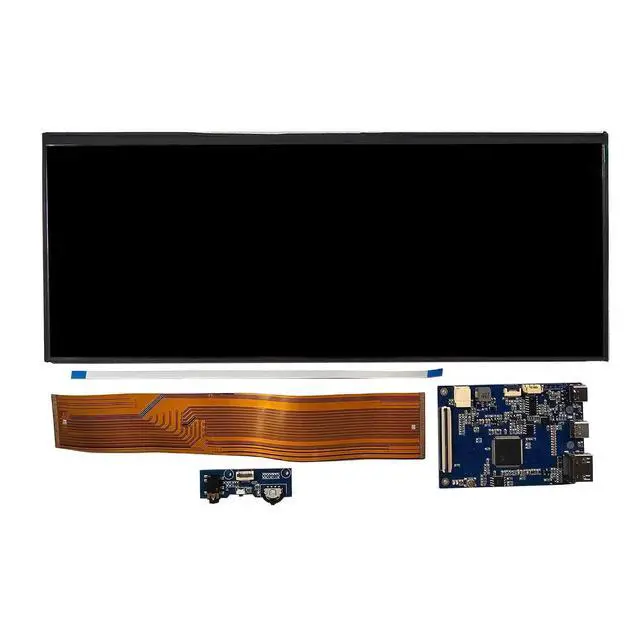

)Packing list: 1 USB C LCD Controller Board VS-HL2330-V 1.11 12.3 inch VS123T-001T 1920X720 Capacitive Touch LCD screen1 Keyboard With Cable
Power Adapter: USB C connectorCome In Standby Model When Not Input SignalStandby Model < 0.3WI nput: USB
COutput: DP USB (max 1500mA)
Audio Output:
SpeakerOSD: Brightness Contrast VOL+ VOL- Language And So OnLanguage: EnglishNetherlands
Korean JapaneseBoard Size: 81mm x55mm x 8.1 mm 12.3" VS123T-001T LCD screen with touch function: Display Mode AAS, Normally Black, TransmissiveResolution 1920 (RGB) 720Outline Size 301.2 (W) 123.35 (H) 7.7 (D) mmDisplay Area 293.1 (W) 110.2 (H) mmBrightness 400 cd/m (Typ. )Contrast Ratio 1200:1 (Typ. ) (TM) Viewing Angle 85/85/85/85 (Typ. ) (CR10) [Left / Right / Up / Down]Interface LVDS (2 ch, 8-bit), 70 pins ConnectorBacklight WLED
Input Voltage 3.3V (Typ.
)Packing list: 1 USB C LCD Controller Board VS-HL2330-V 1.11 12.3 inch VS123T-001T 1920X720 Capacitive Touch LCD screen1 Keyboard With Cable
