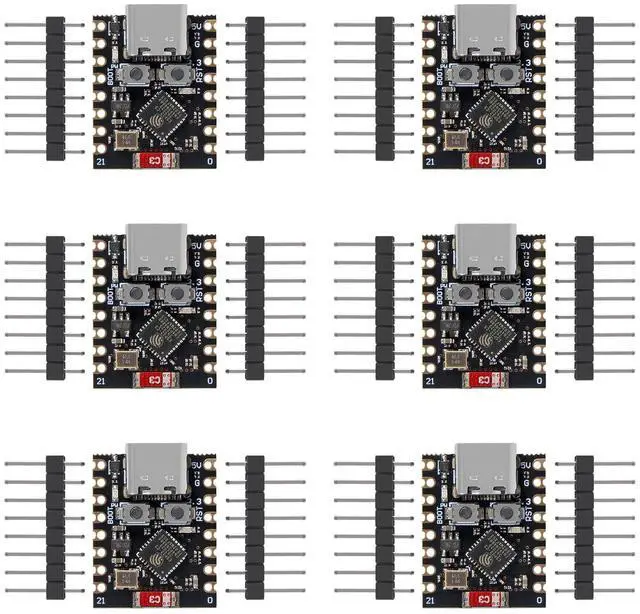

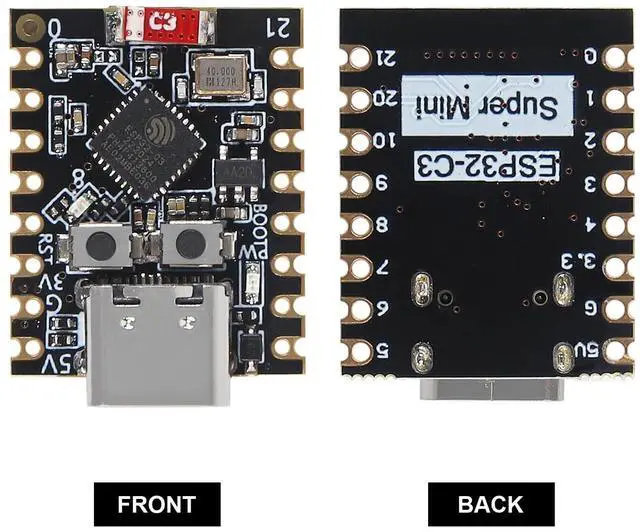

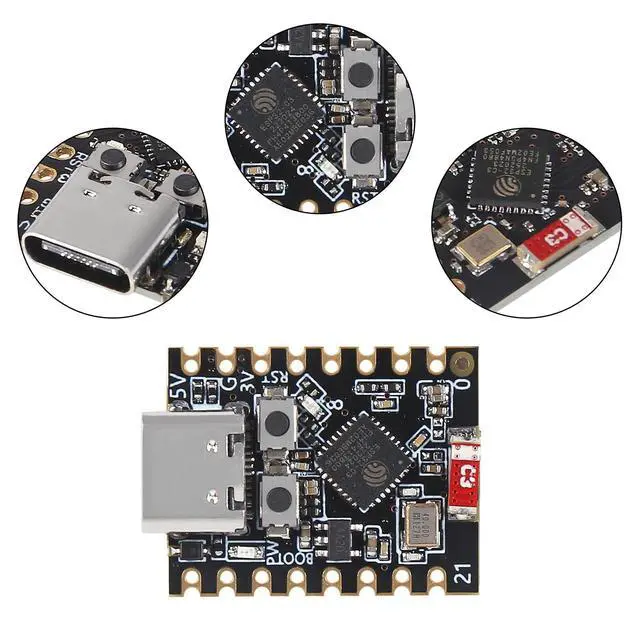

ESP32 ESP32-C3 Development Board ESP32 C3 Mini WiFi Bluetooth 160MHz Running Frequency 2.4GHz Wi-Fi & Bluetooth 5.0 ESP32 C3 Super Mini for Arduino (6pcs)
- ESP32-C3 is equipped with a single-core 32-bit RISC-V processor, with a four-level pipeline architecture, with a main frequency of up to 160 MHz. ESP32-C3 has 400 KB of built-in SRAM and 384 KB of ROM storage space. ESP32-C3 is the industry-leading Wi-Fi+Bluetooth LE integrated solution
- ESP32 C3 Mini is positioned as a high-performance, low-power, cost-effective iot mini development board for low-power iot applications and wireless wearable applications.
- EPS32-C3 is a cost-effective and low-power dual-mode Wi-Fi and Bluetooth chip. The ESP32-C3 uses a RISC-V processor, a single-core processor with a main frequency of 150 MHz, which integrates Wi-Fi 4 and Bluetooth 5.0 wireless communication.
- ESP32-C3 is a system-level chip (SoC) MCU with very low power consumption and high integration, which integrates 2.4Ghz Wi-Fi and Bluetooth (Bluttooth) low-end dual-mode wireless communication. consumption.
- If external power supply is required, just connect the + level of the external p
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Overview of
Functions: 1. ESP32-C3 is a MCU system-level chip (SoC) with very low power consumption and high integration, integrating 2.4G hz Wi-Fi and low-power Bluetooth (Bluttooth) dual-mode wireless communication. 2. ESP32-C3 is equipped with RISC-V 32-bit single-core processor, with a four-level pipeline architecture, with a main frequency of up to 160MHz. 3. ESP32-C3 has built-in 400KB SRAM and 384KB ROM storage space. 4. ESP32-C3 is the industry's leading integrated Wi-Fi+Bluetooth LE solution5.
Powerful CPU: ESP32-C3, 32-bit RISC-V single-core processor, running up to 160 MHz6.
WiFi: 802.11 b/g/n protocol, 2.4G hHz, support Station mode, SoftAP mode, SoftAP+ Station mode, hybrid mode7.
Bluetooth: Bluetooth 5.08.
Ultra-low power consumption: deep sleep power consumption of about 43A8.
Rich board resources: 400KB SRAM, 384KB ROM built-in 4Mflash. 10.
Chip model: ESP32C3FN411.

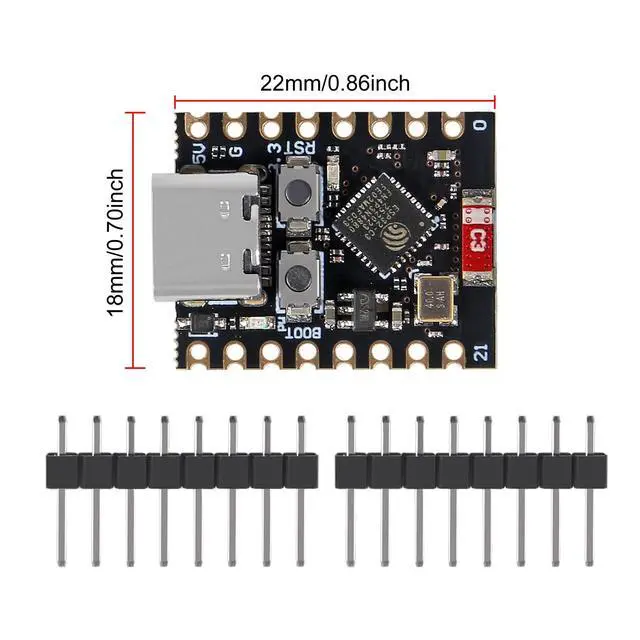

UItra-small size: As small as the thumb (22 52x18mm) classic shape, suitable for wearables and small projects12.
Reliable security features: Encryption hardware accelerators that support AES-128/256, hashing, RSA, HMAC, digital signatures, and secure startup13.

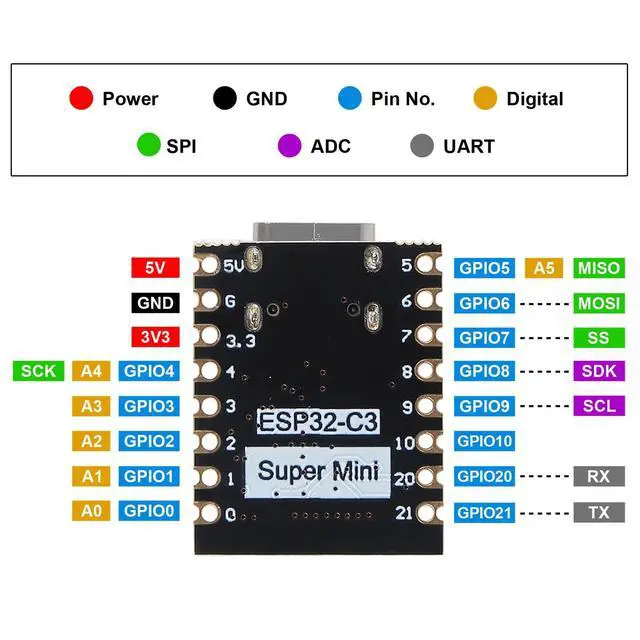

Rich interface: 1xI2C, 1xSPI, 2xUART, 1 1xGPIO (PWM), 4xADC14. Single- sided components, surface mount design15.
Onboard LED blue light: GPIO8 pin16. Support Software Development-C/C++/ESP-IDF-VSCODE/MICROPHYTHON
Application Scenarios1. Second development of monitoring, video, photography and other Aolt applications. 2. Wireless communication solutionsPackage2 * ESP32-C3 Development Board ESP32 Mini WiFi Bluetooth
Functions: 1. ESP32-C3 is a MCU system-level chip (SoC) with very low power consumption and high integration, integrating 2.4G hz Wi-Fi and low-power Bluetooth (Bluttooth) dual-mode wireless communication. 2. ESP32-C3 is equipped with RISC-V 32-bit single-core processor, with a four-level pipeline architecture, with a main frequency of up to 160MHz. 3. ESP32-C3 has built-in 400KB SRAM and 384KB ROM storage space. 4. ESP32-C3 is the industry's leading integrated Wi-Fi+Bluetooth LE solution5.
Powerful CPU: ESP32-C3, 32-bit RISC-V single-core processor, running up to 160 MHz6.
WiFi: 802.11 b/g/n protocol, 2.4G hHz, support Station mode, SoftAP mode, SoftAP+ Station mode, hybrid mode7.
Bluetooth: Bluetooth 5.08.
Ultra-low power consumption: deep sleep power consumption of about 43A8.
Rich board resources: 400KB SRAM, 384KB ROM built-in 4Mflash. 10.
Chip model: ESP32C3FN411.
UItra-small size: As small as the thumb (22 52x18mm) classic shape, suitable for wearables and small projects12.
Reliable security features: Encryption hardware accelerators that support AES-128/256, hashing, RSA, HMAC, digital signatures, and secure startup13.
Rich interface: 1xI2C, 1xSPI, 2xUART, 1 1xGPIO (PWM), 4xADC14. Single- sided components, surface mount design15.
Onboard LED blue light: GPIO8 pin16. Support Software Development-C/C++/ESP-IDF-VSCODE/MICROPHYTHON
Application Scenarios1. Second development of monitoring, video, photography and other Aolt applications. 2. Wireless communication solutionsPackage2 * ESP32-C3 Development Board ESP32 Mini WiFi Bluetooth
