QIANRENON USB3.0 & USB C 3.1 Threaded Fixed Waterproof Connector Coupler USB3.0+USB Type C 3.1 Female to Female Bulkhead Mount Charging Data Adapter, Waterproof Cap, for Expand USB3.0 USB C Port
- USB3.0 + USB CUSB3.0 & USB C 3.1 Female to Female Bulkhead Fixed Mount Waterproof adapter coupler. USB3.0 and USB C 2 ports are independent of each other and do not interfere with each other, can be used for USB and USB C device data transfer or charging at the same time.

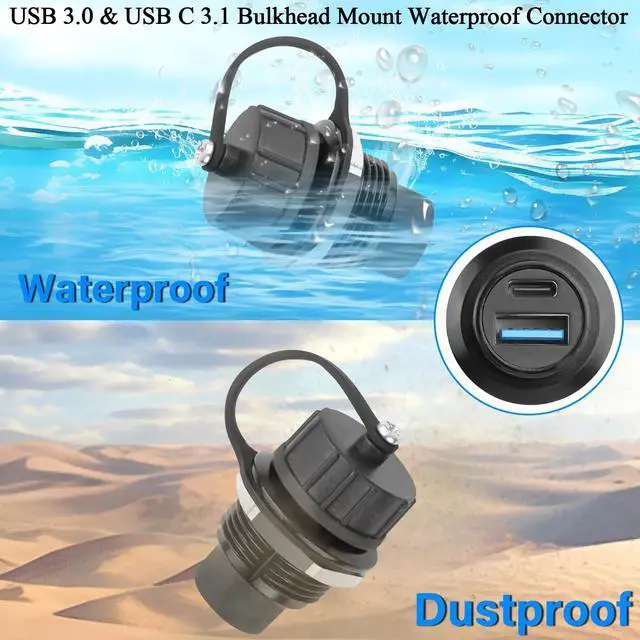

- Water/Dust ProofUSB A & USB C Female to Female Threaded Fixed Installation 2 port connector socket. Sealing gasket and waterproof cap integrated design, prevent rain, dust or foreign objects from entering, protect the inside of the 2 ports.

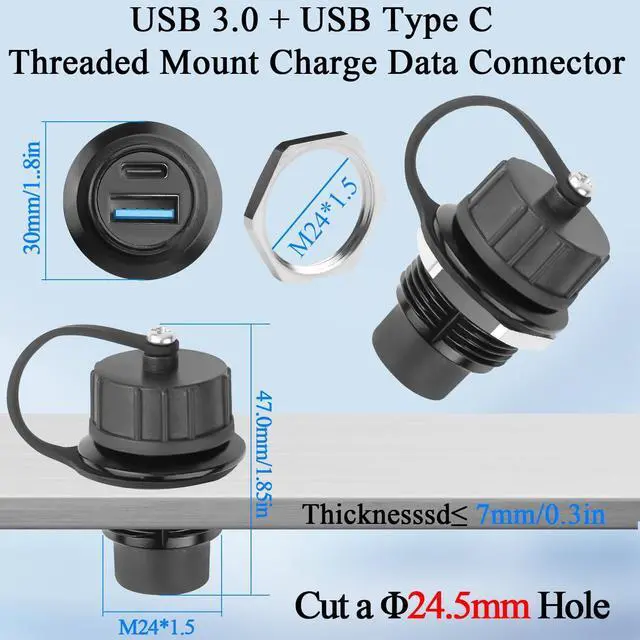

- Threaded MountUSB 3.0 + USB Type C Threaded Mount charging data connector. Equipped with M241.5 nut, only need to make a 24.5mm hole on the board surface, fixed installation through the nut spacer, you can achieve USB3.0 and USB C port expansion. Note:Mounting plate thickness 7mm.

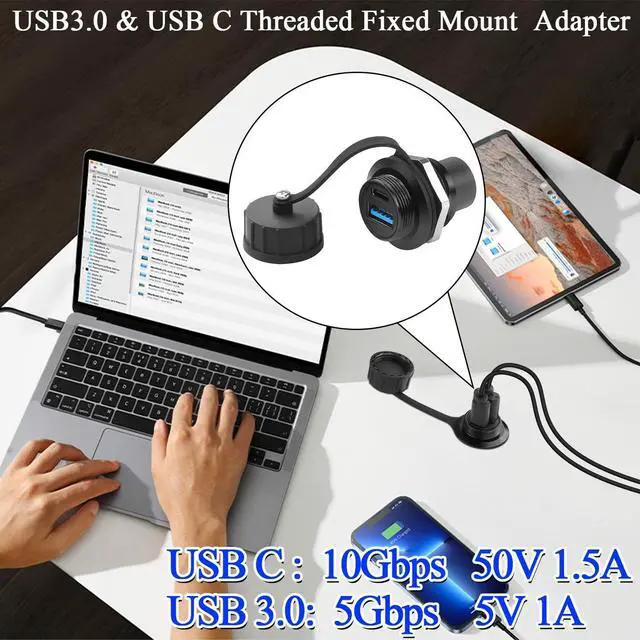

- PerformanceUSB 3.0 & USB C 3.1 Feedthrough Bulkhead mounted waterproof connector. USB 3.0 supports 5Gbps data transfer and 5V/1A charging. USB Type C 3.1 supports up to 10Gbps data transfer and 5
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
USB 3.0 +USB Type C 3.1 Female to Female Bulkhead fixed mount waterproof adapter. USB 3.0 and USB C 2 ports are independent of each other and do not interfere with each other, can be used for both USB and USB C device data transfer or charging. Sealing gasket and waterproof cap integrated design, prevent rain, dust or foreign objects from entering, protect the inside of the 2 ports. Equipped with M 241.5 nut, only need to make a 24.5 mm hole on the board surface, and fixedly install it through the nut spacer to extend USB 3.0 and USB C ports.
Suitable for installation in equipment panel, wiring rack, cabinet, desktop and wall. To extend USB and USB C ports to connect mobile phones, tablets, digital electronic products for data transmission and charging.
Port 1: USB 3.0 Female to USB 3.0
FemalePort 2: USB Type C 3.1 Female to USB Type C 3.1
FemaleUSB 3.0 (data transmission: 5Gbps, charging: 5V 1A)USB
C 3.1 (data transmission: Max 10Gbps, charging: Max
50V 1.5A )Design: Threaded Fixed, Bulkhead Moun, Waterproof and DustproofThickness of
Mount Plate: 7mm ( 0.3 in)Mounting
Hole Diameter: 24.5
mm ( 0.96 in)Case: Zinc
AlloyPackage: 1*USB 3.0 & USB C 3.1F eedthrough Bulkhead mount charge data connector. 1*M24 Hexagonal Nut, 1*Dust Cap
Suitable for installation in equipment panel, wiring rack, cabinet, desktop and wall. To extend USB and USB C ports to connect mobile phones, tablets, digital electronic products for data transmission and charging.
Port 1: USB 3.0 Female to USB 3.0
FemalePort 2: USB Type C 3.1 Female to USB Type C 3.1
FemaleUSB 3.0 (data transmission: 5Gbps, charging: 5V 1A)USB
C 3.1 (data transmission: Max 10Gbps, charging: Max
50V 1.5A )Design: Threaded Fixed, Bulkhead Moun, Waterproof and DustproofThickness of
Mount Plate: 7mm ( 0.3 in)Mounting
Hole Diameter: 24.5
mm ( 0.96 in)Case: Zinc
AlloyPackage: 1*USB 3.0 & USB C 3.1F eedthrough Bulkhead mount charge data connector. 1*M24 Hexagonal Nut, 1*Dust Cap
