Wishiot 5PCS TCS3472 RGB Color Sensor Color Recognition Module RGB IIC Light Development Board with IR Filter for Arduino STM32
- 1. This module is a color sensor based on AMS's TCS3472XFN color light-to-digital converter as the core, the sensor provides digital outputs of red, green, blue (RGB) and clear light sensing values
- 2. The integrated infrared blocking filter minimizes the infrared spectral component of incident light and allows for accurate color measurement
- 3. Features high sensitivity, wide dynamic range and IR blocking filters
- 4. Dual-aperture versions are laid out with 2 LEDs to fill in the light on the object
- 5. The design is supplied with Ardunio and STM32 sample programs, and datasheet files are also available (customer needs to provide the method so that customer service can send the files)
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product Overview: 1. This module is a color sensor based on AMS's TCS3472XFN color light-to-digital converter as the core, the sensor provides digital outputs of red, green, blue (RGB) and clear light sensing values. 2. The integrated infrared blocking filter minimizes the infrared spectral component of incident light and allows for accurate color measurement. 3. Features high sensitivity, wide dynamic range and IR blocking filters. 4. Minimizes the effects of infrared and ultraviolet spectral components for accurate color measurements. Also features ambient light intensity detection and shieldable interrupt function. 5. Communication via I2C interface. 6. Dual-aperture versions are laid out with 2 LEDs to fill in the light on the object. 7. The design is supplied with Ardunio and STM32 sample programs, and datasheet files are also available (customer needs to provide the method so that customer service can send the files).

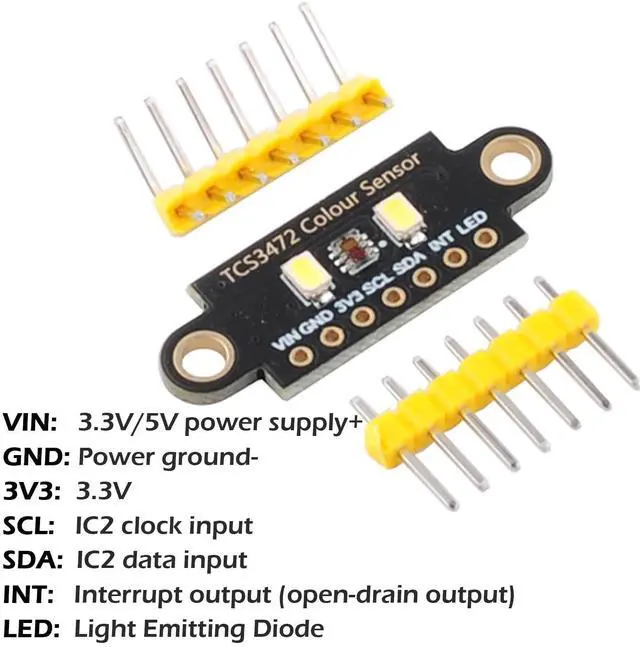

Product Parameters: Operating
voltage: 3.3V
/5VControl chip: TCS3472XFN
Logic voltage: 3.3V
/5VCommunication interface: I2C
Product Parameters: Operating
voltage: 3.3V
/5VControl chip: TCS3472XFN
Logic voltage: 3.3V
/5VCommunication interface: I2C
