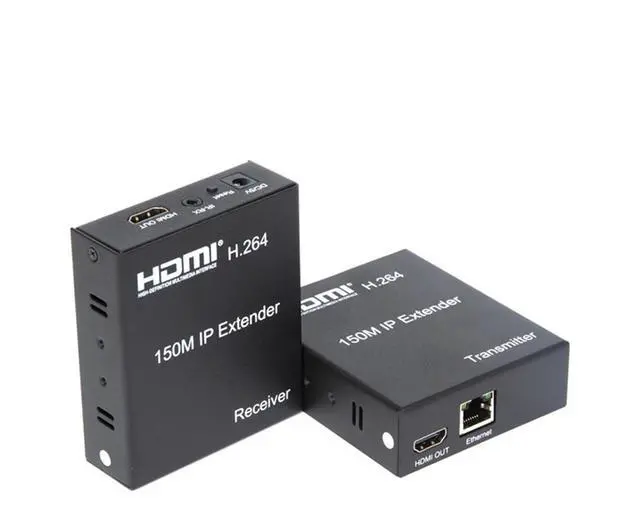

1080P 150M HDMI IP Extender, Via RJ45 Ethernet Network Cat6 Cat 6 6a Cable Extension Via Switch 1 Transmitter to Multi Receiver with H.264 for PS4 Laptop TV (TX+RX)
- A:H.264 compression technologylt's can effectively improve transmissionefficiency and ensure the flow of playback.

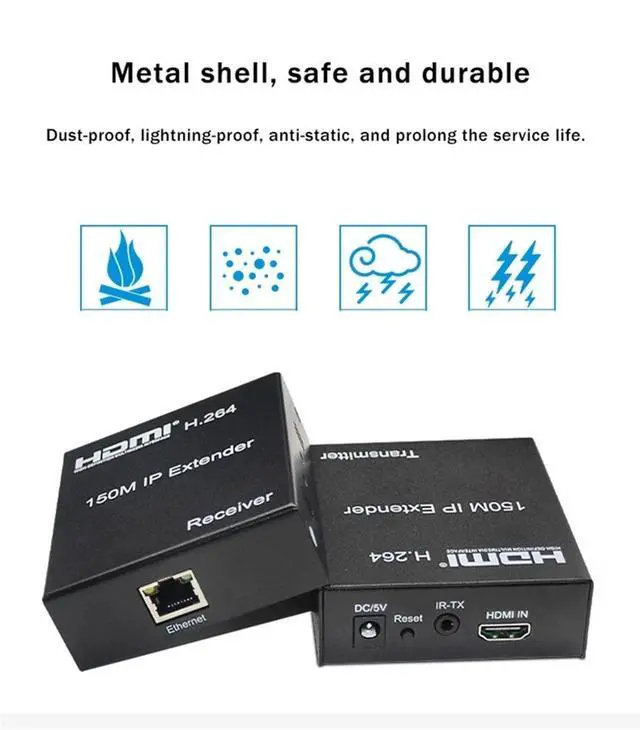

- B:Metal shell,safe and durableDust-proof, lightning-proof, anti-static, and prolong the service life.

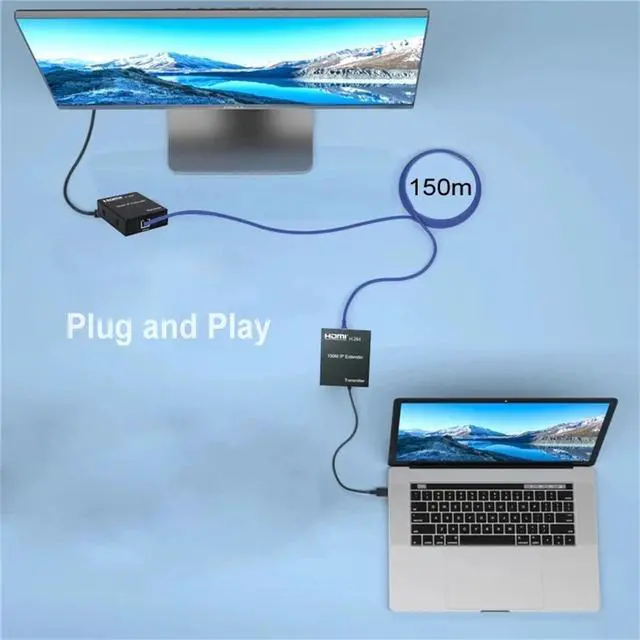

- C:Application diagrams150M HDMl extender over IP is used in audio-visual conference, command and controlcenter, ticketing platform, home theater, multi-media teaching, conference system andso on.

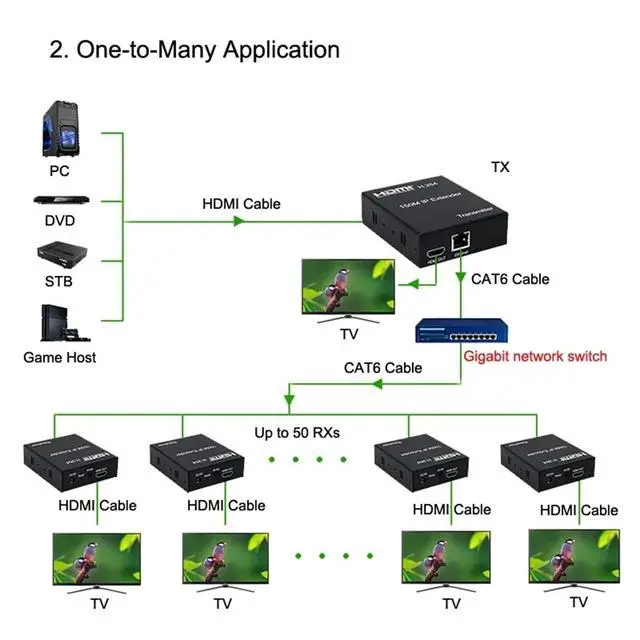

- D:H.264 code transmission, transmission rate 8.1MbpsSupport point-to-point mode, one point-to-multi point mode and cascadeconnection mode.Note: Point-to-multi and cascade mode need Switch,support up to 1TX 50 RX 802.3 Ethernet standard.* Support IR remote control.Features:*Support HDMI 1.3.
- E: The design of pure hardware, plug and play, no need for additional software.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Warm Tips: 1. our product is new upgraded, automatically match IP address, is much more convenient2. The TX to RX support up to 253 RXs and 150m cat6 cableProduct introduction: 150M HDMI IP Extender is based on TCP/IP standard. It transmits your HD display withthe high resolution up to 150 meters away from your DVD or computer source by usingone CAT5e/6 cable. At the same time, it's convenient to transmit HDMl audio and video source bypoint-to-point mode, one point-to-multi point mode and cascade connection modespecification: HDMI
version: HDMI
1.3V ideo resolution support: 480p, 720p, 1080pSound
Stereo: 32kHz, 44.1
kHz and 48kHzInfrared support: 38KHz;
NEC codePower input: DC 5V / 1AMaximum power consumptionDimensions (LWH): 93x79x27mmPhysical
weight: 228g x 2Connection and operation1) Connect the HDMl source (such as DVD, PS3, STB ) to the HDMI IN of transmitterby HDMI cable. 2) Connect theHDMl out of Receiver to HDTV display by HDMI cable. 3 )Connect the Transmitter and Receiver with one cat5e/6 cable (recommend). thefurthest distance is 150M. 4) Connect the IR receiver into IR-RX port on receiver, and R transmitter " intothe IR-TX on transmitter, and make sure the IR transmitter aim at lR port of thesource5) Connect two pieces of 5V power supply to the transmitter and receiver, and power onthe HDTV display and HDMI source.
The Package contents: Package Content for the option of "Only 1 RX"1. Receiver 1PCS2. 5V 1A Power Adapter 1PCS3. IR Cable PCS
Package Content for the option of "1 TX and 1 RX "1. Transmitter 1PCS2. Receiver 1PCS3. 5V 1A Power Adapter 2PCS4. IR Cable 2PCS5. User Guide 1PCS
version: HDMI
1.3V ideo resolution support: 480p, 720p, 1080pSound
Stereo: 32kHz, 44.1
kHz and 48kHzInfrared support: 38KHz;
NEC codePower input: DC 5V / 1AMaximum power consumptionDimensions (LWH): 93x79x27mmPhysical
weight: 228g x 2Connection and operation1) Connect the HDMl source (such as DVD, PS3, STB ) to the HDMI IN of transmitterby HDMI cable. 2) Connect theHDMl out of Receiver to HDTV display by HDMI cable. 3 )Connect the Transmitter and Receiver with one cat5e/6 cable (recommend). thefurthest distance is 150M. 4) Connect the IR receiver into IR-RX port on receiver, and R transmitter " intothe IR-TX on transmitter, and make sure the IR transmitter aim at lR port of thesource5) Connect two pieces of 5V power supply to the transmitter and receiver, and power onthe HDTV display and HDMI source.
The Package contents: Package Content for the option of "Only 1 RX"1. Receiver 1PCS2. 5V 1A Power Adapter 1PCS3. IR Cable PCS
Package Content for the option of "1 TX and 1 RX "1. Transmitter 1PCS2. Receiver 1PCS3. 5V 1A Power Adapter 2PCS4. IR Cable 2PCS5. User Guide 1PCS
