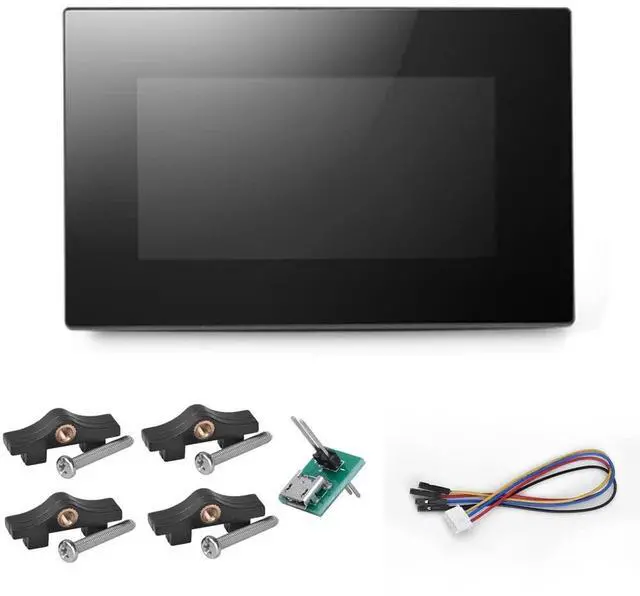

Ferwooh Nextion 7.0" LCD Module Touch Display Intelligent Series NX8048P070-011R-Y HMI IPS RGB 65K Resistive Touchscreen with Enclosure

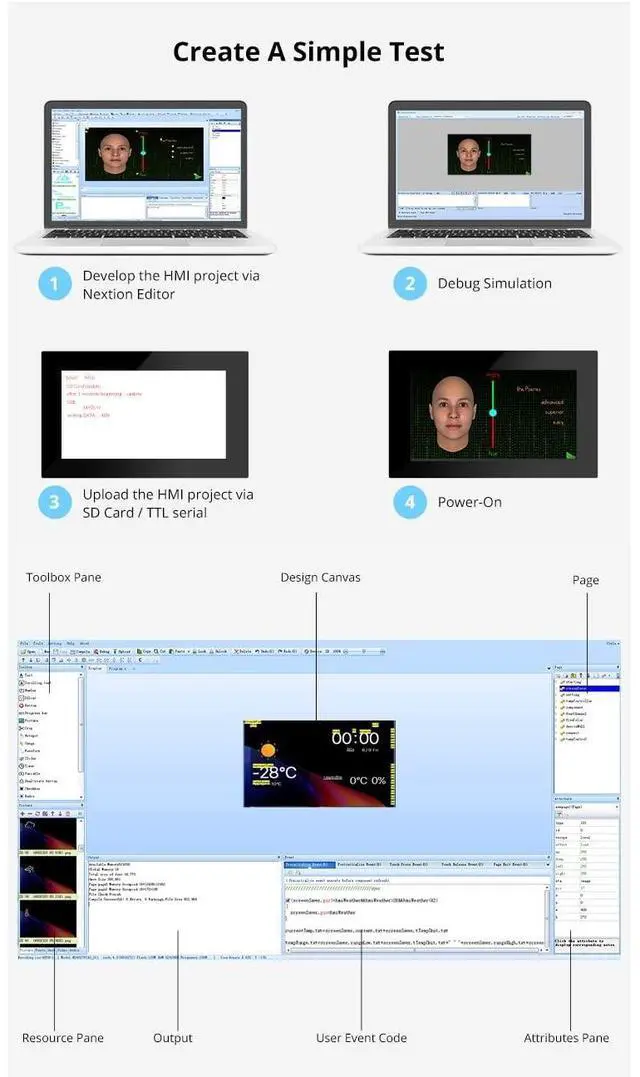

Nextion is a Human Machine Interface (HMI) solution that combines an onboard processor and memory touch display with Nextion Editor software for HMI GUI project development. With the NEXTION Editor software, you can quickly develop the HMI GUI by combining components (graphics, text, buttons, sliders, etc. ) ^^ The Nextion HMI display connects to the peripheral MCU via TTL Serial (5V, TX, RX, GND) to provide event notifications for the peripheral MCU to act on. ^^ Intelligent Series products have more powerful hardware in terms of MCU, Flash memory and SRAM compared to Basic Series and Enhanced Series.

The audio, video and animation playback capabilities enrich the user's project-HMI interaction. The Intelligent Series supports advanced software features and functions such as transparent components, page loading effects, move and drag components, etc. ^^ You can develop the HMI GUI project via free latest Nextion Editor software version 0.58 or higher. Nextion Intelligent Series products have more powerful hardware in terms of MCU, Flash memory and SRAM compared to Basic Series and Enhanced Series. ^^ Supports advanced software features and functions such as transparent components, side loading effect, component moving and dragging, etc.

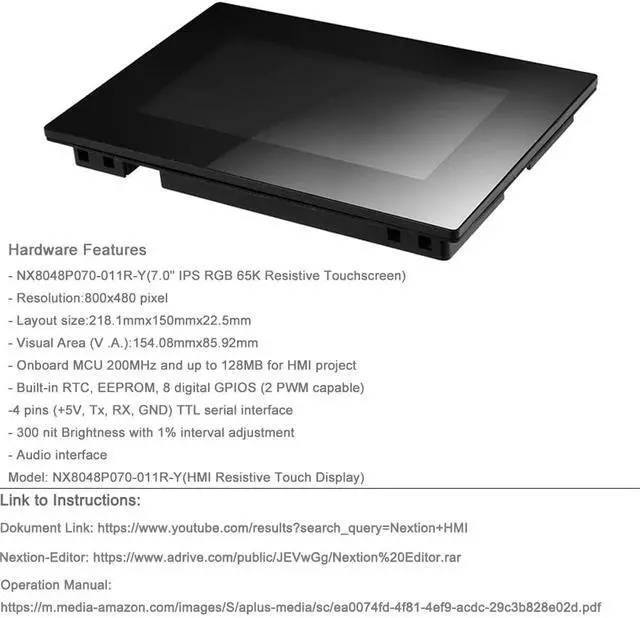

Onboard MCU 200MHz and up to 128MB for HMI project, Built-in RTC, EEPROM, 8 digital GPIOs (2 PWM capable)
