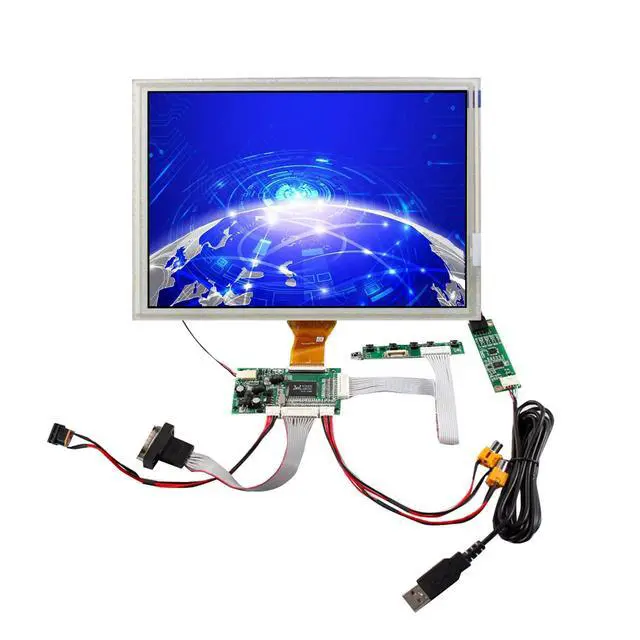

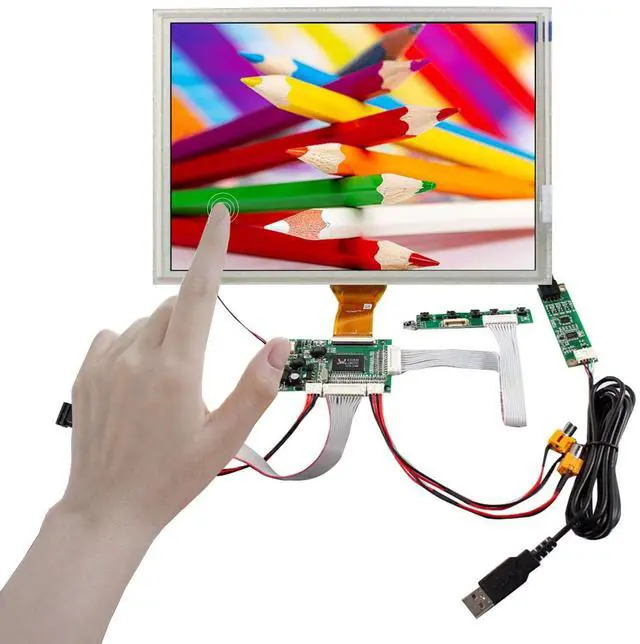

FanyiTek 8" EJ080NA-05A 800X600 TTL LCD Screen with 4-Wire Resistive Touch Panel and VGA 2AV Controller Board 50pins
- Screen Advantage8" EJ080NA-05A 800X600 4:3 aspect ratio 250nit TFT LCD Screen,Outline Size 183 1415.9 (HVD)mm,Display Area 162 121.5 (HV)mm,Contrast Ratio 500:1,Signal Interface Parallel RGB (1 ch, 6/8-bit) , 50 pins , FPC,Backlight WLED,Input Voltage 3.3V.
- LCD Driver BoardVideo Input: VGA AV1 AV2,Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V,Pls use it in insulated environment.
- Input Power12V DC 2A ,port size :5.5x2.1mm.Pls prepare the power adapter by yourself.

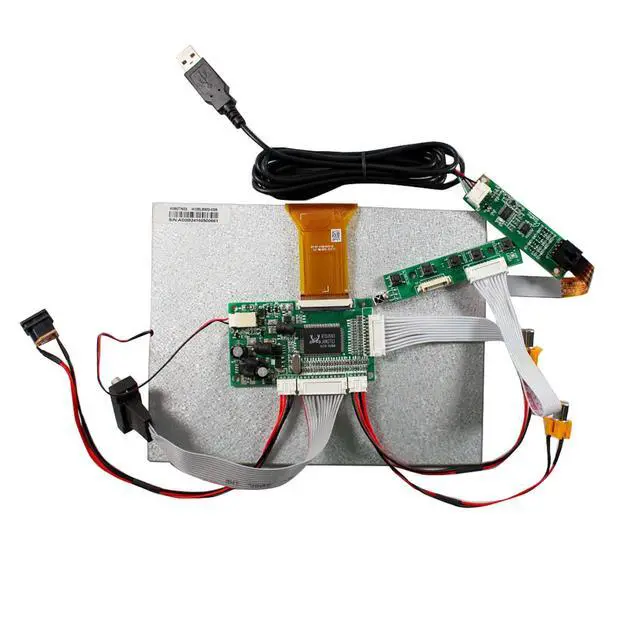

- Plug and playConnecting cables and ports according to link picture details ,Power on and enter signal cable ,the screen can work well after powering.

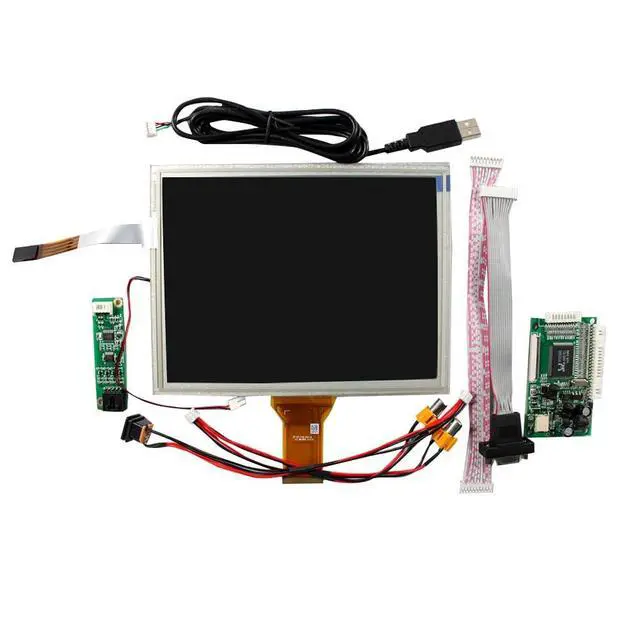

- Packing lists1 VGA+2AV LCD Controller Board VS-TY50-V1,1 8inch EJ080NA-05A 800X600 LCD With 4-Wire Resistive Touch Panel,1 Power Supply Converter Cable,1 VGA Converter Cable,1 AV Converter Cable,1 USB Controller Card,1 USB Touch Cable,1 Extend Touch Cable,1 Keyboard With Cable
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

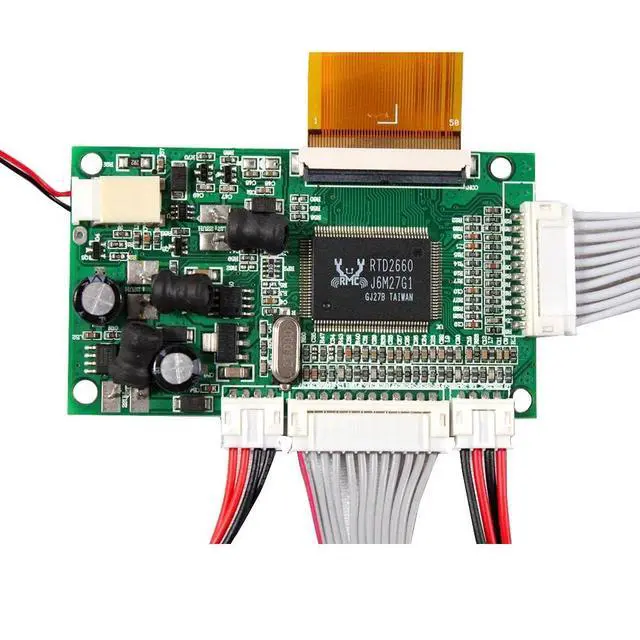

LCD Controller Board: Input
Power Adapter: 12Vdc 2A. Come In Standby Model When Not Input SignalStandby
Model <1WVideo Input: VGA
AV1 AV2Reversing: Support Automatically Switch To AV2 When Connector ACC to 12VOSD: Brightness Contrast Auto Language And So OnLanguage: English French German Spanish Italian And So OnBoard Size: 77mm x 45mm x 12mm8" EJ080NA-05A 800X600
LCD Screen: Display Mode TN, Normally White, TransmissiveResolution 800 (RGB) 600Outline Size 183 1415.9 (HVD) mmDisplay Area 162 121.5 (HV) mmBrightness 250 cd/m (Typ. )Contrast Ratio 500:1 (Typ. ) (TM) Viewing Angle 70/70/50/70 (Typ. ) (CR10) [Left / Right / Up / Down]Interface Parallel RGB (1 ch, 6/8-bit), 50 pins, FPC
Backlight WLED
Input Voltage 3.3V (Typ.
)Packing list: 1 VGA AV LCD Controller Board VS-TY50-V11 8inch EJ080NA-05A 800X600 LCD With 4-Wire Resistive Touch Panel1 USB Controller Card1 USB Touch Cable1x DC Converter cable1x AV Cconverter cable1 Keyboard With
Power Adapter: 12Vdc 2A. Come In Standby Model When Not Input SignalStandby
Model <1WVideo Input: VGA
AV1 AV2Reversing: Support Automatically Switch To AV2 When Connector ACC to 12VOSD: Brightness Contrast Auto Language And So OnLanguage: English French German Spanish Italian And So OnBoard Size: 77mm x 45mm x 12mm8" EJ080NA-05A 800X600
LCD Screen: Display Mode TN, Normally White, TransmissiveResolution 800 (RGB) 600Outline Size 183 1415.9 (HVD) mmDisplay Area 162 121.5 (HV) mmBrightness 250 cd/m (Typ. )Contrast Ratio 500:1 (Typ. ) (TM) Viewing Angle 70/70/50/70 (Typ. ) (CR10) [Left / Right / Up / Down]Interface Parallel RGB (1 ch, 6/8-bit), 50 pins, FPC
Backlight WLED
Input Voltage 3.3V (Typ.
)Packing list: 1 VGA AV LCD Controller Board VS-TY50-V11 8inch EJ080NA-05A 800X600 LCD With 4-Wire Resistive Touch Panel1 USB Controller Card1 USB Touch Cable1x DC Converter cable1x AV Cconverter cable1 Keyboard With
