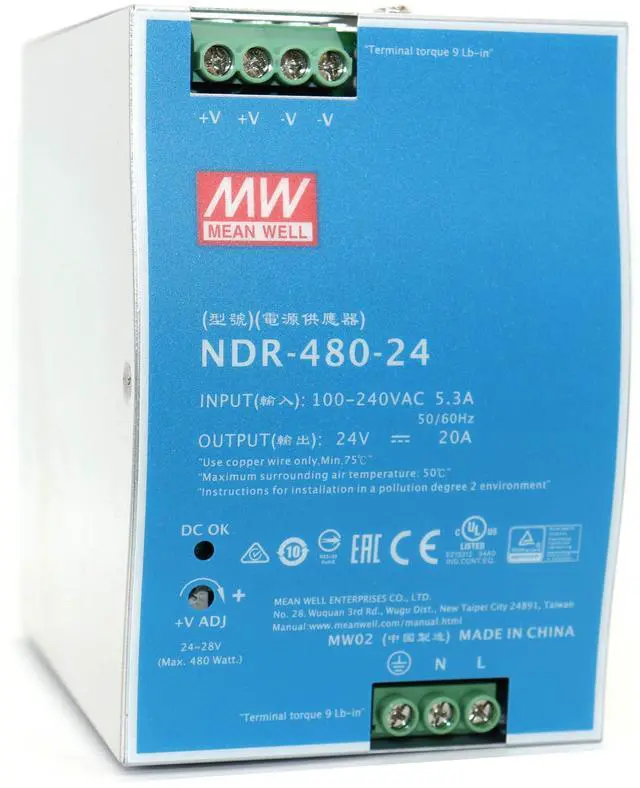

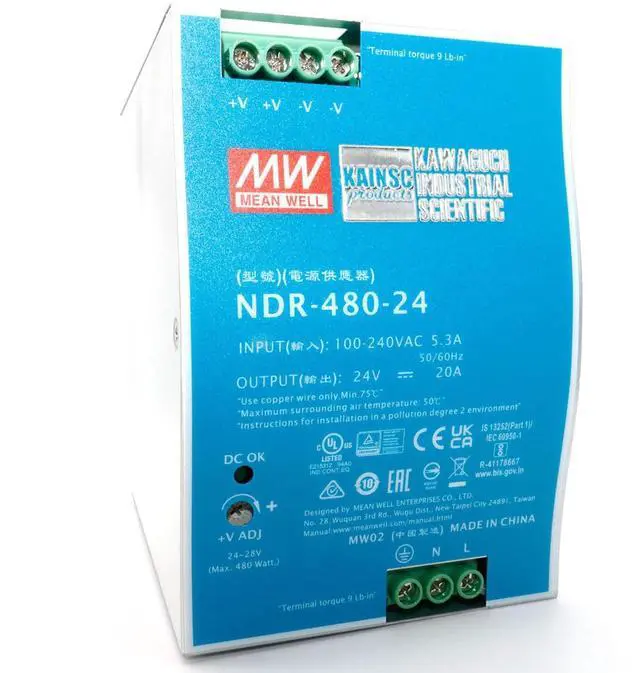

Mean Well NDR-480-24 480W 24VDC 20A AC/DC High Efficiency Industrial DIN Rail Power Supply Single Output Provided by KAINSC Products
- Output Voltage: 24V; Rated Current & Rated Power: 20A, 480W
- Universal AC input / Full range; Built-in active PFC function
- Protections: Short circuit / Overload / Over Voltage / Over Temperature

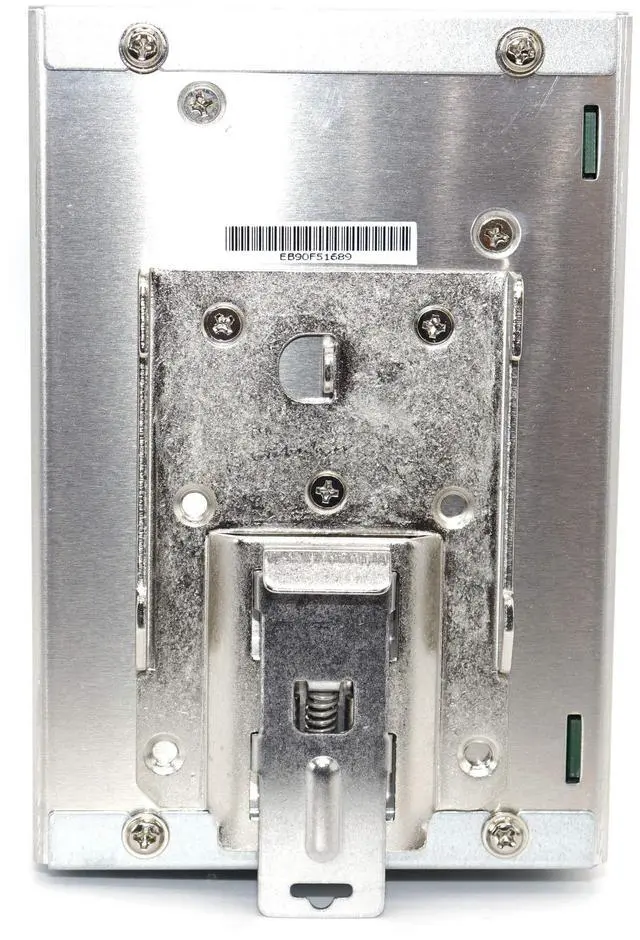

- UL 508 (industrial control equipment) approved; BS EN/EN61000-6-2(BS EN/EN50082-2) industrial immunity level; Can be Installed on DIN rail TS-35/7.5 or 15
- High Efficiency 92.5%; 100% full load burn-in test; Cooling by free air convection
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
NDR-480 is one economical slim 480W Din Rail Power Supply Series, adapt to be installed on TS-35/ 7.5 or TS-35/15 mounting railsEU
RoHS: CompliantECCN
(US):
EAR99Type:
RegulatedStyle: DIN
RailInput/Output Type: AC/DCNumber of
Outputs: 1Output
Type: FixedOutput
Voltage (V): 24Output
Current (A): 20Output
Power (W): 480Minimum AC
Input Voltage (V): 90Maximum AC
Input Voltage (V): 264Minimum DC
Input Voltage (V): 127Maximum DC
Input Voltage (V): 370Minimum
Isolation Voltage: 3000VAC
Line Regulation: 0.5 %Load
Regulation: 1%Maximum
Input Current (A): 4.8 (Typ) /115VAC
Input Frequency (Hz): 47
to 63Tolerance (%): 1Efficiency
(%): 92.5 (Typ)
Configurable: NoInput
Connector Type: Screw Terminal BlockOutput
Connector Type: Screw
Terminal BlockPower Indicator: NoRipple
& Noise: 150mV (Max)
Medical: NoMinimum
Operating Temperature (C): -20Maximum
Operating Temperature (C): 70Product
Weight (g):
1000Mounting: DIN

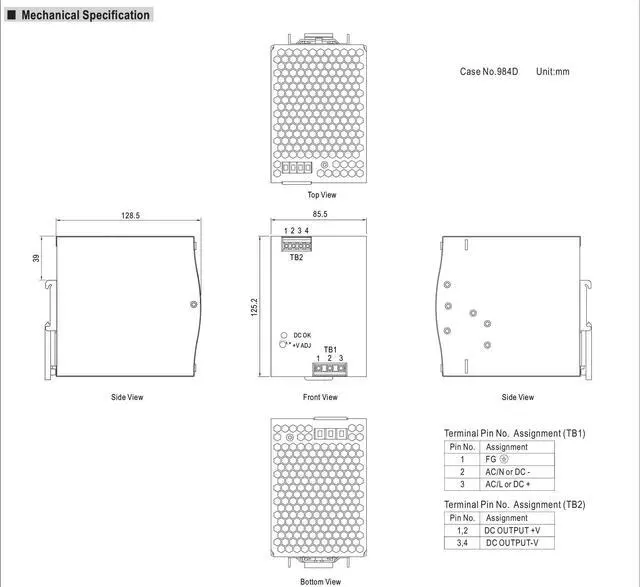

RailPackage Height: 125.2 mmPackage
Length: 128.5 mmPackage
Width: 85.5 mmAbout the quotation for batch order, please contact with the seller directly.
RoHS: CompliantECCN
(US):
EAR99Type:
RegulatedStyle: DIN
RailInput/Output Type: AC/DCNumber of
Outputs: 1Output
Type: FixedOutput
Voltage (V): 24Output
Current (A): 20Output
Power (W): 480Minimum AC
Input Voltage (V): 90Maximum AC
Input Voltage (V): 264Minimum DC
Input Voltage (V): 127Maximum DC
Input Voltage (V): 370Minimum
Isolation Voltage: 3000VAC
Line Regulation: 0.5 %Load
Regulation: 1%Maximum
Input Current (A): 4.8 (Typ) /115VAC
Input Frequency (Hz): 47
to 63Tolerance (%): 1Efficiency
(%): 92.5 (Typ)
Configurable: NoInput
Connector Type: Screw Terminal BlockOutput
Connector Type: Screw
Terminal BlockPower Indicator: NoRipple
& Noise: 150mV (Max)
Medical: NoMinimum
Operating Temperature (C): -20Maximum
Operating Temperature (C): 70Product
Weight (g):
1000Mounting: DIN
RailPackage Height: 125.2 mmPackage
Length: 128.5 mmPackage
Width: 85.5 mmAbout the quotation for batch order, please contact with the seller directly.
