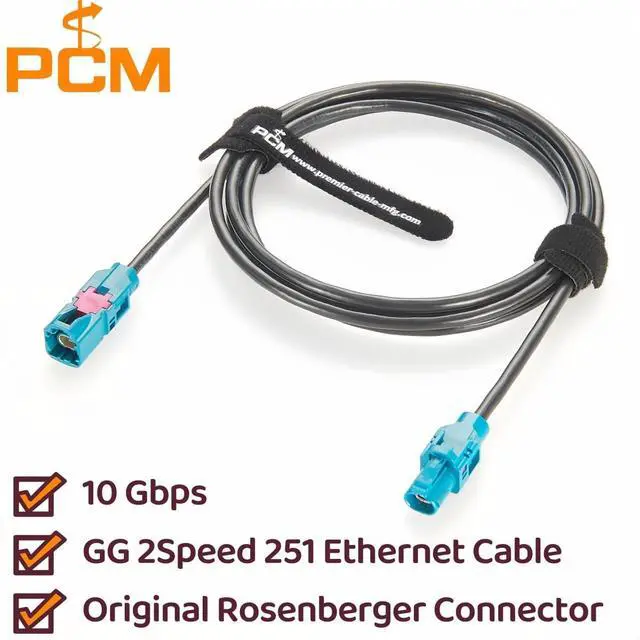

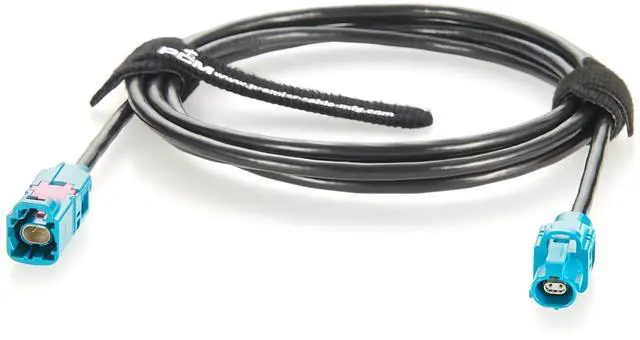

Rosenberger E6S10A-1CAZ5-Z to E6K10A-1CAZ5-Z H-MTD Automotive Ethernet Cable Harness 10Gbps 100/1000BASE-T1 H-MTD Z Code Male to Female Extension Cable for ADAS, ECU, In-Vehicle Networks(1.5M/4.92FT)

H-MTD Automotive Ethernet Cable H-MTD Z Code Female is equipped with Rosenberger E6K10A-1CAZ5-Z Connector, H-MTD Z Code Male is Rosenberger E6S10A-1CAZ5-Z Connector.Features latch-locking mechanism, ensure stable and secure connections.
10Gbps High Speed The H-MTD Male to Female Ethernet Cable, Supports Transmission Rates of up to 10 Gbps,enabling real-time data exchange and efficient communication between in-vehicle devices.
Shielded Cable The Vehicle Ethernet Harness utilizes the GG 2Speed 251 shielded cable,100 Impedance, effectively preventing external electromagnetic interference (EMI) and radio frequency interference (RFI).
Supported Protocols The H-MTD Gigabit Automotive Ethernet Cable Supports 100BASE-T1, 1000BASE-T1, 2.5/5/10GBASE-T1, APIX, FPD-Link, GMSL, MIPI A-PHY, PCIe, USB, GVIF, HDBase-T, and ASA Motion Link, facilitating high-speed data transmission between different devices and systems.
Application Rosenberger E6S10A-1CAZ5-Z to E6K10A-1CAZ5-Z Ethernet

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Specification: Connector

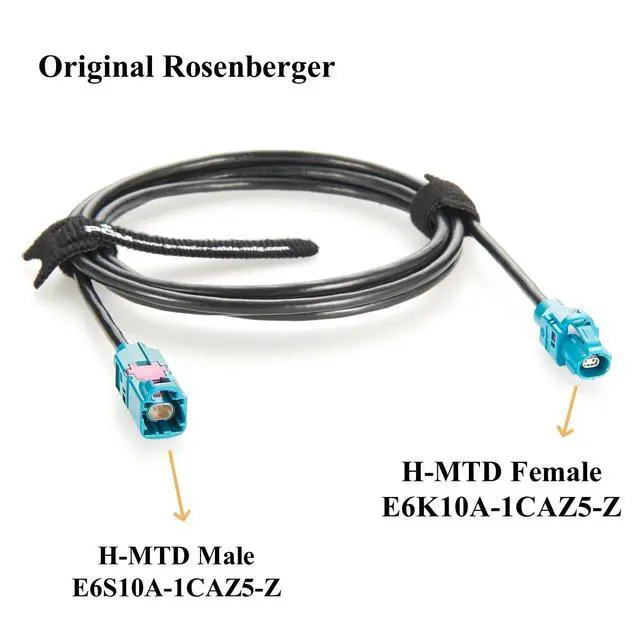

A: Original Rosenberger H-MTD Male Connector, E6S10A-1CAZ5-ZConnector
B: Original Rosenberger H-MTD Female Connector, E6K10A-1CAZ5-ZHousing
Design:
SingleCoding: Coding Z (Universal) Color/RAL-No.: Water
BlueCable Length: 1.5ME lectrical
Impedance: 100
Frequency Range: DC-10
GHzWire: GG 2Speed 251
Ethernet CableTransmission Rate: Up to 10
GbpsLocking Mechanism: Latch-LockingOperating
Temperature: -40 C to +105 C
