JoyNano 12V DC 18-Channel Distributed Power Supply Box 360W 30A Individual Fuse for CCTV Security Camera LED Strip Light and More
- DC 12V regulated, over current and voltage protected
- Max output 30 Amp total, maxim for each port is 1.67A.
- 18-channel design allows the power bank to support several cameras simultaneously.
- Every channel is protected with glass fuses.
- Pro-size box provides plenty space for wires, key lock prevent unauthorized access.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
JoyNano - Enjoy Gadgets and

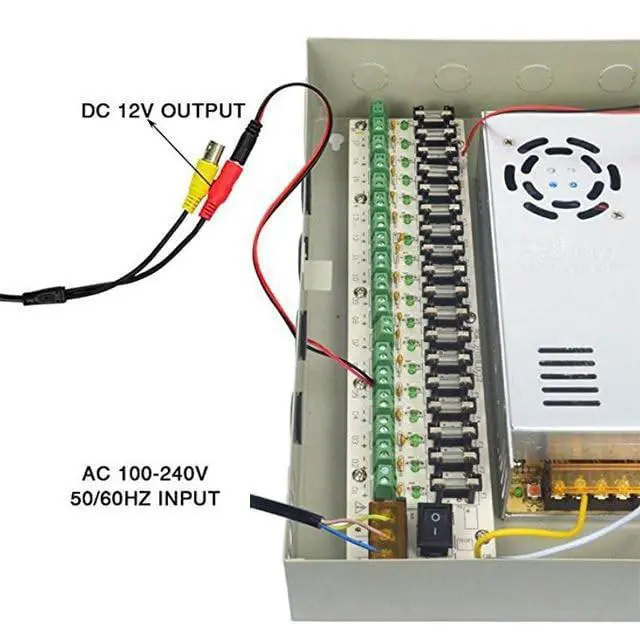

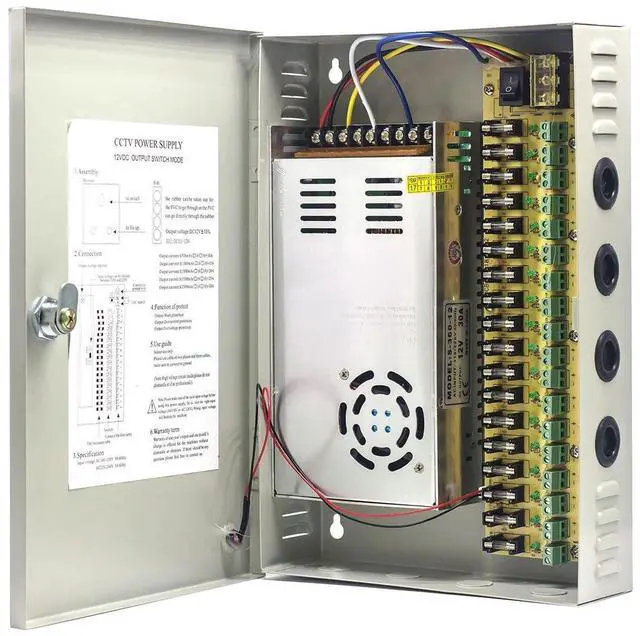

ElectronicsDescription: 1. The JoyNano 18-Channel Power Distribution Units (PDU) can distribute 12VDC power for up to 18 cameras, offer a more professional alternative to individual power adapters. 2. Max output 30 Amp total, maxim for each port is 1.67A, allows the power source to support several cameras simultaneously. 3. Each outlet is individually fused and each panel is surge protected. LED light for monitoring the power status. 4.

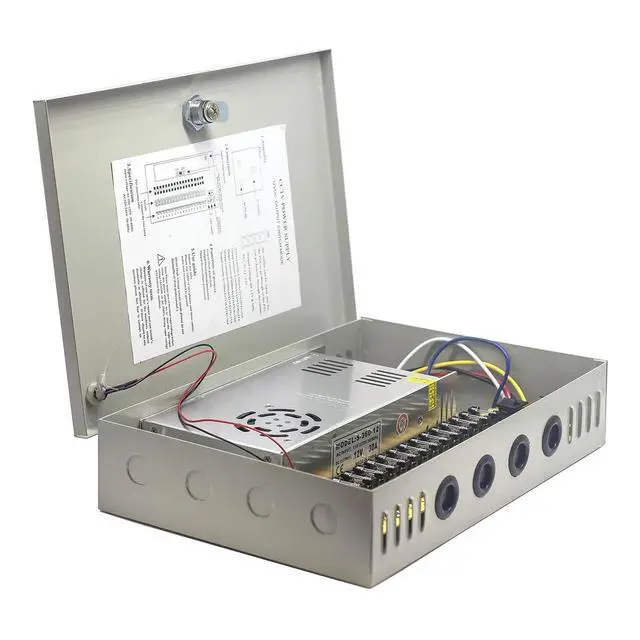

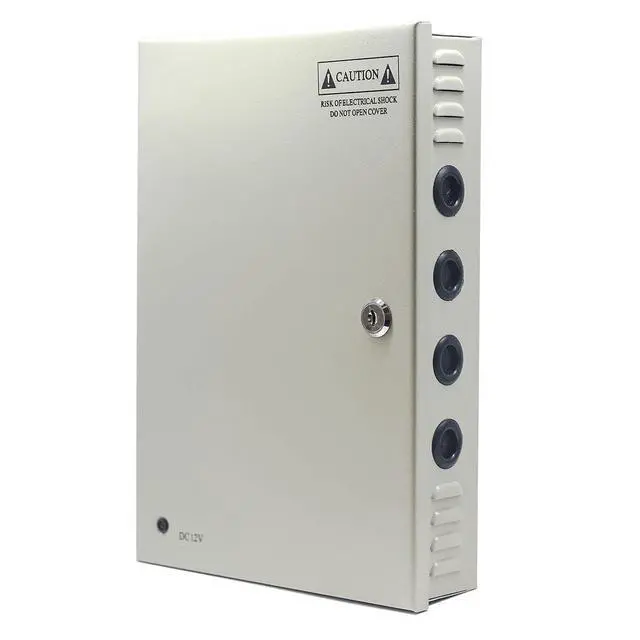

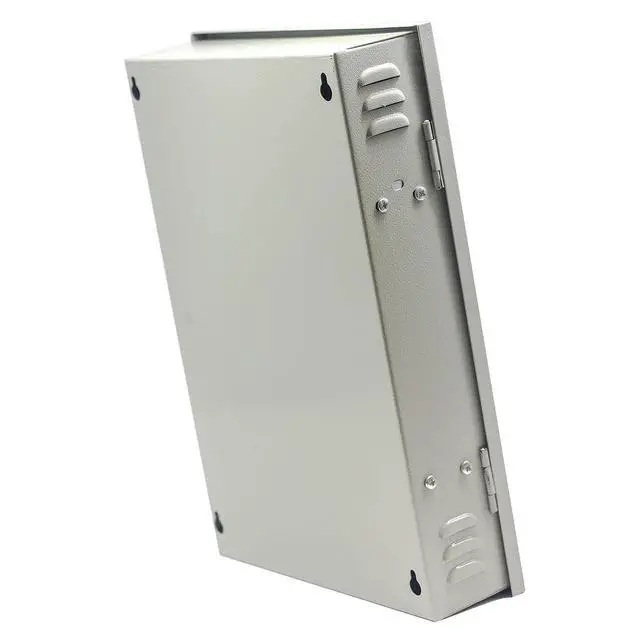

Safety Protection: Overvoltage protection, short circuit protection and overload protection. Hiccup mode, recovers automatically after faulty condition is removed. 5. Pro-size box provides plenty space for wires, key lock prevent unauthorized access. Easy to install, can be mounted to any surface, plugged and up in seconds.
Voltage: AC110V/ 220VOutput
Voltage: 12V
DCOutput Current: 30A ( 1.67A
Each)Power: 360W
MaxChannel Number:
18CHMaterial:
MetalDimension: 315 x 220 x 60 mm (L x W x H) 12.4 x 8.7 x 2.4 inchNet
Weight: 2180g 4.8 lbEnvironmental
Requirement: Working
temperature: -10 to 50 degree
CelsiusStorage temperature: -20 to 60 degree
CelsiusEnvironmental humidity:
10-95%Usage: Protects your electronic devices from over voltage damages, increase life of electronic circuits and products you are using with. Ideal for CCTV surveillance, communications, LED strip lights, security camera, network, etc.
Notice: 1. Input voltage 110V/230V is selected by switch. Before power on please check input voltage avoiding damage. 2. In-door use only. Professional Installation of qualified electrician is highly recommended.
Package Included: 1 x JoyNano 18-Channel DC12V 30A Distributed Power Supply Box
ElectronicsDescription: 1. The JoyNano 18-Channel Power Distribution Units (PDU) can distribute 12VDC power for up to 18 cameras, offer a more professional alternative to individual power adapters. 2. Max output 30 Amp total, maxim for each port is 1.67A, allows the power source to support several cameras simultaneously. 3. Each outlet is individually fused and each panel is surge protected. LED light for monitoring the power status. 4.
Safety Protection: Overvoltage protection, short circuit protection and overload protection. Hiccup mode, recovers automatically after faulty condition is removed. 5. Pro-size box provides plenty space for wires, key lock prevent unauthorized access. Easy to install, can be mounted to any surface, plugged and up in seconds.
Specifications
: InputVoltage: AC110V/ 220VOutput
Voltage: 12V
DCOutput Current: 30A ( 1.67A
Each)Power: 360W
MaxChannel Number:
18CHMaterial:
MetalDimension: 315 x 220 x 60 mm (L x W x H) 12.4 x 8.7 x 2.4 inchNet
Weight: 2180g 4.8 lbEnvironmental
Requirement: Working
temperature: -10 to 50 degree
CelsiusStorage temperature: -20 to 60 degree
CelsiusEnvironmental humidity:
10-95%Usage: Protects your electronic devices from over voltage damages, increase life of electronic circuits and products you are using with. Ideal for CCTV surveillance, communications, LED strip lights, security camera, network, etc.
Notice: 1. Input voltage 110V/230V is selected by switch. Before power on please check input voltage avoiding damage. 2. In-door use only. Professional Installation of qualified electrician is highly recommended.
Package Included: 1 x JoyNano 18-Channel DC12V 30A Distributed Power Supply Box
