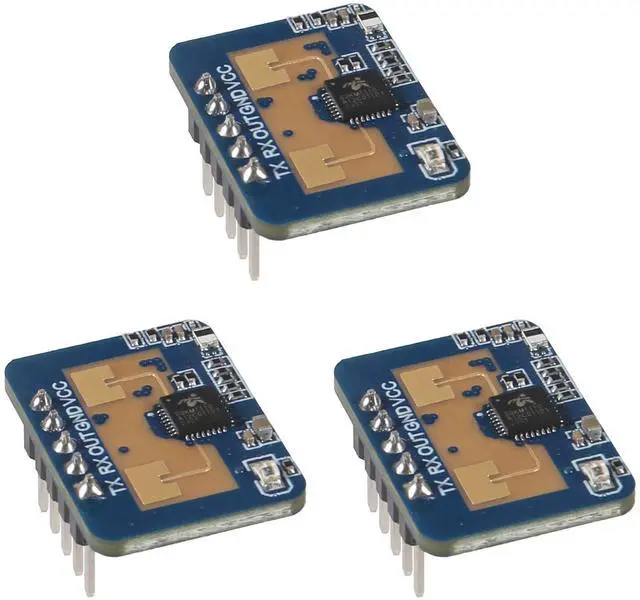

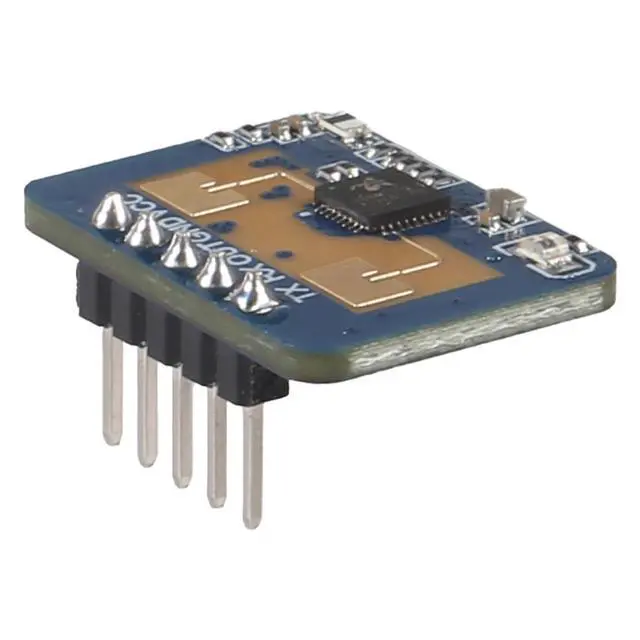

D-FLIFE 3pcs LD2410C Human Presence Radar Sensor Module HLK-LD2410 Sensor Module LD2410 Millimeter Wave Radar Sensor Module Non Contact 24GHz ISM Band Serial Port IO Level Output
- 24GHz ISM band, the farthest sensing distance is up to 5 meters, the detection angle is large, and the coverage range can reach 60 degrees
- Support GPIO and UART output, plug and play, flexible application to different intelligent scenarios and terminal products.
- Multi-level intelligent parameter adjustment can be realized through Bluetooth or serial port to meet the needs of scene changes, visual debugging and configuration tools.
- Accurate identification within the interval, support sensing range division, shielding interference outside the interval.
- Being sensitive to the moving human body, this product can be sensitive to the static, inching, and sitting and lying human body that cannot be recognized by the traditional scheme.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features:
Frequency: 24GHz~ 24.25GH zModulation
Mode: FMCW
Detection Distance: 0.75 m~6m adjustableDetection
Angle: 60Power
Supply:
5VCurrent: 79mAOutput
Serial Port Level: 3.3VS weep
Bandwidth: 250MHzRange Resolution 0.75 mAmbient
Temperature: - 40~+85Data
Format: serial port ASCII output/high and low level 3.3V &0VModule

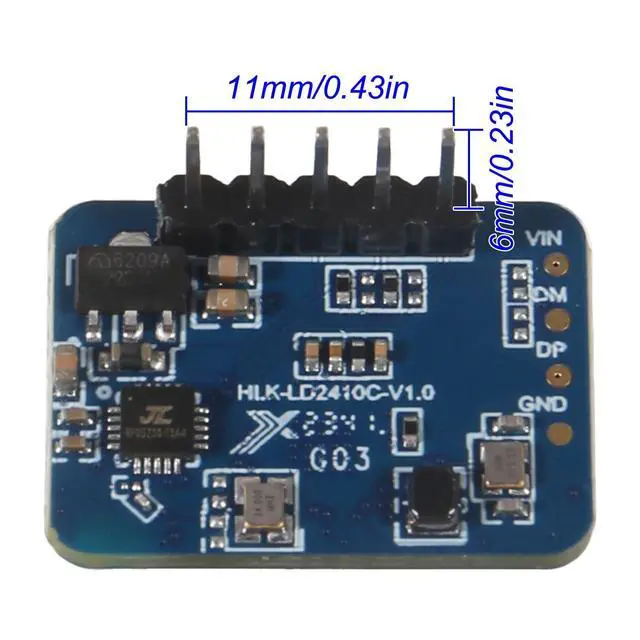

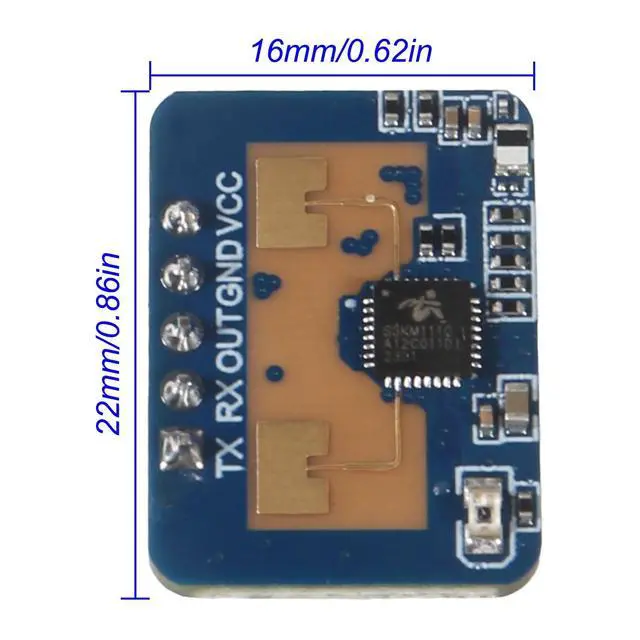

Size: 16mmx22mm, with 5 pin holes reserved for hardware (factory default pin) The hole diameter of pin hole is 0.9 mm, and the distance between bow and foot is 2.54 mmInterface

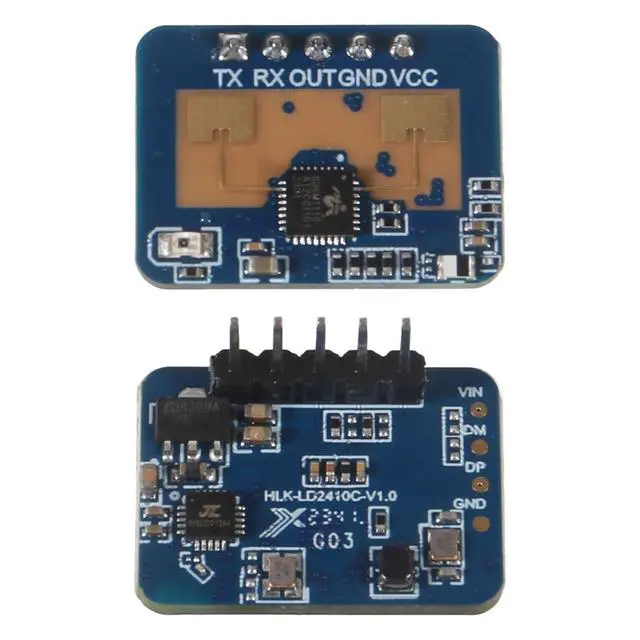

Type: RX, serial port receivingTX, serial transmissionOUT, inductive output high levelGND, power groundVCC, power supply input (5V voltage)
Frequency: 24GHz~ 24.25GH zModulation
Mode: FMCW
Detection Distance: 0.75 m~6m adjustableDetection
Angle: 60Power
Supply:
5VCurrent: 79mAOutput
Serial Port Level: 3.3VS weep
Bandwidth: 250MHzRange Resolution 0.75 mAmbient
Temperature: - 40~+85Data
Format: serial port ASCII output/high and low level 3.3V &0VModule
Size: 16mmx22mm, with 5 pin holes reserved for hardware (factory default pin) The hole diameter of pin hole is 0.9 mm, and the distance between bow and foot is 2.54 mmInterface
Type: RX, serial port receivingTX, serial transmissionOUT, inductive output high levelGND, power groundVCC, power supply input (5V voltage)
