DROK 12V Power Supply, AC 110V 220V to DC 0-12V 40A 480W Buck Converter, Adjustable Variable LED Adapter Regulated 5V 6V 9V 12Volt Voltage Transformer 10A 20A 30A 40Amp Charger for Lab CCTV
- Volt Adjustment Input Voltage can be 110V or 220V. Wide adjustable output Voltage range: DC 0-12V. This supply is suitable for 3V 5V 6V 9V 12Vdevices. The voltage precision is 0.1V. NoteThe maximum current is 40A. But the actual current is depended on the load. No matter how many voltage is adjusted, the current is 40A and can not be regulated. It can be used to device of 5A 10A 20A 40A. Make sure to use the devices which is below 40A.

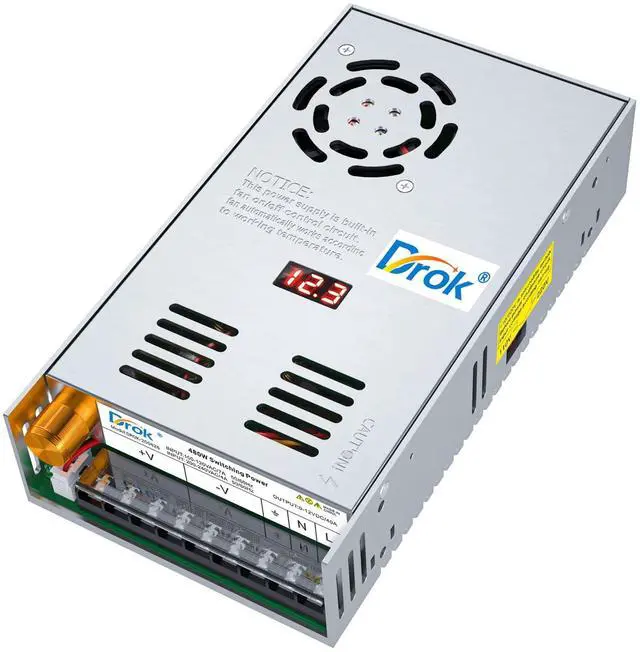

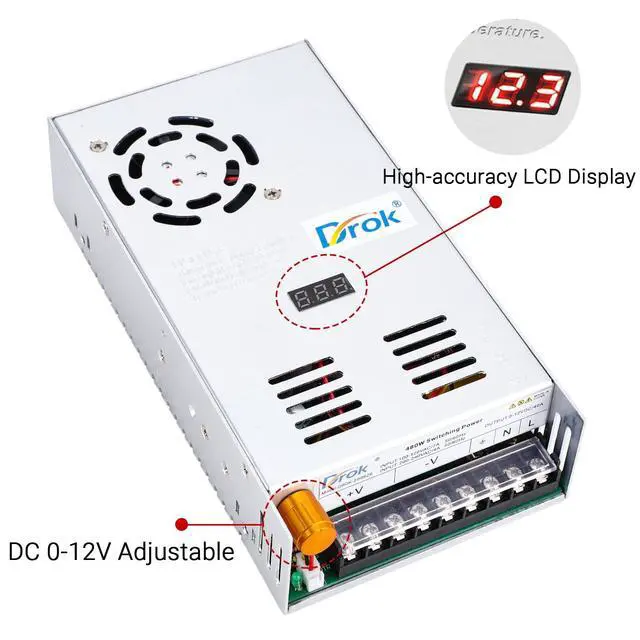

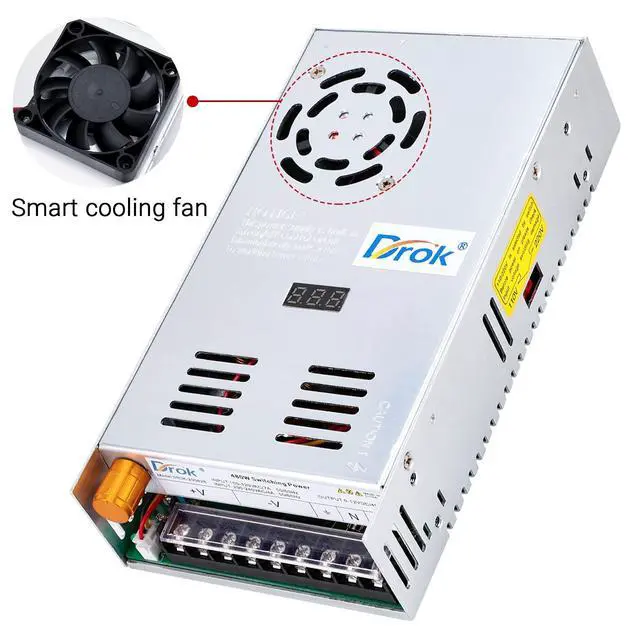

- Hareware This Buck Converter is equipped with LED screen, heat sink and cooling fan. The LED screen can clearly display the output voltage. Heat sink and cooling fan can control the temperature in a safe range. During the running power is high, the cooling fan will automatically activate with little noise.
- Easy Operation This supply is no need to install, after connecting wire, it can be used to adjust output, which is convenient. The potentiometer is inset into the supply. Only to rotate the potentiometer can adjust output parameter.
- Protection
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Parameters: Input
voltage: AC
110-220V 15%Output: DC
0-12V 40ARated power: 480WProduct
Dimension: 215x115x50mm (length*width*height)

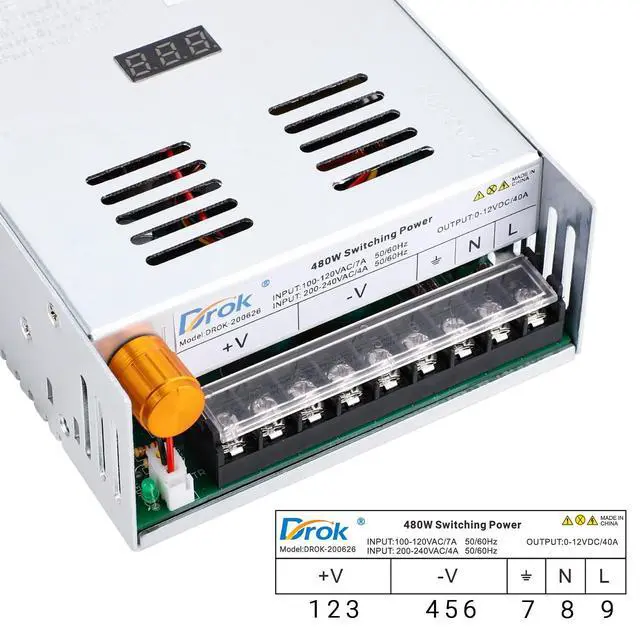

Wiring::
GroundN: Null
wireL: Live
wireV+: DC
output +V-: DC
output -Instructions for use: Max
Current: 40AThe actual current is determined by load. Any devices above 40A current cannot use this product.

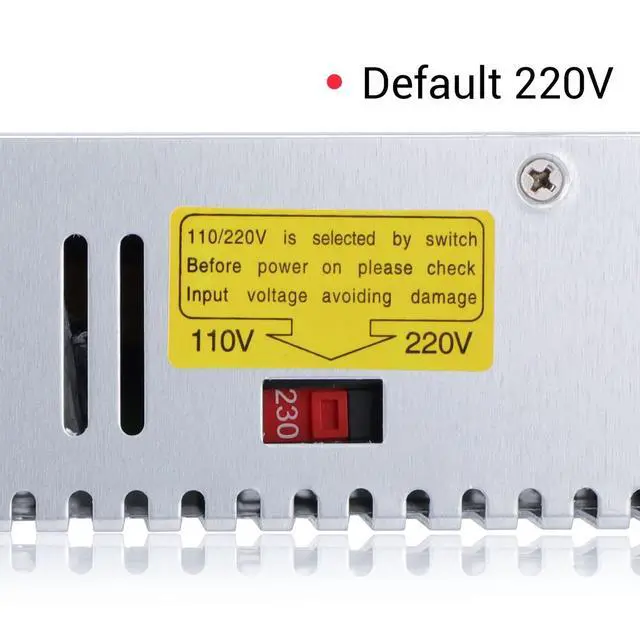

Note: Before using, please select the input voltage 110V/220V according to your local voltage, to avoid damaging, switch is at right side of the item. If use motor, fan and other inductive load, please pay attention to the loads maximum starting current parameter. This parameter shall not be higher than the power supplys max current. Otherwise it may damage the power supply. Otherwise you need to allocate the soft starting protection circuit for the load to absorb the impact current.
Package includes: 1 x AC-DC Switch Power Supply
voltage: AC
110-220V 15%Output: DC
0-12V 40ARated power: 480WProduct
Dimension: 215x115x50mm (length*width*height)
Wiring::
GroundN: Null
wireL: Live
wireV+: DC
output +V-: DC
output -Instructions for use: Max
Current: 40AThe actual current is determined by load. Any devices above 40A current cannot use this product.
Note: Before using, please select the input voltage 110V/220V according to your local voltage, to avoid damaging, switch is at right side of the item. If use motor, fan and other inductive load, please pay attention to the loads maximum starting current parameter. This parameter shall not be higher than the power supplys max current. Otherwise it may damage the power supply. Otherwise you need to allocate the soft starting protection circuit for the load to absorb the impact current.
Package includes: 1 x AC-DC Switch Power Supply
