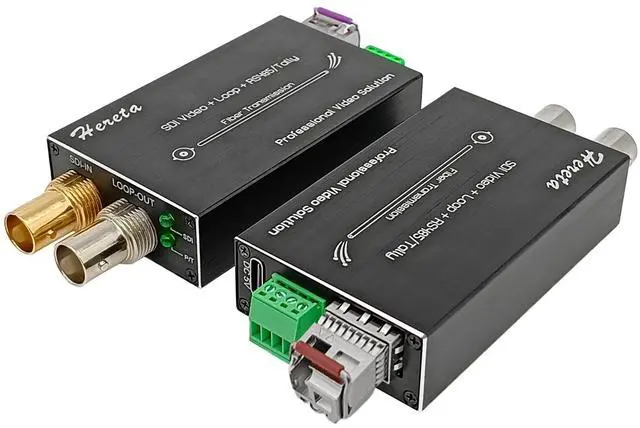

Hereta Mini 3G-SDI Video Extender with SDI Loop Output 1080P 3G-SDI Fiber Converter Extension of Distances Up to 20km Over Single-Mode Optical Transceiver and Tally or Reverse RS485

3G-SDI Optical Transceiver supports 1-channel 3G/HD-SDI Video (audio embedded) & Tally and Reverse RS485 signal transmitted via fiber optical cable, and monitor the signal locally over a 3G/HD-SDI loop output ^^ HD Fiber Converters includes one transmitter and one receiver for 1080P 3G/HD-SDI signal, transmits video signals up to 20km over a single fiber optic cable ^^ Each channel includes 8-channel audio embedded, automatic cable equalization, used for all rate below 3.2 Gb/s (Belden 1694A) ^^ SDI Fiber Extender directly compatible with 3G/HD-SDI camera systems, support hot swap and hot plug, LED Status Indication to monitor the working conditions ^^ Handle all Pathological patterns, fully digital non-compression broadcast level transmission.

Super optic dynamic range and free of adjustment, industry level ultra-broad temperature range (-20~+70), adaptable to various environments
