12V 24V Step Up to 48V DC-DC Converter Boost Voltage Transformer (3A 144W)
- Input Voltage: DC 9V-30V / Output Parameters: DC 48V, 3A, 144W.Please ensure that the input power is greater than the load power. This product is only used for power conversion

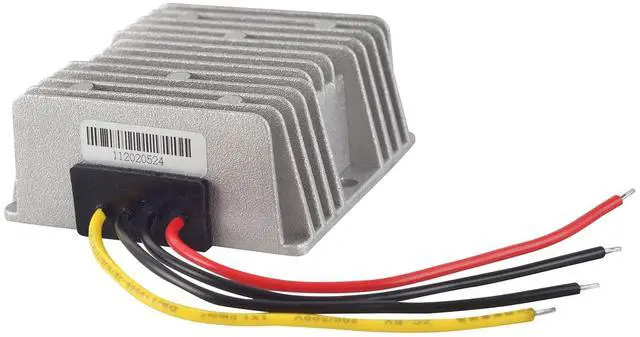

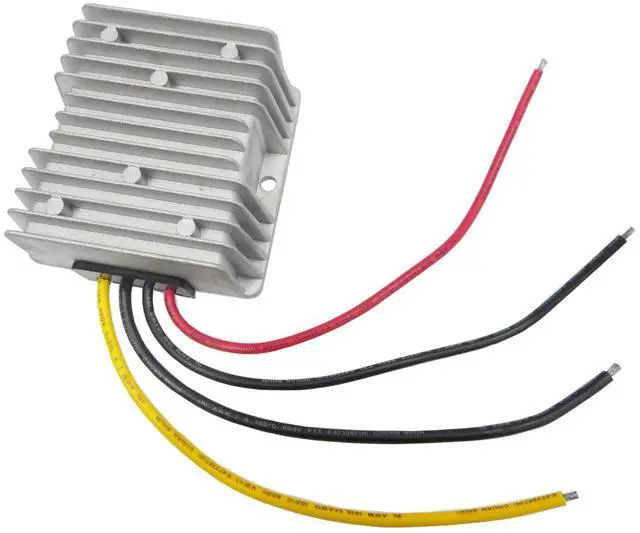

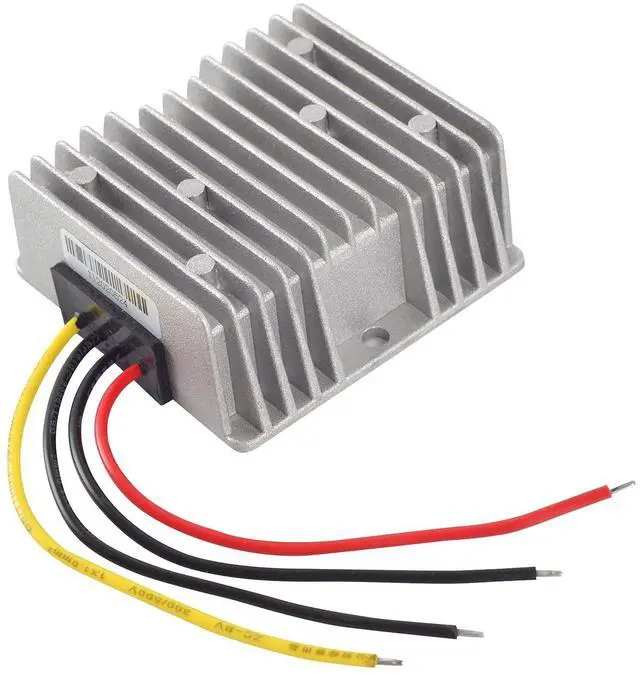

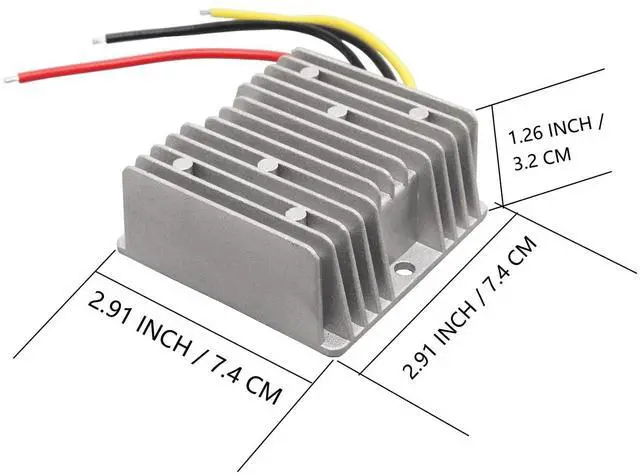

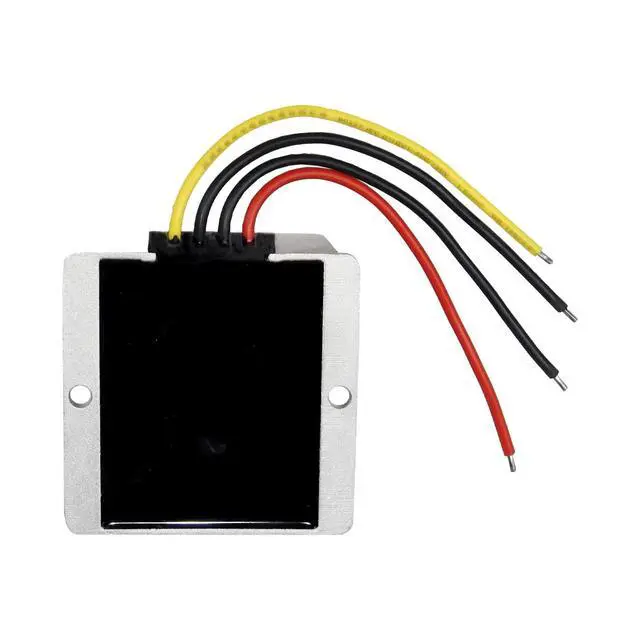

- Wiring:Red: Input + Black: Input - Yellow: Output + Black: Output - Size: 4* 2 *3 inches / 74*74*32mm AWG:12
- High conversion efficiency:conversion efficiency up to 95%.Protection: High quality aluminum shell, Fast heat dissipation. Built in Overload, Overcurrent, Overvoltage, Overtemperature and Short circuit protection, IP67 waterproof and shockproof, and can return to normal state during operation
- Application: Widely used in golf cart, photovoltaic, electric power, monitoring system, automobile, electric bicycle motorcycle scooter, led, instrument, etc
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Application: New energy vehicles, golf carts, ships, DC motors, intelligent robots, electric bicycles, solar photovoltaic, industrial equipment, on-board equipment, LED equipment, Communication equipment, The converter outputs a standard 48V voltage and is not suitable for charging.
Multiple core advantages: Overvoltage protectionOvercurrent protectionShort circuit protectionHigh temperature protectionOutput anti reverse connection protectionProduct model: 12V to 48V
DC Step Up ConverterOutput current: 3AOutput
power:
144WBrand: KAABEE
Input voltage: between DC (9-30)
VOutput voltage: DC
48VVoltage accuracy: 1%Load
regulation rate: 0.2
%Linear adjustment rate: 0.2
%No load current:
70mARipple: 80mAConversion
efficiency: 94%
- 96%Module nature: DC-DC non isolated power supplyProtection grade: IP67Operating
temperature: - 35
C~+80 CBoundary dimension: 74 * 74 * 32Net weight: 300gWiring
mode: lead, line
length 13CMRepair time: 1
yearService life: 100, 000
hoursmatters needing attention: 1. Make sure that all polarities are correct before wiring. Reverse connection will burn out the converter. It is recommended to connect a fuse at the input end (not provided by the manufacturer) 2. Ensure that the battery energy and voltage at the input end are sufficient, otherwise the converter will be in the protection state3. Ensure that the installation environment is well ventilated to avoid high temperature protection and limit current output. During normal operation of the module, allowance should be reserved for the power module. It is recommended to work below 90% of the rated power for a long time. If the module operates at full load
Multiple core advantages: Overvoltage protectionOvercurrent protectionShort circuit protectionHigh temperature protectionOutput anti reverse connection protectionProduct model: 12V to 48V
DC Step Up ConverterOutput current: 3AOutput
power:
144WBrand: KAABEE
Input voltage: between DC (9-30)
VOutput voltage: DC
48VVoltage accuracy: 1%Load
regulation rate: 0.2
%Linear adjustment rate: 0.2
%No load current:
70mARipple: 80mAConversion
efficiency: 94%
- 96%Module nature: DC-DC non isolated power supplyProtection grade: IP67Operating
temperature: - 35
C~+80 CBoundary dimension: 74 * 74 * 32Net weight: 300gWiring
mode: lead, line
length 13CMRepair time: 1
yearService life: 100, 000
hoursmatters needing attention: 1. Make sure that all polarities are correct before wiring. Reverse connection will burn out the converter. It is recommended to connect a fuse at the input end (not provided by the manufacturer) 2. Ensure that the battery energy and voltage at the input end are sufficient, otherwise the converter will be in the protection state3. Ensure that the installation environment is well ventilated to avoid high temperature protection and limit current output. During normal operation of the module, allowance should be reserved for the power module. It is recommended to work below 90% of the rated power for a long time. If the module operates at full load
