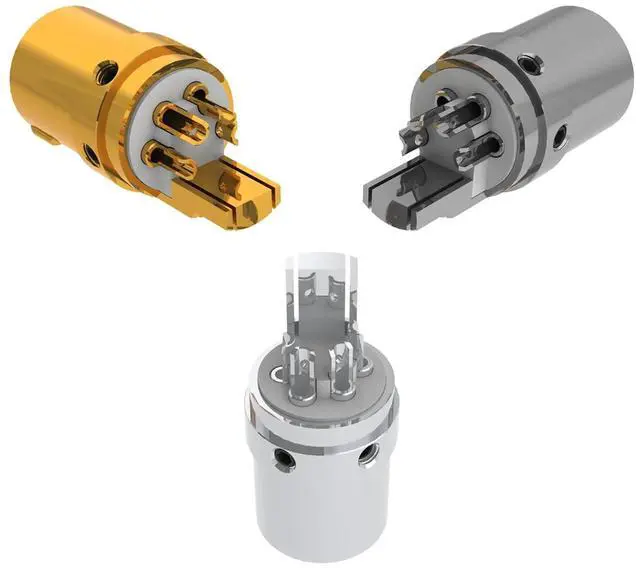

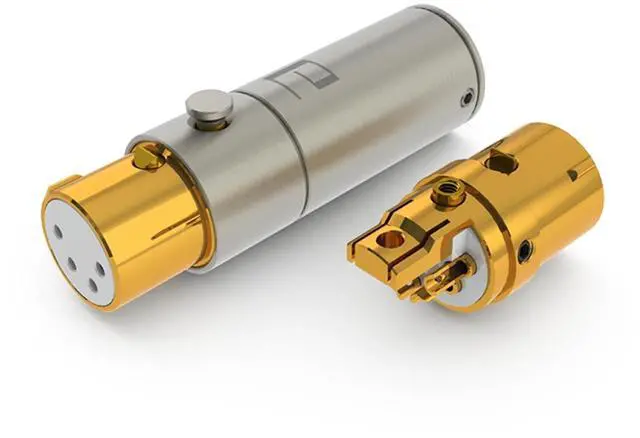

Main image of aeco XLR 4 Pole Female AX4-1623G, 1pcs/1set, Gold Plating

Alt view image 2 of 5 - aeco XLR 4 Pole Female AX4-1623G, 1pcs/1set, Gold Plating

Alt view image 3 of 5 - aeco XLR 4 Pole Female AX4-1623G, 1pcs/1set, Gold Plating

Alt view image 4 of 5 - aeco XLR 4 Pole Female AX4-1623G, 1pcs/1set, Gold Plating

Alt view image 5 of 5 - aeco XLR 4 Pole Female AX4-1623G, 1pcs/1set, Gold Plating

Shop All Batianda Products | Visit VersaCom Store

aeco XLR 4 Pole Female AX4-1623G, 1pcs/1set, Gold Plating

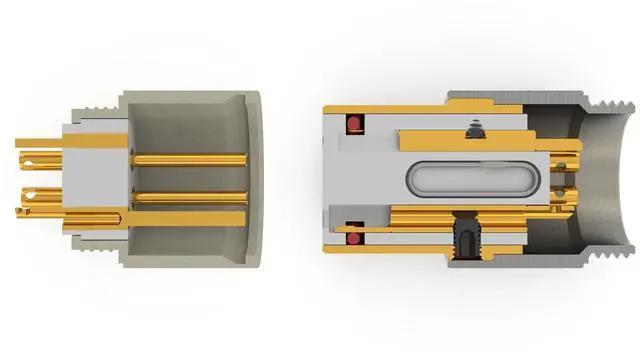

"One Point Contact structure.
High-purity copper (CuTe) with nickel-free plating.

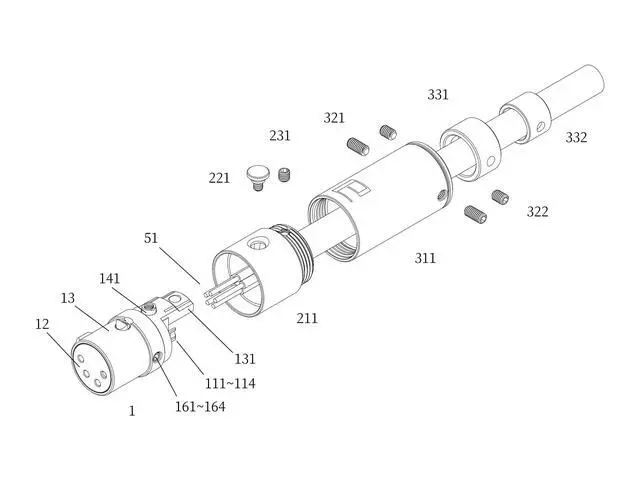

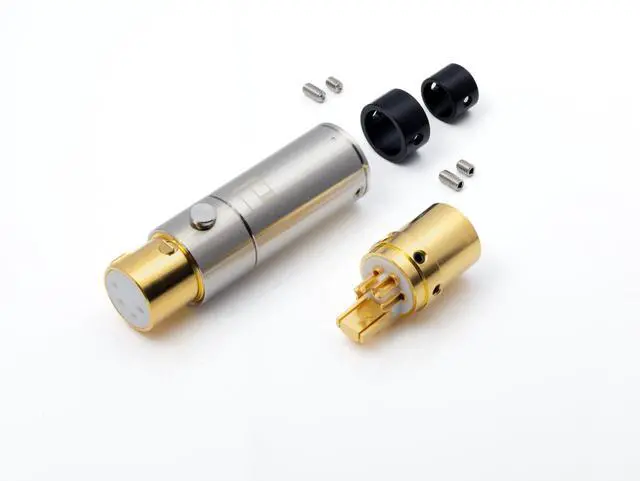

The product can be fully disassembled.
Support 9/11.5/15mm cable hole.

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Material: Contact
Pin: Tellurium Copper(C14500 / copper contains over 99%)Insulator: PTFE
Body: Brass alloy (C3604)
Spring: Stainless steel (SUS304)
Lock: Brass alloy (C3604)
Pin Screw: POM
Front Shell: Stainless steel (SUS304)
Button Screw: Stainless steel (SUS304)
Back Shell: Stainless steel (SUS304)
Sleeve: POM
Screw: Stainless steel (SUS304)
Finish: Contact
Pin: 10u" Gold plating (no nickel base)
Insulator:
NoneBody: 3u" Gold plating (no nickel base)
Spring:
NoneLock: NonePin
Screw: NoneFront
Shell: NoneButton
Screw: NoneBack
Shell:
NoneSleeve:
NoneScrew: NoneElectrical
Characteristics: Contact
resistance < 1.0 mOhmDimension: Biggest
OD: 18.9 mmTotal
Length: 62.8 mm
