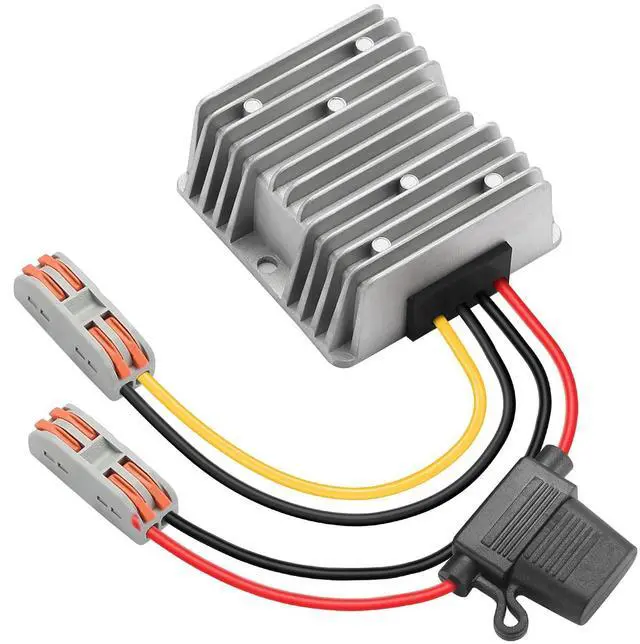

YBBOTT DC 12V 24V Step Up to 48V 5A 240W Boost Converter Power Transformer with Fuse DC Voltage for Golf Cart Vehicle

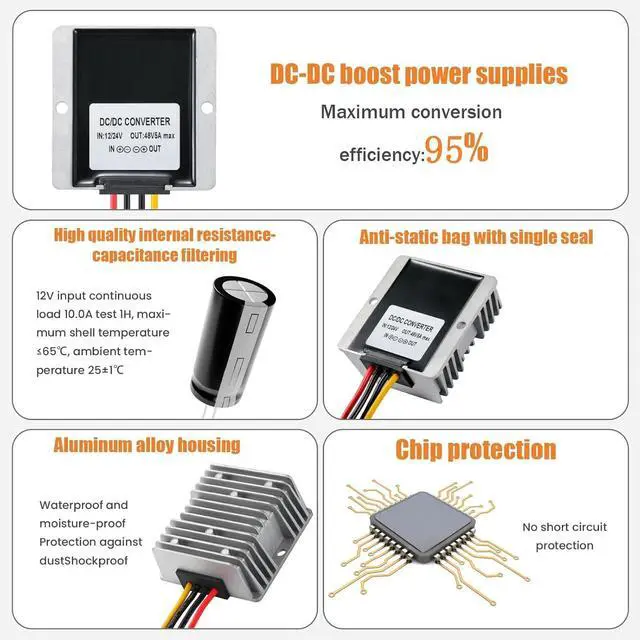

- POWER CONVERTER: DC 12V 24V step up to 48V 5A power converter with stable performance and conversion efficiency above 95% Durable and better heat protection; The internal gluing and aluminum alloy outer box, with excellent fluidity
- VOLTAGE RANGE: Input voltage: 12V or 24V; Output voltage: DC 48V; Output current: 5A; Maximum output power: 240W; Small Size and easy to place in any applications; The converter is shockproof, dustproof, stable and reliable quality
- INTELLIGENT PROTECTION: Supports output short-circuit protection, overcurrent protection, and overtemperature protection; Operating temperature -40 to +85, humidity: 0 to 95% RH ; Storage temperature: -40 to +100

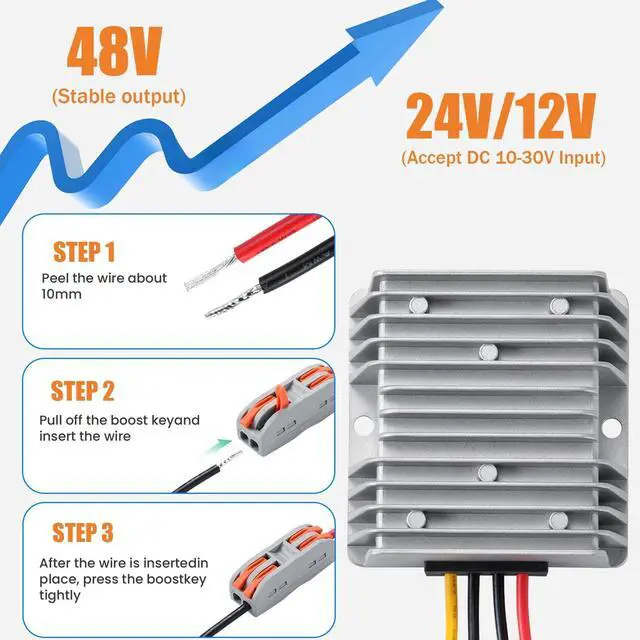

- INSTALLATION: Easy to install, pull of the boost key 90 MAX, insert the wire, press the boost key tightly; The converter has a red and black wire, the red is connected to the positive electrode, and the black is connected to the negative electrode
- WIDE APPLICATION: A wide range of use, the excellent voltage re
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specification Parameters: Input
voltage: 12V
or 24VInput range: 10V
to 30VOutput voltage setting: 48VOutput
current: 5AOutput
power: 240W MAX
Working environment temperature: -25
to 65Storage ambient temperature: -40 to 85
CDimensions: Length 66 mm or 2.59 inches x Width 60 mm or 2.36 inches x Height 22 mm or 0.86 inchesWeight: 100gWiring

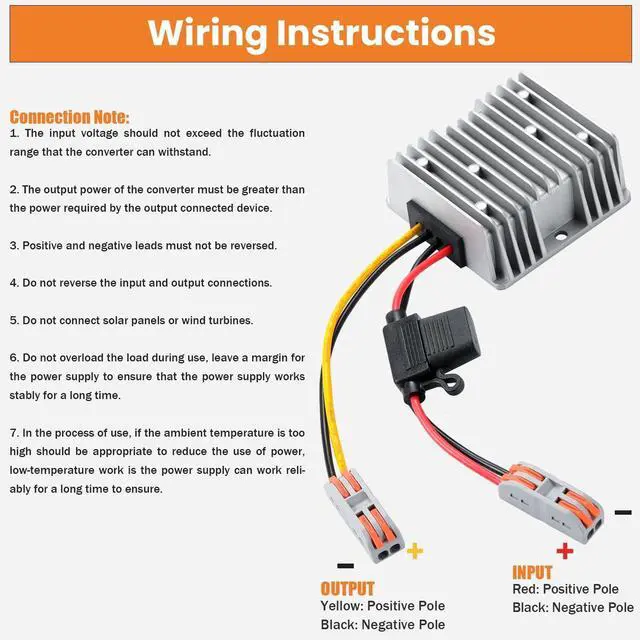

Instructions:
Red: Enter
the positive terminalBlack: Ordinary
negative electrodeYellow: Output positive terminalProtection
Function: Short circuit protection YesOvertemperature protection YesOvercurrent protection YesMatters of Use1. Can not reverse connection, the power supply has no reverse connection protection, reverse connection will damage the power supply2. During use, the load can not be overloaded, leaving a margin for the power supply to ensure long term stable operation of the power supply3. In the process of use, if the ambient temperature is too high, the power should be appropriately reduced, and low temperature work is the guarantee that the power supply can work reliably for a long time4. Do not use near heat sources, such as fire or heater5. Do not connect the input cable to the household power supply 240V6. Do not put the product in the fire or heat it7. Do not use wires or other metal objects to short circuit the positive and negative poles of the product8. Non professional personnel are prohibited from disassembling and repairing themselvesNote: This product is stored in a dry and cool place, the temperature range is -40to 80, avoid contact with corrosive substances, away from fire and heat sources
voltage: 12V
or 24VInput range: 10V
to 30VOutput voltage setting: 48VOutput
current: 5AOutput
power: 240W MAX
Working environment temperature: -25
to 65Storage ambient temperature: -40 to 85
CDimensions: Length 66 mm or 2.59 inches x Width 60 mm or 2.36 inches x Height 22 mm or 0.86 inchesWeight: 100gWiring
Instructions:
Red: Enter
the positive terminalBlack: Ordinary
negative electrodeYellow: Output positive terminalProtection
Function: Short circuit protection YesOvertemperature protection YesOvercurrent protection YesMatters of Use1. Can not reverse connection, the power supply has no reverse connection protection, reverse connection will damage the power supply2. During use, the load can not be overloaded, leaving a margin for the power supply to ensure long term stable operation of the power supply3. In the process of use, if the ambient temperature is too high, the power should be appropriately reduced, and low temperature work is the guarantee that the power supply can work reliably for a long time4. Do not use near heat sources, such as fire or heater5. Do not connect the input cable to the household power supply 240V6. Do not put the product in the fire or heat it7. Do not use wires or other metal objects to short circuit the positive and negative poles of the product8. Non professional personnel are prohibited from disassembling and repairing themselvesNote: This product is stored in a dry and cool place, the temperature range is -40to 80, avoid contact with corrosive substances, away from fire and heat sources
