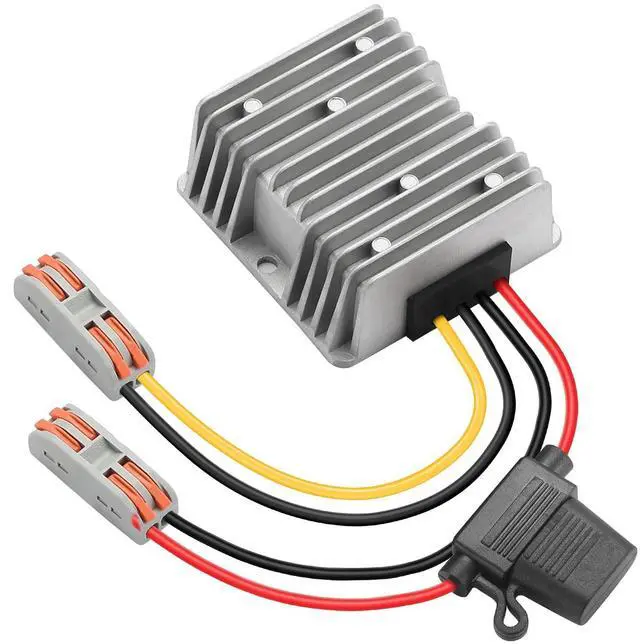

BEYIMEI Step-up 12V to 48V 5A 240W DC-DC Converter 24V to 48V Boost Converter Voltage Converter Voltage Stabilizer Voltage Regulator Voltage Converter Voltage Limiter
- POWER CONVERTER: DC 12V 24V step up to 48V 5A power converter with stable performance and conversion efficiency above 95% Durable and better heat protection; The internal gluing and aluminum alloy outer box, with excellent fluidity
- VOLTAGE RANGE: Input voltage: 12V or 24V; Output voltage: DC 48V; Output current: 5A; Maximum output power: 240W; Small Size and easy to place in any applications; The converter is shockproof, dustproof, stable and reliable quality
- INTELLIGENT PROTECTION: Supports output short-circuit protection, overcurrent protection, and overtemperature protection; Operating temperature -40 to +85, humidity: 0 to 95% RH ; Storage temperature: -40 to +100

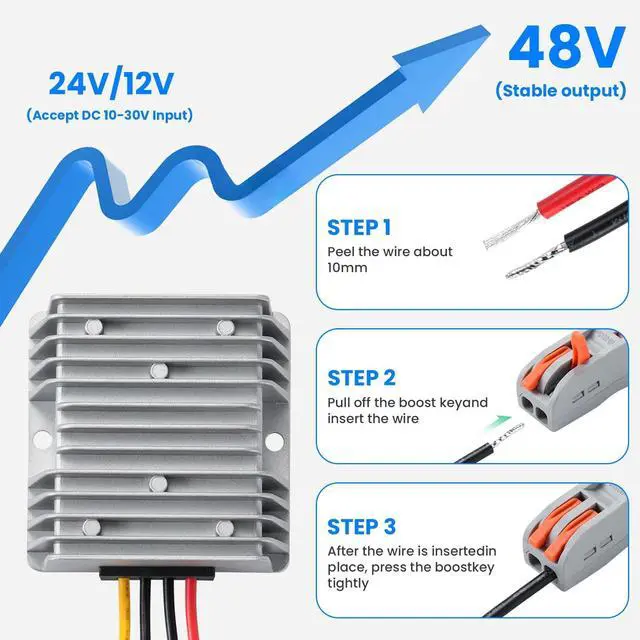

- INSTALLATION: Easy to install, pull of the boost key 90 MAX, insert the wire, press the boost key tightly; The converter has a red and black wire, the red is connected to the positive electrode, and the black is connected to the negative electrode
- WIDE APPLICATION: A wide range of use, the excellent voltage re
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
DC/DC 12V/24V BOOST to 48V5A Voltage TransformerParametersNameVoltage Boost
Supply ConverterInput Voltage: 10-30V
DCOutput voltage: 48V
DCOutput power: 240W
MaxOutput current: 5AWorking

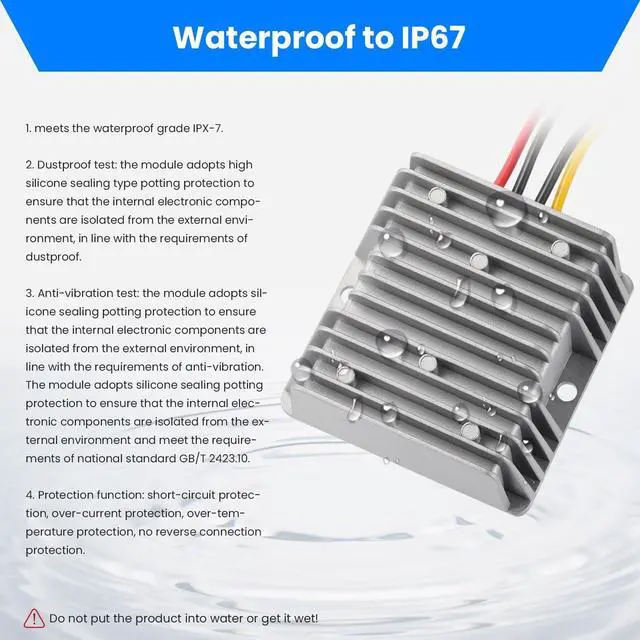

temperature: -25 +65Storage temperature-40 +85FeaturesIntegrated IC design, featuring high conversion efficiency, small size, stability and reliability, with potting process. Waterproof--Conforms to the waterproof grade IPX-7. Dust-proof - The module is protected by high grade silicone sealing potting to ensure that the internal electronic components are isolated from the external environment and meet the requirements of dust-proof. Anti-vibration - the module adopts silicone sealing potting protection to ensure that the internal electronic components are isolated from the external environment, in line with the requirements of anti-vibration. The module adopts silicone sealing potting protection to ensure that the internal electronic components are isolated from the external environment and meet the requirements of national standard GB/T 2423.10.
CautionsCold sure way: natural air cooling. Store the product in a dry and cool place with the temperature range between -4080, avoid contact with corrosive substances, and keep away from fire and heat sources. It is recommended that the maximum power be used with a load for no more than 5 minutes. Can not be reversed, the power supply does not have reverse connection protection, reverse connection will damage the power supply. The use of the process can not be overloaded load, leave a margin for the power supply to ensure long-term stability of the power supply work. Package Includes1x DC 12V 24V to 48V 5A Converter
Supply ConverterInput Voltage: 10-30V
DCOutput voltage: 48V
DCOutput power: 240W
MaxOutput current: 5AWorking
temperature: -25 +65Storage temperature-40 +85FeaturesIntegrated IC design, featuring high conversion efficiency, small size, stability and reliability, with potting process. Waterproof--Conforms to the waterproof grade IPX-7. Dust-proof - The module is protected by high grade silicone sealing potting to ensure that the internal electronic components are isolated from the external environment and meet the requirements of dust-proof. Anti-vibration - the module adopts silicone sealing potting protection to ensure that the internal electronic components are isolated from the external environment, in line with the requirements of anti-vibration. The module adopts silicone sealing potting protection to ensure that the internal electronic components are isolated from the external environment and meet the requirements of national standard GB/T 2423.10.
CautionsCold sure way: natural air cooling. Store the product in a dry and cool place with the temperature range between -4080, avoid contact with corrosive substances, and keep away from fire and heat sources. It is recommended that the maximum power be used with a load for no more than 5 minutes. Can not be reversed, the power supply does not have reverse connection protection, reverse connection will damage the power supply. The use of the process can not be overloaded load, leave a margin for the power supply to ensure long-term stability of the power supply work. Package Includes1x DC 12V 24V to 48V 5A Converter
