BUELEC 100/1000Base-T1-TX-L Automotive Ethernet Media Converter 1Gbps Full-Duplex Gigabit T1 to RJ45, 88Q2112&RTL8211FI, Aluminum Alloy Case,TE MATEnet & H-MTD Adapter Boards,Industrial Grade

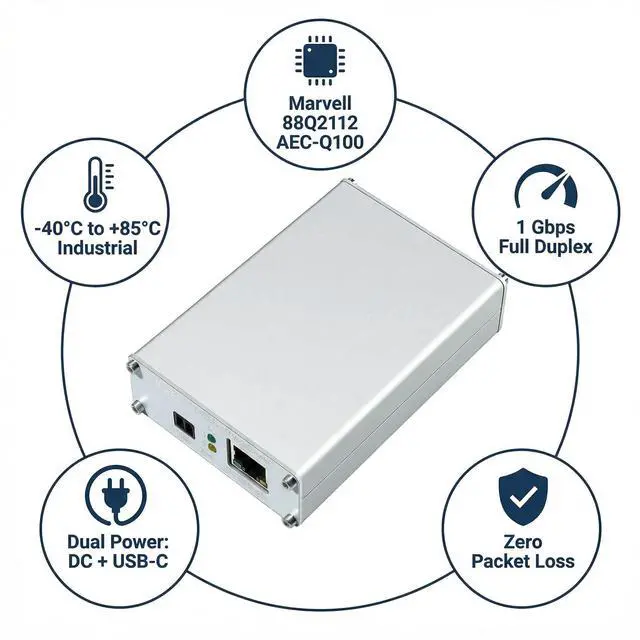

- True Gigabit Automotive Ethernet Bridge: Bidirectional 100/1000BASE-T1 100/1000BASE-TX conversion with zero packet loss, ultra-low latency and full line-rate 1 Gbps full-duplex performance using proven Marvell 88Q2112 (T1) + Realtek RTL8211FI (TX) PHYs
- Complete Connectivity Kit: Includes both TE MATEnet and Rosenberger H-MTD adapter boards + 1.5 m RJ45 cable instantly compatible with all common automotive T1 headers for rapid prototyping, diagnostics (DoIP), and in-vehicle testing

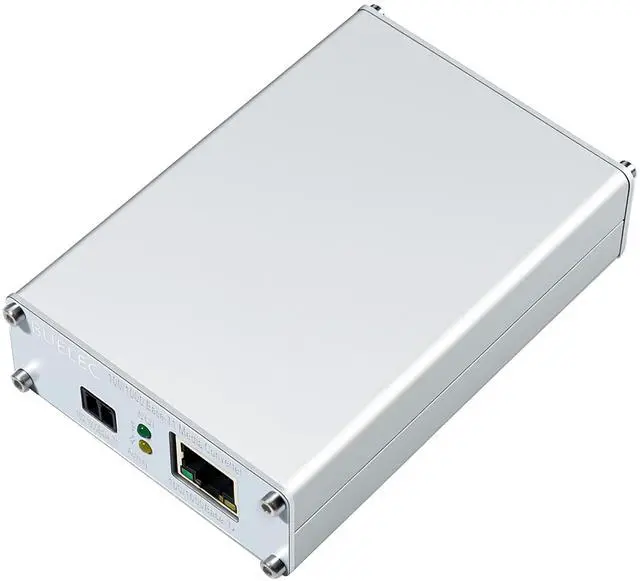

- Premium Industrial Build: CNC-machined sandblasted aluminum alloy enclosure (103 71 26 mm), -40C to +85C operation, AEC-Q100 qualified chips, OPEN Alliance TC10 EMI filtering, over-voltage/over-current/ESD protection and vibration-resistant design

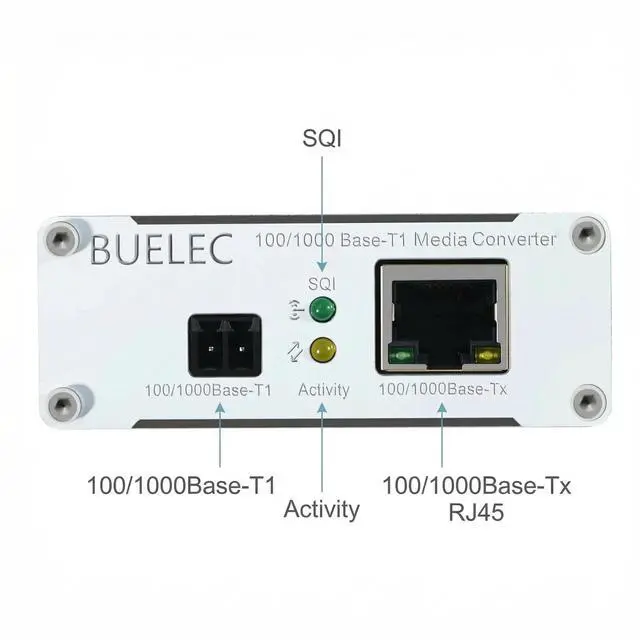

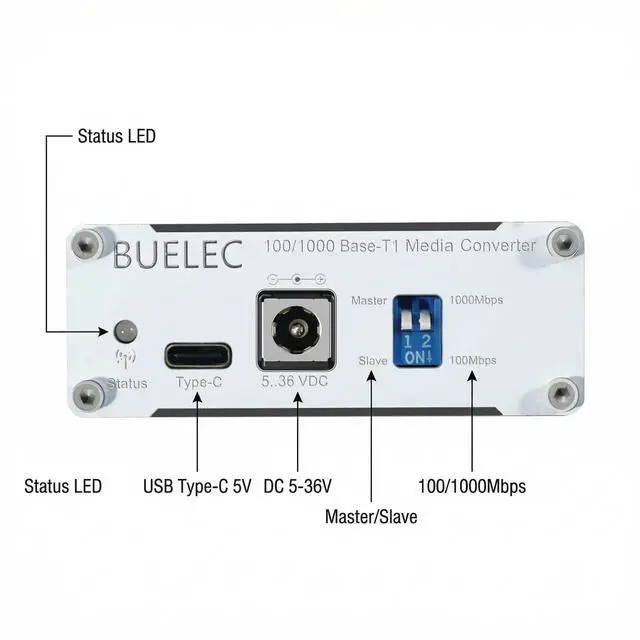

- Smart Features & Visual Feedback: Automatic master/slave switching, onboard MCU for future firmware upgrades, rich status LEDs (link/activity/speed/master-slave/SQI), dual power input (USB-C PD + 5.5 mm DC jack 536 V), low-ripple regulation
- Adva
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
True Gigabit Automotive
Ethernet Bridge: Bidirectional 100/1000BASE-T1 100/1000BASE-TX conversion with zero packet loss, ultra-low latency and full line-rate 1 Gbps full-duplex performance using proven Marvell 88Q2112 (T1) + Realtek RTL8211FI (TX) PHYs ^^ Complete
Connectivity Kit: Includes both TE MATEnet and Rosenberger H-MTD adapter boards + 1.5 m RJ45 cable instantly compatible with all common automotive T1 headers for rapid prototyping, diagnostics (DoIP), and in-vehicle testing ^^
Premium Industrial Build: CNC-machined sandblasted aluminum alloy enclosure (103 71 26 mm), -40C to +85C operation, AEC-Q100 qualified chips, OPEN Alliance TC10 EMI filtering, over-voltage/over-current/ESD protection and vibration-resistant design ^^
Smart Features & Visual Feedback: Automatic master/slave switching, onboard MCU for future firmware upgrades, rich status LEDs (link/activity/speed/master-slave/SQI), dual power input (USB-C PD + 5.5 mm DC jack 536 V), low-ripple regulation ^^ Advanced
Network Support: IEEE 802.3 bw/ 802.3 ab compliant, VLAN tagging ( 802.1Q ), QoS prioritization, perfect for ADAS camera/radar development, zonal architecture testing, ECU flashing, lab benches, and fleet diagnostics
Ethernet Bridge: Bidirectional 100/1000BASE-T1 100/1000BASE-TX conversion with zero packet loss, ultra-low latency and full line-rate 1 Gbps full-duplex performance using proven Marvell 88Q2112 (T1) + Realtek RTL8211FI (TX) PHYs ^^ Complete
Connectivity Kit: Includes both TE MATEnet and Rosenberger H-MTD adapter boards + 1.5 m RJ45 cable instantly compatible with all common automotive T1 headers for rapid prototyping, diagnostics (DoIP), and in-vehicle testing ^^
Premium Industrial Build: CNC-machined sandblasted aluminum alloy enclosure (103 71 26 mm), -40C to +85C operation, AEC-Q100 qualified chips, OPEN Alliance TC10 EMI filtering, over-voltage/over-current/ESD protection and vibration-resistant design ^^
Smart Features & Visual Feedback: Automatic master/slave switching, onboard MCU for future firmware upgrades, rich status LEDs (link/activity/speed/master-slave/SQI), dual power input (USB-C PD + 5.5 mm DC jack 536 V), low-ripple regulation ^^ Advanced
Network Support: IEEE 802.3 bw/ 802.3 ab compliant, VLAN tagging ( 802.1Q ), QoS prioritization, perfect for ADAS camera/radar development, zonal architecture testing, ECU flashing, lab benches, and fleet diagnostics
