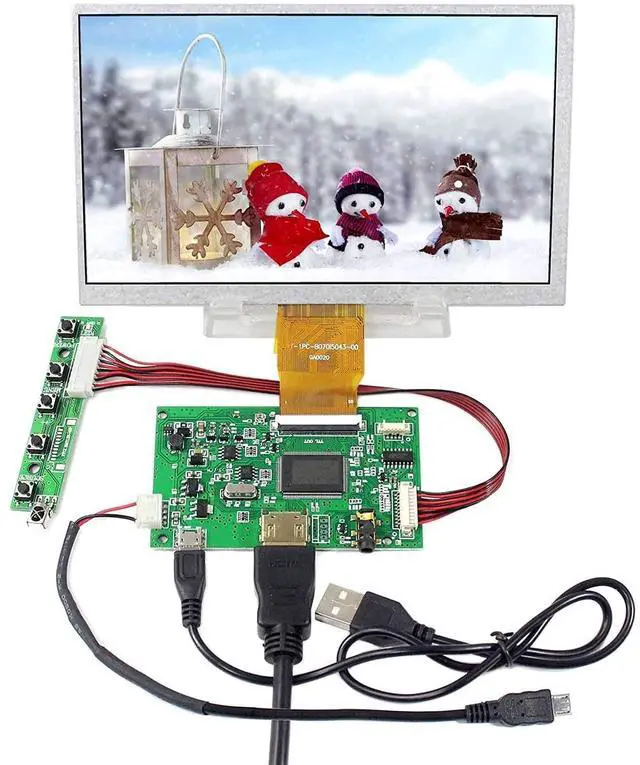

VSDISPLAY 7" 7 inch 1024x600 400nit 50 pins IPS LCD Screen and Controller Board,with Micro USB Power Cable
- 7" TB070-I5024H45C-02 1024X600 IPS LCD Screen: Resolution 1024RGB)600 Outline Size 164.9 1003.5 (HVD) Display Area 154.21 85.92 (HV) Brightness 400 cd/m (Typ.) Contrast Ratio 800:1 (Typ.) (TM) Viewing Angle 85/85/85/85 (Typ.)(CR10) [Left / Right / Up / Down]
- LCD Board Work for 50P TTL Interface LCD Screen (Video Input: Audio: Earphone)

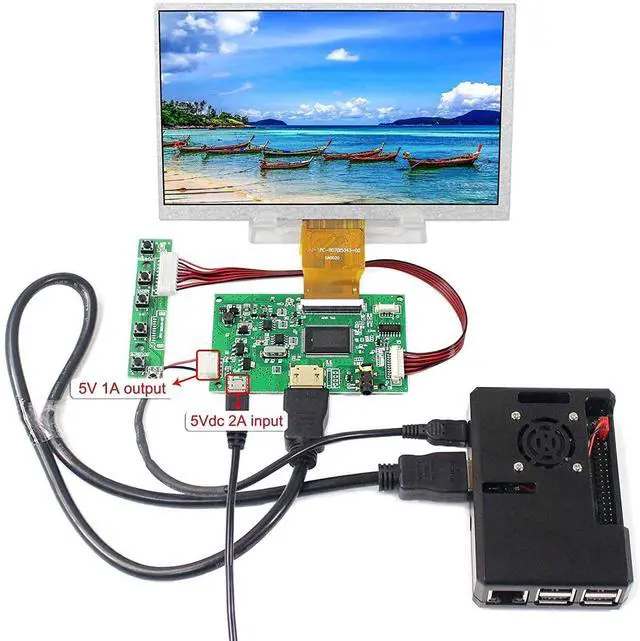

- Input Power Adapter: 5Vdc More than 2A Mirco-USB Connector. Power Connector: PH2.0 Micro USB. Support 5V 1A Power For PH2.0 Connector.
- Come In Standby Model When Not Input Signal. Standby Model <1W.

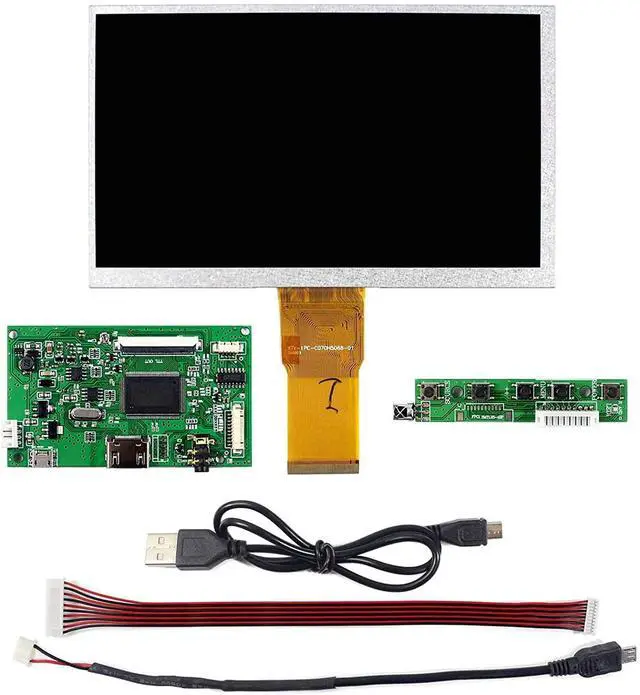

- Packing list : 1 LCD Controller Board VS-TY2660H-V812 1 7inch TB070-I5024H45C-02 1024X600 IPS LCD Screen 1 USB Power Cable 1 Mirco-USB Power Cable 1 Keyboard With Cable
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

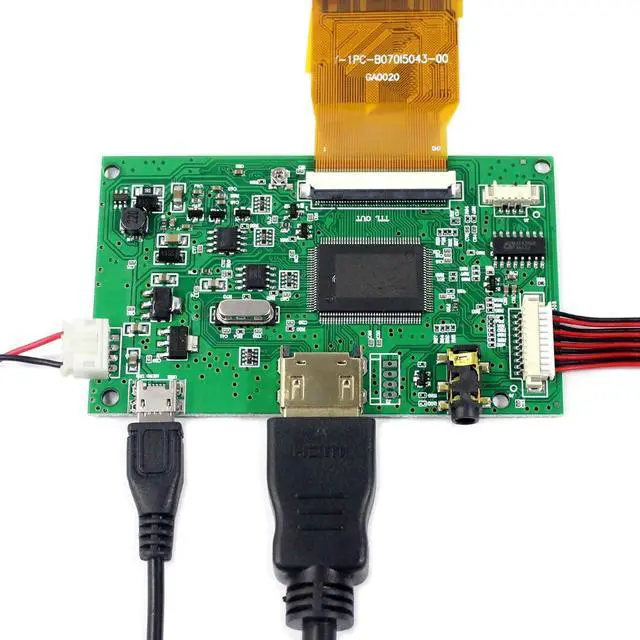

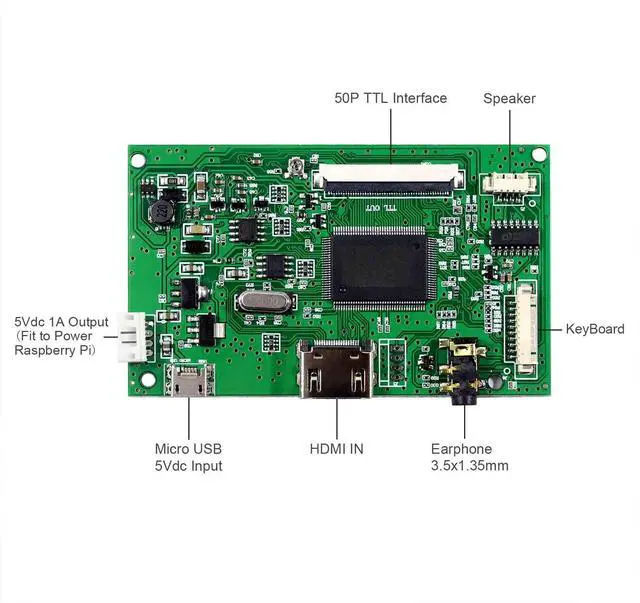

LCD Controller Board: LCD Board Work for 50P TTL Interface
LCD ScreenPower Connector: PH 2.0 Micro USB
Input Power Adapter: 5Vdc More than 2A Mirco-USB ConnectorSupport 5V 1A Power For ConnectorCome In Standby Model When Not Input SignalStandby
Model <1WVideo Input:
Audio:
EarphoneOSD: Brightness Contrast Auto Language And So OnLanguage: English French German Spanish Italian And So OnBoard Size: 88mm x 53mm x 7mm7" TB070-I5024H45C-02 1024X600 IPS
LCD Screen: Display Mode IPS, Normally Black, TransmissiveResolution 1024RGB)600Outline Size 164.9 1003.5 (HVD) Display Area 154.21 85.92 (HV) Brightness 400 cd/m (Typ. )Contrast Ratio 800:1 (Typ. ) (TM) Viewing Angle 85/85/85/85 (Typ. ) (CR10) [Left / Right / Up / Down]Signal Interface Parallel RGB (1 ch, 8-bit), 50 pins, FPC
Backlight WLED
Input Voltage 3.3V (Typ.
)Packing list: 1 LCD Controller Board VS-TY2660H-V8121 7inch TB070-I5024H45C-02 1024X600 IPS LCD Screen1 USB Power Cable1 Mirco-USB Power Cable1 Keyboard With Cable
LCD ScreenPower Connector: PH 2.0 Micro USB
Input Power Adapter: 5Vdc More than 2A Mirco-USB ConnectorSupport 5V 1A Power For ConnectorCome In Standby Model When Not Input SignalStandby
Model <1WVideo Input:
Audio:
EarphoneOSD: Brightness Contrast Auto Language And So OnLanguage: English French German Spanish Italian And So OnBoard Size: 88mm x 53mm x 7mm7" TB070-I5024H45C-02 1024X600 IPS
LCD Screen: Display Mode IPS, Normally Black, TransmissiveResolution 1024RGB)600Outline Size 164.9 1003.5 (HVD) Display Area 154.21 85.92 (HV) Brightness 400 cd/m (Typ. )Contrast Ratio 800:1 (Typ. ) (TM) Viewing Angle 85/85/85/85 (Typ. ) (CR10) [Left / Right / Up / Down]Signal Interface Parallel RGB (1 ch, 8-bit), 50 pins, FPC
Backlight WLED
Input Voltage 3.3V (Typ.
)Packing list: 1 LCD Controller Board VS-TY2660H-V8121 7inch TB070-I5024H45C-02 1024X600 IPS LCD Screen1 USB Power Cable1 Mirco-USB Power Cable1 Keyboard With Cable
