NGFF USB 3.0 to Single Protocol Channel NVME M-Key M.2 PCI-E 2280 2260 2242 2230 SSD External PCBA Case Conveter Adapter JMS583 Chipset

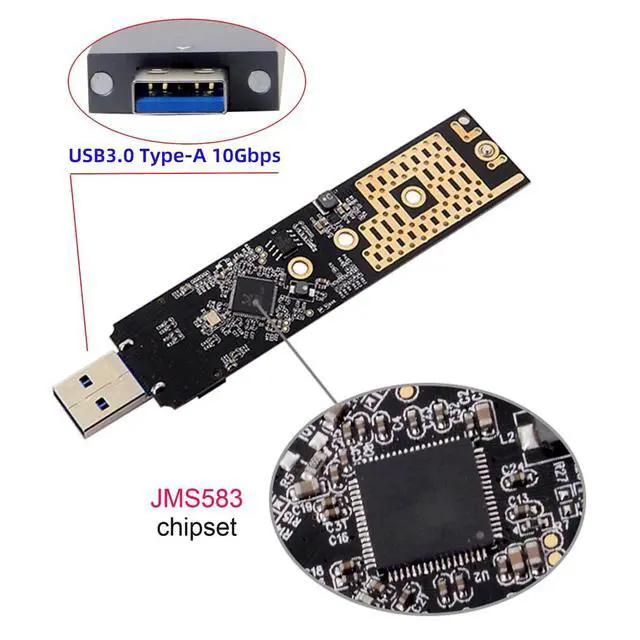

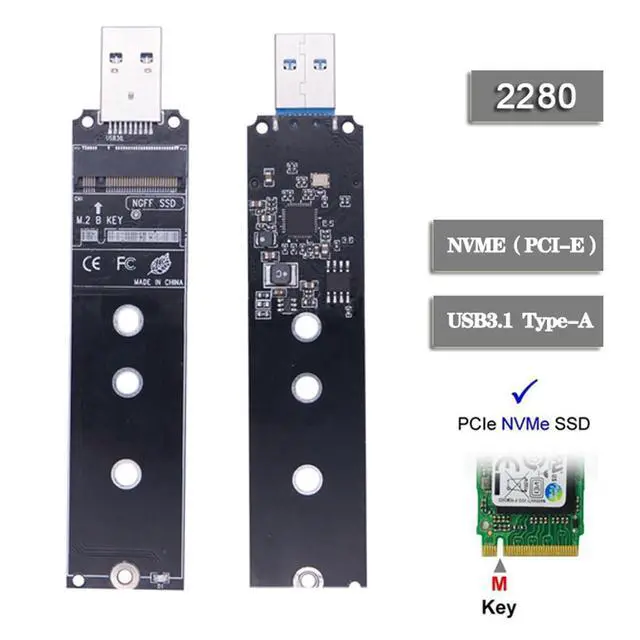

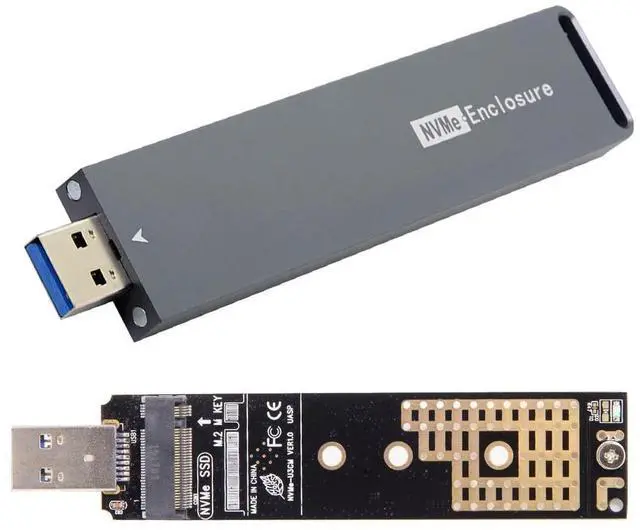

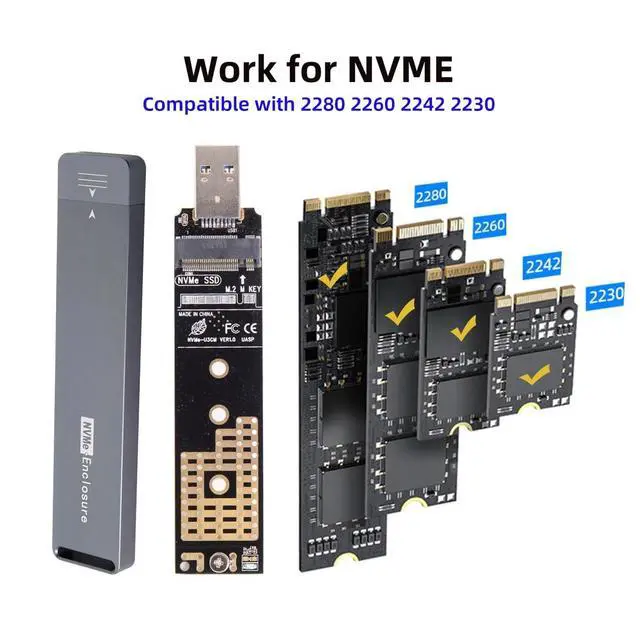

The item included one PCBA and Case; Work for M-key NVME SSD(Not work for B/M-key SATA SSD); Compatible with 2280 2260 2242 2230 size NVME M. 2 SSD; (The SSD is not included. ) ^^ JMS583 Chipset inside; The JMS583 chipset is a USB (Universal Serial Bus) bridge that combines a USB device with both a PCI Express (PCIe) controller Via the PEDET interface of M. 2 mechanical, the JMS583 can auto switch USB-to-PCIe mode, (Not work for USB-to-SATA mode. ) ^^ In USB-to-PCIe mode, It supports PCIe Gen3 x2.

For PCIe, it provides up to 16Gbps bandwidth. It has full backward compatibility for PCIe Gen2/Gen1 and link width 1 lanes. The PCIe host supports NVM Express, which is an interface that allows a host driver to communicate with an NVMe SSD (Solid-State Disk). The NVMe driver is embedded in customized RAM/Rom/SPI Flash. ^^ USB 3.0 to M. 2 (NGFF) NVME Storage adapter, providing one USB 3.0 connector on the host connection and one 67pin M. 2 connector on the SSD storage devices connections; It supports a dynamically switching power state with NVMe/USB power management for power saving mode.

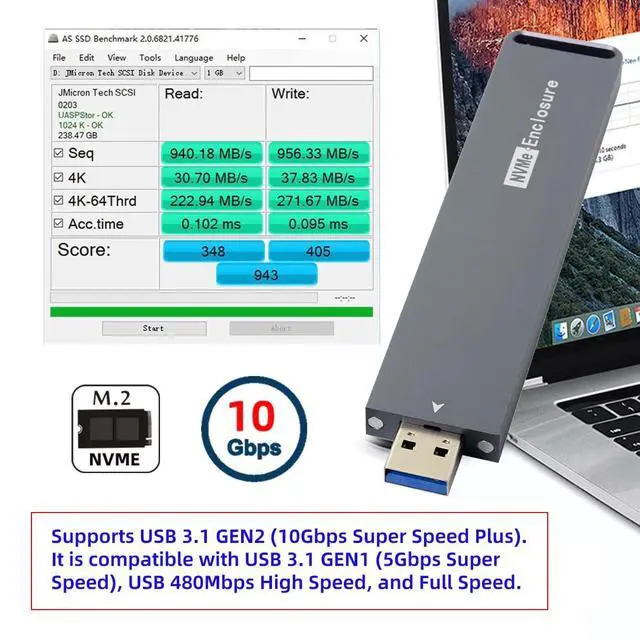

It has an algorithm that can balance power consumption and performance. ^^ Supports USB 3.1 GEN2 (10Gbps Super Speed Plus). It is compatible with USB 3.1 GEN1 (5Gbps Super Speed), USB 480Mbps High Speed, and Full Speed. It can work normally with auxiliary power. The Mass Storage transaction supports both Bulk Only Transfer (BOT) and USB Attached SCSI Protocol (UASP). For USB, it provides up to 10Gbps bandwidth.
