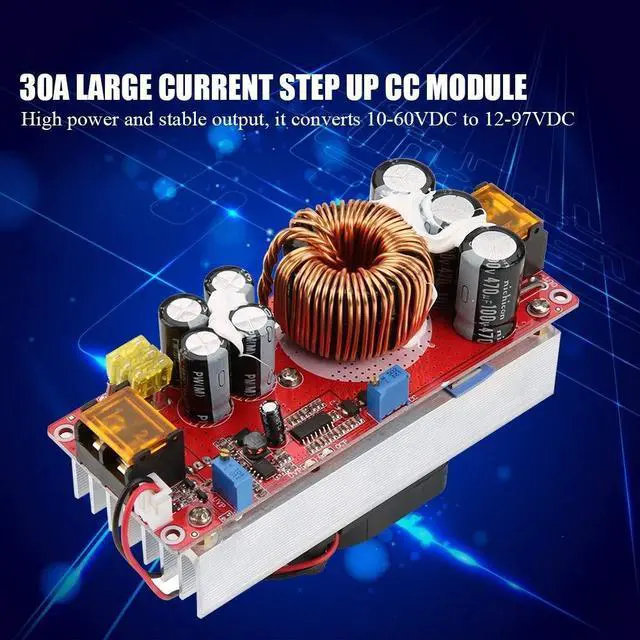

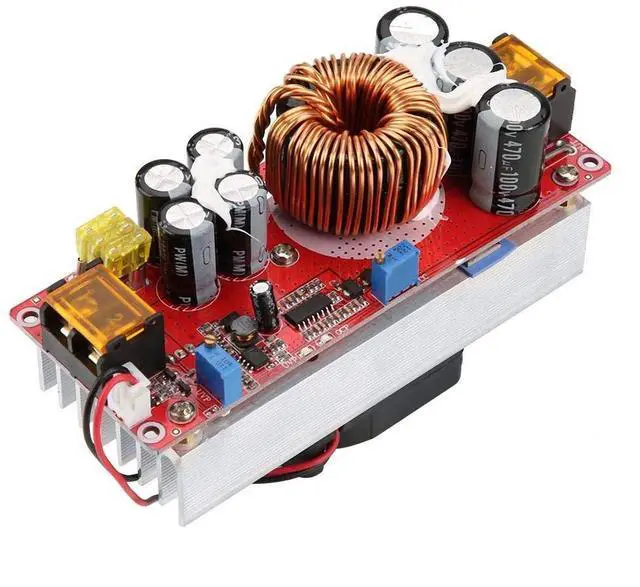

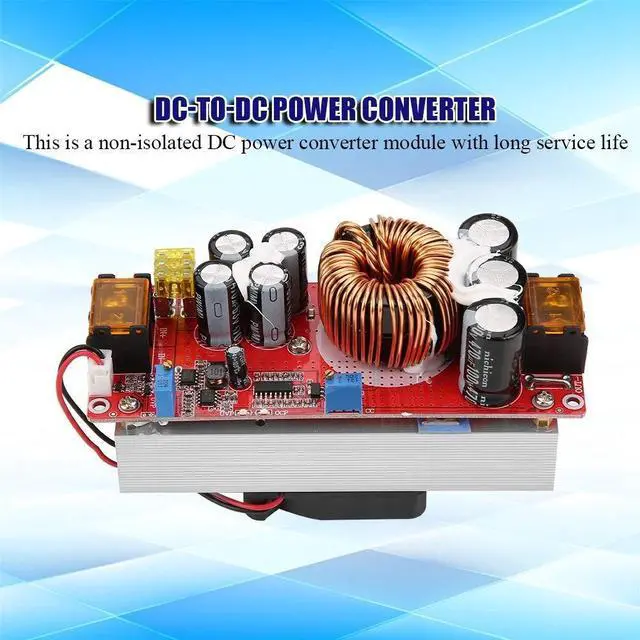

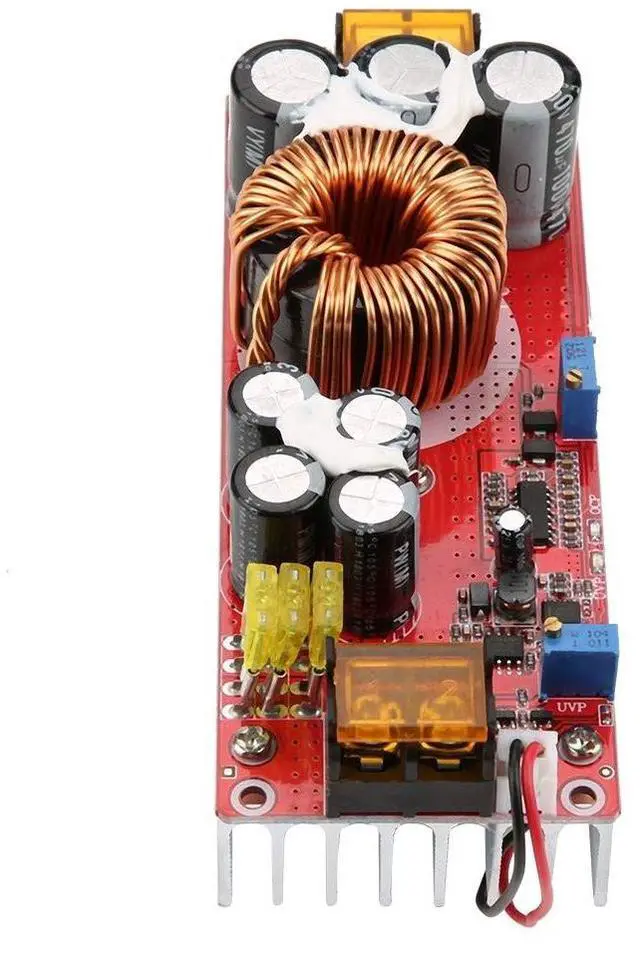

Step Up Converter, DC Voltage Regulator 10-60V to 12-97V Boost Converter Module

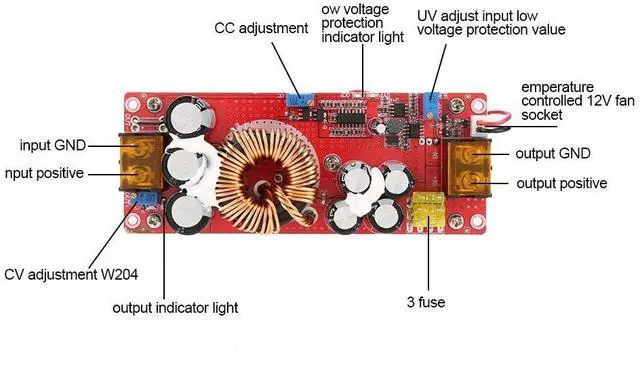

Specification:
Name: 1500W step up constant current moduleType: Nonisolated stepup module (BOOST)
Input Voltage: DC10V to 60VInput
Current: 10V30V input voltage, maximum current is 35A40A; 3160V input voltage, maximum current is 30A35AQuiescent
Current: 15mA(when convert 12V to 20V, higher output voltage will increase quiescent current)Output
Voltage: 1297V continuously adjustable (cannot be used to step down voltage)
Output Current: 22A (related to the input and output voltage difference, the greater voltage difference is, the smaller output current will be. please enhance heat dissipation when current is over 15A)Constant
Current Range: 0.822A (+/ 0.3A )Reverse
Input: Yes (150A power MOS reverse )
Input Low Voltage: Yes (10V50V adjustable, selfrecovery)Operating
Temperature: 40 to 85(if temperature is too high, please
enhance heat dissipation)Frequency: 150KHzConversion
Efficiency: 92% to 97% (Efficiency is related to input/output voltage, current and voltage difference. The smaller difference is, the higher efficiency will be)Input
Over Current: Yes (automatically when input is more than 40A, and power supply voltage will not increase)Short
Circuit: Yes (input 60A ) please operate carefully, try not to cause short circuit.
Reverse Input: Yes ((150A power MOS tube, can be connected reversely for long time)Installation
Method: Four 3mm standoffsWiring
Method: Terminal blocks (Please use large current copper wire)
Output Power: Maximum Output Power = Input Voltage*30A(If input 12V, the maximum output power=12V*30A = 360W)(If input 24V, the maximum output power=24V*30A = 720W)Weight: 372g / 13.1 oz (approx.
)Package list: 1 x
