$123.99
Meet Your Seller

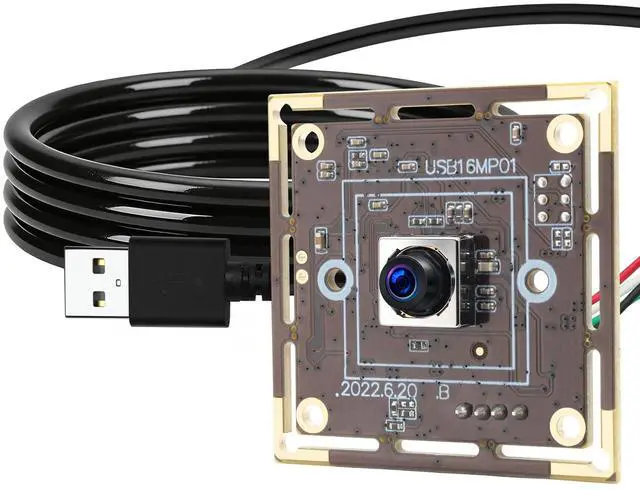

ELP 16mp Autofocus USB Camera Module for Computer Mini UVC USB2.0 4K USB Webcam AF with 100degree Mini Size Lens IMX298 Video Lightburn Webcamera Industrial Embedded Web Cam Board for Laptop PC

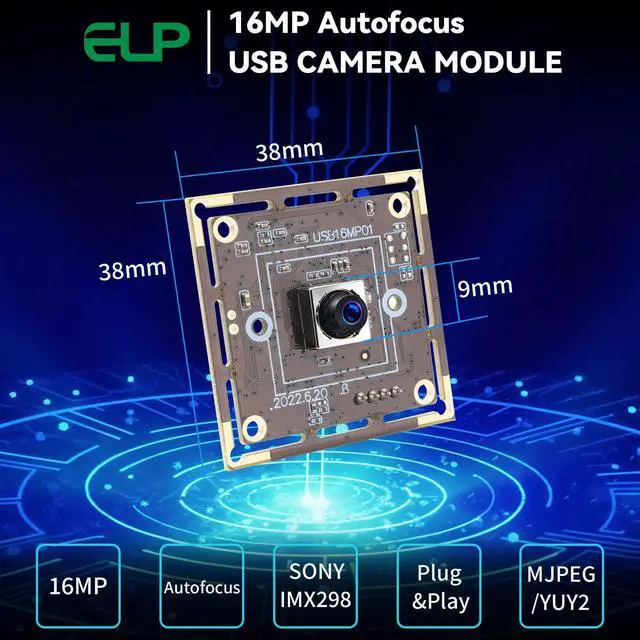

- High Quality Imaging: Model:ELP-USB16MP01-AF100 ELP 16mp autofocus usb camera module AF with 100degree Mini Size Lens adopts 16MP IMX298 sensor for sharp image and accurate color reproduction,still picture resolution: 4656x3496 Max.
- Autofocus: Shoot objects in close and distance on the same camera, automatically controlled without lens adjustment tool, clearer and easier than the fixed focus camera.
- Frame Rates: MJPG 10fps@4656x3496/4160x3120/3264x2448/2592x1944; 30fps@2320x1744/1080P/720; YUY2 10fps@960P/720P/800x600
- Plug&Play: UVC-compliant, just connect the camera to PC, laptop, Android device or Raspberry Pi with the included USB cable without extra drivers to be installed.
- Applications: ELP 16mp autofocus usb camera is highly recommended for a home surveillance system, monitoring 3D Printer, object recognition and tracking, Bar code QR code identification scan, or other machine vision applications which demand high resolution.
- Viewing Angle: Mounted a High quality 1
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
High Quality Imaging:
Model: ELP-USB16MP01-AF100 ELP 16mp autofocus usb camera module AF with 100degree Mini Size Lens adopts 16MP IMX298 sensor for sharp image and accurate color reproduction, still
picture resolution: 4656x3496 Max.
^^ Autofocus: Shoot objects in close and distance on the same camera, automatically controlled without lens adjustment tool, clearer and easier than the fixed focus camera.
^^ Frame Rates: MJPG 10fps@4656x3496/4160x3120/3264x2448/2592x1944; 30fps@2320x1744/1080P/720; YUY2 10fps@960P/720P/800x600 ^^

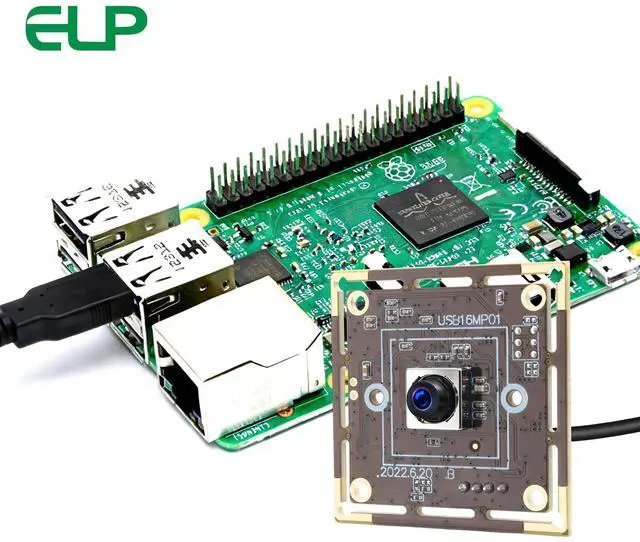

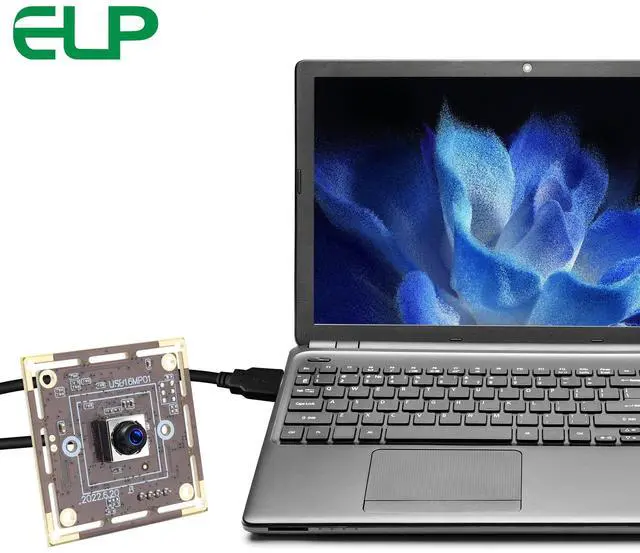

Plug&Play: UVC-compliant, just connect the camera to PC, laptop, Android device or Raspberry Pi with the included USB cable without extra drivers to be installed.
^^ Applications: ELP 16mp autofocus usb camera is highly recommended for a home surveillance system, monitoring 3D Printer, object recognition and tracking, Bar code QR code identification scan, or other machine vision applications which demand high resolution.
^^ Viewing Angle: Mounted a High quality 100degree Mini Size Lens with IR filter, provides a wilder Field of View.
Horizontal Angle: 100 ^^ Support OS"WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4. 8 or later/Wince with UVC/Android 4.0 or above" for machine vision camera, machine vision development in Linux, Work with Raspberry Pi, Opencv camera module, Amcap usb camera module. ELP 16mp usb webcam widely works with most operation system and Apps. ^^ Picture format MJPEG or
YUY2 optional: ELP 16mp wide angle usb cameras with high resolution can be used in any video system for personal or industrial, especially for scan fields, and industrial measurements, medical correction, printed boards, textile samples, etc,
Adjustable Parameters: Brightness/Contrast/Color saturation /Definition/Gamma/WB. ^^ General Software for
USB Camera: OPENCV, Blue Iris, ContaCam, Yawcam, iSpy, Motion Eye OS, AMCAP, Webcam Viewer, IP Camera Viewer, ZoneMinder, V4L2 video for Linux, Camerafi, VLC Player, USB Camera APP, Photo Booth, Facetime, Zoom, Quick Time, etc.
^^ High Compatibility: ELP high definition 16mp usb webcam 3496p wide angle usb camera is versatile for Skype, OBS, Zoom, GoToMeeting, Facebook LIVE, and YouTube Live streaming services, etc.
Model: ELP-USB16MP01-AF100 ELP 16mp autofocus usb camera module AF with 100degree Mini Size Lens adopts 16MP IMX298 sensor for sharp image and accurate color reproduction, still
picture resolution: 4656x3496 Max.
^^ Autofocus: Shoot objects in close and distance on the same camera, automatically controlled without lens adjustment tool, clearer and easier than the fixed focus camera.
^^ Frame Rates: MJPG 10fps@4656x3496/4160x3120/3264x2448/2592x1944; 30fps@2320x1744/1080P/720; YUY2 10fps@960P/720P/800x600 ^^
Plug&Play: UVC-compliant, just connect the camera to PC, laptop, Android device or Raspberry Pi with the included USB cable without extra drivers to be installed.
^^ Applications: ELP 16mp autofocus usb camera is highly recommended for a home surveillance system, monitoring 3D Printer, object recognition and tracking, Bar code QR code identification scan, or other machine vision applications which demand high resolution.
^^ Viewing Angle: Mounted a High quality 100degree Mini Size Lens with IR filter, provides a wilder Field of View.
Horizontal Angle: 100 ^^ Support OS"WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4. 8 or later/Wince with UVC/Android 4.0 or above" for machine vision camera, machine vision development in Linux, Work with Raspberry Pi, Opencv camera module, Amcap usb camera module. ELP 16mp usb webcam widely works with most operation system and Apps. ^^ Picture format MJPEG or
YUY2 optional: ELP 16mp wide angle usb cameras with high resolution can be used in any video system for personal or industrial, especially for scan fields, and industrial measurements, medical correction, printed boards, textile samples, etc,
Adjustable Parameters: Brightness/Contrast/Color saturation /Definition/Gamma/WB. ^^ General Software for
USB Camera: OPENCV, Blue Iris, ContaCam, Yawcam, iSpy, Motion Eye OS, AMCAP, Webcam Viewer, IP Camera Viewer, ZoneMinder, V4L2 video for Linux, Camerafi, VLC Player, USB Camera APP, Photo Booth, Facetime, Zoom, Quick Time, etc.
^^ High Compatibility: ELP high definition 16mp usb webcam 3496p wide angle usb camera is versatile for Skype, OBS, Zoom, GoToMeeting, Facebook LIVE, and YouTube Live streaming services, etc.
