Freenove ESP32 Display CYD, 4.0 Inch Touchscreen Monitor, 320x480 Pixel TN TFT LCD Screen ST7796 Driver, Dual-core 32-bit 240 MHz Microcontroller WiFi+BT, C Code LVGL Example Projects Tutorial

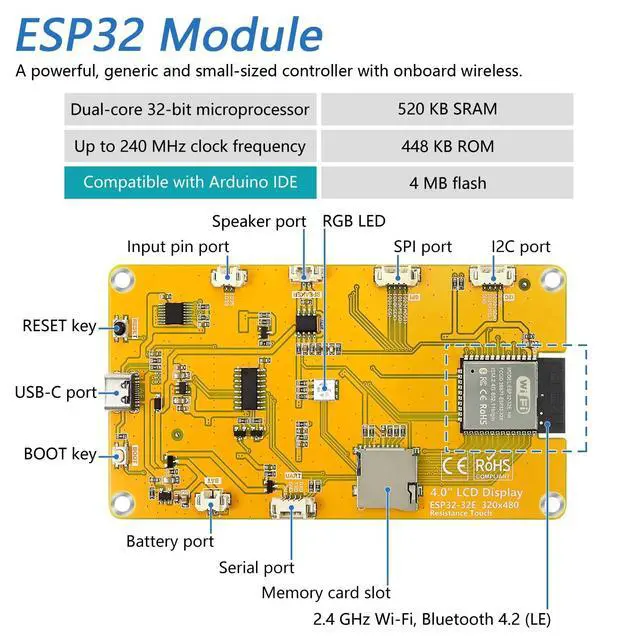

- ESP32 Controller: Dual-core 32-bit microprocessor up to 240 MHz, 4 MB flash, 520 KB SRAM, 448 KB ROM, 2.4 GHz Wi-Fi and Bluetooth 4.2 (LE)

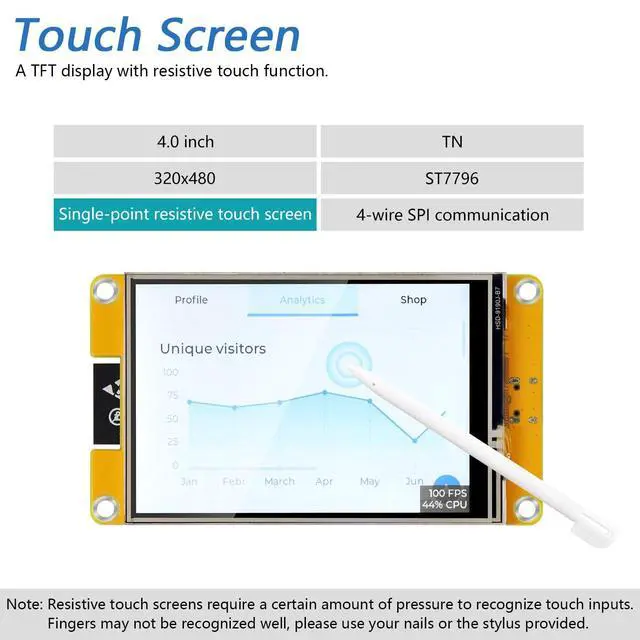

- Touch Screen: 4.0 inch, 320x480 pixel, TN type TFT, ST7796 driver IC, 4-wire SPI communication, single-point resistive touch screen (Note: Resistive touch screens require a certain amount of pressure to recognize touch inputs. Fingers may not be recognized well, please use your nails or the stylus provided)
- Ports and Devices: Memory card slot, USB-C port, serial port, SPI port, I2C port, input pin port, speaker port, battery port, RGB LED, BOOT key, RESET key
- Tutorial and Code: Example projects for ESP32 and LVGL GUI library (The tutorial link can be found on the product box, no paper tutorial)

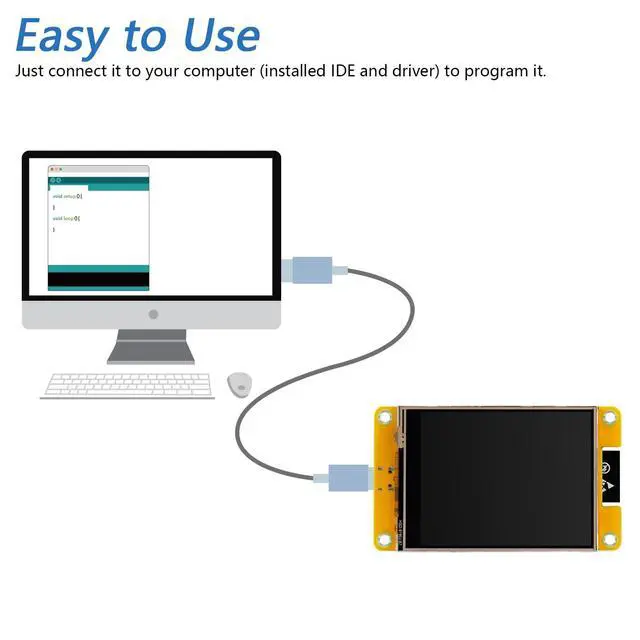

- Easy to Use: Just connect the board to your computer (installed IDE and driver) with the USB cable to program it
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Purchase Options: This kit has several purchasing options. Each option has different screen specifications and drivers.
Overview: This is a touchscreen monitor with onboard dual-core 32-bit 240 MHz ESP32 module. Just connect the board to your computer (installed IDE and driver) with the USB cable to program it. We provide free technical support to help you with any questions and problems.

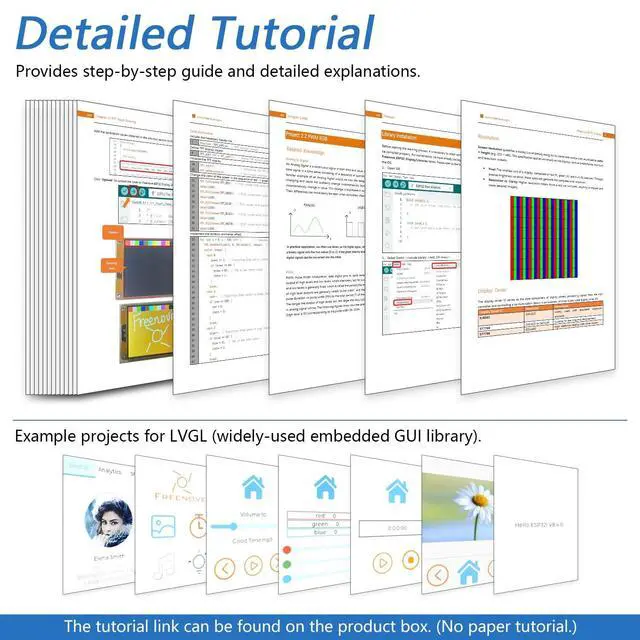

Tutorial: Comes with detailed tutorial and code. (Download or view online, no paper tutorial. )Including several typical projects for ESP32 and LVGL GUI library. The tutorial link can be found on the product box.
Contents of Tutorial: PrefaceChapter 1 SerialChapter 2 RGBChapter 3 ButtonChapter 4 Button InterruptChapter 5 VoltageChapter 6 Memory CardChapter 7 Play MusicChapter 8 BLEChapter 9 WIFI Web ServerChapter 10 TFT ScreenChapter 11 TFT Touch CalibrateChapter 12 TFT Touch DrawChapter 13 LVGLChapter 14 LVGL PictureChapter 15 LVGL TimerChapter 16 LVGL RGBChapter 17 LVGL MusicChapter 18 LVGL MultifunctionalityChapter 19 LVGL DemoWhat's Next?

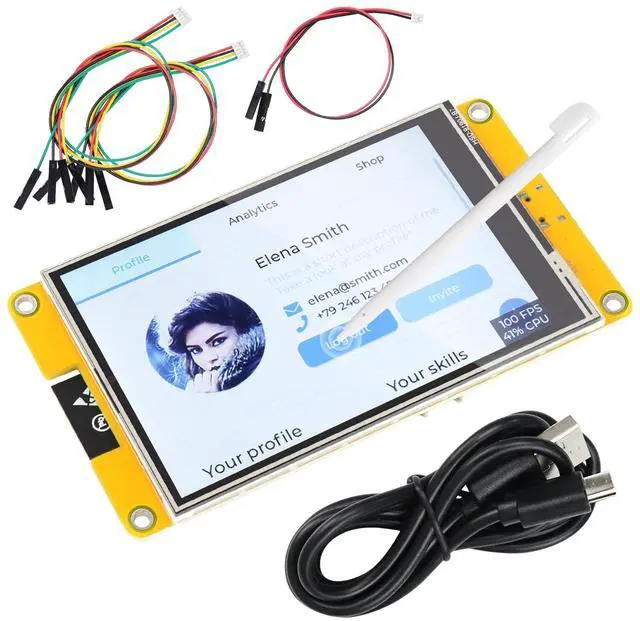

Package Includes: 1 x Touchscreen monitor1 x Stylus1 x USB A to C cable2 x Connecting cable (4P) 1 x Connecting cable (2P)
Overview: This is a touchscreen monitor with onboard dual-core 32-bit 240 MHz ESP32 module. Just connect the board to your computer (installed IDE and driver) with the USB cable to program it. We provide free technical support to help you with any questions and problems.
Tutorial: Comes with detailed tutorial and code. (Download or view online, no paper tutorial. )Including several typical projects for ESP32 and LVGL GUI library. The tutorial link can be found on the product box.
Contents of Tutorial: PrefaceChapter 1 SerialChapter 2 RGBChapter 3 ButtonChapter 4 Button InterruptChapter 5 VoltageChapter 6 Memory CardChapter 7 Play MusicChapter 8 BLEChapter 9 WIFI Web ServerChapter 10 TFT ScreenChapter 11 TFT Touch CalibrateChapter 12 TFT Touch DrawChapter 13 LVGLChapter 14 LVGL PictureChapter 15 LVGL TimerChapter 16 LVGL RGBChapter 17 LVGL MusicChapter 18 LVGL MultifunctionalityChapter 19 LVGL DemoWhat's Next?
Package Includes: 1 x Touchscreen monitor1 x Stylus1 x USB A to C cable2 x Connecting cable (4P) 1 x Connecting cable (2P)
