FriendlyElec NanoPi NEO3 Plus Mini Router OpenWRT, 1GB/2GB LPDDR4 RAM, Rockchip RK3528A SoC, Gigabit Ethernet, USB 3.0, eMMC Module Slot, FriendlyWrt/Linux OS (with Case, 2+0GB, Standard)
- [All-Around Enhanced Performance] NanoPi NEO3 Plus mini router is a fully enhanced version of the NanoPi NEO3, powered by an upgraded Rockchip RK3528A quad-core Cortex-A53 processor up to 1.8GHz for stronger performance and lower power consumption, ideal for OpenWrt routers, NAS, media centers, and embedded development.
- [Native Gigabit Networking] NanoPi NEO3 Plus mini router is equipped with RTL8211F native Gigabit Ethernet (nonUSB), 1USB 3.0 TypeA and 1USBC 2.0 device port. Perfect for building OpenWrt routers, NAS, smart home gateways and highspeed network projects.
- [4K Media Powerhouse] NanoPi NEO3 Plus mini router runs on Rockchip RK3528A Quad-Core ARM CortexA53 CPU up to 1.8GHz, with 1GB/2GB LPDDR4/LPDDR4X RAM, none eMMC. Builtin VPU and ARM Mali-450 GPU, supports hardware 4K 60fps H.265/H.264 decoding, ideal for media centers, digital signage and lightweight video applications.
- [Dual Flexible Storage] NanoPi NEO3 Plus mini router supports optional eMMC modules (64GB/256
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

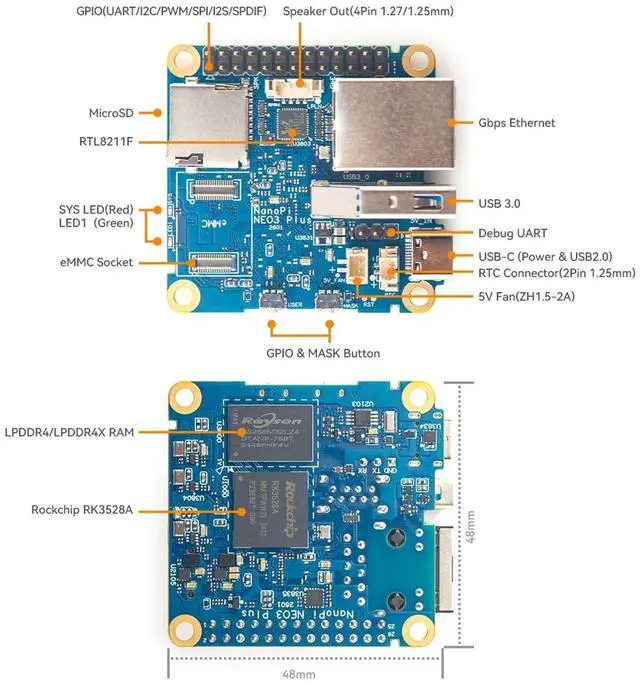

-Hardware
Specification-SoC: Rockchip
RK3528ACPU: Quad-core
ARM Cortex-A53GPU: ARM
Mali-450 GPUVPU: 4K
H265/H264 60fps decodingRAM:
LPDDR4Flash: Supports eMMC
ModuleEthernet: one
Native Gigabit EthernetUSB Ports: One USB 3.0 Host Type-A portOne USB 2.0 Host Type-C portOne microSD SlotOne 26-Pin
FPC GPIO connectorDebug: Debug UART, 3.3V level, 1500000bpsLEDs: 2 x GPIO Controlled LEDs (SYS
& LED1)others: 4-Pin 1.27 / 1.25 mm connector for stereo Speakers2-Pin 1.5 mm 5V FAN connectorGPIO Button, and MASK Button for eMMC upgradePower supply: DC 5V/2A, via USB-C connector or 2.54 mm
HeaderPCB Size: 48481.2
mmTemperature measuring range: 0 to 80-Supported OS- FriendlyWrt 21.02 / 23.05 / 24.10 Debian Ubuntu 24.04 Core OpenMediaVault Proxmox VE Buildroot
Specification-SoC: Rockchip
RK3528ACPU: Quad-core
ARM Cortex-A53GPU: ARM
Mali-450 GPUVPU: 4K
H265/H264 60fps decodingRAM:
LPDDR4Flash: Supports eMMC
ModuleEthernet: one
Native Gigabit EthernetUSB Ports: One USB 3.0 Host Type-A portOne USB 2.0 Host Type-C portOne microSD SlotOne 26-Pin
FPC GPIO connectorDebug: Debug UART, 3.3V level, 1500000bpsLEDs: 2 x GPIO Controlled LEDs (SYS
& LED1)others: 4-Pin 1.27 / 1.25 mm connector for stereo Speakers2-Pin 1.5 mm 5V FAN connectorGPIO Button, and MASK Button for eMMC upgradePower supply: DC 5V/2A, via USB-C connector or 2.54 mm
HeaderPCB Size: 48481.2
mmTemperature measuring range: 0 to 80-Supported OS- FriendlyWrt 21.02 / 23.05 / 24.10 Debian Ubuntu 24.04 Core OpenMediaVault Proxmox VE Buildroot
