innomaker 12MP MIPI Camera Module STARVIS IMX577 Sensor for Raspberry Pi for Jetson Orin Nano/Orin Series, 4K 60fps, HDR, Wide FOV Optional.

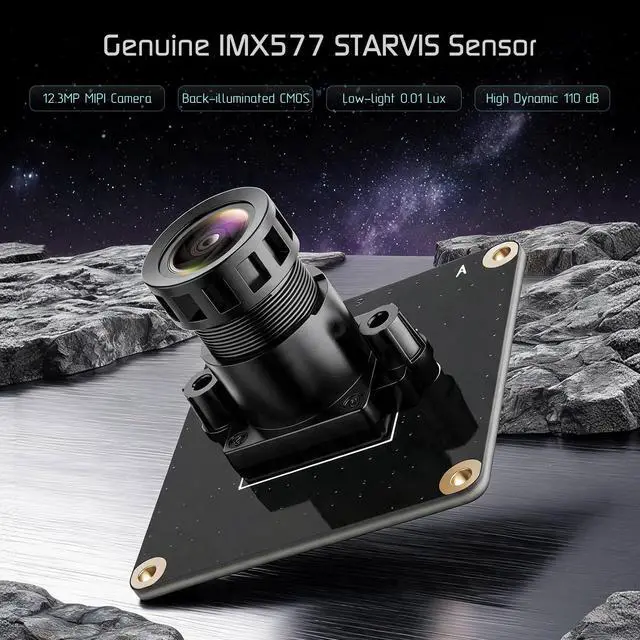

- Genuine STARVIS IMX577 12.3MP Sensor1/2.3" back-illuminated CMOS for exceptional low-light performance (down to 0.01 Lux), high dynamic range up to 110 dB (DOL-HDR), and full-color starlight imaging.

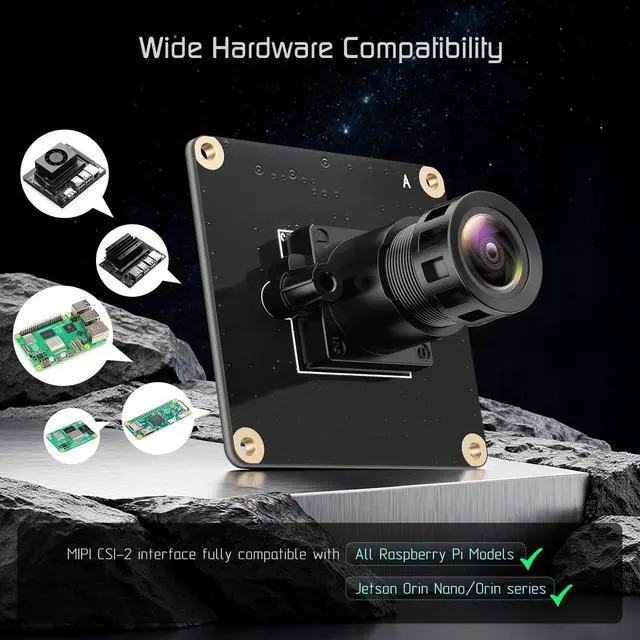

- Hardware CompatibilityMIPI CSI-2 interface fully compatible with Raspberry Pi (all models) and NVIDIA Jetson Orin Nano/Orin series, plug-and-play flex cables included (15-pin + 22-pin).

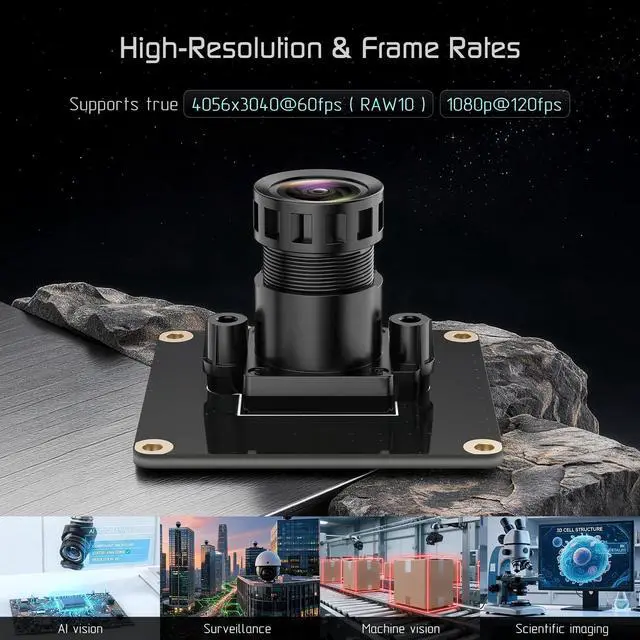

- High-Resolution & Frame RatesSupports true 40563040@60fps (RAW10), 1080p@120fps, ideal for AI vision, surveillance, machine vision and scientific imaging.

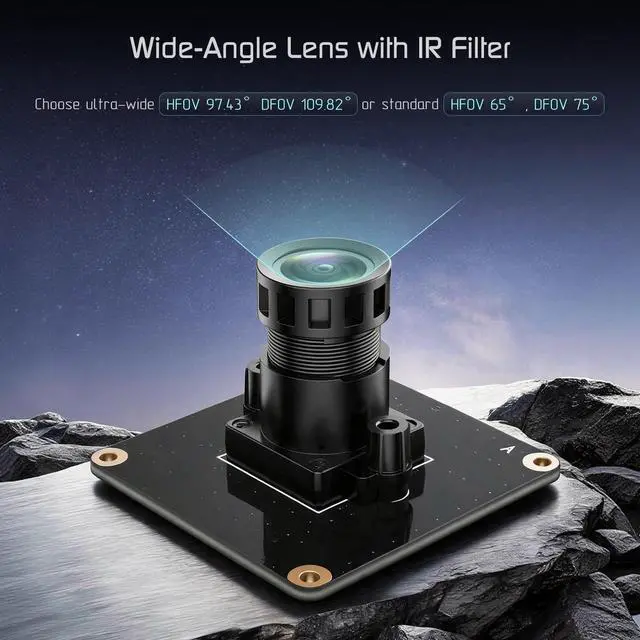

- Wide Field of View OptionsChoose ultra-wide (HFOV 97.43, DFOV 109.82) or standard (HFOV 65, DFOV 75) lens for versatile applications, built-in IR cut filter.
- Easy Setup on JetsonNative support via JetPack 6.2 (leverages IMX477 driver), Raspberry Pi software integration under active development, low power for 24/7 operation.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

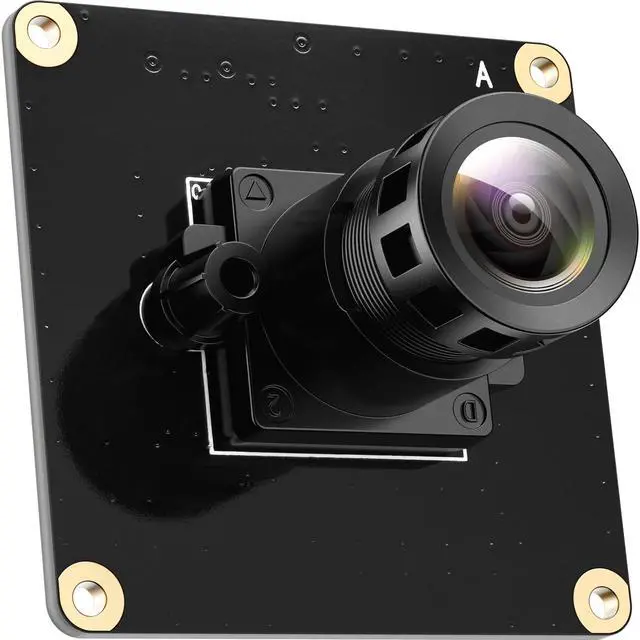

InnoMaker CAM-IMX577 12MP High-Performance MIPI Camera Module Powered by the authentic STARVIS IMX577 sensor, this premium camera delivers true 12.3 -megapixel resolution (40563040) with stunning 4K 60fps performance and superior low-light sensitivity. Designed for demanding vision applications, the module features a 1/ 2.3" back-illuminated stacked CMOS sensor, offering up to 110 dB dynamic range (DOL-HDR), max SNR of 37.1 dB, and starlight-level full-color imaging down to 0.01 Lux. It supports high-speed modes like 1080p@120fps, making it perfect for AI processing, high-res surveillance, industrial AOI, machine vision, and time-lapse projects.
Hardware Interface Compatibility. Fully supports MIPI CSI-2 (4-lane) on Raspberry Pi (all models including Pi 5, Pi 4, Pi 3, Zero) and Jetson Orin Nano/Orin series. Includes flexible 150mm cables (15-pin + 22-pin) for easy integration.
Software Support: Jetson Orin Series Plug-and-play with JetPack 6.2 (uses existing IMX477 driver); configure via Jetson-IO tool for seamless 4K 60fps capture. Raspberry Pi Hardware-ready with CSI interface; driver/software optimization actively in development for full libcamera/Argus support (expected soon).
Lens Options:
-Ultra-wide: HFOV 97.43, VFOV 80.97, DFOV
109.82 -Standard: HFOV 65, VFOV 36, DFOV 75 (matches common 16:9 modes)What's in the
Box: 1x CAM-IMX577 MIPI Camera Module1x 15-pin FPC Cable1x 22-pin FPC Cable
Hardware Interface Compatibility. Fully supports MIPI CSI-2 (4-lane) on Raspberry Pi (all models including Pi 5, Pi 4, Pi 3, Zero) and Jetson Orin Nano/Orin series. Includes flexible 150mm cables (15-pin + 22-pin) for easy integration.
Software Support: Jetson Orin Series Plug-and-play with JetPack 6.2 (uses existing IMX477 driver); configure via Jetson-IO tool for seamless 4K 60fps capture. Raspberry Pi Hardware-ready with CSI interface; driver/software optimization actively in development for full libcamera/Argus support (expected soon).
Lens Options:
-Ultra-wide: HFOV 97.43, VFOV 80.97, DFOV
109.82 -Standard: HFOV 65, VFOV 36, DFOV 75 (matches common 16:9 modes)What's in the
Box: 1x CAM-IMX577 MIPI Camera Module1x 15-pin FPC Cable1x 22-pin FPC Cable
