    XICOOLEE OV5640 USB Camera Module 5MP Fixed Focus 160 Degree Camera for Win XP Win7 Win8 Vista Mac Linux Android 4.0 Jetson Nano with Flash Microphone Support OTG Standard UVC Protocol Driver-Free

    Be the first to review this product...
    • The mini camera board is on-board CMOS image sensor OV5640, having ISP (image signal processing) functions
    • This OV5640 fixed focus camera module is onboard USB2.0 interface directly plug and play, supports OTG protocol, standard UVC protocol, built-in Flashmicrophone
    • This ov5640 camera module adopts high-definition 160 wide angle camera, 5 Megapixel fixed focus, 2592 x 1944 maximum resolution
    • The HD USB camera module supports Win XP/Win7/Win8/vista/mac/Linux with uvc/Android 4.0/Jetson Nano operating systems, which can be customized and is highly compatible
    • This OV5640 fixed focus camera module is only 3 grams. Small size is suitable for various industrial products and facecam
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

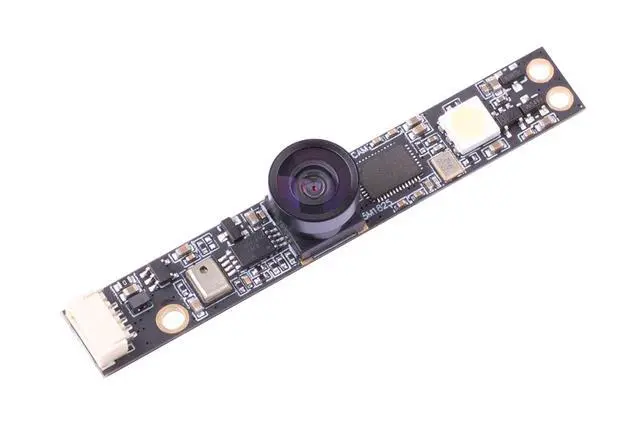

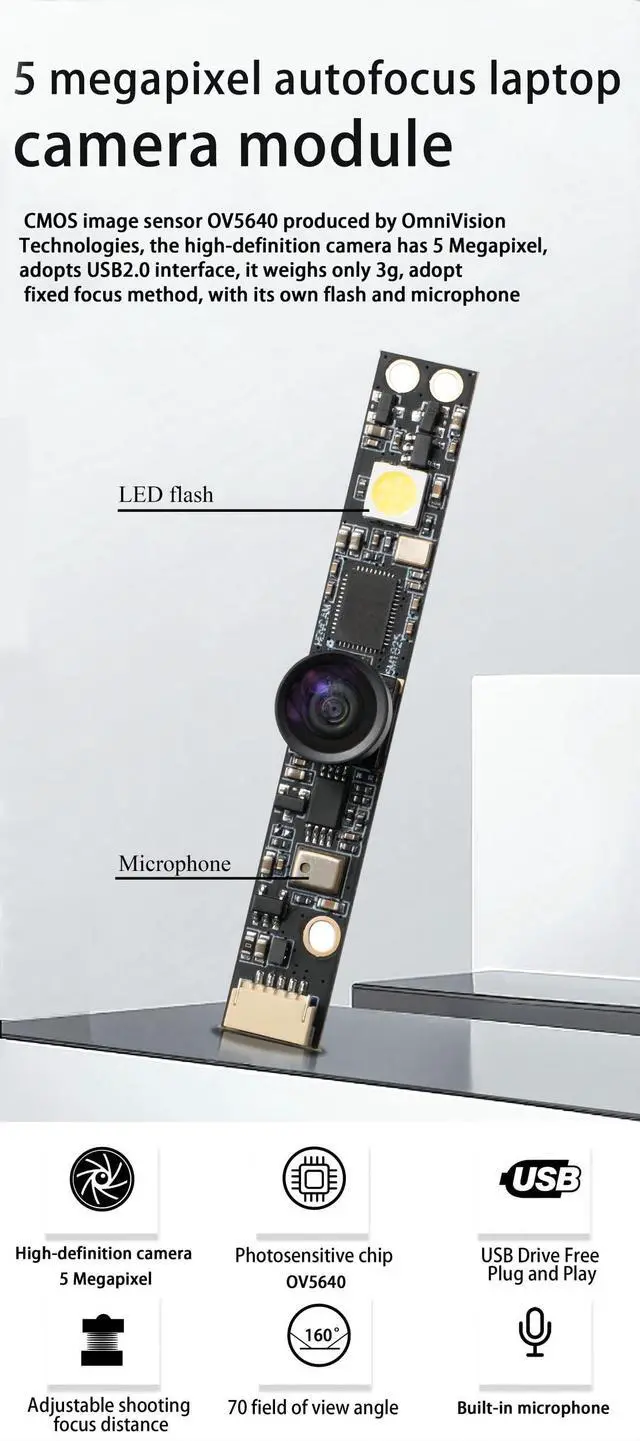

    Overview: This mini usb camera module adopts the CMOS image sensor OV5640 produced by OmniVision Technologies. The HD camera has 5 Megapixel, onboard USB 2.0 interface. It weighs only 3g, adopting fixed focus method, with its own flash and microphone, supporting Win XP/Win7/Win8/vista/mac/Linux with uvc/Android 4.0 /Jetson Nano operating system.

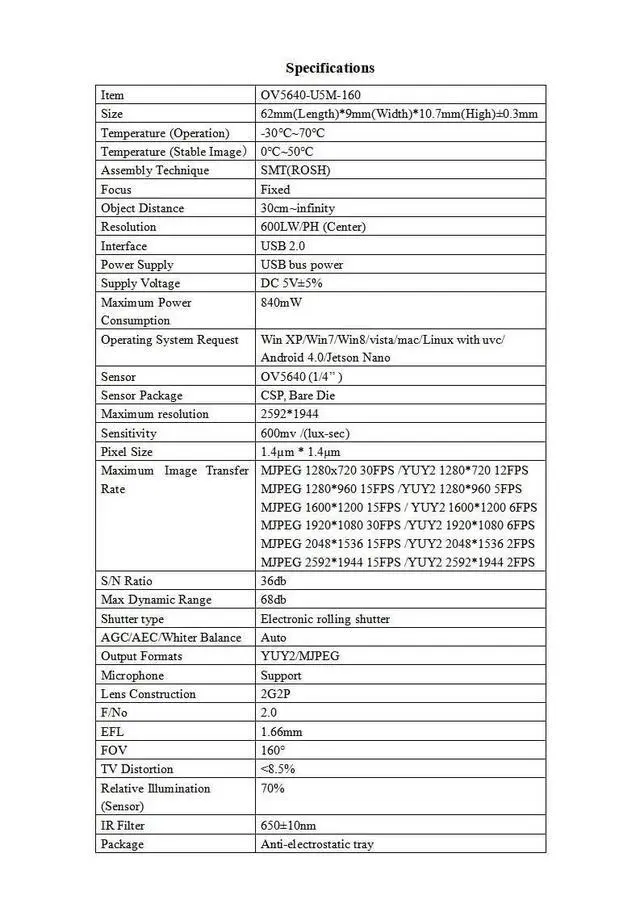

    Specifications

    :
    Size: 62mm (Length) *9mm (Width) * 10.7 mm (High) 0.3 mmTemperature (Operation): -3070Temperature (Stable
    Image): 050Assembly
    Technique: SMT (ROSH)
    Focus: FixedObject
    Distance:
    30cm-infinityResolution: 600LW/PH (Center)
    Interface: USB 2.0P ower
    Supply: USB bus powerSupply
    Voltage: DC 5V5%Maximum
    Power Consumption: 840mWOperating
    System Request: Win XP/Win7/Win8/vista/mac/Linux with uvc/Android 4.0 /Jetson
    NanoSensor: OV5640(1/4")Sensor
    Package: CSP, Bare
    DieMaximum resolution:
    2592*1944Sensitivity: 600mv/(lux-sec)Pixel
    Size: 1.4 m * 1.4 mMaximum
    Image Transfer Rate: MJPEG 1280x720 30FPS /YUY2 1280x720 12FPSMJPEG 1280x960 15FPS /YUY2 1280x960 5FPSMJPEG 1600x1200 15FPS / YUY2 1600x1200 6FPSMJPEG 1920x1080 30FPS /YUY2 1920x1080 6FPSMJPEG 2048x1536 15FPS /YUY2 2048x1536 2FPSMJPEG 2592x1944 15FPS /YUY2 2592x1944 2FPSS/N
    Ratio: 36dbMax
    Dynamic Range: 68dbShutter
    type: Electronic rolling shutterAGC/AEC/Whiter
    Balance: AutoOutput
    Formats: YUY2/MJPEG
    Microphone: SupportLens
    Construction:
    2G2PF/No:
    2.0EFL: 1.66
    mmFOV: 160TV
    Distortion: < 8.5 %Relative
    Illumination (Sensor): 70%IR
    Filter:
    65010nmPackage: Anti-electrostatic trayPackage
    Contents: 1. OV5640-U5M-160 (fixed focus) x12. USB to HX 1.25 -5P connecting cable x1
