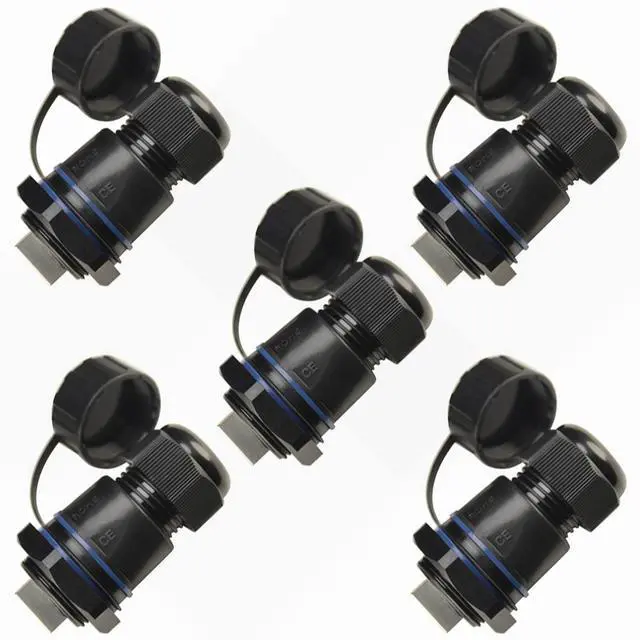

ANMBEST 5PCS M25 Panel Mounting RJ45 Waterproof Connector Cat5/5e/6 Ethernet LAN Cable Coupler with Waterproof/Dust Cap Cover for Outdoor Network

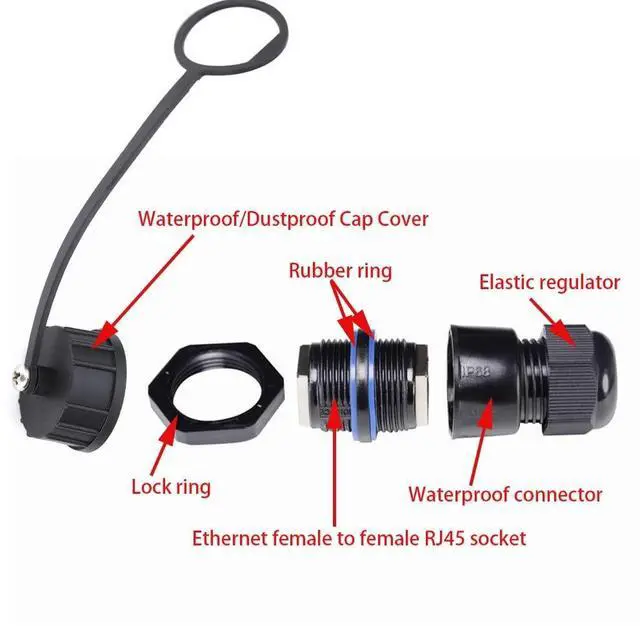

- PRODUCT FEATURES: Waterproof at one ends, the panel can be fixed, the two network cables are connected to the connector through the waterproof head, and can be used as a cable extension cable.
- IP67 WATERPROOF: The Waterproof RJ45 Connector are IP 67 Compliant. Prevented from temporary immersion for 30 min in 1 meter depth of water. Prevent the network parts from moisture, dirt and insects for quality connections.
- EASY INSTALLATION: It is miniaturization, and save installation space, RJ45 female to female field installable coupler, no soldering, no installation tools, just plug the standard crystal head directly for quick installation.
- DURABLE: This RJ45 connector is made of PA66 nylon native environmentally friendly injection molding material, flame retardant, UV resistant, and anti-aging.
- Quality Assurance: Professional waterproof connector manufacturer. The product undergoes rigorous inspection before leaving the factory. If you are not satisfied with the product, please
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The female to female RJ45 ethernet lan cable coupler is used to turn the standard CAT5/5e patch cord into the waterproof type for the ethernet connecting in the harsh industrial or outdoor environments. A gasket seal provides optimum protection from moisture and other contaminants with an IP67 rating. Using the standards based RJ45 connection system insures compatibility with existing hardware.
of cores: 8 PIN
Waterproof rating: IP67Connection
type: RJ45Installation

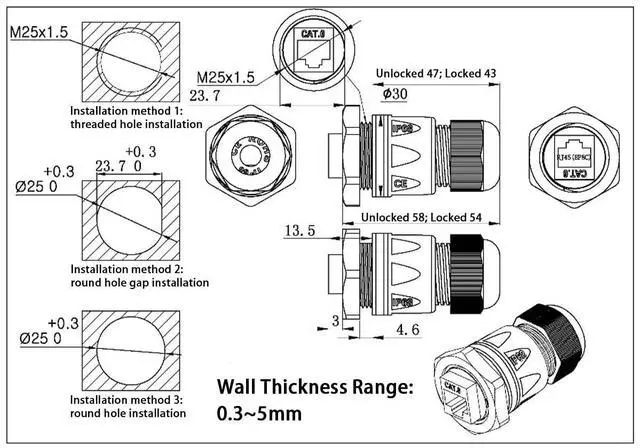

size: M25X
1.5F lame retardant rating: UL94V-0Connection
method: plug type + thread pressure lockConnector wire-in range: OD
(38) mmCase wall thickness: Threaded
type: >3mm, through-hole
type: 0.3
~5mmConnector transmission classification: CAT
6Transmission speed range: 10BASE-T. 100 BASE-T. 1000 BASE-T and 10000
BASE-T networkElectrical parameters: Rated
current: 1.5AR
ated voltage: 125VAC, 75VDC
Insulation resistance: 500MCompressive
strength: AC1000V 50HZ or 60HZ for 1 minuteContact resistance:
10MMaterial:
Shell: Nylon
PA66 (UL94V-0)Socket contact pin: 0.5 mm diameter phosphor copper wireContact pin gold plating thickness: 6u
inchWaterproof rubber ring: siliconeEnvironmental
conditions: Working
temperature: -40120CelsiusStorage
temperature: -2585CelsiusAtmospheric
pressure: 86106kPaRelative
humidity: 90%
RHPackage Included: 5x Waterproof RJ45 M25 Connector5x Waterproof/Dust Cap Cover
Specifications
: Numberof cores: 8 PIN
Waterproof rating: IP67Connection
type: RJ45Installation
size: M25X
1.5F lame retardant rating: UL94V-0Connection
method: plug type + thread pressure lockConnector wire-in range: OD
(38) mmCase wall thickness: Threaded
type: >3mm, through-hole
type: 0.3
~5mmConnector transmission classification: CAT
6Transmission speed range: 10BASE-T. 100 BASE-T. 1000 BASE-T and 10000
BASE-T networkElectrical parameters: Rated
current: 1.5AR
ated voltage: 125VAC, 75VDC
Insulation resistance: 500MCompressive
strength: AC1000V 50HZ or 60HZ for 1 minuteContact resistance:
10MMaterial:
Shell: Nylon
PA66 (UL94V-0)Socket contact pin: 0.5 mm diameter phosphor copper wireContact pin gold plating thickness: 6u
inchWaterproof rubber ring: siliconeEnvironmental
conditions: Working
temperature: -40120CelsiusStorage
temperature: -2585CelsiusAtmospheric
pressure: 86106kPaRelative
humidity: 90%
RHPackage Included: 5x Waterproof RJ45 M25 Connector5x Waterproof/Dust Cap Cover
