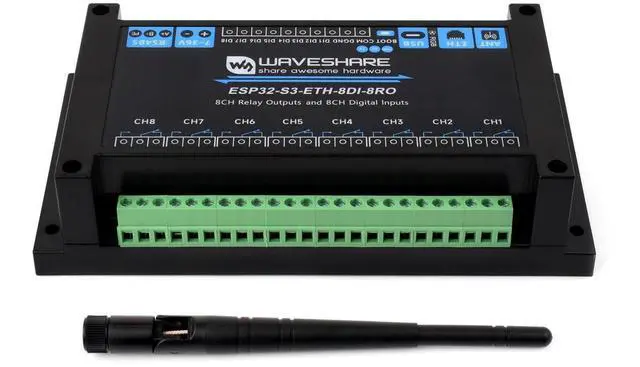

8-Ch ESP32-S3 WiFi Relay Module Industrial Controller, Onboard 8-ch Relays, 8-ch Digital Inputs, Isolated RS485 and Ethernet Port Interface, Supports RS485 and Bluetooth/WiFi Remote Control

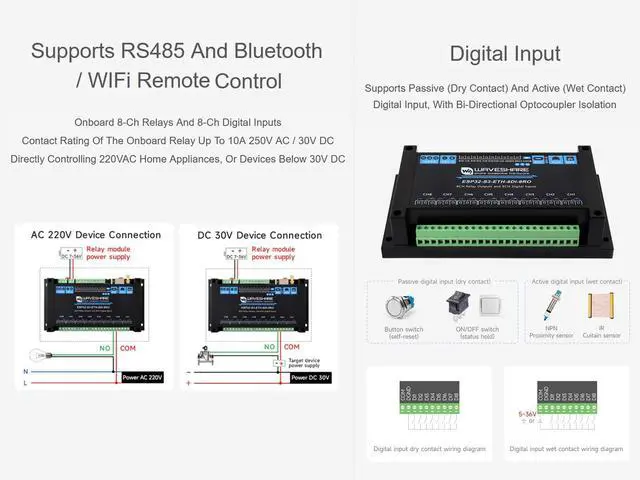

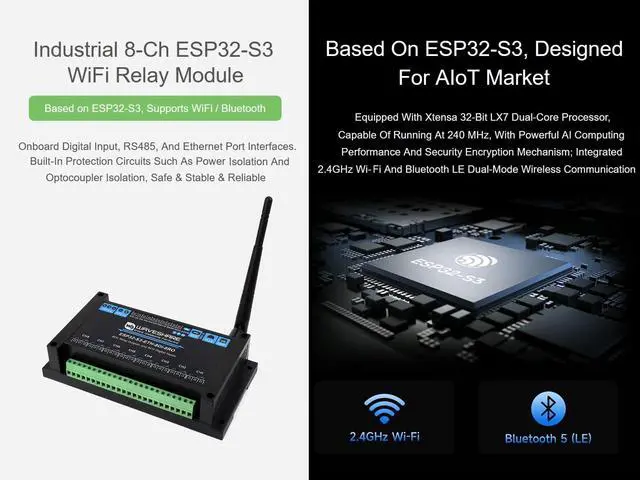

IntroductionIndustrial 8-Ch ESP32-S3 WiFi Relay Module, based on ESP32-S3, supports WiFi / Bluetooth. Onboard Digital input, RS485, and ethernet port interfaces. Built-in multiple isolation protection circuits, safe & stable & reliableFeaturesBased on ESP32-S3 microcontroller with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHzIntegrated 2.4GH z Wi-Fi and Bluetooth LE dual-mode wireless communicationHigh quality relay, contact

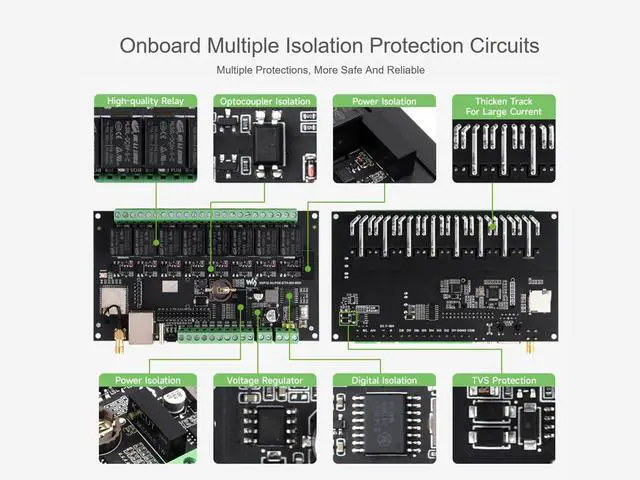

rating: 10A 250V AC / 30V DCSupports passive and active digital input, with bi-directional optocoupler isolation. The relay supports digital input linkage controlOnboard isolated RS485 interface, for connecting to various RS485 Modbus industrial modules or sensorsOnboard pin header, allowing access to other devicesOnboard USB Type-C port for power supply, firmware downloading and debuggingOnboard power supply screw terminal, supports 7~36V wide voltage input, suitable for industrial applicationsOnboard RTC chip, supports scheduled tasksOnboard W5500 Ethernet chip for extending 10/100Mbps network port through SPI interfaceOnboard optocoupler isolation to prevent interference from external high-voltage circuit connected to the relayOnboard digital isolation to prevent interference from external signalOnboard unibody power supply isolation, providing stable isolated voltage, no extra power supply required for the isolated terminalOnboard TF card slot for external TF card storage of images and filesBuilt-in buzzer, RGB LED, power supply and RS485 TX/RX indicators for monitoring the operating status of the devicesRail-mounted ABS case, easy to install, safe to usePackage ContentESP32-S3-ETH-8DI-8RO 12.4G 4DB
SMA antenna 1Screwdriver 1Note: Online Dev Resources and Tutorials to help you easily get started. Please feel free to contact us with any questions.
