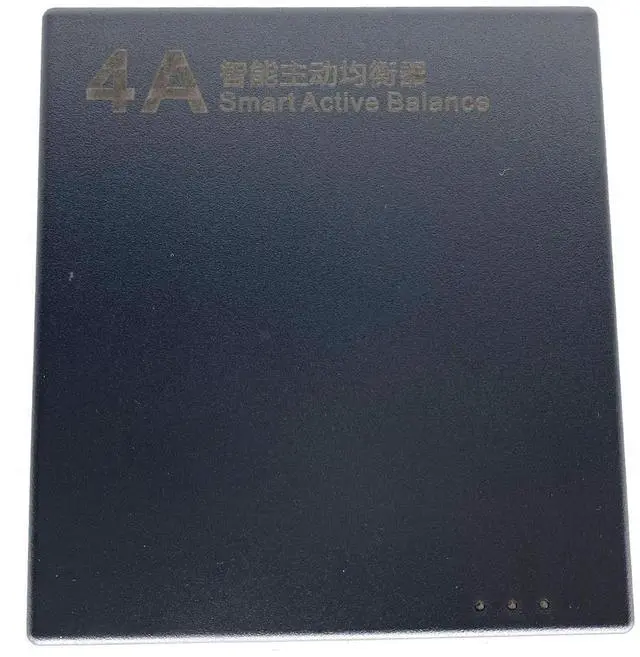

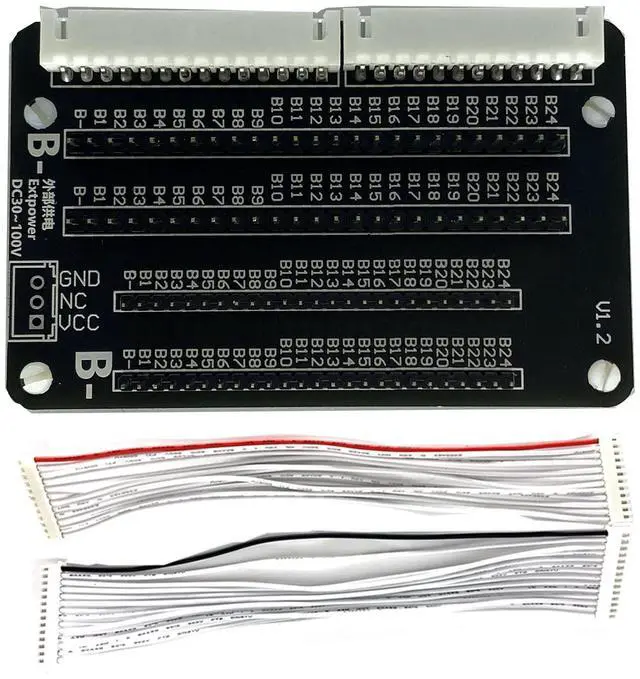

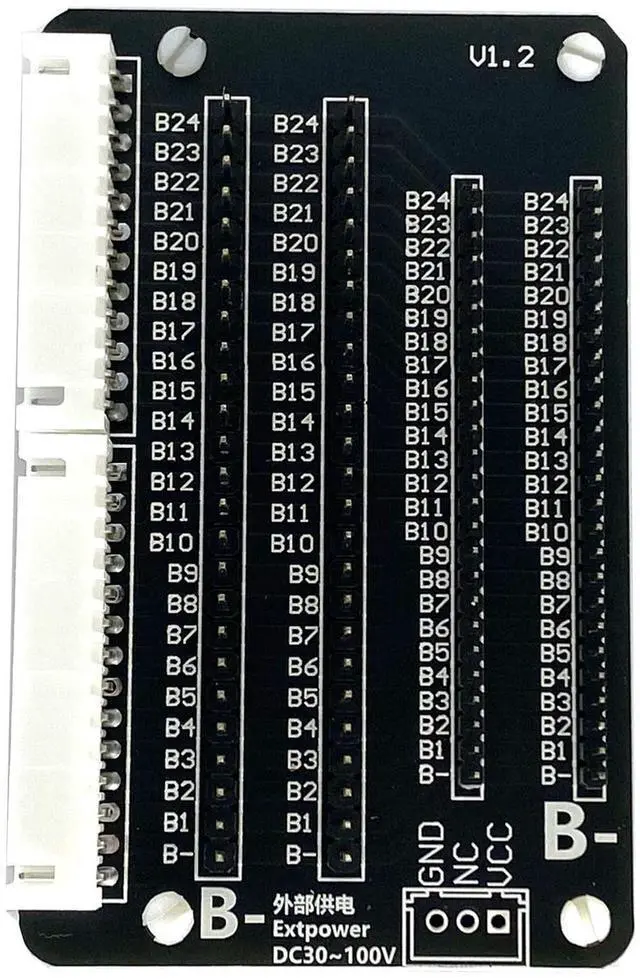

4A Active Equalizer 1mv Precision 8S 10S 14S 16S 20S 22S 24S 24V 48V Li-on Lifepo4 LTO Lithium Battery Capacitor Balancer with Docking Adapter

Product Information: Before connecting the equalization board, check whether each piece of wiring is correct, insulation between the bottom board and the battery connection terminals is required to prevent burnout. With Bluetooth mobile phone English APP function, you can contact us about app use and usage instructions.
Model:
8S-24SSuitable: Lithium Iron Phosphate, Lithium Titanate, NCM Ternary Polymer (NCM/LFP/LTO)Voltage is 1.0 V- 4.5VM aximum balance current 4A, APP custom
Settings: 1-4AThe minimum total voltage of the battery pack: >30Vthe
undervoltage hibernation voltage: 1.5 - 4.2V the static working current is the balance of 10mA, the balance of 25mthe working environment temperature: -20 degrees to +55 degreesCywhrvzsf capacitive energy transfer balance board, capacitor high precision 1mv, point-to-point energy transfer balance, patent balanced structure flying capacitor method, combining point-to-point energy transfer algorithm to achieve efficient balance, due to the use of constant current constant voltage technology, balance current and battery voltage difference has nothing to do. there is no need for external power supply, the whole battery is balanced by internal energy transfer. equalizing capacitor can also be used in the 3S 4S 5S 6S, but requires the addition of an additional booster power supply.

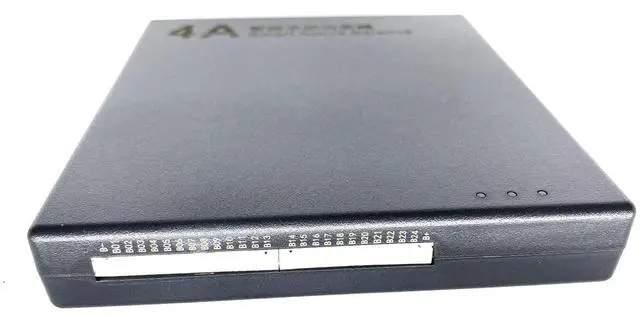

3 Indicator Light: Blue Bluetooth status indicator
Steady on: The Bluetooth connection is successful.
Blinking: the Bluetooth link is down. Red Fault status indicator Steady on, it indicates an internal fault. The battery flicker test failed. Procedure Green The working status indicator is steady on, indicating that the balance is complete. Flash and balance are working.

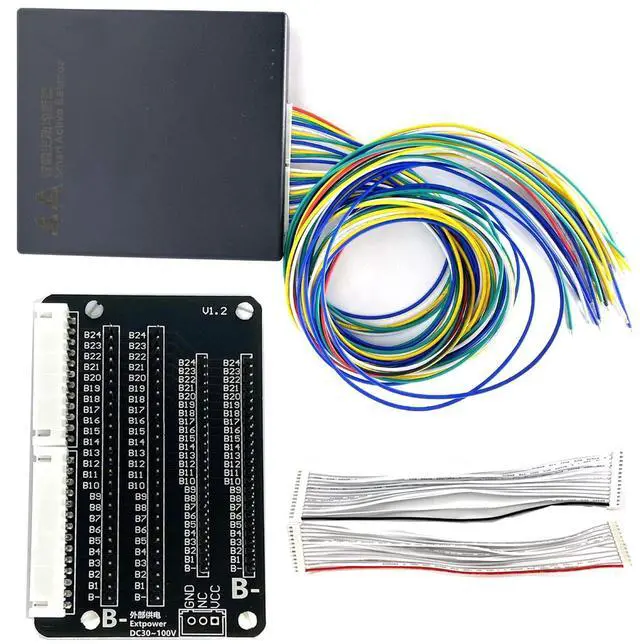

Package Included: 1*10-24S Active Equalizer1*14pin 18awg Cable1*12pin 18awg Cable
