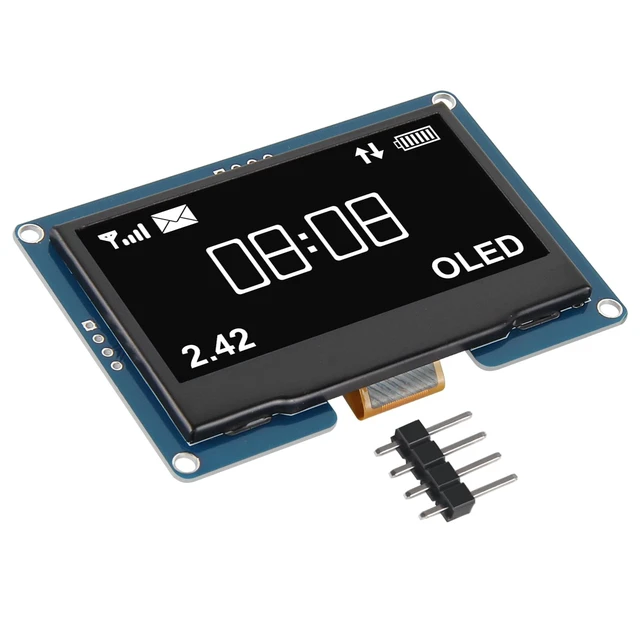

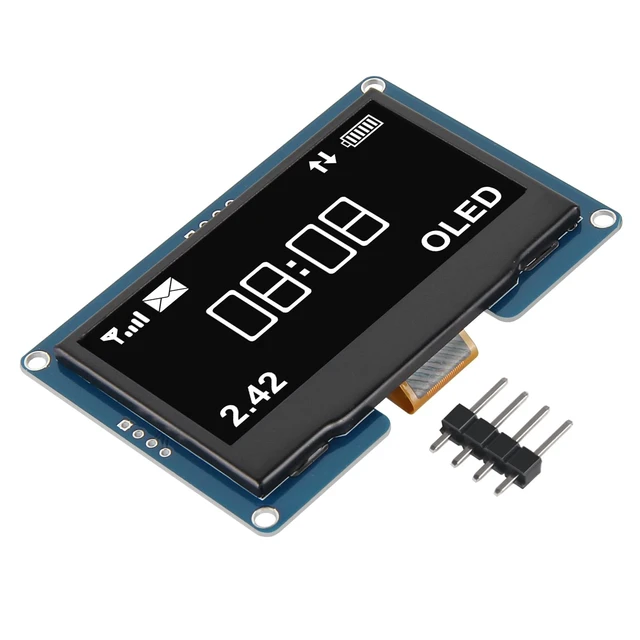

AITRIP 2PCS 2.4" 2.42 inch 128x64 OLED LCD Display Module SSD1309 12864 4 Pin IIC I2C Serial Interface for Arduino UNO R3 C51-White Light
- 2.42" SSD1309 128x64 OLED Display Module , Widely Application: These OLED display can be used for Arduino, Raspberry Pi 5/4B/3B+/3B/2B/Zero, STM32, C51, ESP32 development board and so on
- Low Power Consumption: Working voltage 3.3V/5V, compatible with 3.3V and 5V logic levels, no level conversion chip required, working current is only 52mA, power consumption is 0.26W, enhance system reliability and performance
- Adopts 4-wire SPI and I2C interfaces, better compatibility, fast data rate
- Active display area: 55.01(W) x 27.49(H)(mm); Driver IC: SSD1309; Display interface: IIC; Pixel size: 0.43(H) x 0.43(V)(mm); Backlight brightness (typical): 110(cd/m2); Operating temperature -40~70()

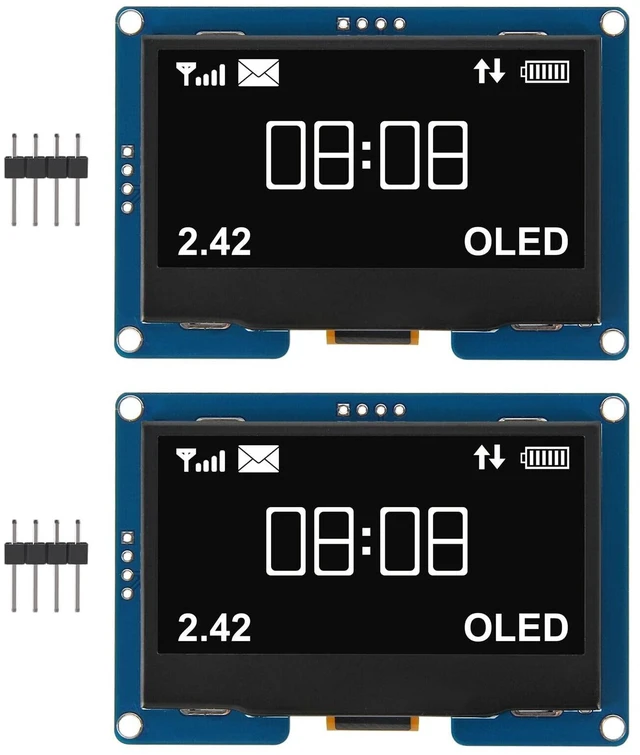

- Package:2.42" SSD1309 128x64 OLED Display Module 2.42 Inch OLED LCD Display Module IIC I2C 4 Pin -White Light
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
2.42" SSD1309 128x64
OLED Display ModuleFeatures: Dot
Matrix: 128x64Driver
IC:
SSD1309Interface: IIC
Voltage: 3V-5VI2C
Communication Interface: 1.

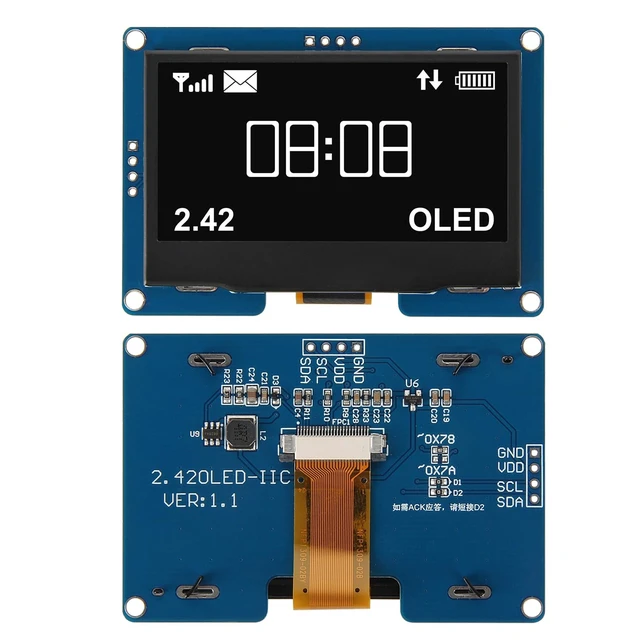

GND: Ground2. VDD 3.3V /5V Power Supply3. SCL I2C Serial Clock4. SDA I2C Serial DataPackage 2PCS 2.4" 2.42 Inch 128x64 OLED LCD Display Module SSD1309 12864 4 Pin IIC I2C Serial Interface module
OLED Display ModuleFeatures: Dot
Matrix: 128x64Driver
IC:
SSD1309Interface: IIC
Voltage: 3V-5VI2C
Communication Interface: 1.
GND: Ground2. VDD 3.3V /5V Power Supply3. SCL I2C Serial Clock4. SDA I2C Serial DataPackage 2PCS 2.4" 2.42 Inch 128x64 OLED LCD Display Module SSD1309 12864 4 Pin IIC I2C Serial Interface module
