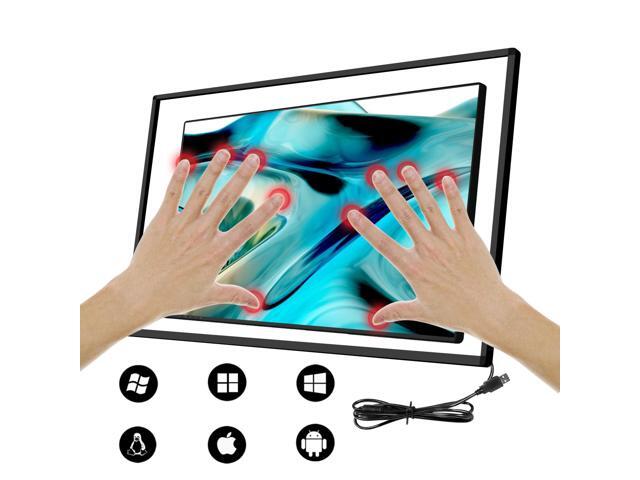

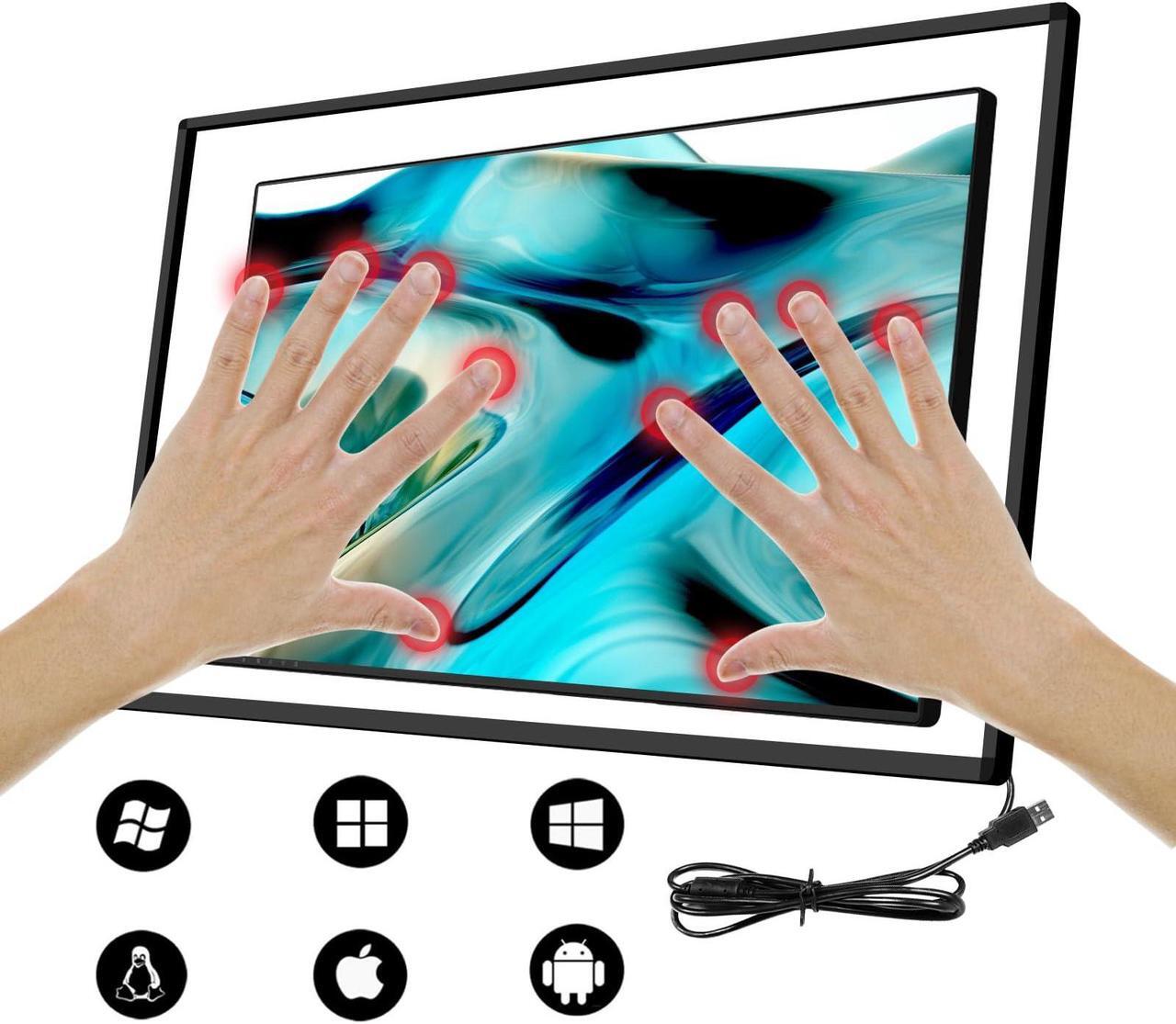

SpecialTouch 65 Inch Infrared Touch Screen Frame 20 Points Interactive Ir Touch Panel Overlay Suitable for Touch Monitor TV Frame, Touch Whiteboard
- [(HIGH-QUALITY MATERIAL)] : The frame of the interactive infrared touch screen adopts aluminum alloy black frame, which has a long service life. USB plug and play, intelligent automatic calibration, drive-free and maintenance-free. Draw smooth&accurate curves, no blind area, breakpoints, jump points, pause and other undesirable phenomena.Fast response (<=10ms)

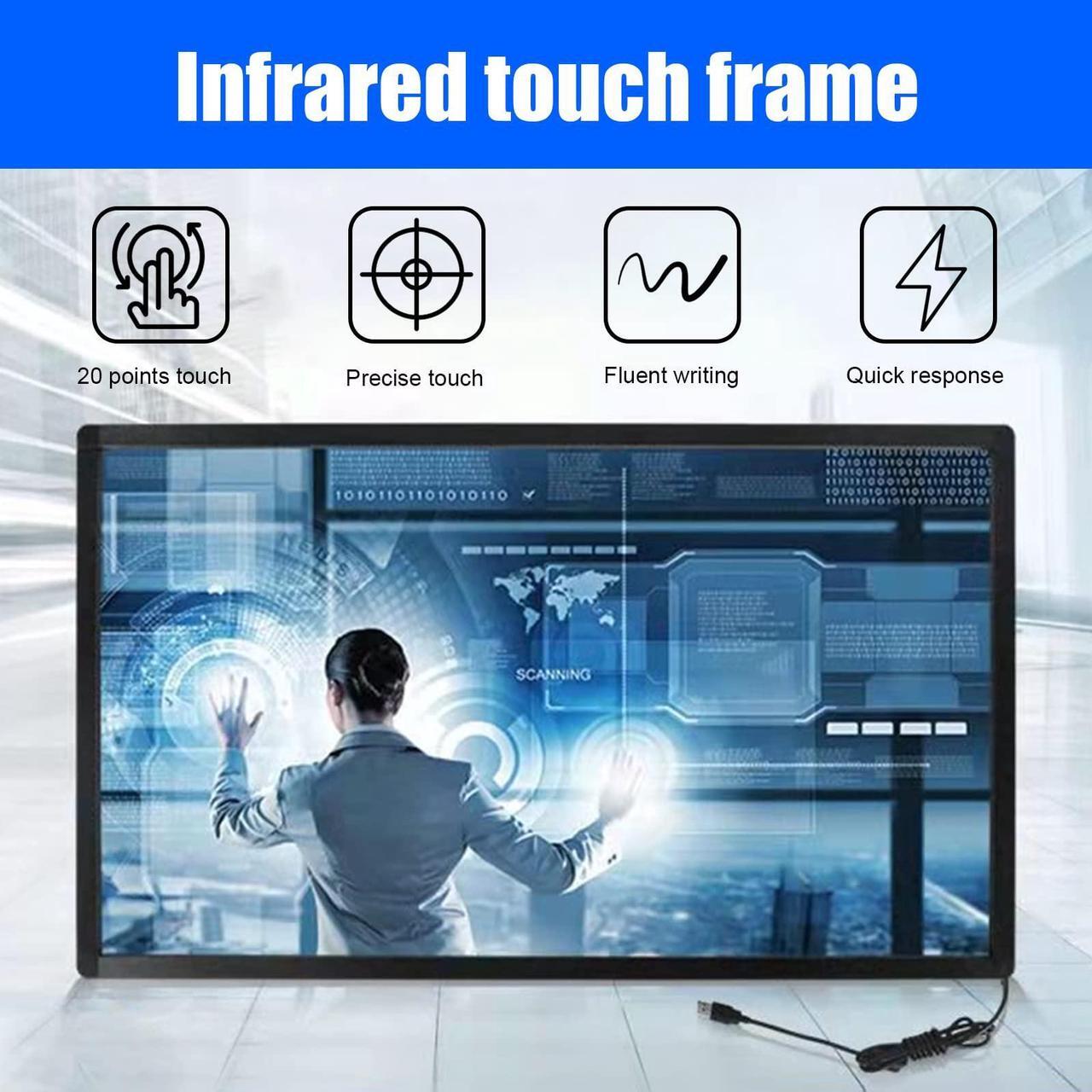

- [( LIGHT-RESISTANT DESIGN)] : The IR touch frame can be applied to internal and external link environments, and is widely used in touch screen displays, touch all-in-one machines, touch kiosks, touch digital signage, and touch whiteboards. Application areas include games, education, conferences, exhibitions, advertising and other interactive applications.

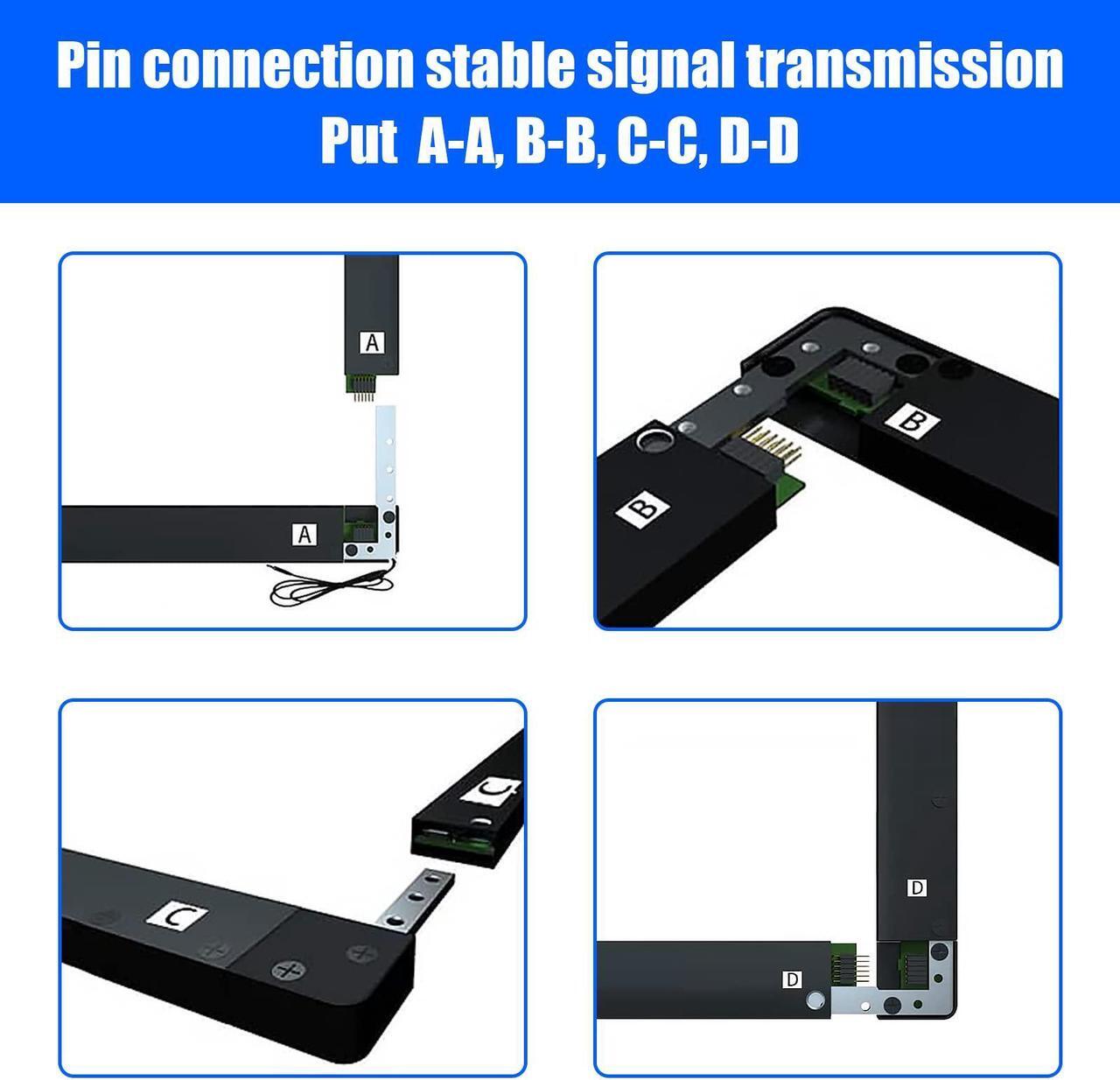

- [( EASY TO INSTALL)] : Our ir touch screen overlay is a plug-in design, the installation work is very simple and easy. You can read the installation pictures and you will do well.If the touch positioning is not accurate after installation, we can provide the calibrati
+
+
Overview
Specs
Reviews
SPECIFICATION
Standard Size: 65 inch
Ratio: 16:9
Number of Touch Points: 20
Minimum Touch Object: 2mm
Touch Activation Force: No minimum touch pressure required
Touch Durability: Unlimited

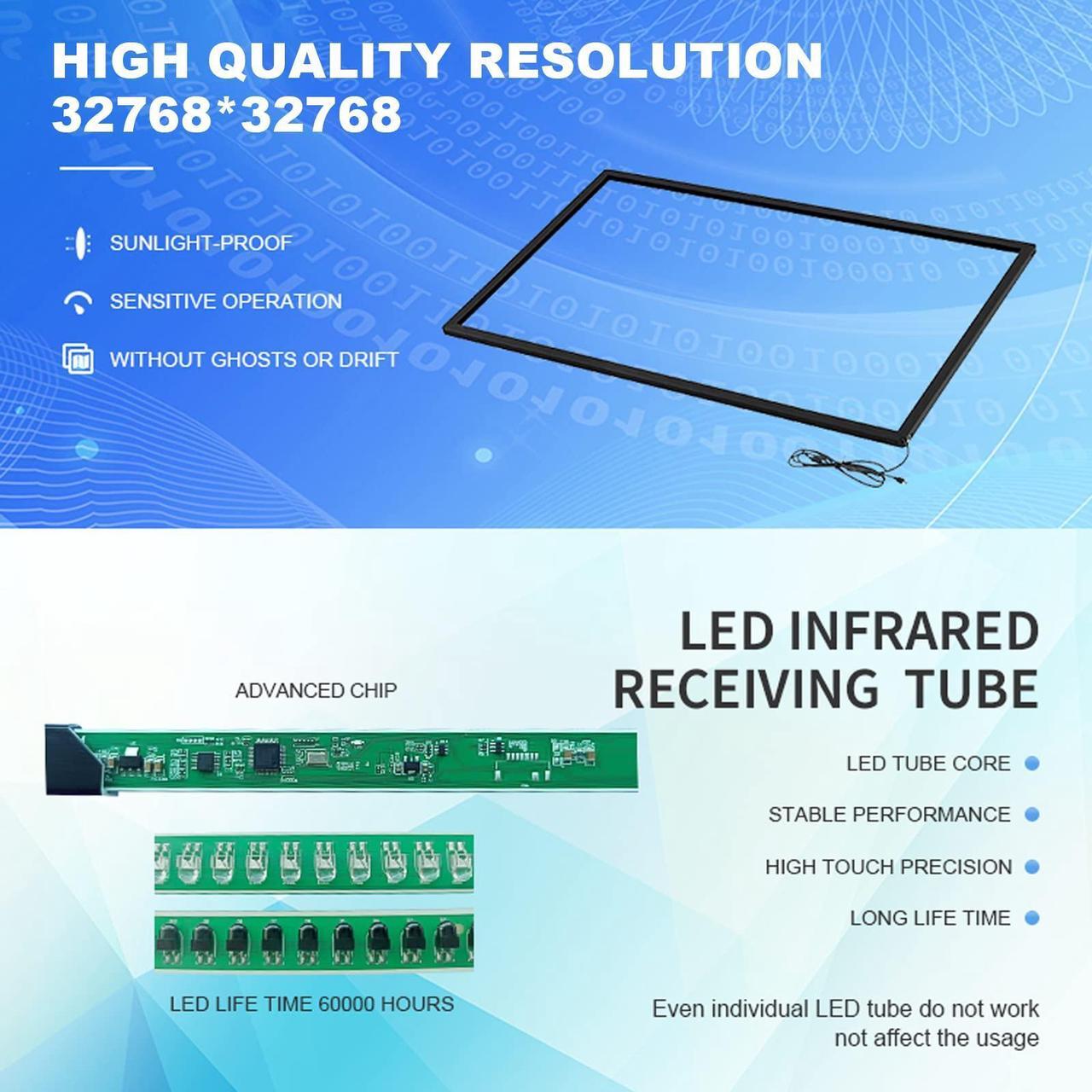

Durability Resolution: 32768*32768
Linearity Deviation: +-1mm
Frames per Second: Up to 450 fps
Typical Response Time: 3-10ms
Light Transmission: 100% without glass
Operating Systems: Driver free for Windows7, Windows8, Windows10, Native Linux, Native Android (Compatible with GreenTouch Android Box). Single point under Mac
(Does not support Smart TV Android system, Raspberry Pi)
Protocols: HID, TUIO, Flash
Re-development Provide: free SDK, support C/C++, C#, Java etc.
Noise: No Noises
Lift Time: 7 -10 years
ELECTRICAL

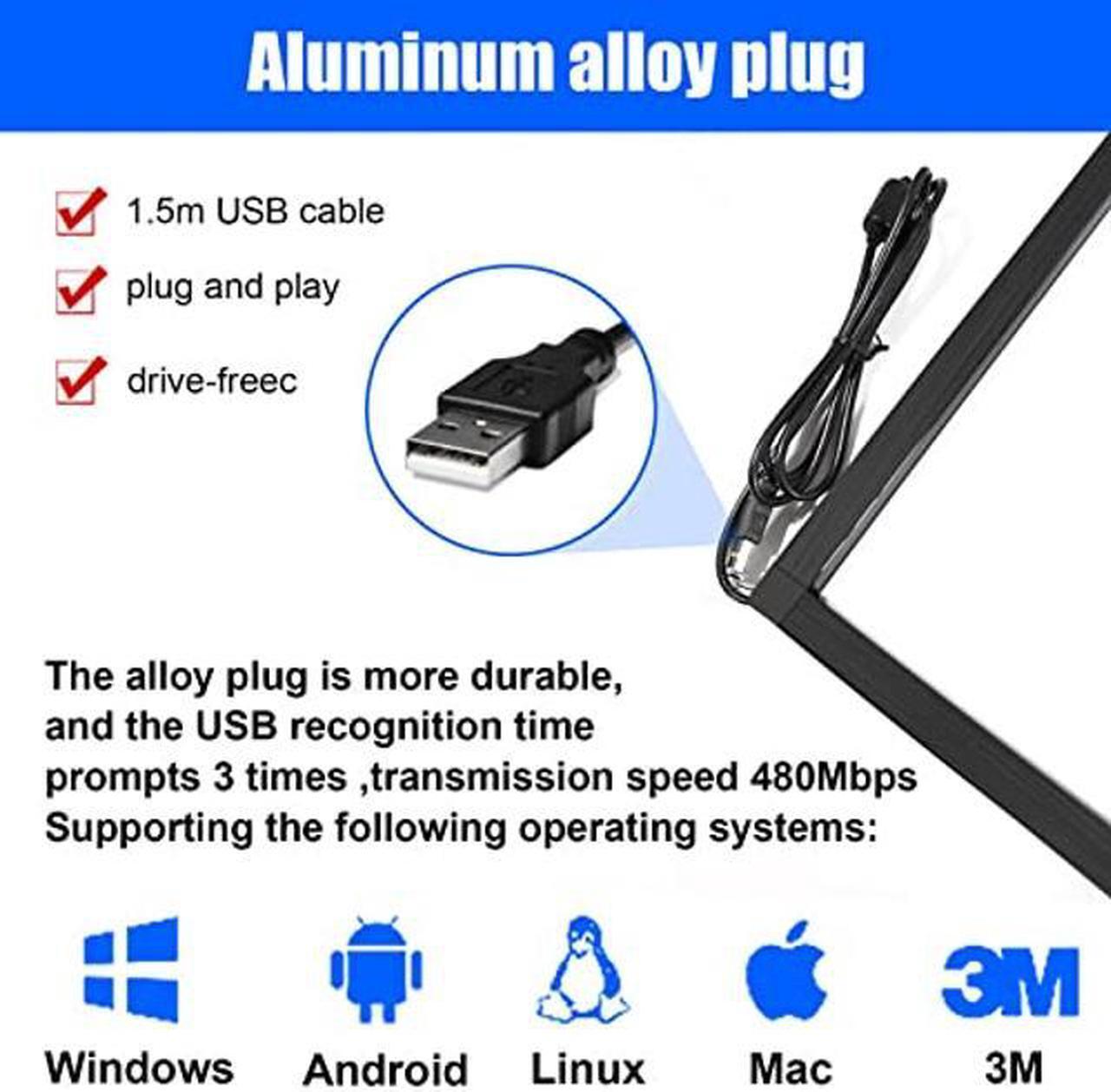

Power Supply: Single USB Connection
Low Power Consumption: Operating <=2W, Stand By <= 250mW
ESD: Contact Discharge 8kV, Air Discharge 15kV, 15kV on USB connector pins
ENVIRONMENT
Operating Temperature: -20degC~70degC
Storage Temperature: -40degC~85degC
Operating Humidity: 10%~90%RH(Non-condensing)
Storage Humidity: 10%~90%RH
Certification: FCC, CE, RoHS
Warranty: 1 year
Note: If there is any other question, please feel free to contact us!
Standard Size: 65 inch
Ratio: 16:9
Number of Touch Points: 20
Minimum Touch Object: 2mm
Touch Activation Force: No minimum touch pressure required
Touch Durability: Unlimited
Durability Resolution: 32768*32768
Linearity Deviation: +-1mm
Frames per Second: Up to 450 fps
Typical Response Time: 3-10ms
Light Transmission: 100% without glass
Operating Systems: Driver free for Windows7, Windows8, Windows10, Native Linux, Native Android (Compatible with GreenTouch Android Box). Single point under Mac
(Does not support Smart TV Android system, Raspberry Pi)
Protocols: HID, TUIO, Flash
Re-development Provide: free SDK, support C/C++, C#, Java etc.
Noise: No Noises
Lift Time: 7 -10 years
ELECTRICAL
Power Supply: Single USB Connection
Low Power Consumption: Operating <=2W, Stand By <= 250mW
ESD: Contact Discharge 8kV, Air Discharge 15kV, 15kV on USB connector pins
ENVIRONMENT
Operating Temperature: -20degC~70degC
Storage Temperature: -40degC~85degC
Operating Humidity: 10%~90%RH(Non-condensing)
Storage Humidity: 10%~90%RH
Certification: FCC, CE, RoHS
Warranty: 1 year
Note: If there is any other question, please feel free to contact us!
