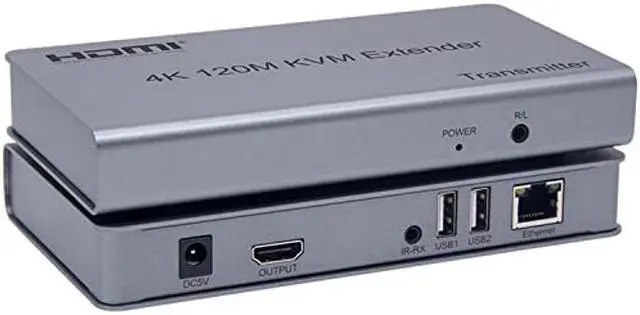

Swallow 4K 120M HDMI KVM Extender by RJ45 Ethernet Cat5e Cat6 Cable Converter TX RX Support USB Mouse Keyboard Extension Touch Screen

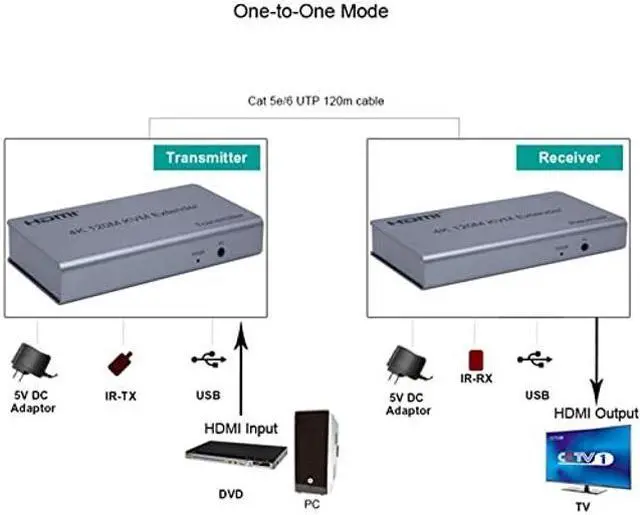

- 1. Use a CAT5e or CAT6 cable (recommended) instead of the HDMI cable to extend the HDMI2.0 4K @ 60Hz signal for 60 meters.

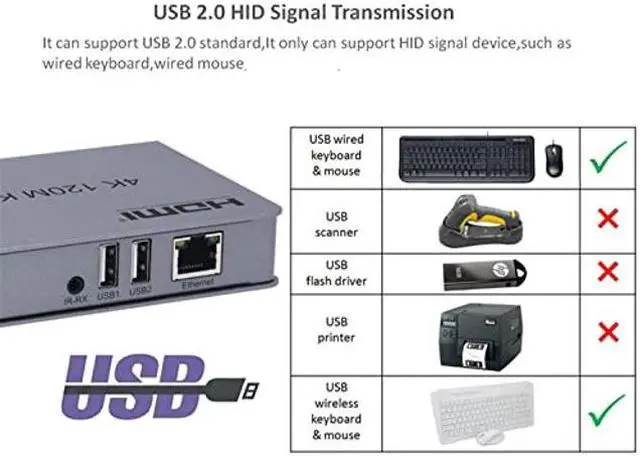

- 2. Support keyboard / mouse / USB2.0 extendin.
- 3. The transmitter supports an HDMI loop-out to monitor the signal source more conveniently. Both the transmitting and receiving ends support 3.5MM left and right channel audio output.
- 4. It supports infrared remote extension and remote control, which can remotely control the source equipment on the display side, which is easy to install and plug and play.

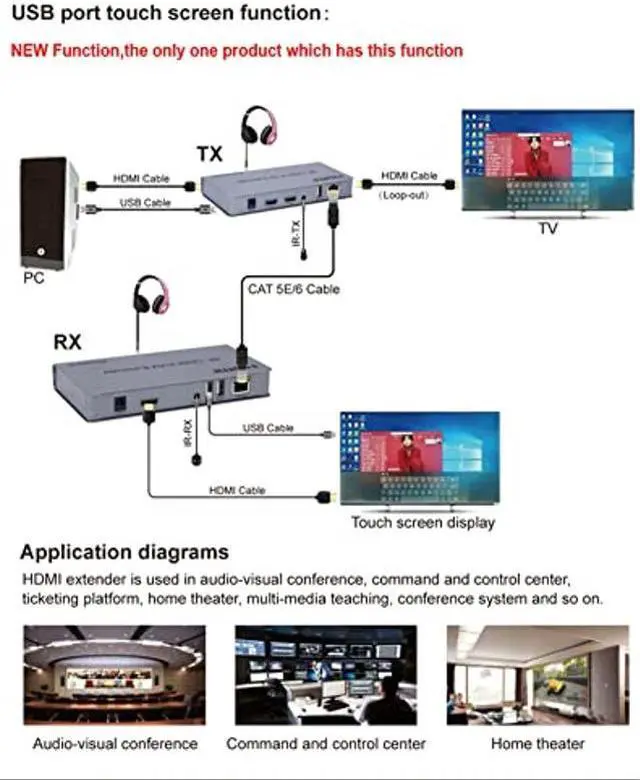

- 5. It is widely used in video conference, monitoring center, multimedia teaching, home theater, etc. It can efficiently and quickly transmit video to meet the needs of your various occasions.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Description
Features
* Support HDMI 1.4 /HDCP 1.4;
* Support local loop-out;
* Support 120m long distance transmission.
* Low power consumption, low temperature and high safety;
* Both the TX and RX support 3.5MM left and right audio output;
* Support IR control;
* Support USB mouse and keyboard extension;

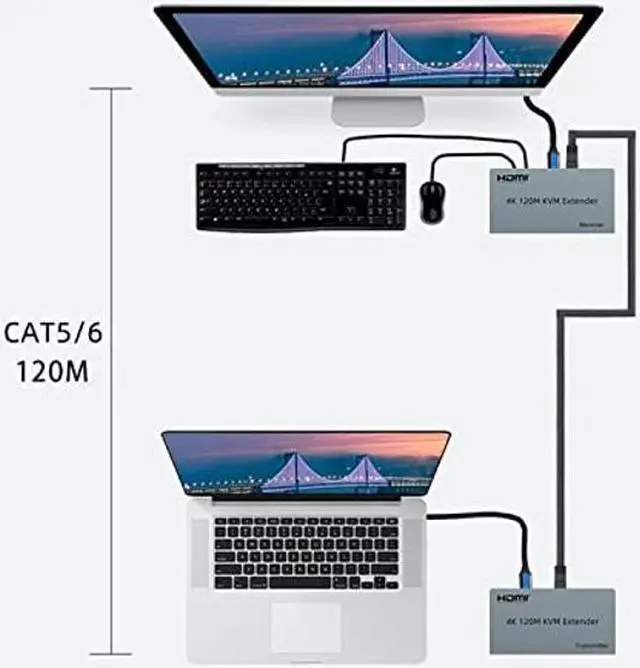

Length of CAT5e/CAT6 cable between Rx and TX: 120 meters
HDMI Input: 4k/1080p/720p/576p/576i/480p/480i
HDMI Output: 4k/1080p/720p/576p/576i/480p/480i
Max bandwidth: 340MHz
Max baud rate: 3x 3.4G bps
Input video signal: 0.5 ~ 1.5V olts p-p
Output DDC signal: 5Volts p-p (TTL)
Input HDMI cable distance: <=10m AWG26 HDMI standard cable
Output HDMI cable distance: <=10m AWG26 HDMI standard cable
TX Max working current: 350mA
RX Max working current: 200mA
Power adapter format: Input: AC (50HZ, 60HZ) 100V-240V;
Output: DC5V/1A
Operating Temperature range: (-15 to +55)
Operating Humidity range: 5 to 90%RH (No Condensation)
Dimension (L x W x H): 107x105x 27.3 (mm)
TX Weight: 499g RX Weight: 494g
The Package includes:
1. TX Extender 1pcs
2. RX Extender 1pcs
3. IR cable 1pair
4. 12V/2A DC Power adapter 2pcs
5. User Manual 1pcs
Features
* Support HDMI 1.4 /HDCP 1.4;
* Support local loop-out;
* Support 120m long distance transmission.
* Low power consumption, low temperature and high safety;
* Both the TX and RX support 3.5MM left and right audio output;
* Support IR control;
* Support USB mouse and keyboard extension;
Specifications
:Length of CAT5e/CAT6 cable between Rx and TX: 120 meters
HDMI Input: 4k/1080p/720p/576p/576i/480p/480i
HDMI Output: 4k/1080p/720p/576p/576i/480p/480i
Max bandwidth: 340MHz
Max baud rate: 3x 3.4G bps
Input video signal: 0.5 ~ 1.5V olts p-p
Output DDC signal: 5Volts p-p (TTL)
Input HDMI cable distance: <=10m AWG26 HDMI standard cable
Output HDMI cable distance: <=10m AWG26 HDMI standard cable
TX Max working current: 350mA
RX Max working current: 200mA
Power adapter format: Input: AC (50HZ, 60HZ) 100V-240V;
Output: DC5V/1A
Operating Temperature range: (-15 to +55)
Operating Humidity range: 5 to 90%RH (No Condensation)
Dimension (L x W x H): 107x105x 27.3 (mm)
TX Weight: 499g RX Weight: 494g
The Package includes:
1. TX Extender 1pcs
2. RX Extender 1pcs
3. IR cable 1pair
4. 12V/2A DC Power adapter 2pcs
5. User Manual 1pcs
