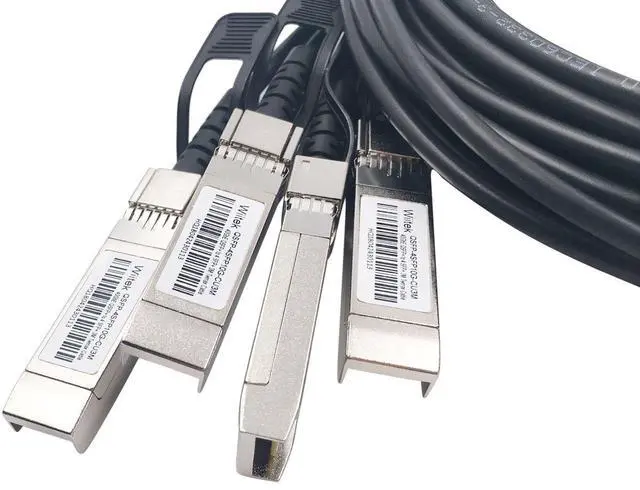

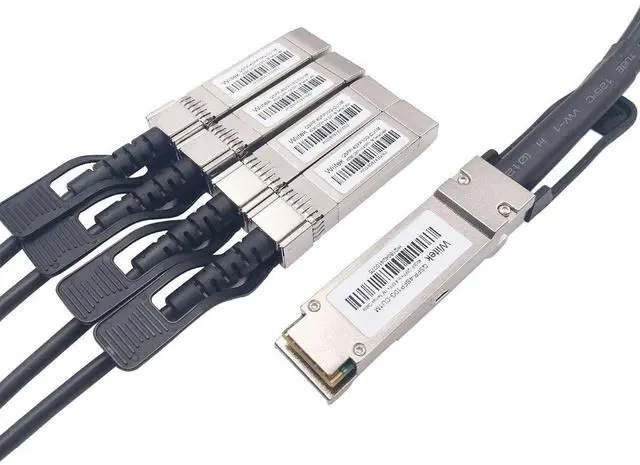

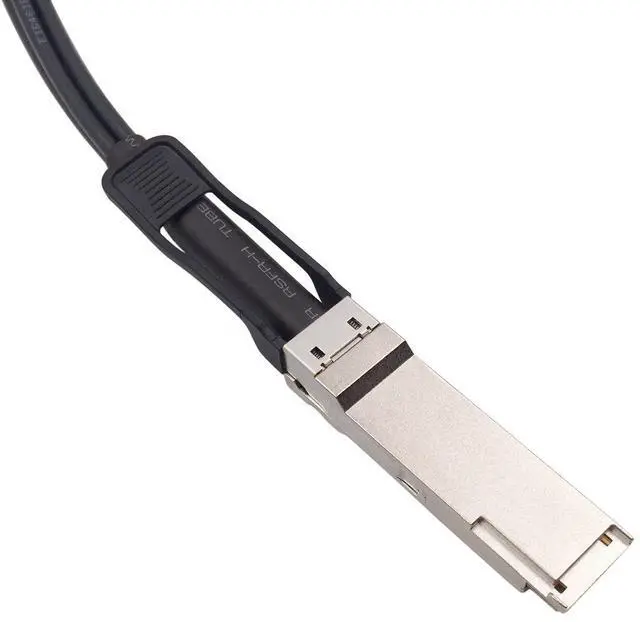

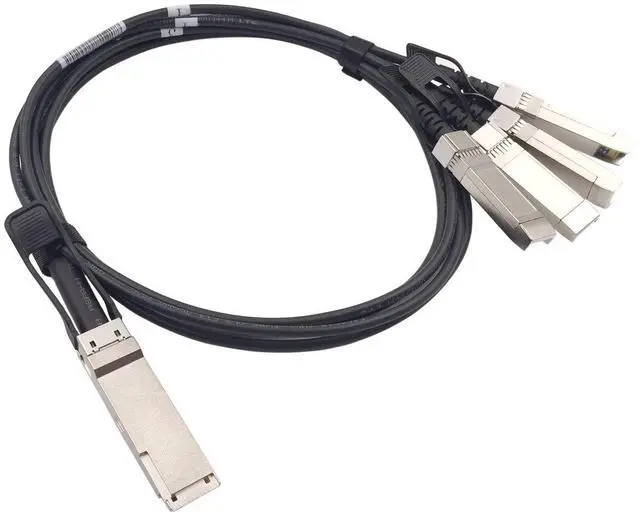

Wiitek 3 Meters QSFP+ to 4 SFP+ DAC Breakout Cable, QSFP-4SFP10G-CU3M, 40G QSFP+ Direct Attach Copper Cable, 30AWG Black, for Cisco, Ubiquiti, D-Link, Juniper, Huawei, Mellanox, Mikrotik, Extreme

Introduction

The QSFP+ to 4x SFP+ Passive cable assemblies are high performancecost effective for SFP+ and QSFP+ equipment interconnects. The Hybrid cables are compliant
with SFF-8436 and SFF-8431 specifications. It is offer a low power consumptionshort reach interconnect applications. The cable each lane is capable of transmitting
data at rates up to 10Gb/s, providing an aggregated rate of 40Gb/s.

Features

Hybrid cable conforms to the Small Form Factor SFF-8436 and SFF-8431
Support for multi-gigabit data rates: 1.0 Gbps - 10.3125 Gbps (per channel)
Maximum aggregate data rate: 41.25 Gbps (4 x 10.3125G bit/s)
Hybrid cable link length up to 5m (passive limiting)
High-Density QSFP 38-PIN and 4x SFP 20-PIN Connector
Power Supply: + 3.3V
Low power consumption: 0.02 W (typ. )
Temperature Range: 0~ 70 °C

Applications

40G QSFP+ to 4×10SFP+
10G/40Gigabit Ethernet
InfiniBand SDR, DDR, QDR
Switches, Routers, and HBAs
Data Centers
Fiber Channel

STANDARDS COMPLIANCE

QSFP+

SFF-8436
QDR InfiniBand
QSFP+ MSA
RoHS Compliant

SFP+

SFF-8431
SFP+ MSA
RoHS Compatible

Product NameWiitek for Cisco Compatible 40GbE QSFP+ to 4 SFP+ Twinax Cable, QSFP-4SFP10G-CU3M Direct Attach Copper Cable, Pull-to-Release Latch 30AWG 3M, Black
Cisco P/NQSFP-4SFP10G-CU3M
Wire AWG30AWG
Cable Length3m (10ft)
Connector TypeQSFP+ to 4SFP+
Max Data Rate40Gbps
Protocols40G InfiniBand 8x DDR, 4x QDR, 10G/40Gigabit Ethernet, Fibre Channel
ColorBlack
