SignalPlus Outdoor WiFi Omni Directional Antenna, Dual Band 2.4GHz 5GHz 12dBi High Gain Long Range WiFi Antenna for Wireless Access Point/Wi-Fi Camera/Wireless Router, RP-SMA,SMA male
- Outdoor WiFi antenna Supports All Wireless Standards, Supports Dual Band 2.4GHz 5GHz 5.8GHz.
- Higher the gains, Great Distance: This 12dBi long range WiFi antenna gain more wireless distance. In ideal conditions without obstructions, the range will be longer.
- WiFi antenna Work for wireless devices with external antenna interfaces (SMA male or RP-SMA), as wi-fi camera, wireless router, outdoor access point, PCI WiFi adapters.
- Omni directional WiFi antenna Suitable for installation on rooftops, RVs, boats - enhance your wireless network in warehouses, schools, hospitals and more.

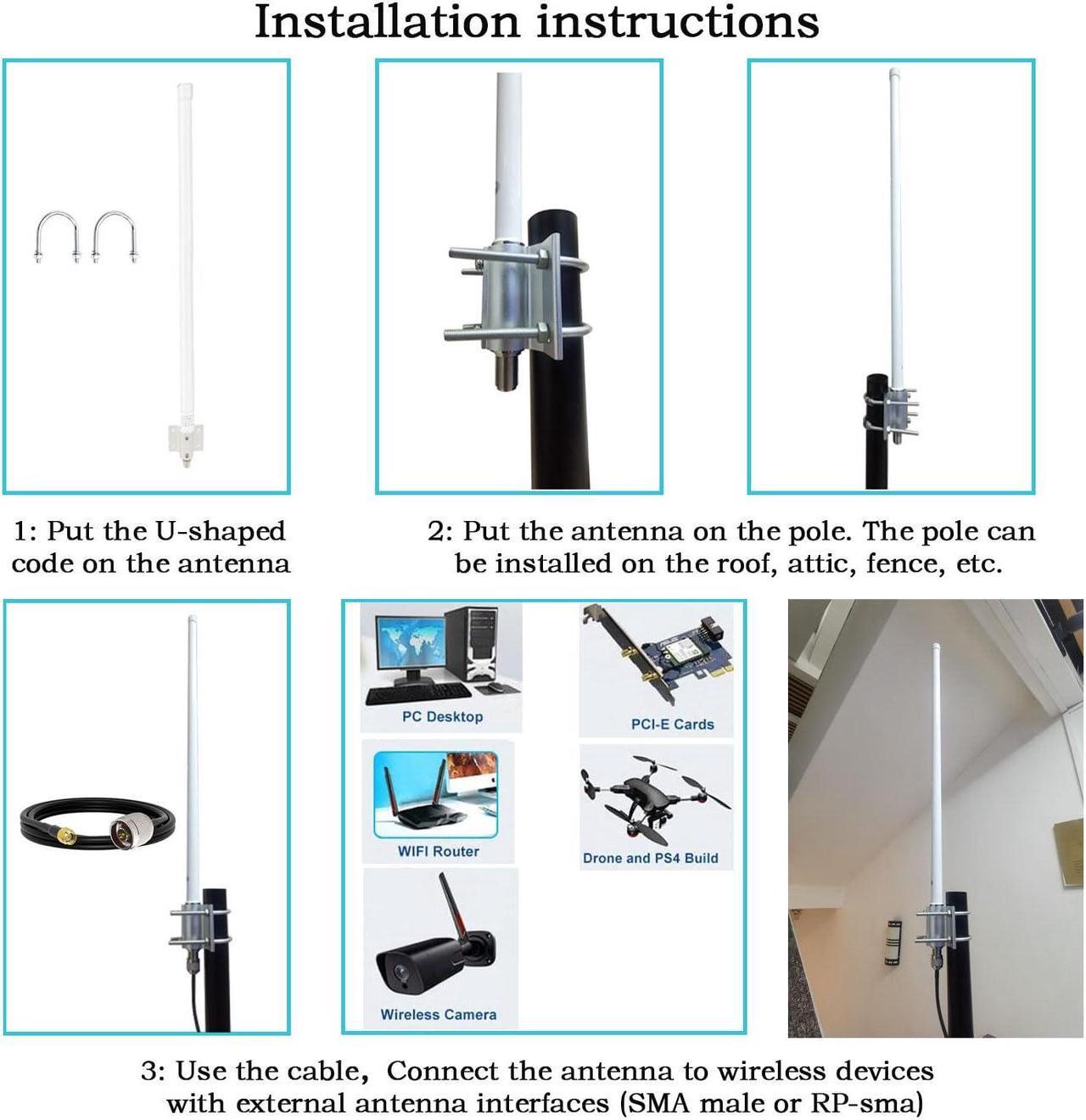

- Easy Installation: Put the U-shaped clip on the antenna, hang it on your pole, and then connect the antenna to your equipment with wires.
- The package includes 5 Meter 50 ohms RG58 cable with RP- SMA connector, one SMA male adapter.
+
+
Overview
Specs
Reviews

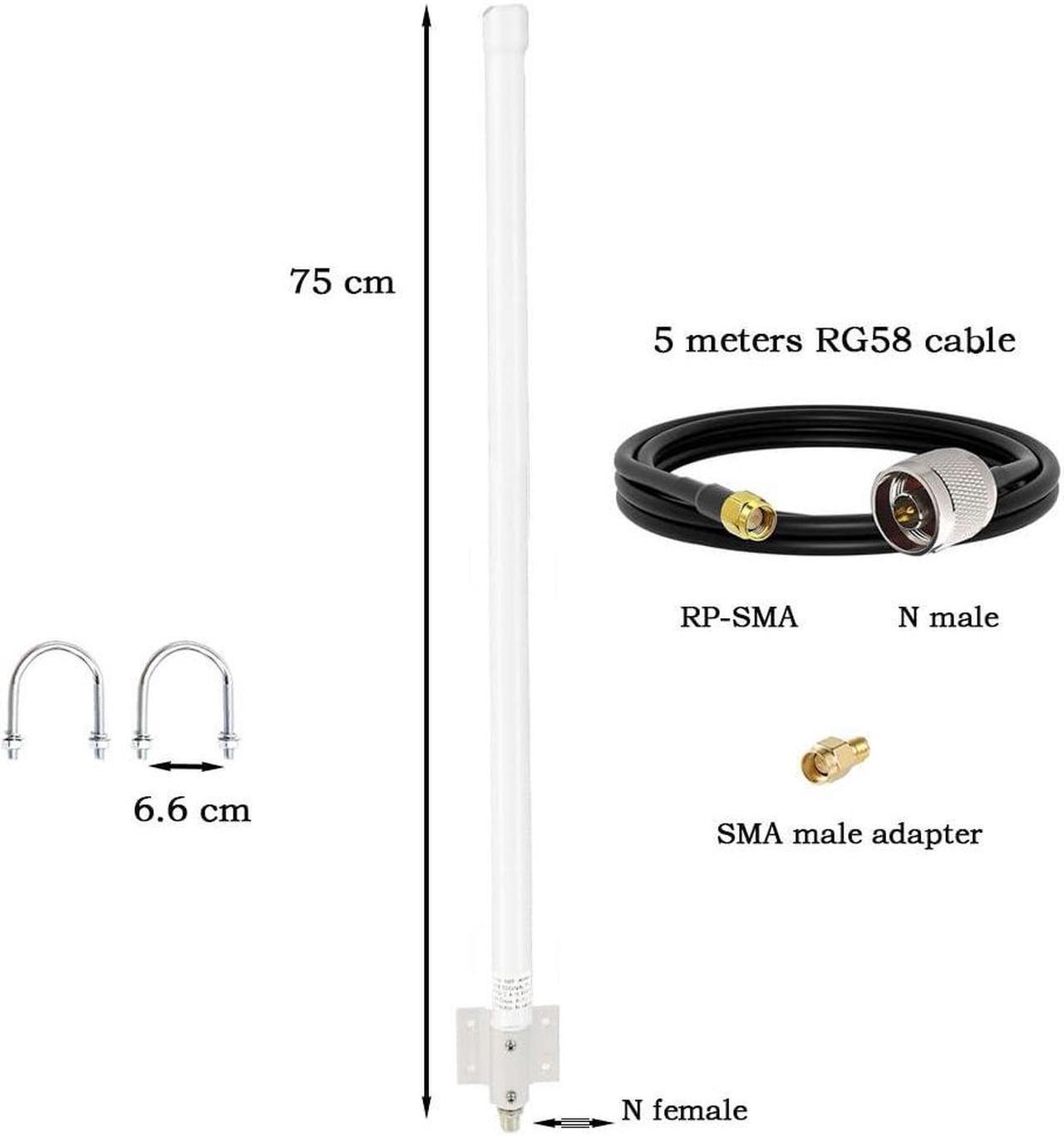

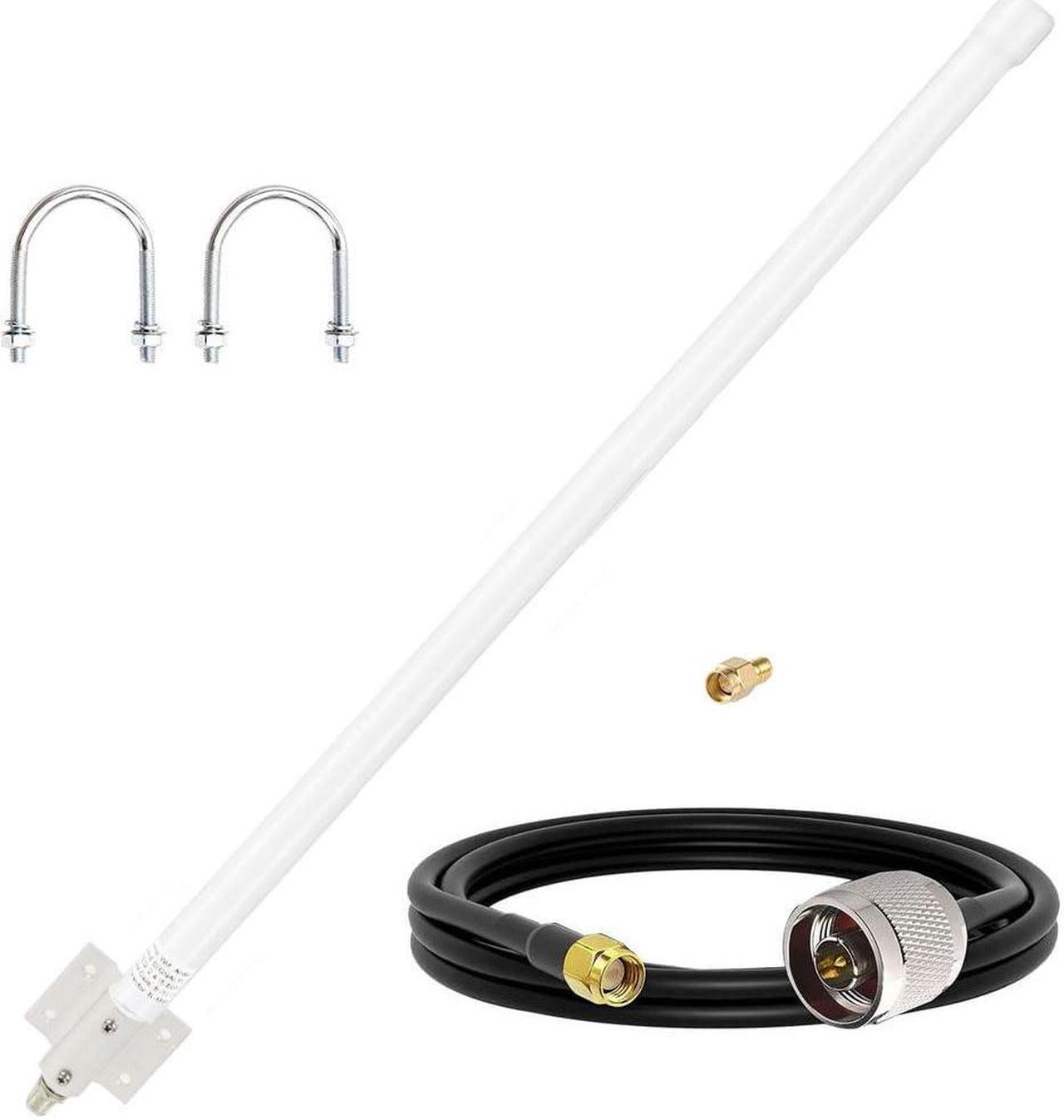

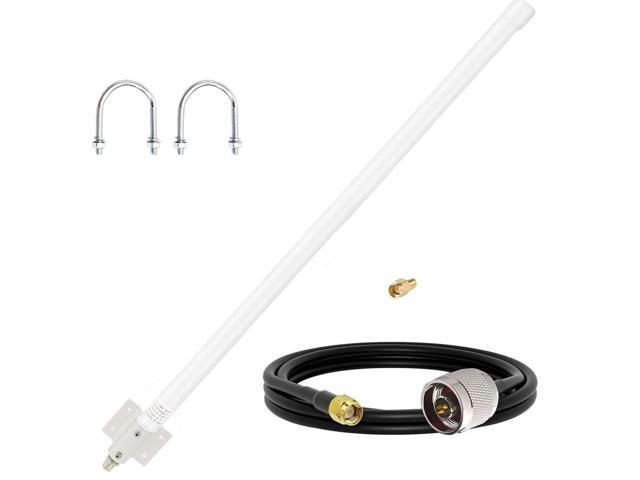

Package Listing:
one Outdoor WiFi antenna,
one set U-bracket,
one 5meters cable with RP-SMA connector,
one SMA male adapter.
Frequency: dual band 2.4GH z/ 5.8GH z ( 2400-2483 MHz/5150-5850 MHz).
Gain: 12 dBi.
Antenna Length-cm: Ph 3.2 x75.
Weight-kg: 1 kg.
Connertor: N female.
VSWR: <1.5:1.
Polarization: Vertical.
Horizontal Beamwidth: 360deg.
Vertical Beamwidth: 7deg.
Nominal Impedance: 50 Ohms.
Max Input Power: 100 W.
Mounting Method: Mast pole.
Mast Size: O40-O60mm.
Lightning Protection: DC Ground.
Radome Material: Fiberglass.
Operating temperature: -40 ~ +65 C.
one Outdoor WiFi antenna,
one set U-bracket,
one 5meters cable with RP-SMA connector,
one SMA male adapter.
Specifications
DataFrequency: dual band 2.4GH z/ 5.8GH z ( 2400-2483 MHz/5150-5850 MHz).
Gain: 12 dBi.
Antenna Length-cm: Ph 3.2 x75.
Weight-kg: 1 kg.
Connertor: N female.
VSWR: <1.5:1.
Polarization: Vertical.
Horizontal Beamwidth: 360deg.
Vertical Beamwidth: 7deg.
Nominal Impedance: 50 Ohms.
Max Input Power: 100 W.
Mounting Method: Mast pole.
Mast Size: O40-O60mm.
Lightning Protection: DC Ground.
Radome Material: Fiberglass.
Operating temperature: -40 ~ +65 C.
