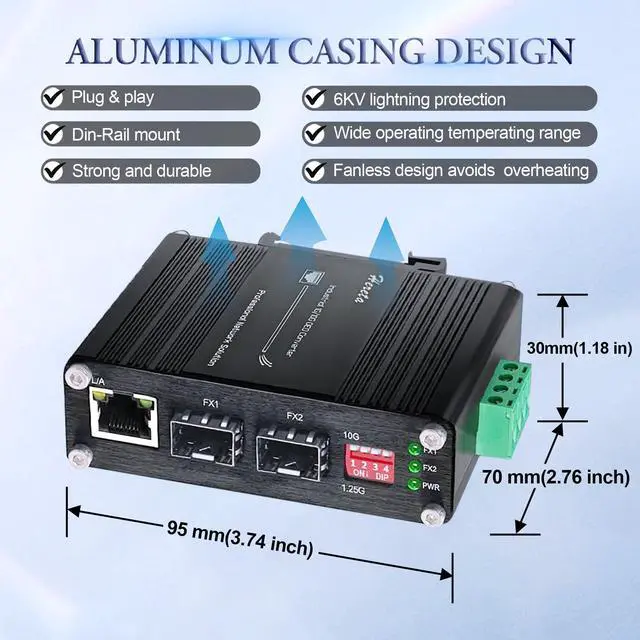

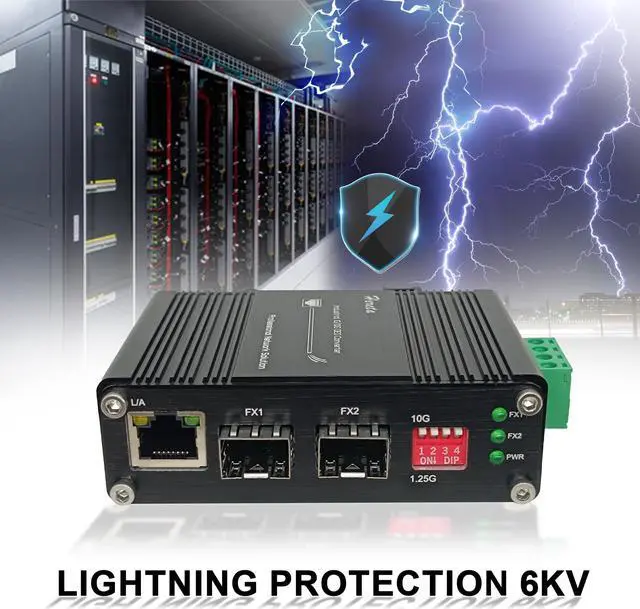

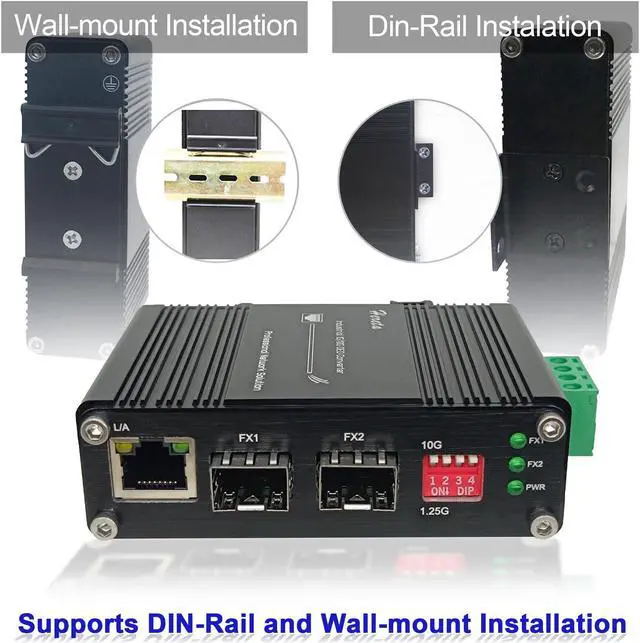

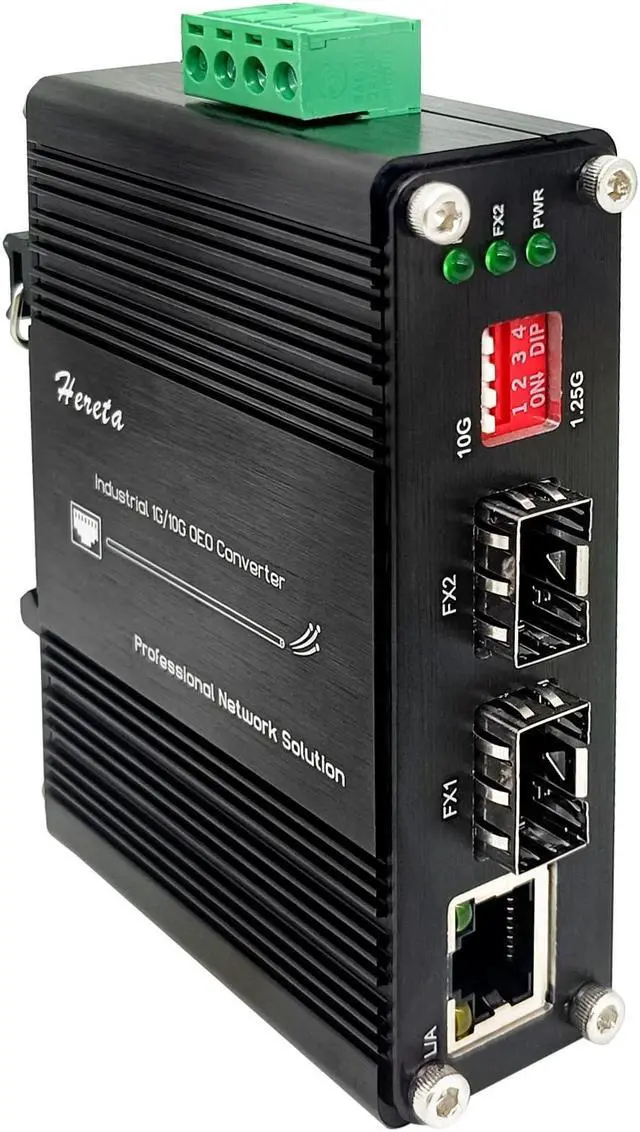

Industrial 10G SFP+ to SFP+ Ethernet Fiber Media Converter,10G OEO 3R Repeater Copper Fiber Extender up to 120km,2 x Open SFP+ + 1 x RJ45 Port,IP40,DIP Swicth,6KV Lightning Protection,12~48V DC Input

Be the first to review this product...

[(Fiber to Fiber/Copper Media Converter)] 10G OEO Fiber Media Converter is equipped with 2 x standard Open SFP+ Slots and 1 x RJ45 Port,which can use any optical transceiver module according to your needs, and also can manually switch the transmission rate from 1.25Gps to 10Gps via DIP switch buttons with hot-swap support
[(OEO 3R Extender)] 10G OEO Transparent Repeater Ethernet Fiber Optic Converter supports 3R functionality and can be used as a low-latency re-amplification/regeneration, re-shaping and re-timing device for long-distance transmission up to 120 km
[(Optical Wavelength Conversion)] 10Gps OEO Fiber Amplified Repeater supports 1310nm/1550nm/ CWDM/DWDM wavelengths and DDM function,loop-back and Jumbo Frame
[(Multiple Protocols and Scenarios)] 10G Media Converter supports SDH/SONET STM-64/OC-192, 10G fiber channel, 10G Ethernet 10G WAN (10Gbps),10G LAN (10.31Gbps), etc., which can be applied in Business/Office, Home, R&D laboratory, data center, telecommunication room

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Industrial 10G SFP+ to SFP+ Ethernet Fiber Media Converter, 10G OEO 3R Repeater Copper Fiber Extender up to 120km, 2 x Open SFP+ + 1 x RJ45 Port, IP40, DIP Swicth, 6KV Lightning Protection, 12~48V DC Input
