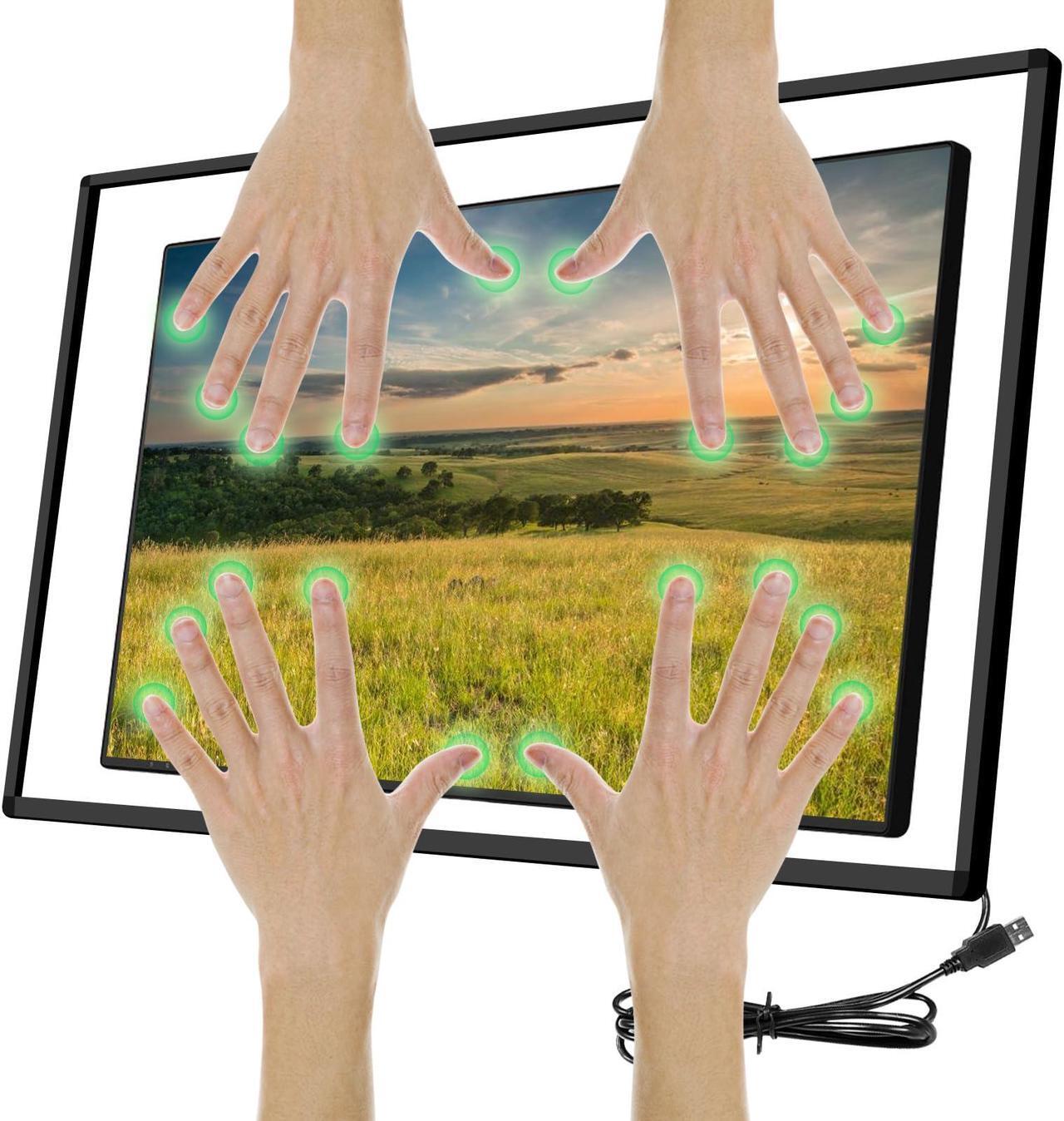

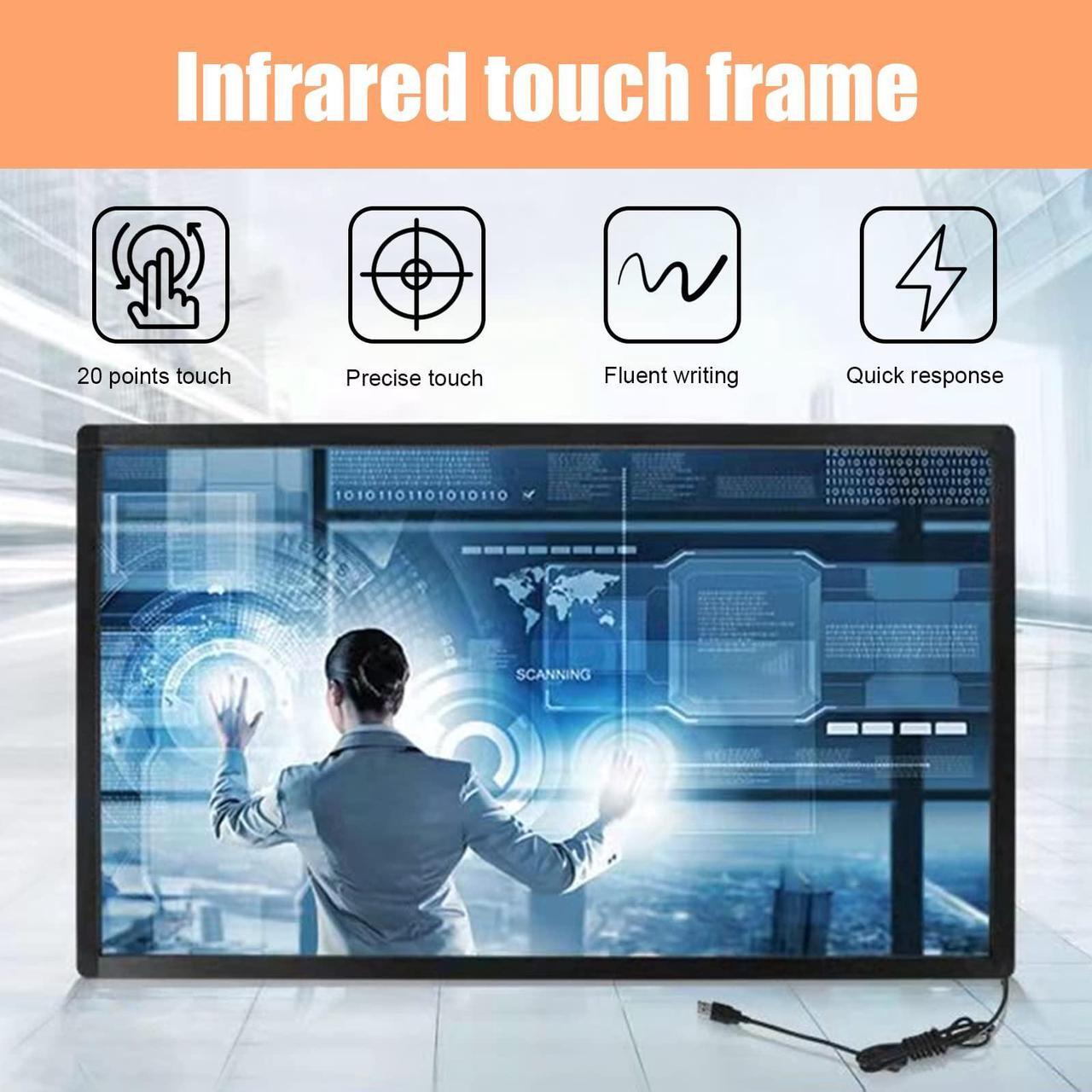

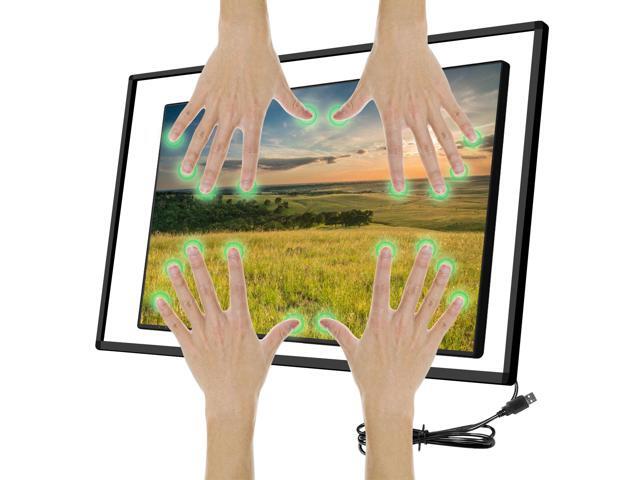

Senisway 43 Inch Interactive 20 Points Multi-Touch Infrared Touch Screen Overlay, IR Touch Screen Panel, Infrared Touch Frame USB Free Driver HID Compatible

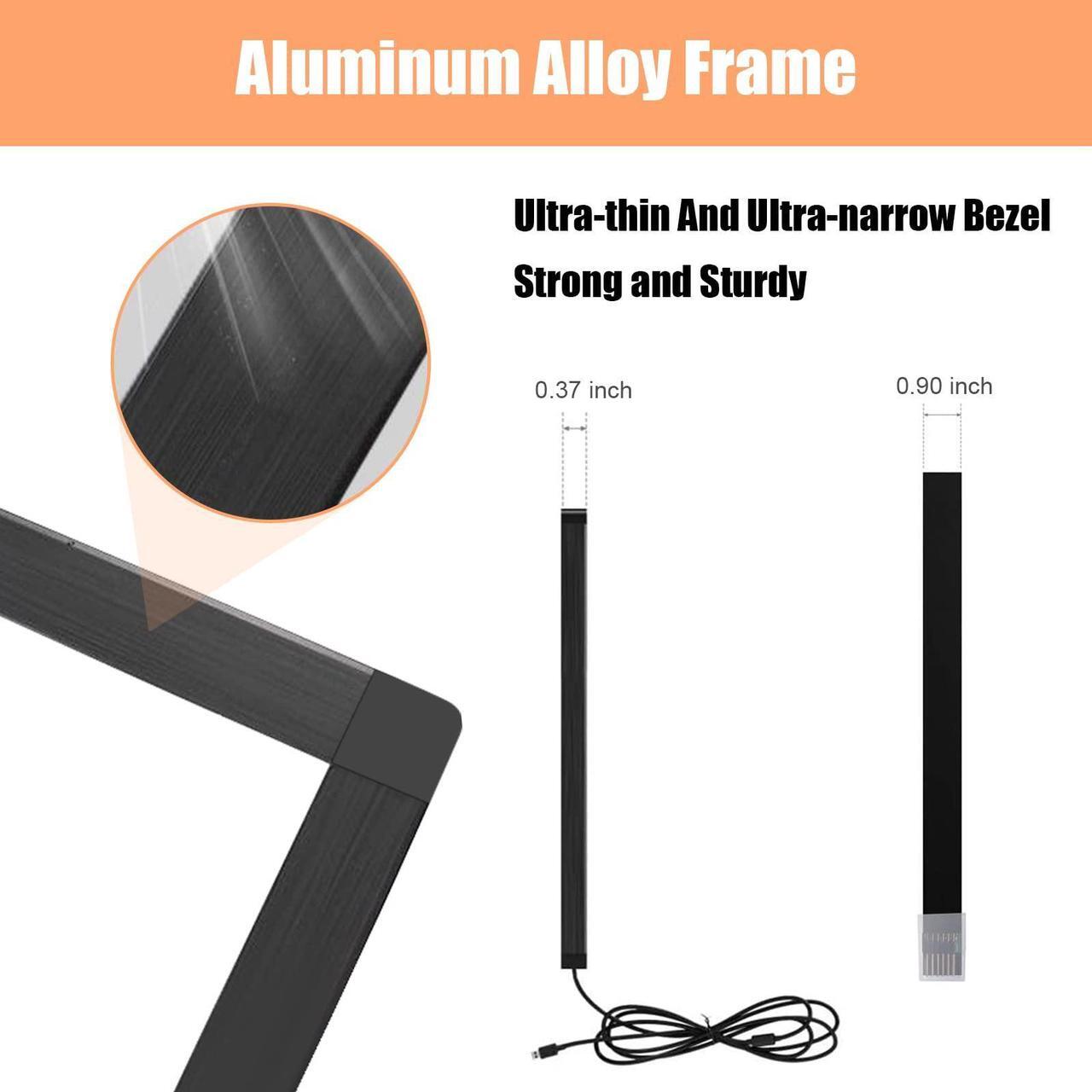

- HIGH QUALITY MATERIAL:The infrared frame adopts aluminum alloy black frame, which has a long service life.No blind spots, breakpoints, jumps, pauses other undesirable phenomena. Fast response <=10ms
- LIGHT RESISTANT DESIGN: Infrared touch frames can be applied in both internal and external linking environments and are widely used in touch screen displays, touch all-in-ones and touch whiteboards

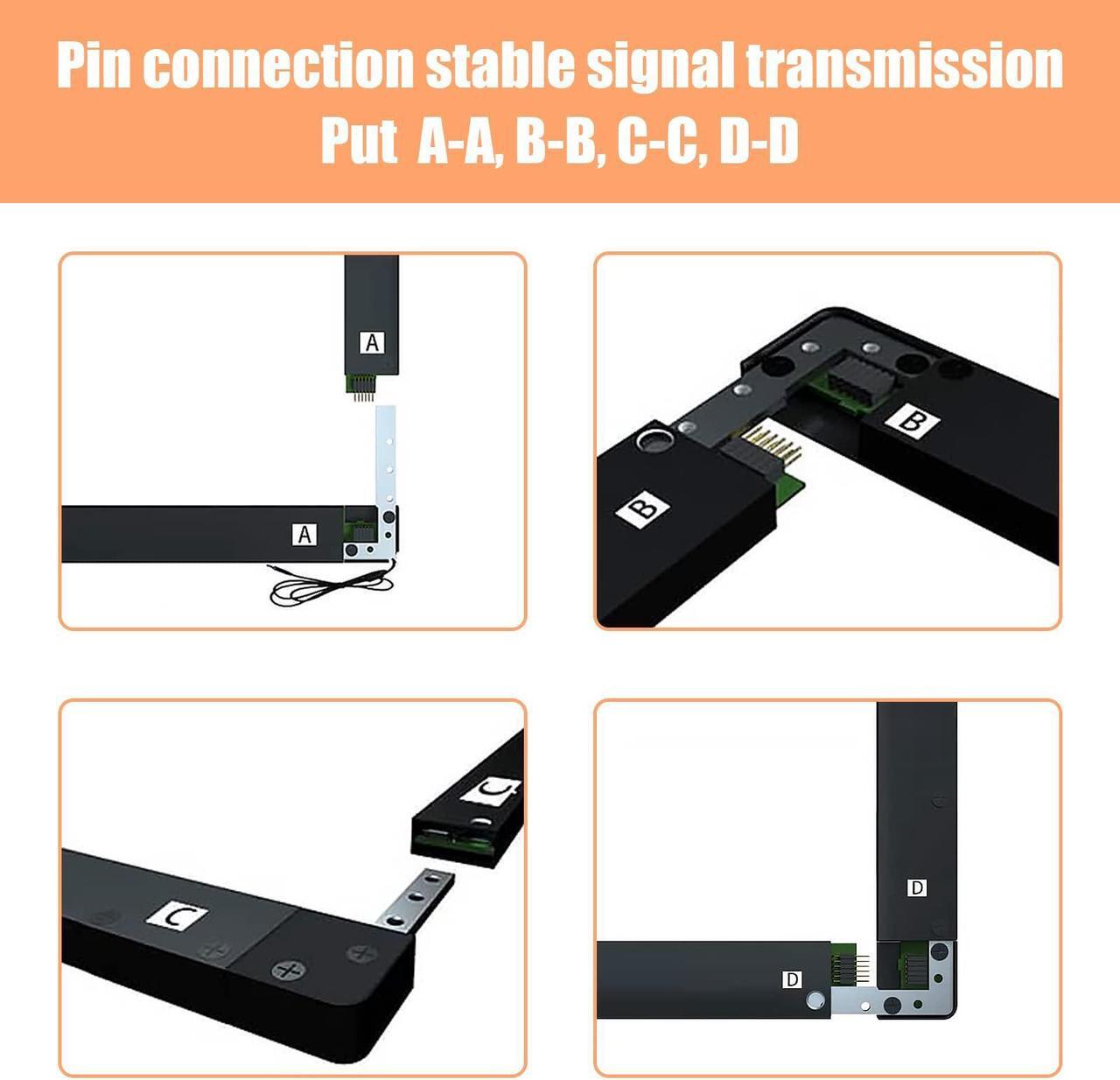

- EASY INSTALLATION: The ir touchscreen overlay is a plug-in design, making installation very simple and easy. Calibration software is available if the touch positioning is inaccurate after installation

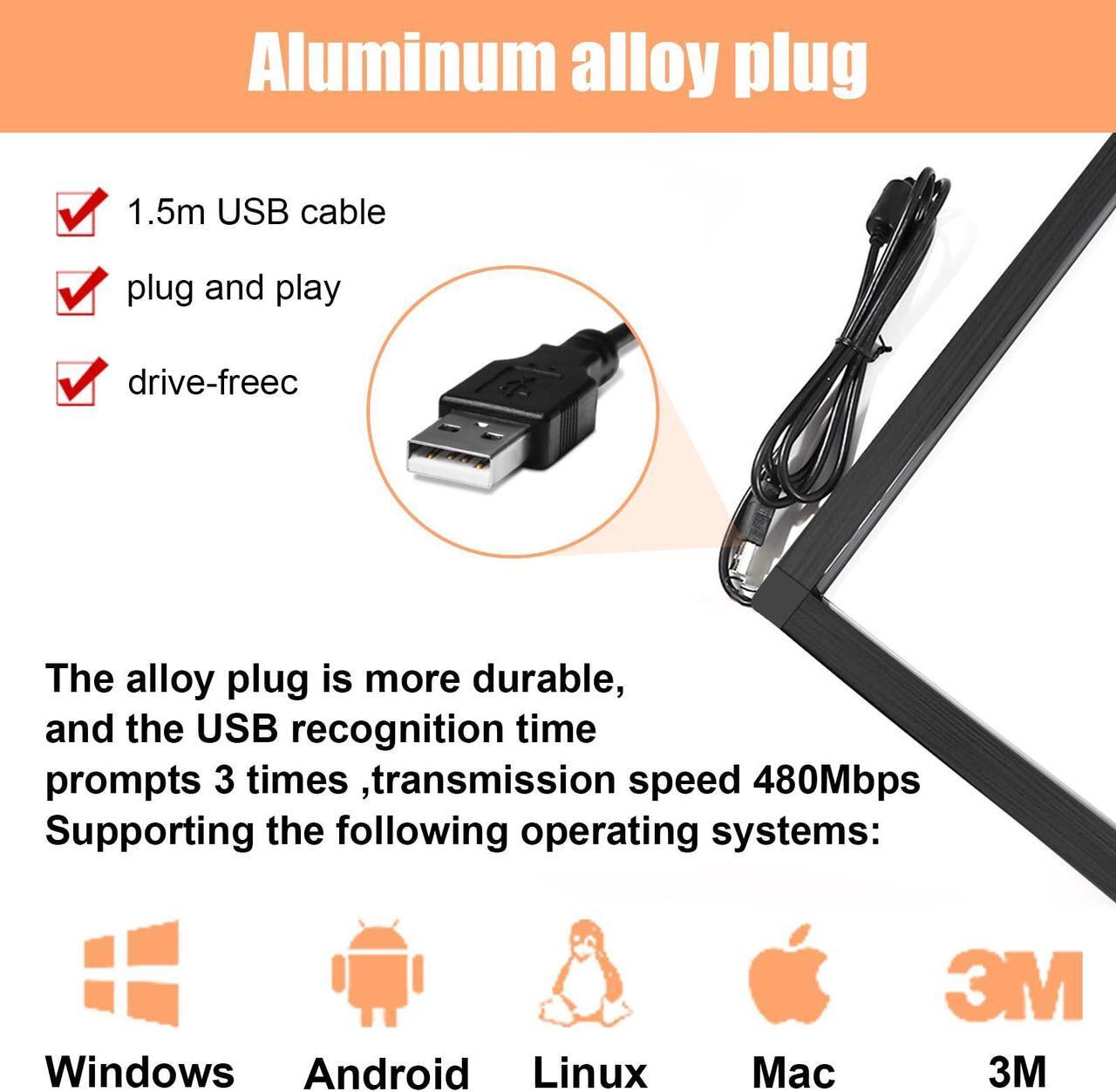

- APPLICATION RANGE: USB plug and play, intelligent automatic calibration, driver-free and maintenance-free.For Windows, Native Android, and Native Linux. The HID driver needs to be installed in Mac OS
- PACKAGING: Only touch frame (without display, without glass) warranty is 1 year. If you have any other questions, please feel free to contact us!
+
+
Overview
Specs
Reviews
SPECIFICATION Standard Size: 43 inch
Ratio: 16:9 Number of
Touch Points: 20
Minimum Touch Object: 2mm
Touch Activation Force: No minimum touch pressure required
Touch Durability: Unlimited
Durability Resolution: 32768*32768
Linearity Deviation: +-1mm Frames per
Second: Up to 450 fps
Typical Response Time: 3-10ms
Light Transmission: 100% without
glass Operating Systems: Driver free for Windows7, Windows8, Windows10, Native Linux, Native Android (Compatible with GreenTouch Android Box). Single point under Mac (Does not support Smart TV Android system, Raspberry
Pi) Protocols: HID, TUIO,
Flash Re-development Provide: free SDK, support C/C++, C#, Java etc.
Noise: No Noises
Lift Time: 7 -10 years ELECTRICAL
Power Supply: Single USB
Connection Low Power Consumption: Operating <=2W, Stand By <= 250mW
ESD: Contact Discharge 8kV, Air Discharge 15kV, 15kV on USB connector pins ENVIRONMENT
Operating Temperature: -20degC~70degC
Storage Temperature: -40degC~85degC
Operating Humidity: 10%~90%RH(Non-condensing)
Storage Humidity: 10%~90%RH
Certification: FCC, CE,
ROHS Warranty: 1 year
Note: If there is any other question, please feel free to contact us!
Ratio: 16:9 Number of
Touch Points: 20
Minimum Touch Object: 2mm
Touch Activation Force: No minimum touch pressure required
Touch Durability: Unlimited
Durability Resolution: 32768*32768
Linearity Deviation: +-1mm Frames per
Second: Up to 450 fps
Typical Response Time: 3-10ms
Light Transmission: 100% without
glass Operating Systems: Driver free for Windows7, Windows8, Windows10, Native Linux, Native Android (Compatible with GreenTouch Android Box). Single point under Mac (Does not support Smart TV Android system, Raspberry
Pi) Protocols: HID, TUIO,
Flash Re-development Provide: free SDK, support C/C++, C#, Java etc.
Noise: No Noises
Lift Time: 7 -10 years ELECTRICAL
Power Supply: Single USB
Connection Low Power Consumption: Operating <=2W, Stand By <= 250mW
ESD: Contact Discharge 8kV, Air Discharge 15kV, 15kV on USB connector pins ENVIRONMENT
Operating Temperature: -20degC~70degC
Storage Temperature: -40degC~85degC
Operating Humidity: 10%~90%RH(Non-condensing)
Storage Humidity: 10%~90%RH
Certification: FCC, CE,
ROHS Warranty: 1 year
Note: If there is any other question, please feel free to contact us!
